ASUS PRIME B860M-K M-ATX DDR5 Motherboard - LGA 1851
ASUS PRIME B860M-K micro-ATX motherboard for Intel Core Ultra (Series 2) LGA1851 with 2x DDR5 slots, PCIe 5.0 M.2, Realtek 2.5Gb Ethernet, USB 10Gbps, HDMI and DisplayPort.
Read More- Regular price
- $176.00 USD
- Sale price
- $176.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
ASUS PRIME B860M-K M-ATX DDR5 Motherboard - LGA 1851

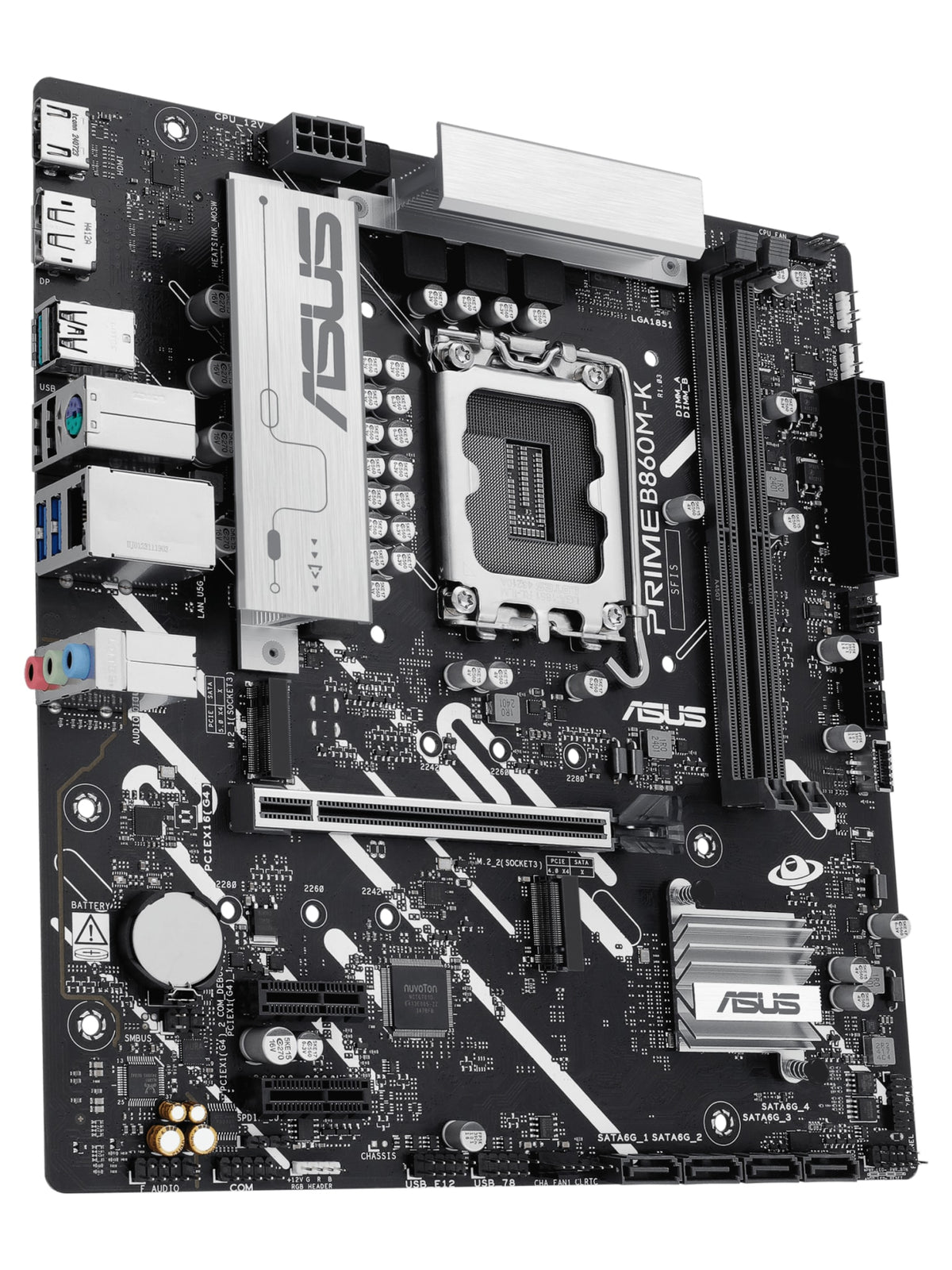

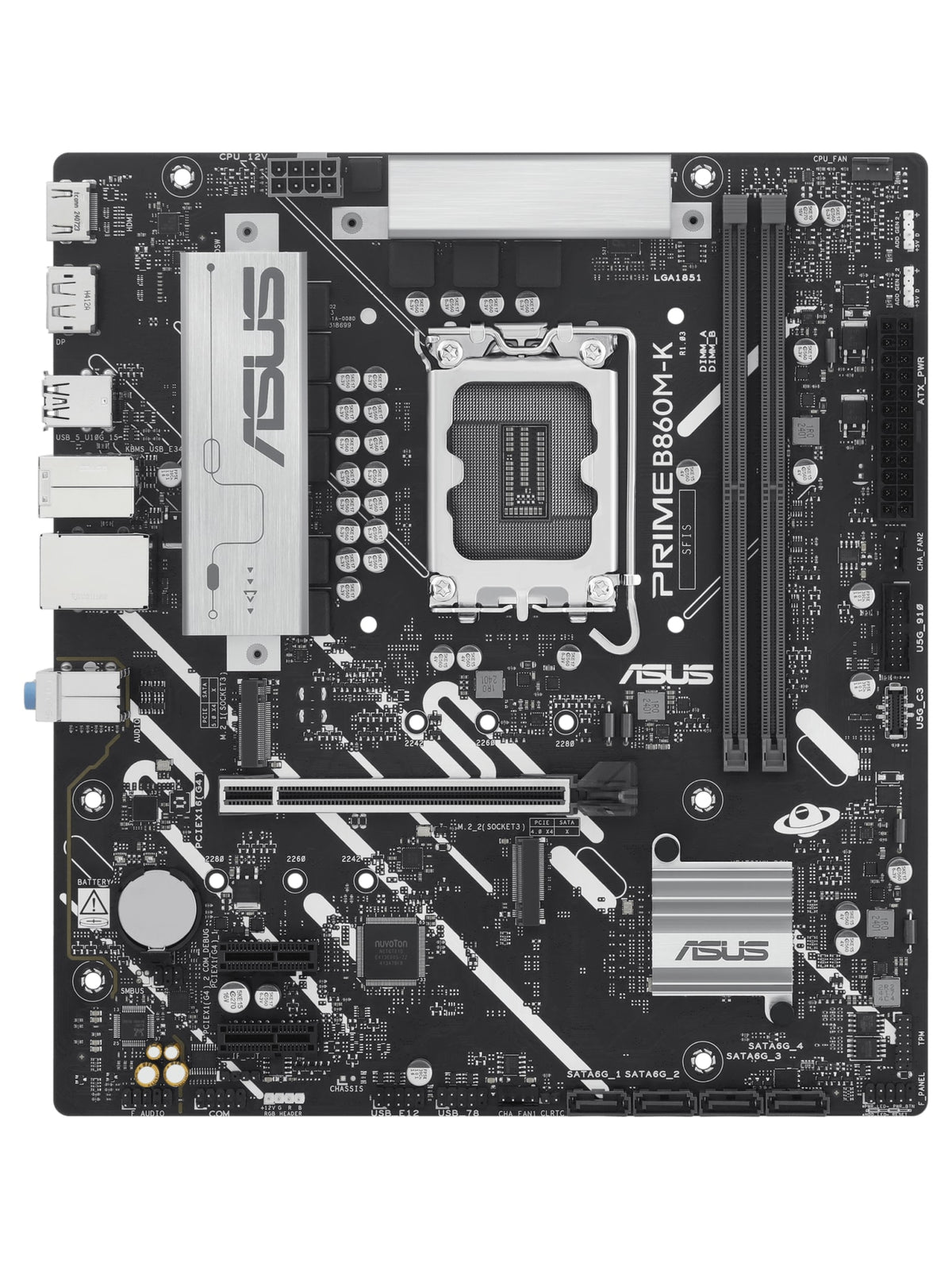

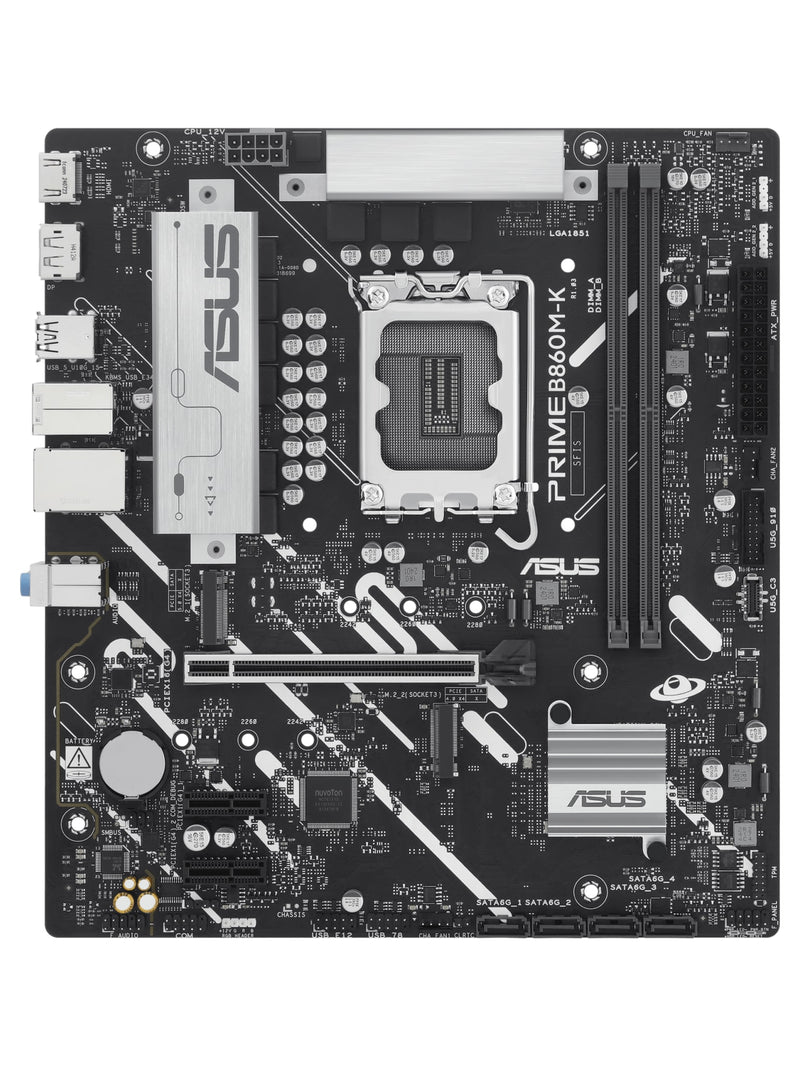

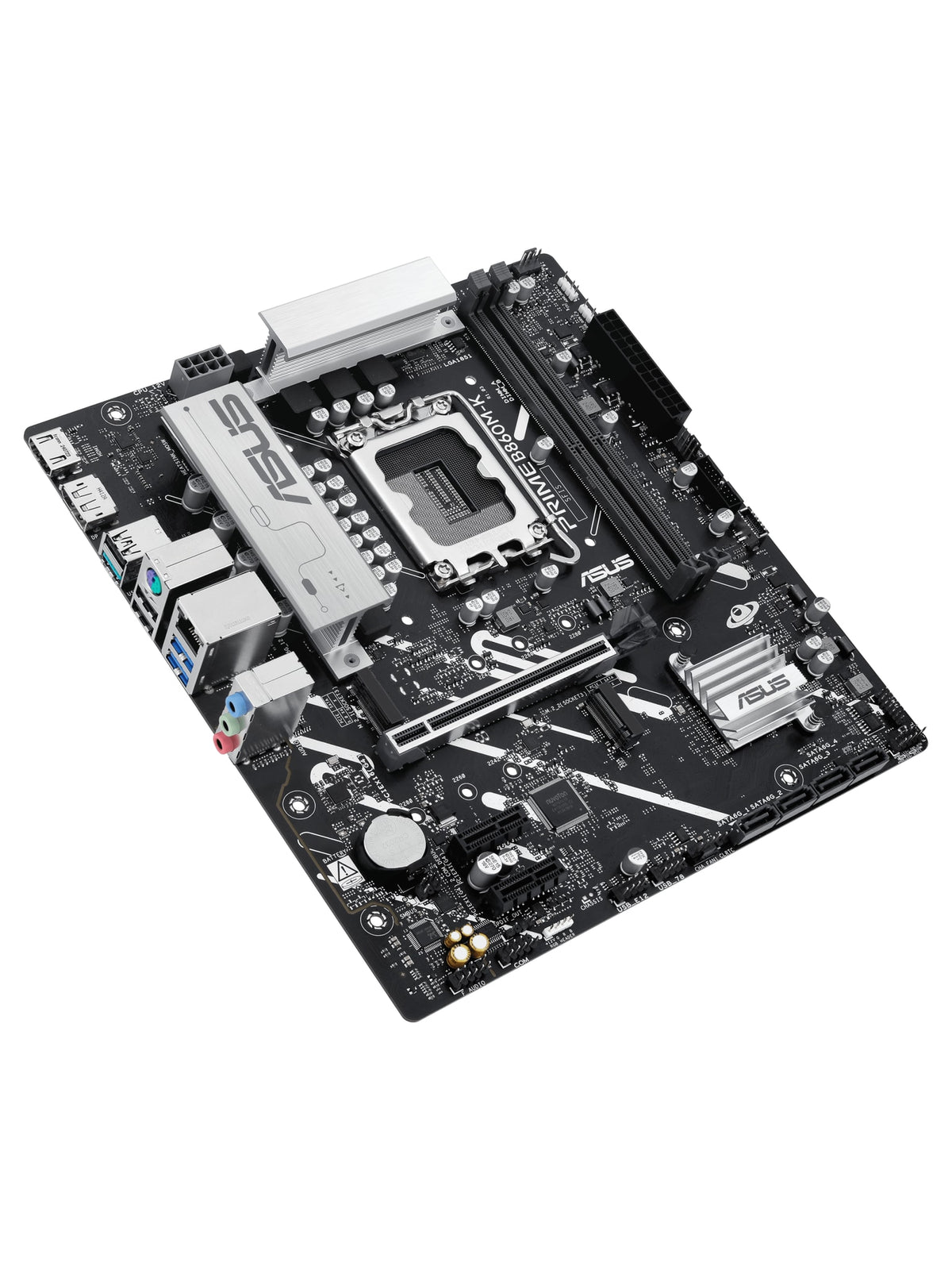

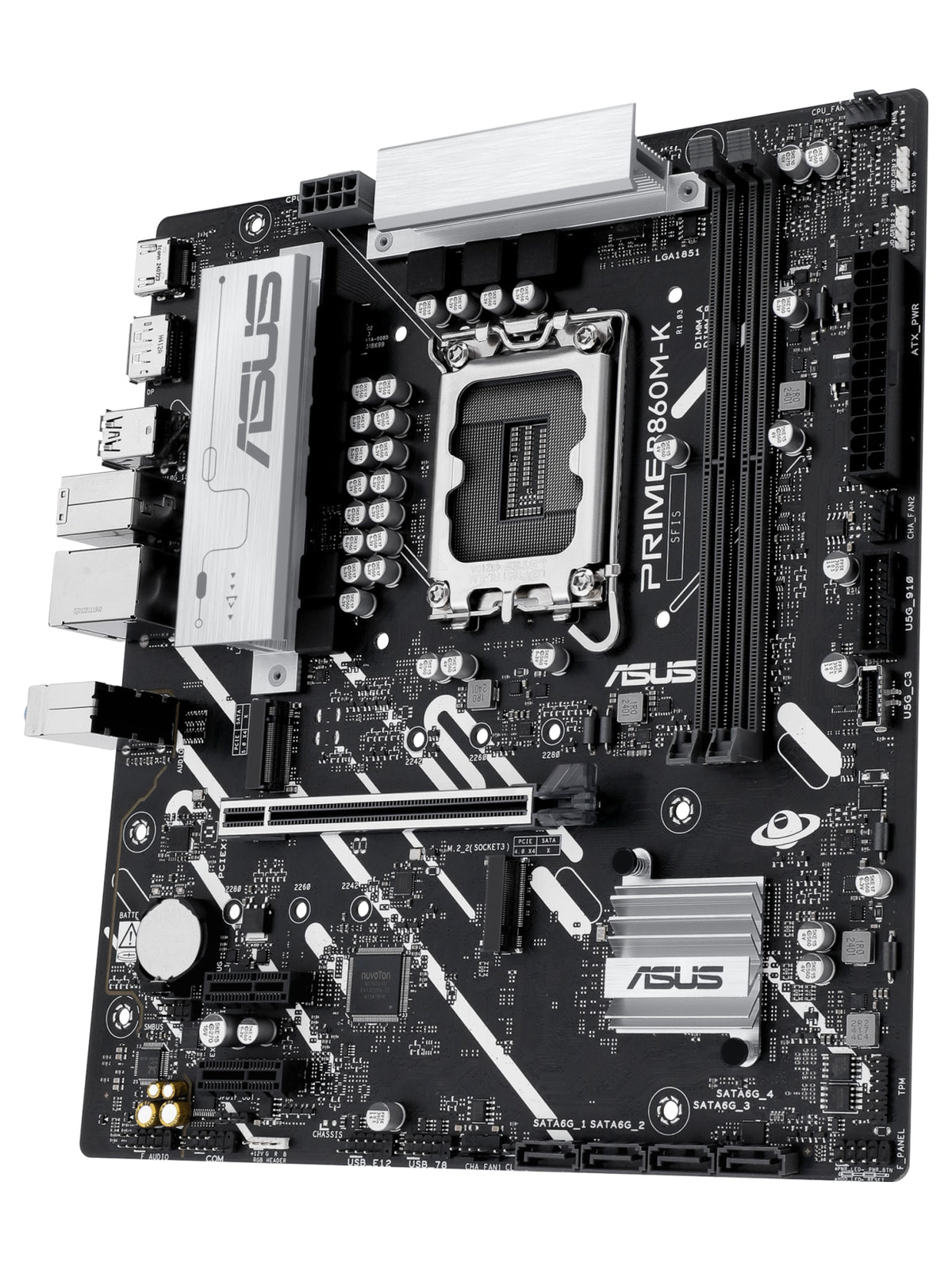

The ASUS PRIME B860M-K is a micro-ATX motherboard for Intel Core Ultra (Series 2) processors on the LGA1851 socket. It combines the Intel B860 chipset, two DDR5 slots up to 128GB, a PCIe 5.0 x4 M.2 slot plus a PCIe 4.0 M.2 slot, Realtek 2.5Gb Ethernet and HDMI/DisplayPort outputs. It suits compact office, home and entry gaming PCs.
Main Specs
- Intel B860 chipset, LGA1851 for Core Ultra (Series 2)
- 2x DDR5 DIMM, up to 128GB, up to 8800+ MT/s (OC), CUDIMM support
- 1x PCIe 4.0 x16 slot, 2x PCIe 4.0 x1 slots
- 2x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4), 4x SATA 6Gb/s
- Realtek 2.5Gb Ethernet with LANGuard
- Rear: 1x USB 10Gbps, 2x USB 5Gbps, 3x USB 2.0, HDMI, DisplayPort
- Front USB-C 5Gbps header, Aura RGB and ARGB Gen2 headers
- Realtek 7.1 HD audio
- micro-ATX, 24.4 x 22.2 cm
- Ideal for compact office, home and entry gaming builds
Main Characteristics
Brand
ASUS
Model
PRIME B860M-K
Product Type
Motherboard
Socket
LGA1851
CPU Support
Intel Core Ultra Processors (Series 2)
Chipset
Intel B860
Memory
2x DDR5 DIMM, max 128GB, up to 8800+ MT/s (OC), non-ECC unbuffered, CUDIMM support, dual channel
Expansion Slots
1x PCIe 4.0 x16, 2x PCIe 4.0 x1
Storage
2x M.2 (M.2_1 PCIe 5.0 x4, M.2_2 PCIe 4.0 x4), 4x SATA 6Gb/s
RAID
SATA RAID 0/1/5/10
Ethernet
Realtek 2.5Gb Ethernet
Wireless
None
Graphics Outputs
1x DisplayPort, 1x HDMI
Rear USB
1x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 3x USB 2.0
Front USB
1x USB 5Gbps Type-C connector, 1x USB 5Gbps header, 2x USB 2.0 headers
Audio
Realtek 7.1 Surround HD Audio CODEC

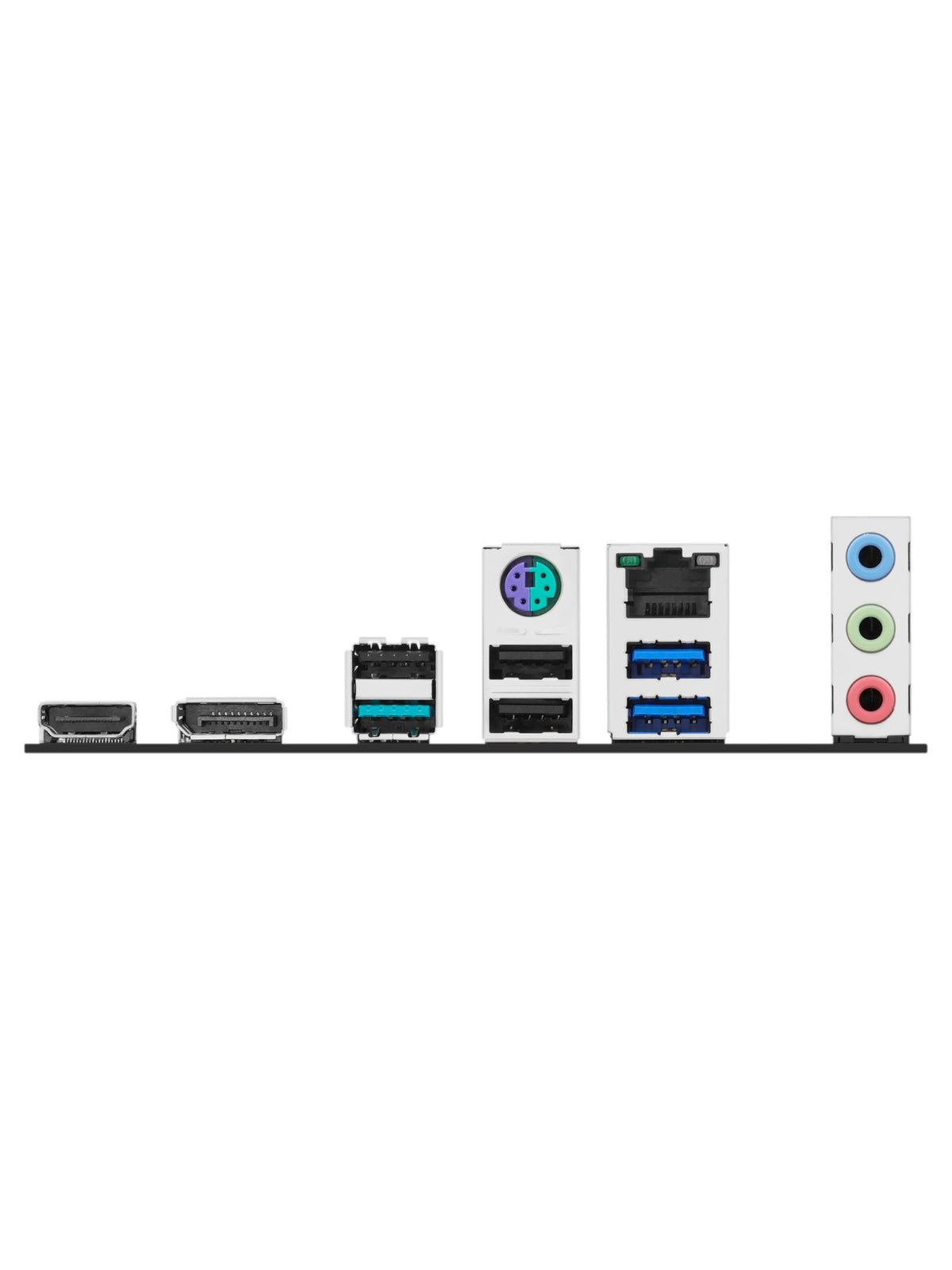

Back Panel I/O
USB, DisplayPort, HDMI, 2.5Gb LAN, 3x audio jacks, PS/2 combo port
Fan Headers
1x CPU fan, 2x chassis fan
Power Connectors
24-pin ATX, 8-pin CPU
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Operating System
Windows 11, Windows 10 64-bit
Form Factor
micro-ATX, 24.4 x 22.2 cm (9.6 x 8.75 in)
