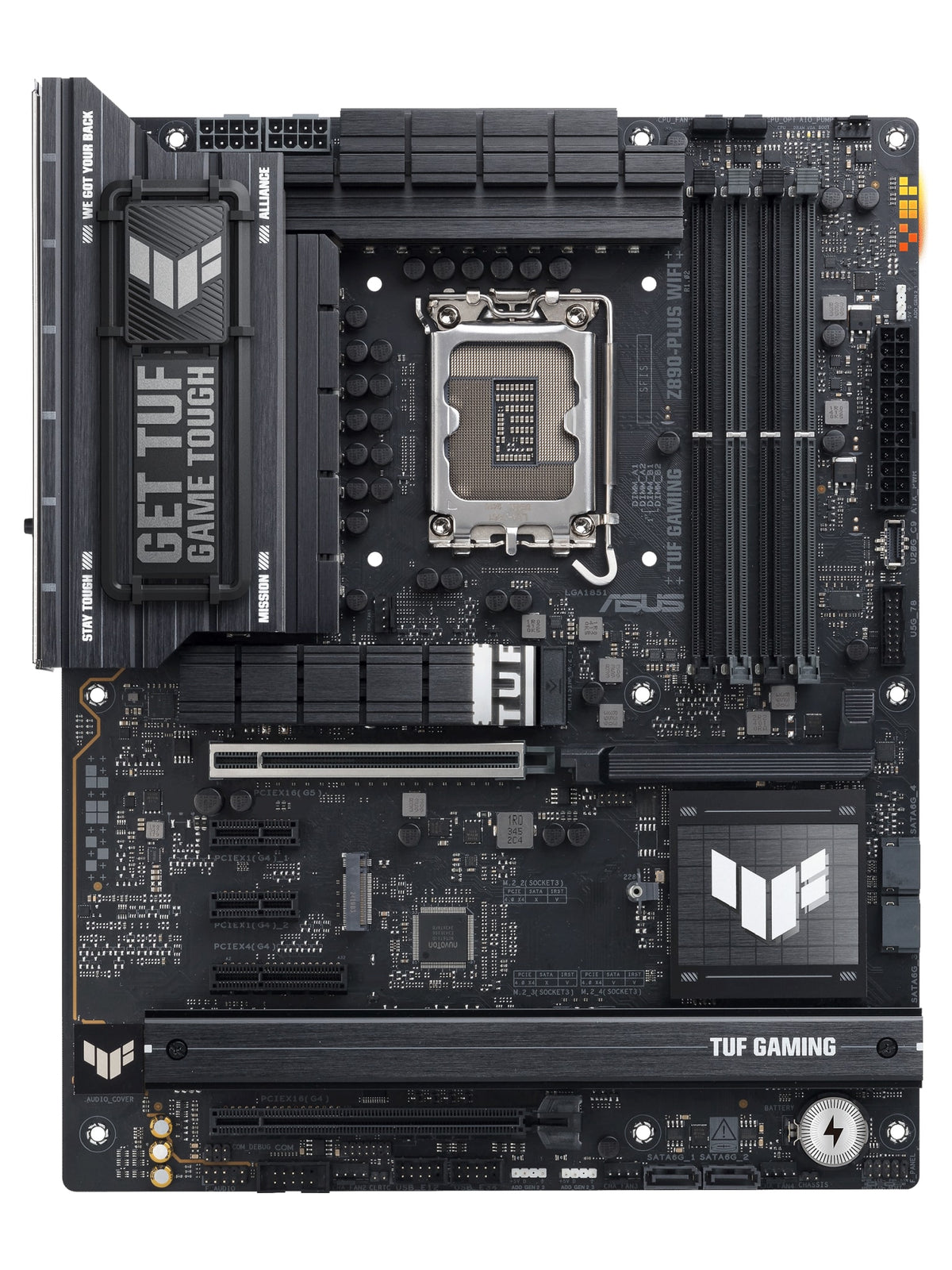

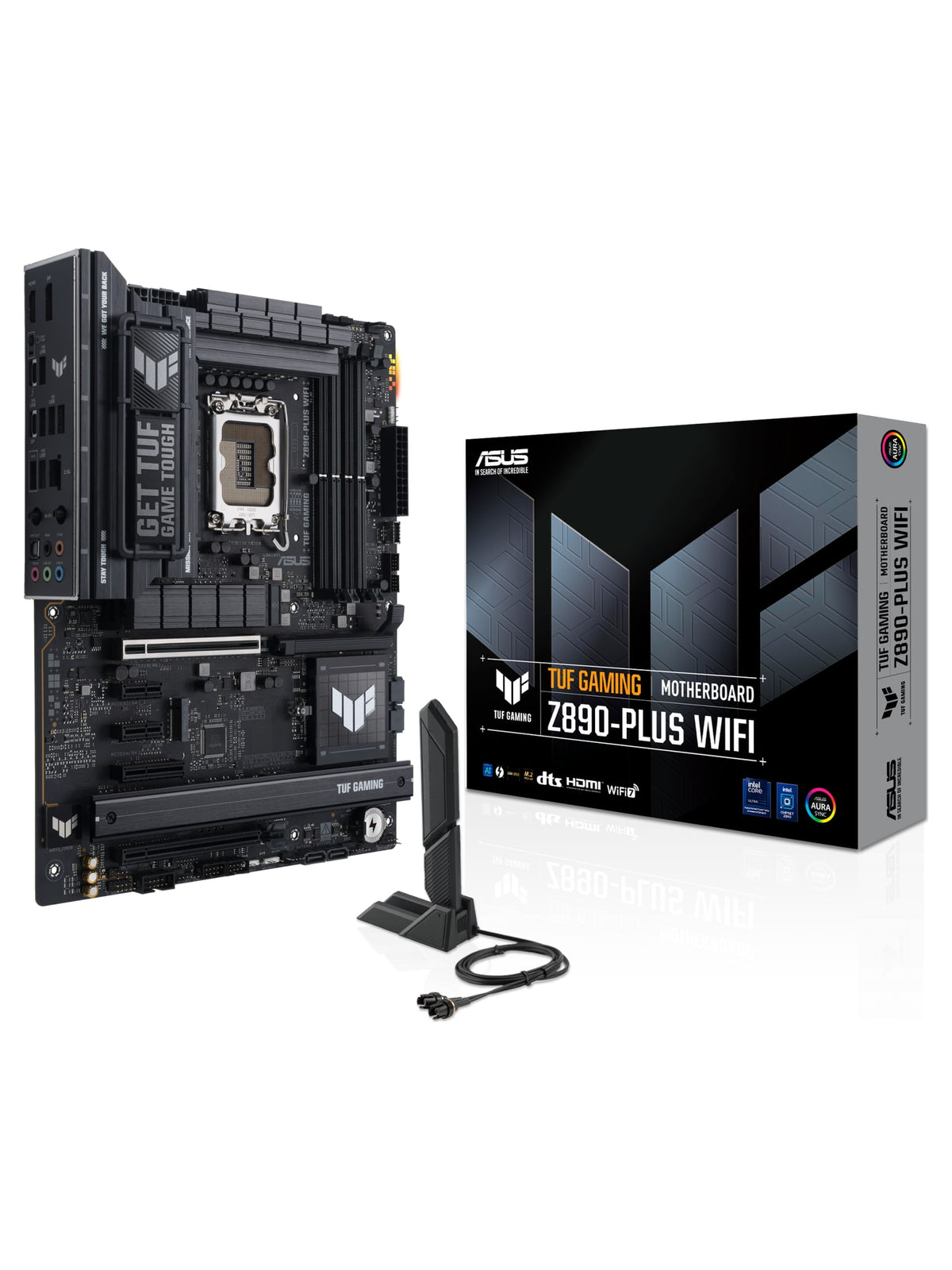

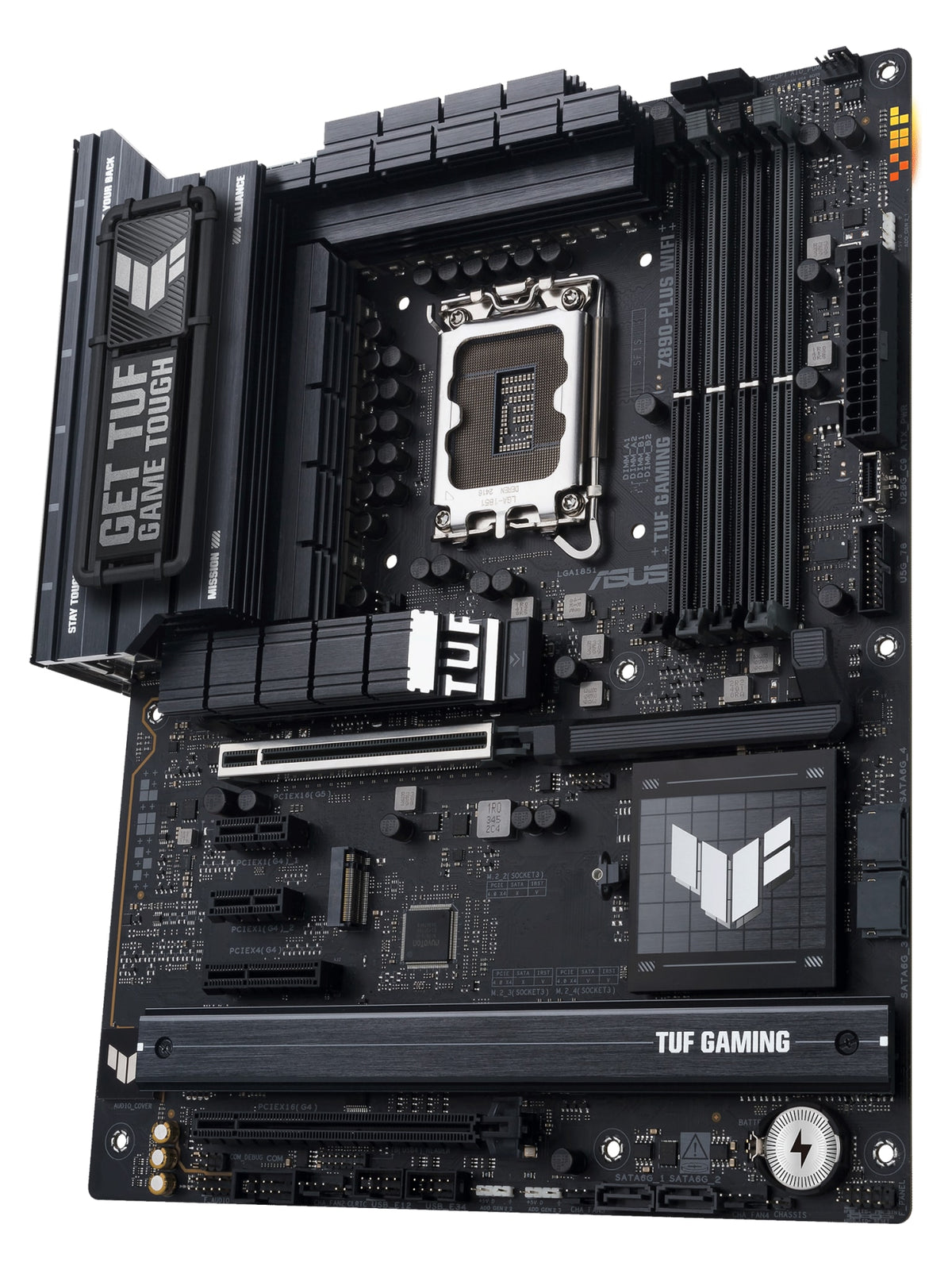

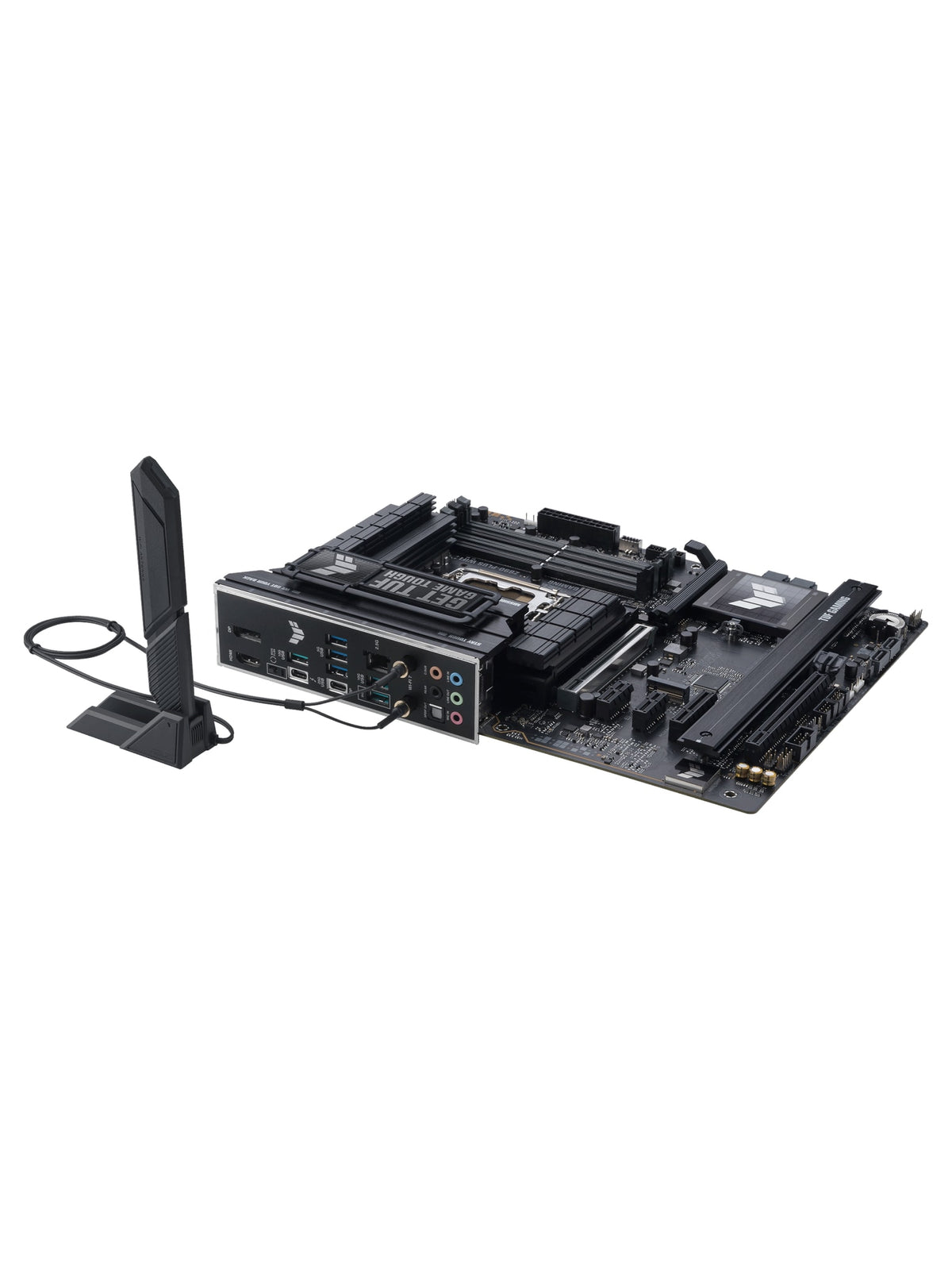

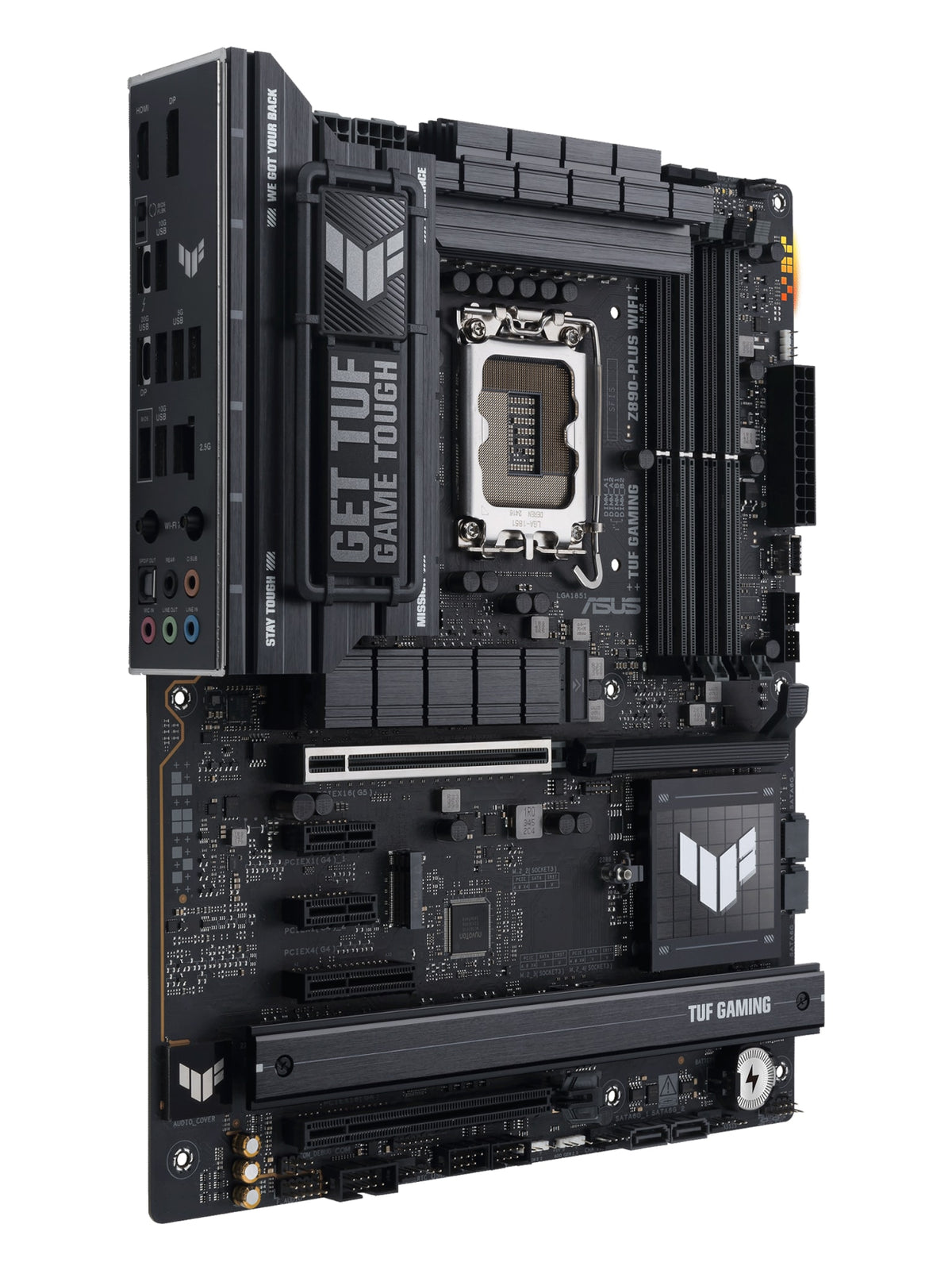

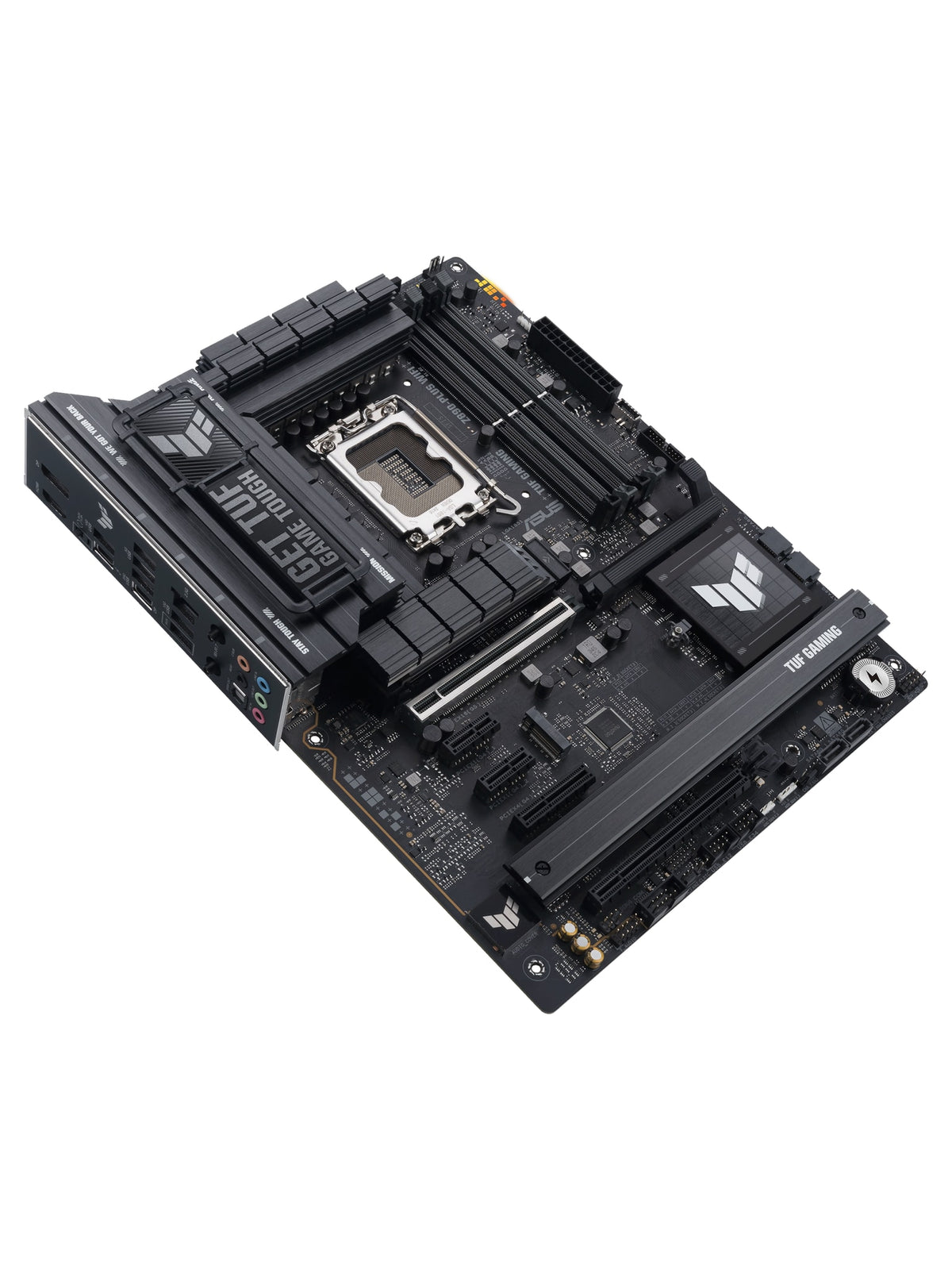

ASUS TUF GAMING Z890-PLUS WIFI ATX DDR5 Motherboard - LGA 1851
ASUS TUF GAMING Z890-PLUS WIFI ATX motherboard for Intel Core Ultra (Series 2) LGA1851 with 4x DDR5, PCIe 5.0 x16, 4x M.2, Thunderbolt 4, Wi-Fi 7 and Intel 2.5Gb Ethernet.
Read More- Regular price
- $352.00 USD
- Sale price
- $352.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
ASUS TUF GAMING Z890-PLUS WIFI ATX DDR5 Motherboard - LGA 1851
The ASUS TUF GAMING Z890-PLUS WIFI is an ATX motherboard for Intel Core Ultra (Series 2) processors on the LGA1851 socket. It combines the Intel Z890 chipset, four DDR5 slots up to 256GB, a PCIe 5.0 x16 slot, four M.2 slots, Thunderbolt 4 and USB 20Gbps Type-C, Wi-Fi 7 and Intel 2.5Gb Ethernet. It suits gaming and enthusiast builds that want durable TUF components and plenty of fast storage.
Main Specs
- Intel Z890 chipset, LGA1851 for Core Ultra (Series 2)
- 4x DDR5 DIMM, up to 256GB, up to 9066+ MT/s (OC), CUDIMM support
- 1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4), 1x PCIe 4.0 x4, 2x PCIe 4.0 x1
- 4x M.2 (1x PCIe 5.0 x4, 3x PCIe 4.0 x4) with heatsinks, 4x SATA
- Wi-Fi 7 (2x2, up to 2.9Gbps) and Bluetooth 5.4
- Intel 2.5Gb Ethernet with TUF LANGuard
- Rear Thunderbolt 4 and USB 20Gbps Type-C, 3x USB 10Gbps, 3x USB 5Gbps
- Realtek ALC1220P 7.1 audio with optical S/PDIF
- BIOS FlashBack, Q-Release and Q-Latch, ATX 30.5 x 24.4 cm
- Ideal for gaming and enthusiast PCs with Core Ultra processors
Main Characteristics
Brand
ASUS
Model
TUF GAMING Z890-PLUS WIFI
Product Type
Motherboard
Socket
LGA1851
CPU Support
Intel Core Ultra Processors (Series 2)
Chipset
Intel Z890
Memory
4x DDR5 DIMM, max 256GB, up to 9066+ MT/s (OC), non-ECC unbuffered, CUDIMM support, dual channel
Expansion Slots
1x PCIe 5.0 x16, 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 4.0 x4, 2x PCIe 4.0 x1
Storage
4x M.2 (M.2_1 PCIe 5.0 x4; M.2_2, M.2_3, M.2_4 PCIe 4.0 x4), 4x SATA 6Gb/s
Ethernet
Intel 2.5Gb Ethernet
Wireless
Wi-Fi 7 (802.11be) 2x2, 2.4/5/6GHz, 160MHz, up to 2.9Gbps
Bluetooth
5.4
Graphics Outputs
1x DisplayPort, 1x HDMI, Thunderbolt 4 and USB 20Gbps Type-C video
Rear USB

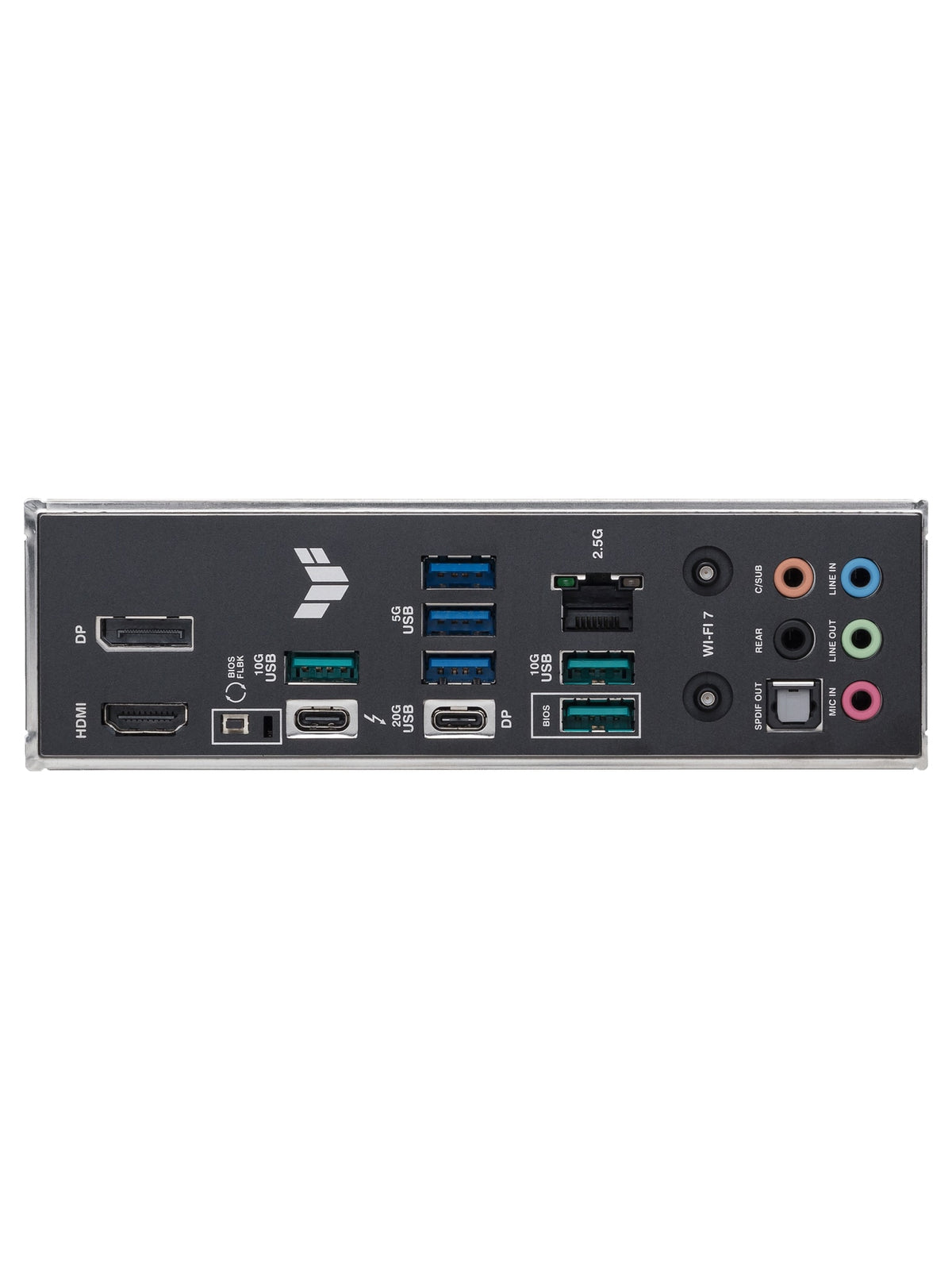

1x Thunderbolt 4 Type-C, 1x USB 20Gbps Type-C, 3x USB 10Gbps Type-A, 3x USB 5Gbps Type-A
Front USB
1x USB 20Gbps Type-C connector, 1x USB 5Gbps header, 2x USB 2.0 headers
Audio
Realtek ALC1220P 7.1 Surround HD Audio CODEC, optical S/PDIF out
Fan Headers
1x CPU, 1x CPU OPT, 1x AIO pump, 4x chassis
Power Connectors
24-pin ATX, 2x 8-pin CPU
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Operating System
Windows 11 (22H2 and later)
Form Factor
ATX, 30.5 x 24.4 cm (12 x 9.6 in)
