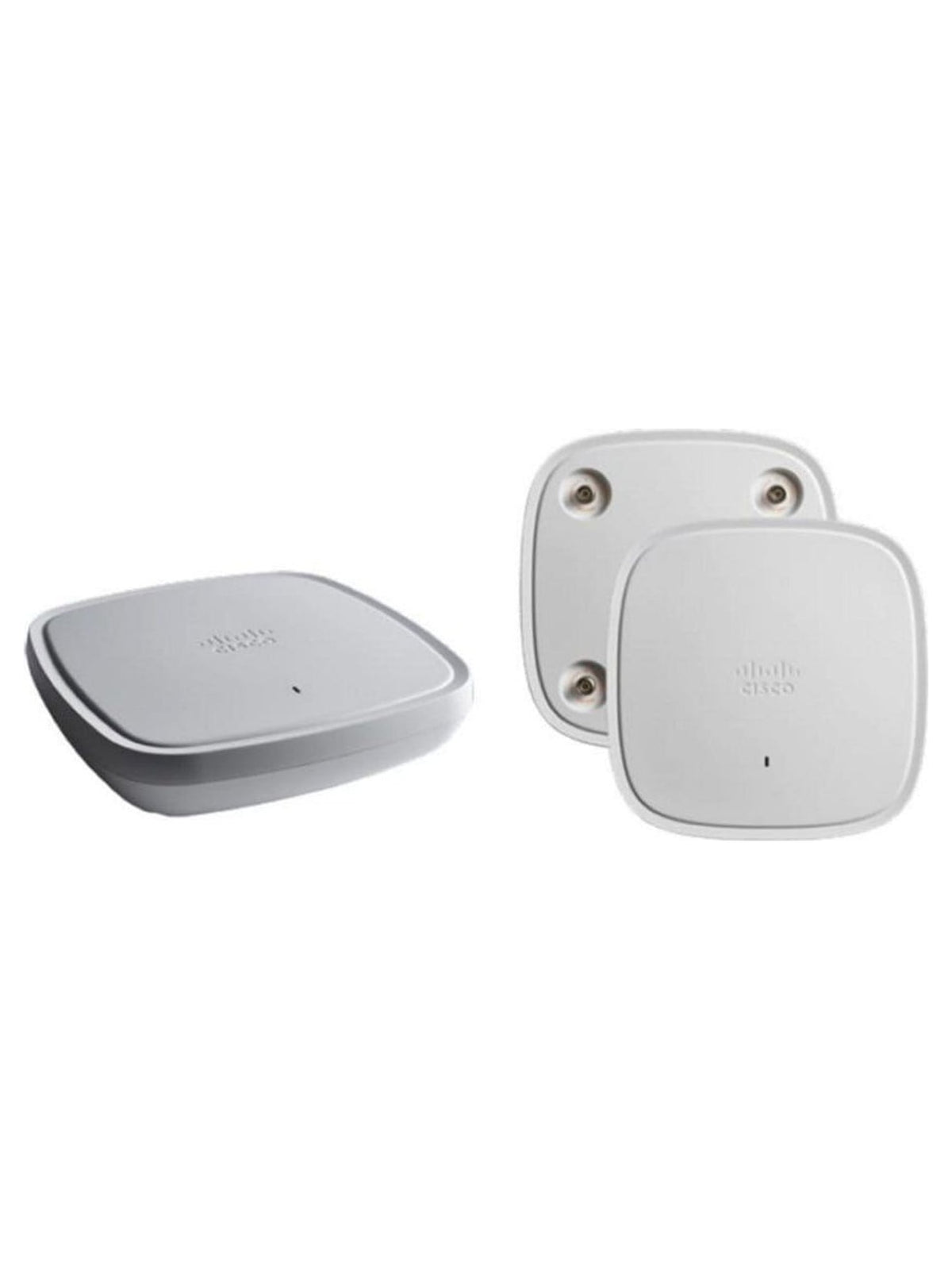

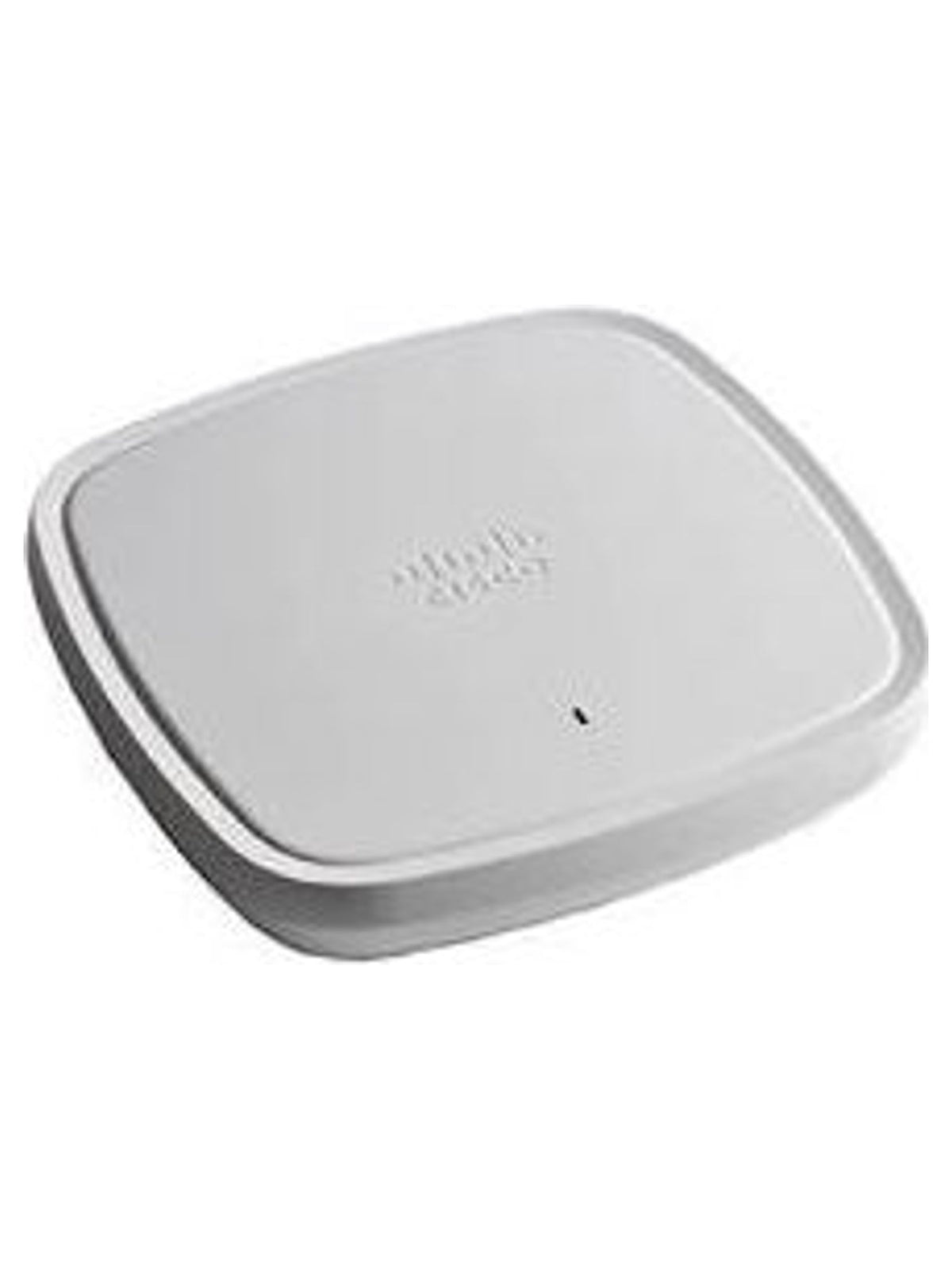

Cisco Catalyst 9120AXI Wi-Fi 6 Access Point (C9120AXI-E) - 4x4:4, 2.5G mGig, Internal Antennas
Cisco Catalyst 9120AX indoor Wi-Fi 6 access point with 4x4:4 radios on 2.4 and 5 GHz, up to 5.38 Gbps, 2.5G multigigabit uplink, BLE 5, internal antennas, PoE+.
Read MoreSpecs
Brand
Cisco
Model
Catalyst 9120AXI (C9120AXI-E)
Product Type
Indoor Wi-Fi 6 access point
Wi-Fi Standard
802.11ax (Wi-Fi 6), 802.11ac/n/a/b/g
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Cisco Catalyst 9120AXI Wi-Fi 6 Access Point (C9120AXI-E) - 4x4:4, 2.5G mGig, Internal Antennas
The Cisco Catalyst 9120AXI is an indoor 802.11ax (Wi-Fi 6) access point with internal antennas, managed by Cisco Catalyst 9800 wireless controllers or the embedded controller. It combines 4x4 radios with four spatial streams on 2.4 GHz and 5 GHz, OFDMA and MU-MIMO, a Cisco RF ASIC, a BLE 5 radio and a 2.5 Gbps multigigabit uplink. It suits busy offices, schools and hotels that need fast, dense Wi-Fi 6 coverage.
Main Specs
- 802.11ax Wi-Fi 6, up to 5.38 Gbps PHY rate
- 4x4:4 on 2.4 GHz and 4x4:4 on 5 GHz
- Uplink and downlink OFDMA, 4x4 downlink MU-MIMO
- Cisco RF ASIC for CleanAir, wIPS and DFS detection
- 1x multigigabit RJ-45: 100M/1G/2.5G
- Integrated BLE 5 radio, USB 2.0 port
- Full 4x4 on 802.3at PoE+ (25.5 W)
- Internal antennas: 4 dBi (2.4 GHz), 5 dBi (5 GHz)
- 216 x 216 x 43 mm, 1.3 kg, limited lifetime warranty
- Ideal for offices and campuses that need dense, fast Wi-Fi 6 on Cisco controllers
Main Characteristics
Brand
Cisco
Model
Catalyst 9120AXI (C9120AXI-E)
Product Type
Indoor Wi-Fi 6 access point
Wi-Fi Standard
802.11ax (Wi-Fi 6), 802.11ac/n/a/b/g
Radios
2.4 GHz 4x4:4, 5 GHz 4x4:4
Maximum Data Rate
Up to 5.38 Gbps PHY
MU-MIMO / OFDMA
4x4 downlink MU-MIMO, uplink and downlink OFDMA
RF ASIC
Cisco RF ASIC (CleanAir, wIPS, DFS detection)
Bluetooth
BLE 5
Uplink
1x 100M/1G/2.5G multigigabit RJ-45 (802.3bz)
USB
USB 2.0, 4.5 W
Power
802.3at PoE+ (25.5 W max) for full operation; 802.3af with reduced radios
Antennas
Internal, 4 dBi peak at 2.4 GHz, 5 dBi peak at 5 GHz
Management
Cisco Catalyst 9800 wireless controllers, Cisco 3504/5520/8540, virtual WLC
Regulatory Domain
-E
Operating Temperature
0 to 50 Β°C
Dimensions
216 x 216 x 43 mm
Weight
1.3 kg
Warranty
Limited lifetime hardware warranty
