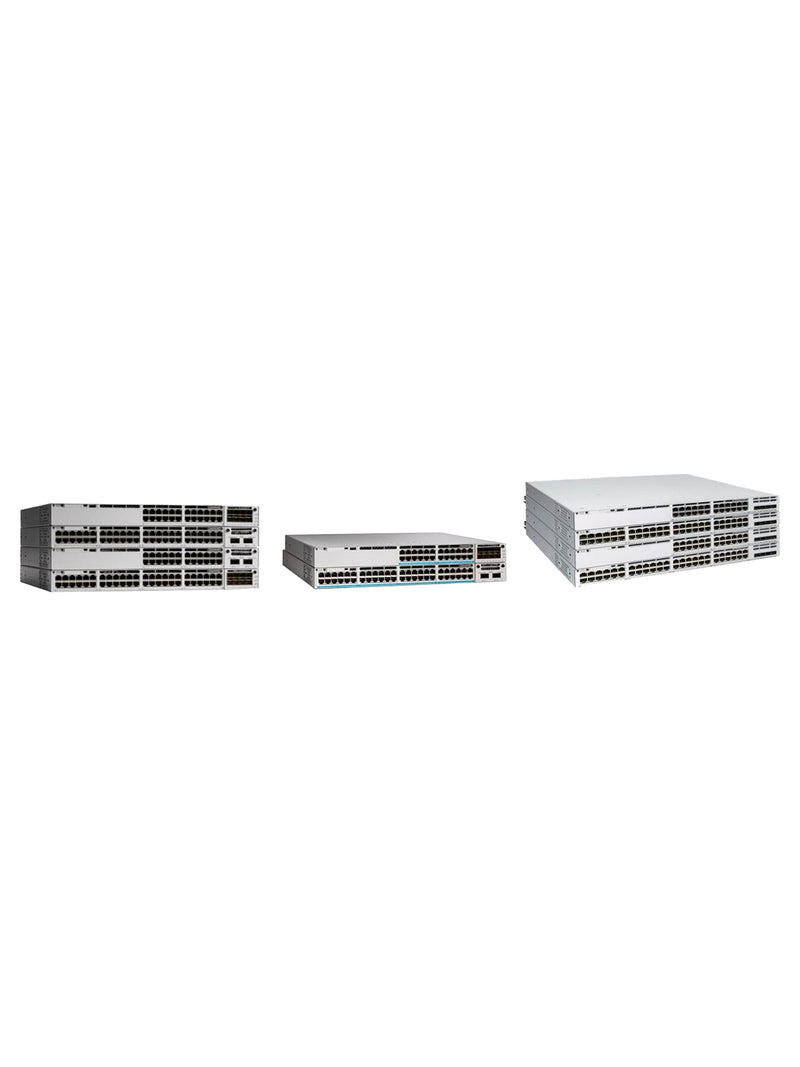

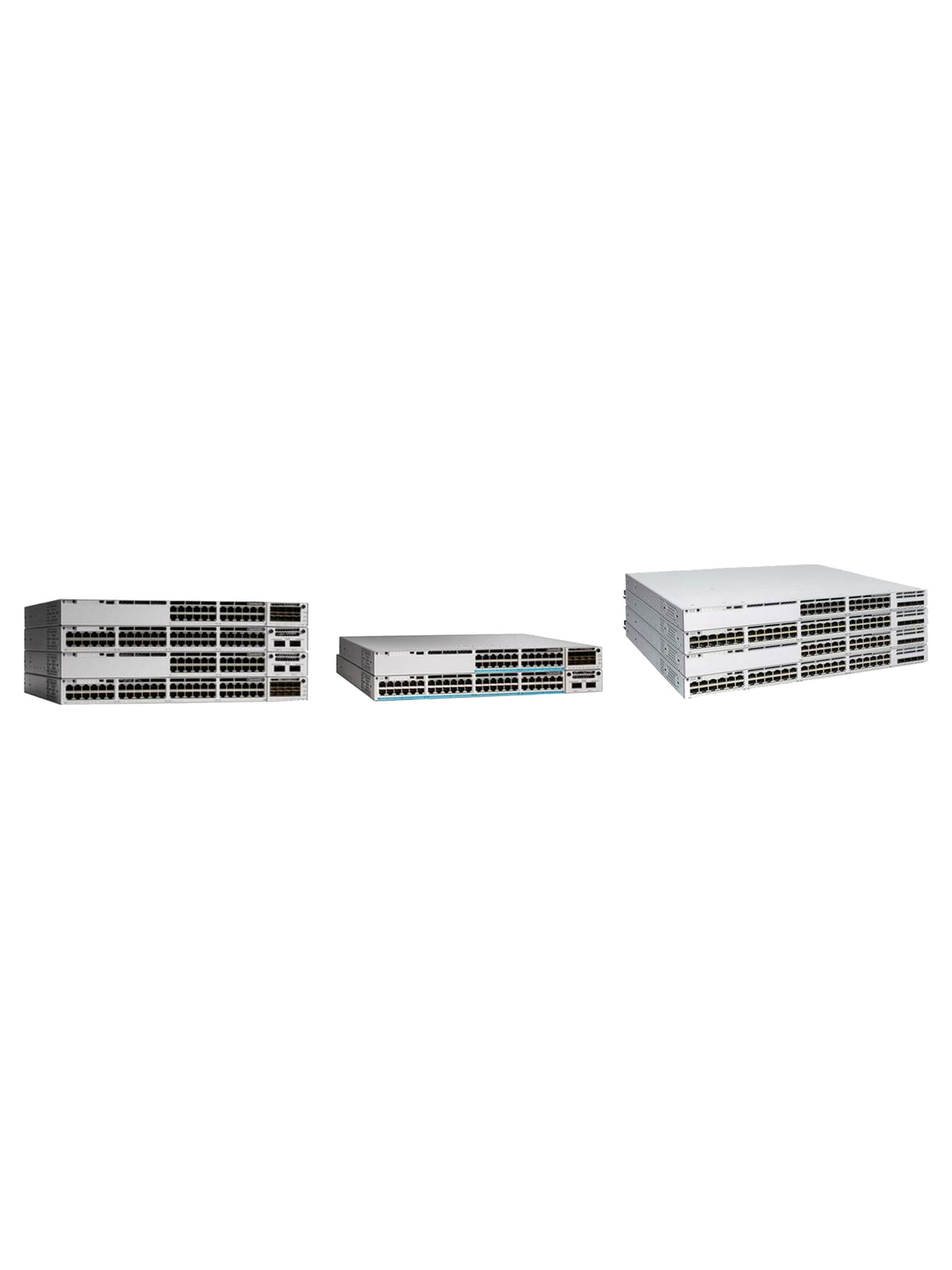

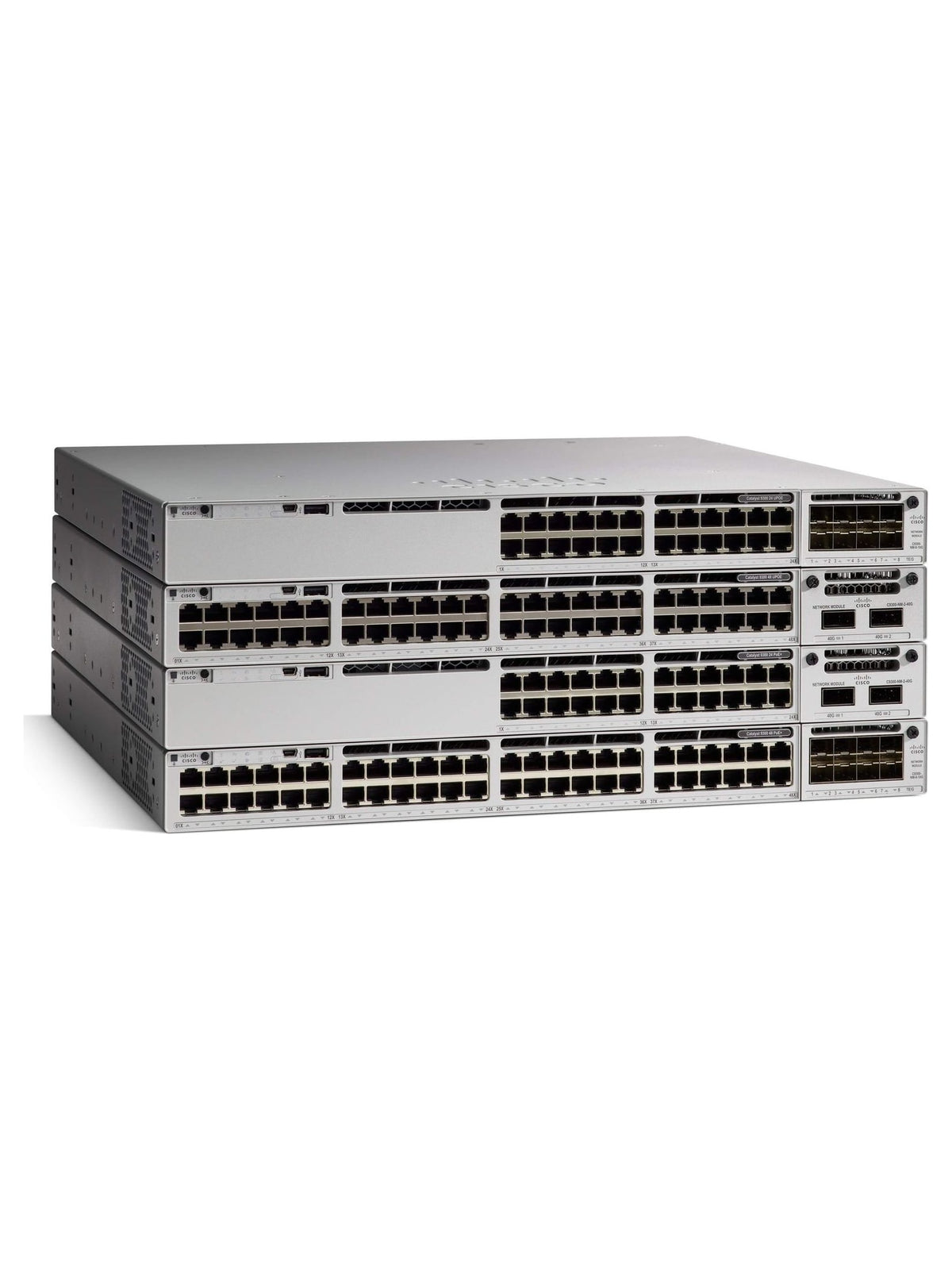

Cisco Catalyst 9300 48-Port PoE+ Switch (C9300-48P) - 437W PoE, Modular Uplinks, StackWise-480
Cisco Catalyst 9300 stackable switch with 48x Gigabit PoE+ ports, 437W PoE with the included 715W PSU, modular uplink slot, StackWise-480 and StackPower; Network Essentials or Advantage.
Read MoreSpecs
Brand
Cisco
Model
Catalyst 9300-48P (C9300-48P-A / C9300-48P-E)
Product Type
Managed stackable PoE+ access switch
Ports
48x 10/100/1000 RJ45 PoE+
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Cisco Catalyst 9300 48-Port PoE+ Switch (C9300-48P) - 437W PoE, Modular Uplinks, StackWise-480
The Cisco Catalyst 9300-48P is a stackable enterprise access switch with 48 Gigabit PoE+ ports, offered with a Network Essentials (-E) or Network Advantage (-A) license. It combines 256 Gbps of switching, 437W of PoE from the included 715W power supply, a slot for an optional uplink network module, StackWise-480 stacking and StackPower. It suits enterprise wiring closets that power phones, cameras and Wi-Fi 6 access points.
Main Specs
- 48x 10/100/1000 PoE+ ports
- 437W PoE with the default PWR-C1-715WAC-P supply (more with a second PSU)
- Modular uplinks: network module slot (modules sold separately)
- Switching 256 Gbps (736 Gbps stacked), 190.47 Mpps
- StackWise-480 stacking and StackPower
- 8 GB DRAM, 16 GB flash, 32,000 MAC addresses
- Network Essentials (-E) or Network Advantage (-A) license
- Cisco DNA / Catalyst subscription is chosen when ordering (separate)
- 1RU, 7.59 kg with the default power supply
- Ideal for enterprise access layers that need high-power PoE+ and stacking
Available Options
- Network Advantage
- Network Essentials
Main Characteristics
Brand
Cisco
Model
Catalyst 9300-48P (C9300-48P-A / C9300-48P-E)
Product Type
Managed stackable PoE+ access switch
Ports
48x 10/100/1000 RJ45 PoE+
Uplinks
Modular network module slot (optional modules)
License
Network Advantage (C9300-48P-A) or Network Essentials (C9300-48P-E)
Default Power Supply
PWR-C1-715WAC-P (715 W AC)
Available PoE
437 W with the default supply; 787 W with a second 715 W supply
Switching Capacity
256 Gbps (736 Gbps with stacking)
Forwarding Rate
190.47 Mpps (547.62 Mpps with stacking)
Stacking
StackWise-480 (480 Gbps), StackPower
DRAM
8 GB
Flash
16 GB
MAC Table
32,000
VLANs
4094
MTBF
277,770 hours
Dimensions
4.4 x 44.5 x 44.9 cm with default PSU
Weight
7.59 kg with default PSU
Form Factor
1RU rack mount
