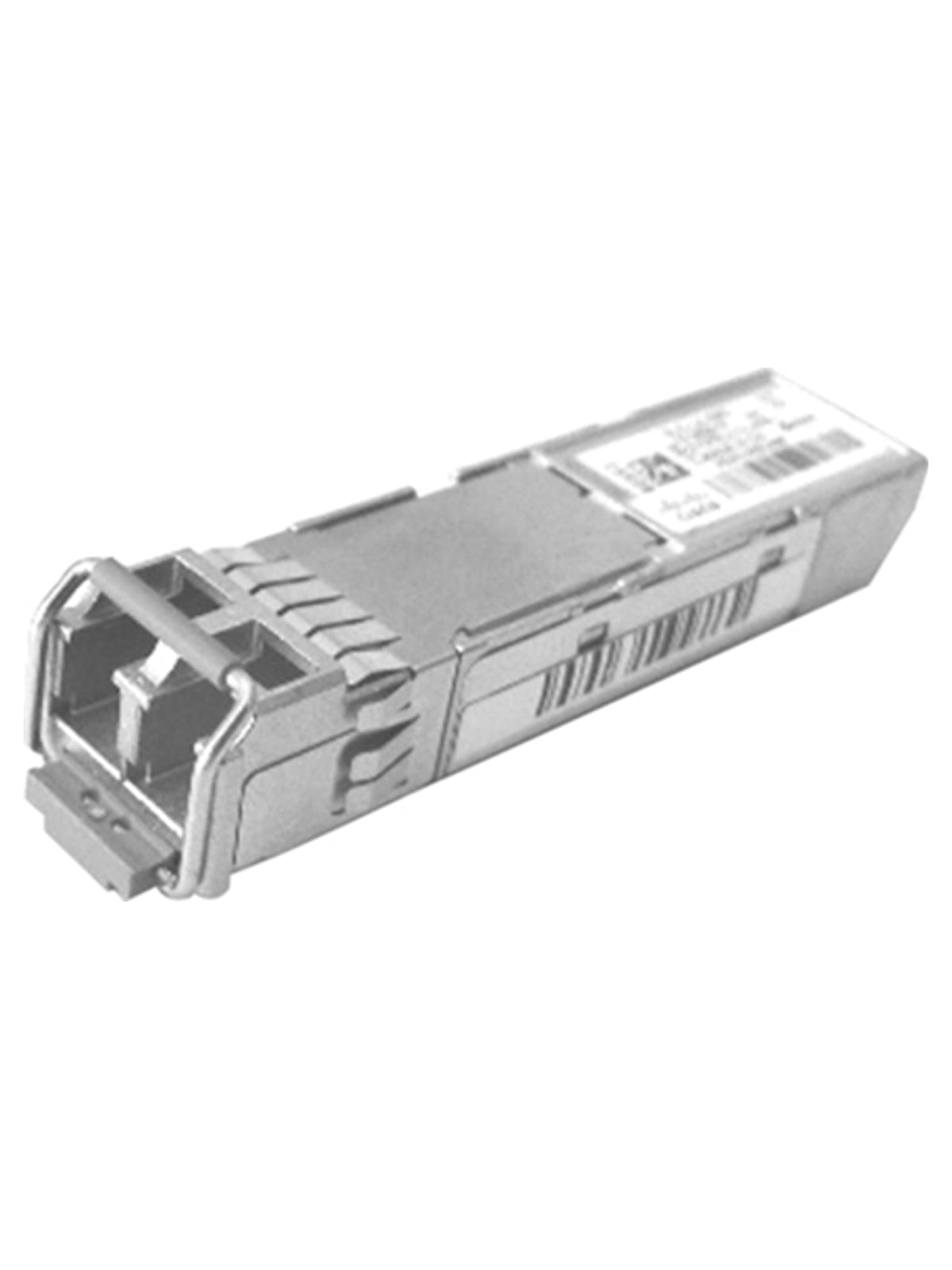

Cisco GLC-SX-MMD= 1000BASE-SX SFP Transceiver Module - Multimode, 850 nm, DOM
Cisco 1G SFP transceiver for multimode fibre: 1000BASE-SX, 850 nm, dual LC, up to 550 m on OM2 and 1 km on OM3/OM4, digital optical monitoring, extended temperature.
Read MoreSpecs
Brand
Cisco
Model
GLC-SX-MMD=
Product Type
SFP transceiver module
Standard
1000BASE-SX, IEEE 802.3z
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Cisco GLC-SX-MMD= 1000BASE-SX SFP Transceiver Module - Multimode, 850 nm, DOM
The Cisco GLC-SX-MMD is a 1000BASE-SX SFP transceiver for Gigabit Ethernet over multimode fibre. It combines an 850 nm optic and dual LC connector with reach of up to 550 m on OM2 and 1 km on OM3/OM4/OM5, digital optical monitoring and an extended -5 to 85 °C rating. It suits short fibre runs between racks, floors and buildings on Cisco switches and routers with SFP ports.
Main Specs
- Cisco part number GLC-SX-MMD=
- 1000BASE-SX, IEEE 802.3z
- 850 nm, multimode fibre (62.5 and 50 µm)
- Up to 550 m on OM2, 1 km on OM3/OM4/OM5
- 220 m on FDDI-grade, 275 m on OM1 62.5 µm fibre
- Dual LC/PC connector
- Digital optical monitoring (DOM)
- Extended temperature range -5 to 85 °C
- Ideal for Gigabit fibre links inside a building on Cisco equipment
Main Characteristics
Brand
Cisco
Model
GLC-SX-MMD=
Product Type
SFP transceiver module
Standard
1000BASE-SX, IEEE 802.3z
Wavelength
850 nm (770-860 nm)
Media
Multimode fibre, 62.5 µm and 50 µm
Maximum Distance
220 m (62.5 µm FDDI), 275 m (OM1), 500 m (50 µm 400/400), 550 m (OM2), 1 km (OM3/OM4/OM5)
Connector
Dual LC/PC
Transmit Power
-9.5 to -3 dBm
Receive Power
-17 to 0 dBm
DOM
Yes
Operating Temperature
EXT: -5 to 85 °C
