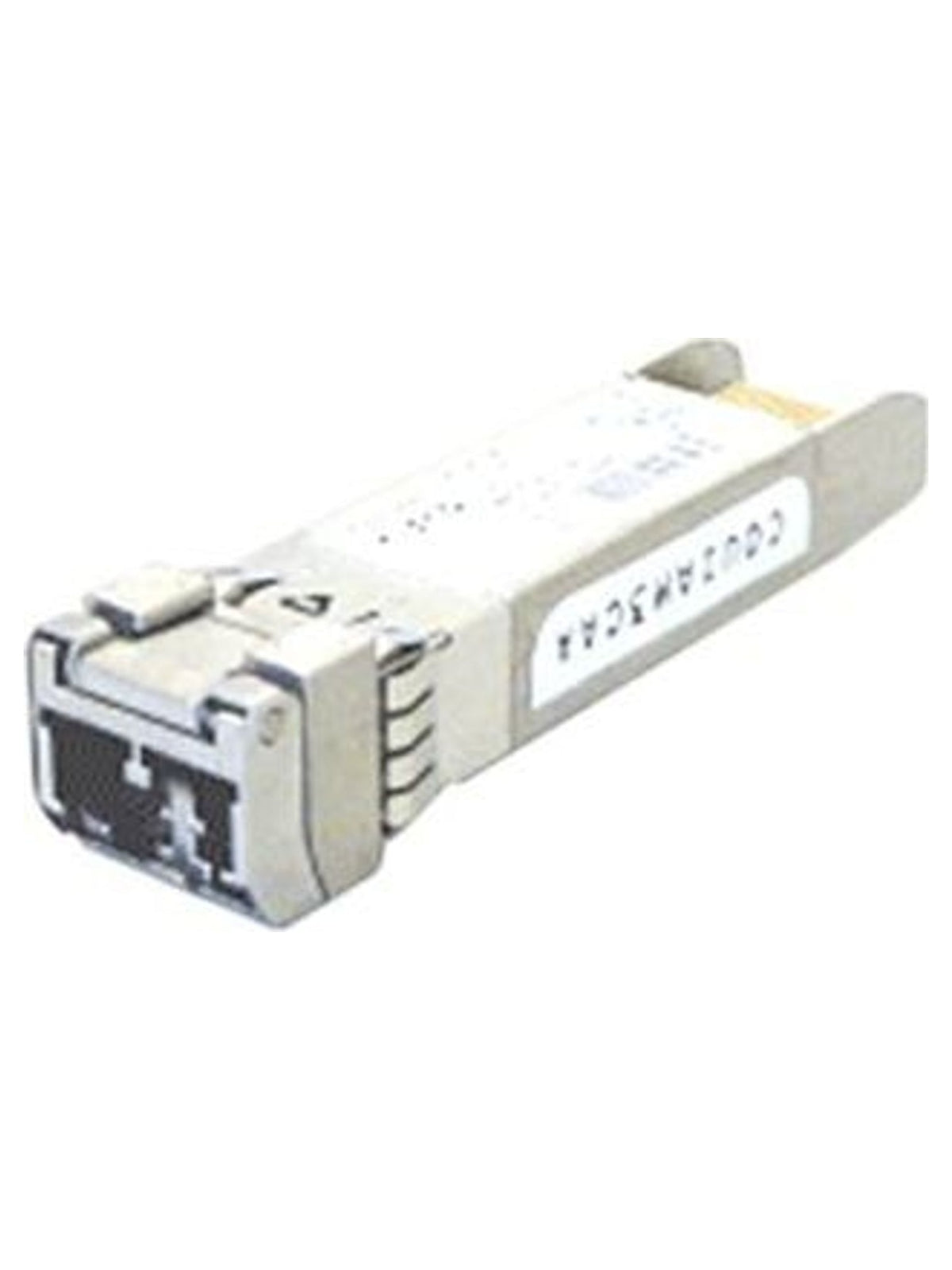

Cisco SFP-10G-SR-S 10GBASE-SR SFP+ Module, S-Class - Multimode, 850 nm, 300 m OM3
Cisco S-Class 10G SFP+ module for multimode fibre: 10GBASE-SR, 850 nm, dual LC, up to 300 m on OM3 and 400 m on OM4/OM5, 1 W, Ethernet only (no FCoE).
Read MoreSpecs
Brand
Cisco
Model
SFP-10G-SR-S
Product Type
SFP+ transceiver module (S-Class)
Standard
10GBASE-SR
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Cisco SFP-10G-SR-S 10GBASE-SR SFP+ Module, S-Class - Multimode, 850 nm, 300 m OM3
The Cisco SFP-10G-SR-S is the S-Class (Ethernet-only) version of the 10GBASE-SR SFP+ transceiver for multimode fibre. It combines an 850 nm optic and dual LC connector with reach of up to 300 m on OM3 and 400 m on OM4/OM5 at 1 W. It suits 10G links inside data rooms and between floors on Cisco switches where FCoE is not needed.
Main Specs
- Cisco part number SFP-10G-SR-S
- 10GBASE-SR, 850 nm, S-Class
- Up to 300 m on OM3, 400 m on OM4/OM5
- 26 m FDDI-grade, 33 m OM1, 82 m OM2
- Dual LC/PC connector
- Power consumption 1 W
- Ethernet only, no FCoE support
- Commercial temperature range 0 to 70 °C, beige bail latch
- Ideal for short 10G fibre links inside a building or data room
Main Characteristics
Brand
Cisco
Model
SFP-10G-SR-S
Product Type
SFP+ transceiver module (S-Class)
Standard
10GBASE-SR
Wavelength
850 nm (840-860 nm)
Media
Multimode fibre
Maximum Distance
26 m (FDDI), 33 m (OM1), 66 m (50 µm 400), 82 m (OM2), 300 m (OM3), 400 m (OM4/OM5)
Connector
Dual LC/PC
Transmit Power
-7.3 to -1.2 dBm
Receive Power
-9.9 to -1.0 dBm
Power Consumption
1 W
FCoE
Not supported
Operating Temperature
COM: 0 to 70 °C
Bail Latch Colour
Beige
