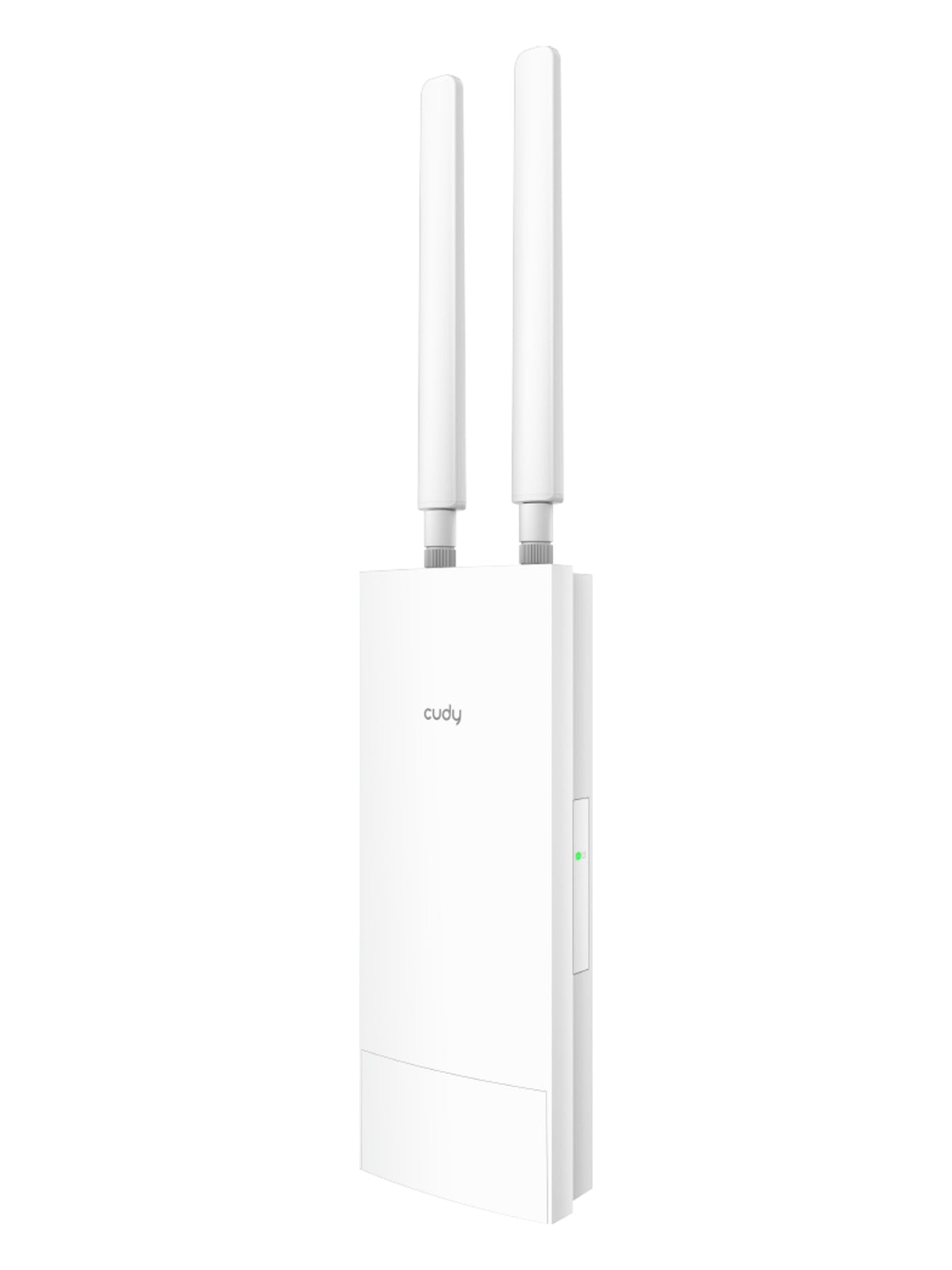

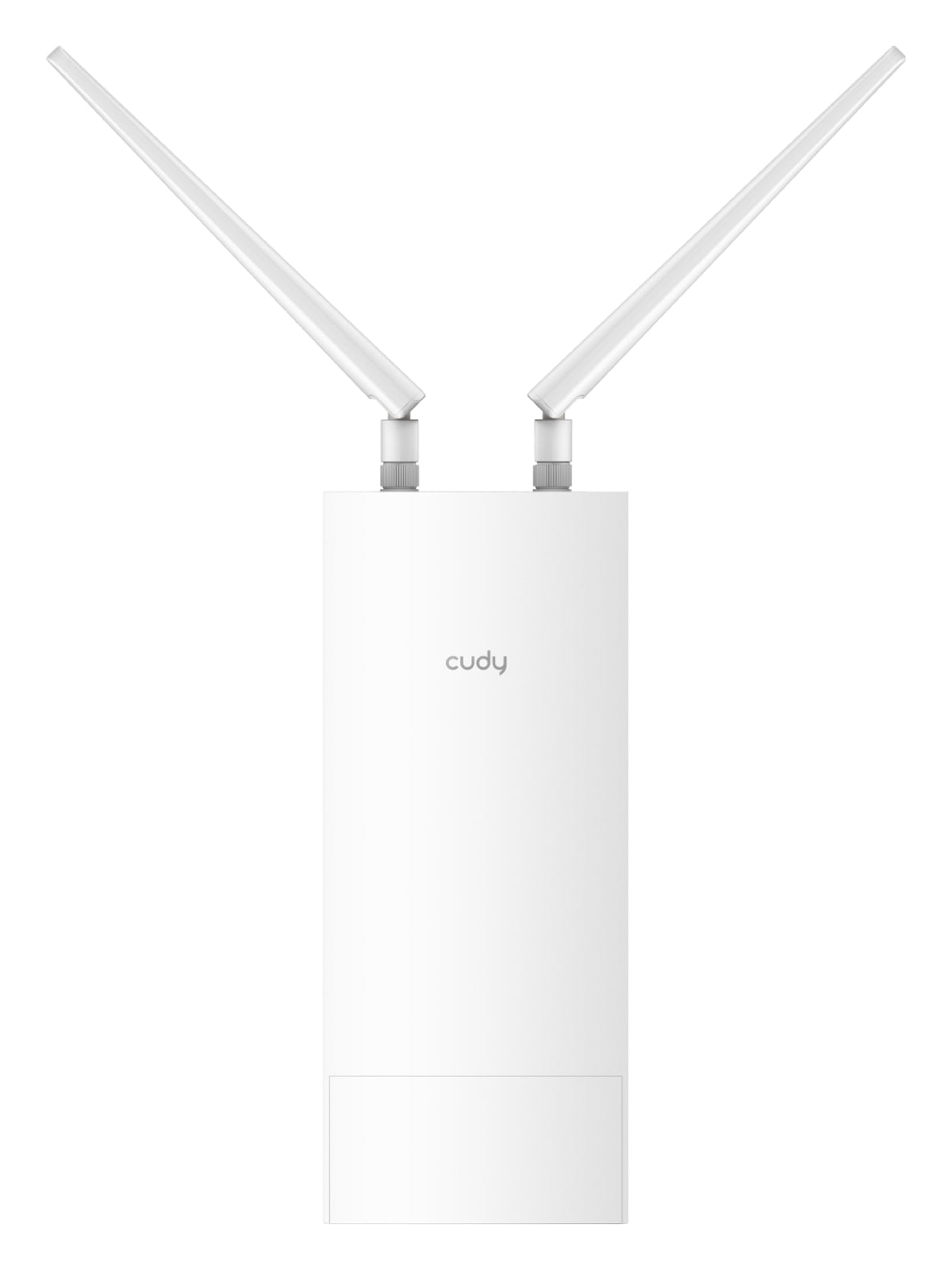

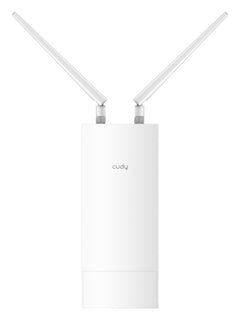

Cudy AP3000 Outdoor Indoor/Outdoor AX3000 High-Power Wi-Fi 6 Access Point
Dual-band Wi-Fi 6 access point with Gigabit PoE port, Cudy Mesh and WPA3, IP65 for outdoor use
Read More- Regular price
- $75.00 USD
- Sale price
- $75.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Cudy AP3000 Outdoor Indoor/Outdoor AX3000 High-Power Wi-Fi 6 Access Point
The Cudy AP3000 Outdoor is an Indoor/Outdoor AX3000 High-Power Wi-Fi 6 access point with dual-band Wi-Fi 6 (5 GHz 2402 Mbps + 2.4 GHz 574 Mbps) and a Gigabit PoE port. It combines PoE power over the network cable, Cudy Mesh, multiple Wi-Fi networks (SSIDs), WPA3 security and IP65 (when installed vertically) weather protection. It is a good fit for gardens, yards, rooftops, parking lots and warehouses that need strong Wi-Fi 6 outdoors.
Main Specs
- Wi-Fi: Wi-Fi 6, 5 GHz 2402 Mbps + 2.4 GHz 574 Mbps

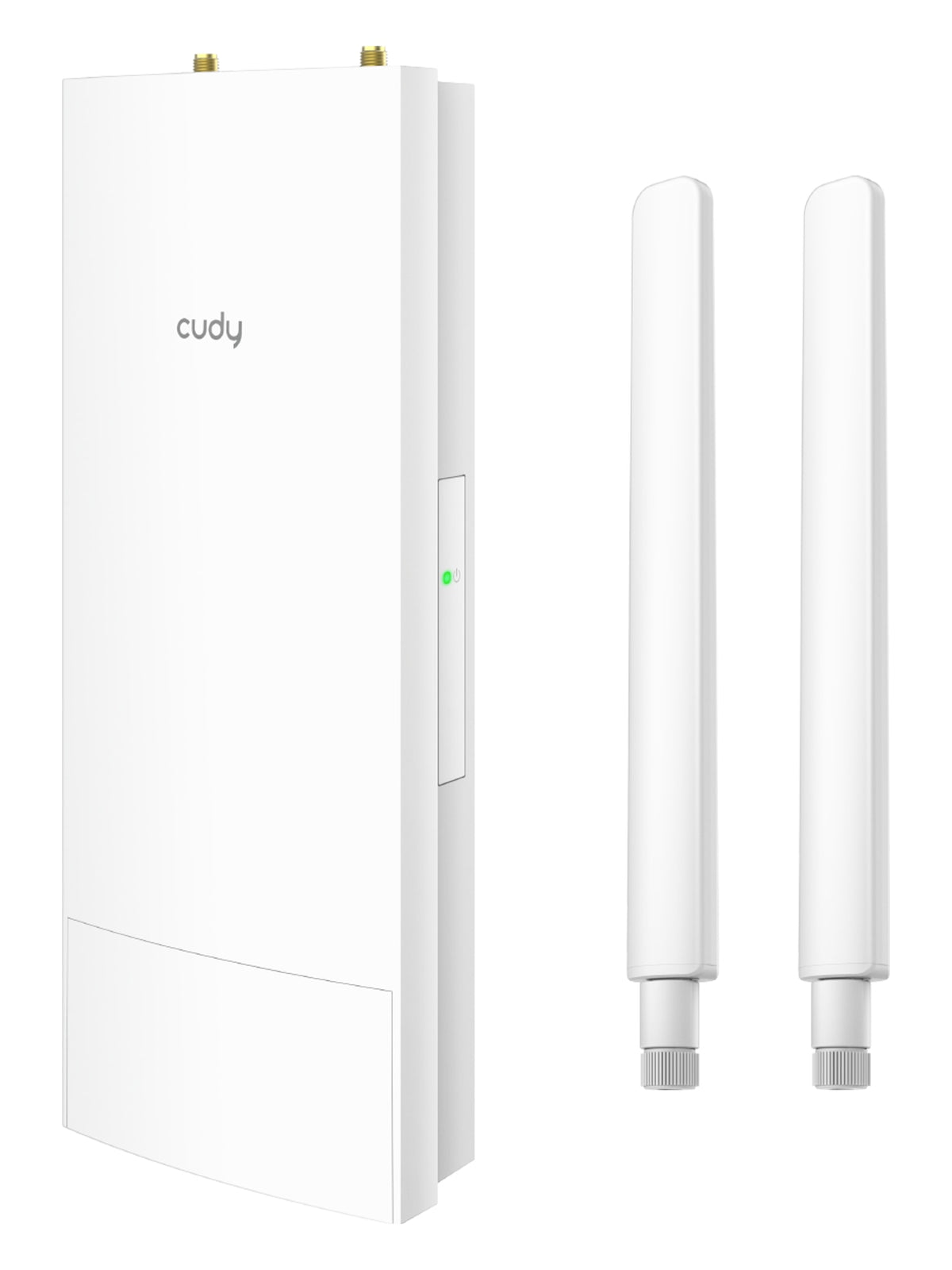

- Antennas: 1× Internal+2× External
- Ethernet: 1× Gigabit port (PoE In)
- Power: PoE: 802.3at, Passive PoE: 48-57V⎓

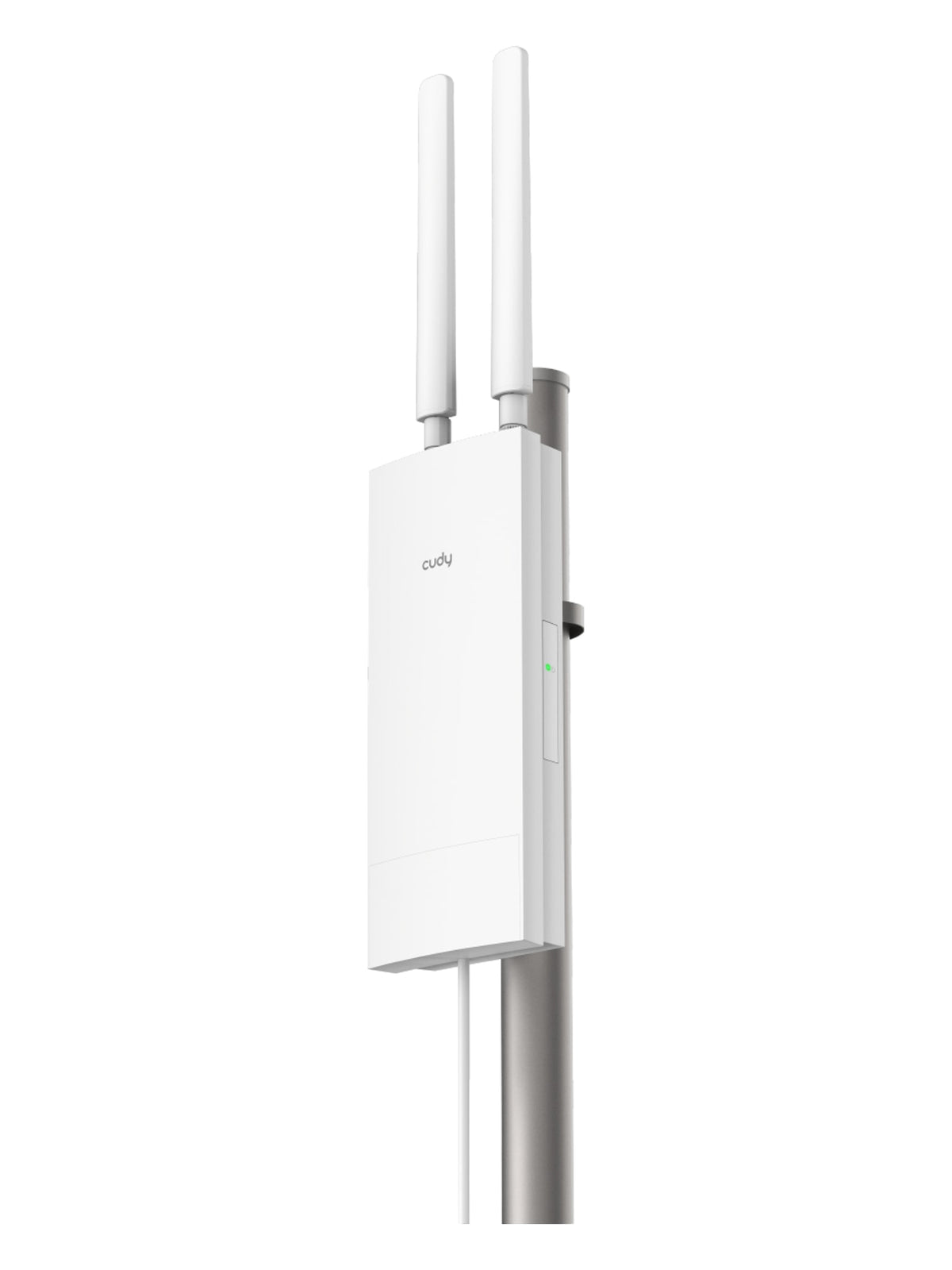

- Installation: Wall-mount, Pole-mount
- Weather Protection: IP65 (when installed vertically)
- Mesh: Cudy Mesh
- Multi-SSID: 8 SSIDs (Up to 4 SSIDs on each band), VLAN Support
- Security: WPA/WPA2/WPA3
- Ideal for gardens, yards, rooftops, parking lots and warehouses that need strong Wi-Fi 6 outdoors
Main Characteristics
Brand
Cudy
Model
AP3000 Outdoor
Hardware Version
1.0
Product Type
Access Point
CPU Details
1.3 GHz Dual-Core CPU
Flash/ROM
128 MB (1 Gbit) NAND
DDR/RAM
256 MB (2 Gbit) DDR3
5 GHz Wi-Fi Speed
2402Mbps
2.4 GHz Wi-Fi Speed
574Mbps
5 GHz Wi-Fi Streams
2 Spatial Streams with 3T3R
2.4 GHz Wi-Fi Streams
2 Spatial Streams
Wi-Fi Antennas
1× Internal+2× External
FEM or PA/LNA
5 GHz: 3× High-Power, 2.4 GHz: 2× High-Power
Detachable Wi-Fi Antennas Connector
RP-SMA Female
Beamforming
Yes
Range Performance
Max: 320 m (1050 ft), Park: 280 m (919 ft), Street: 70 m (230 ft), Woods: 40 m (131 ft)
Gigabit RJ45 Ports
1
Ethernet Notes
ETH0: PoE In
LED
System

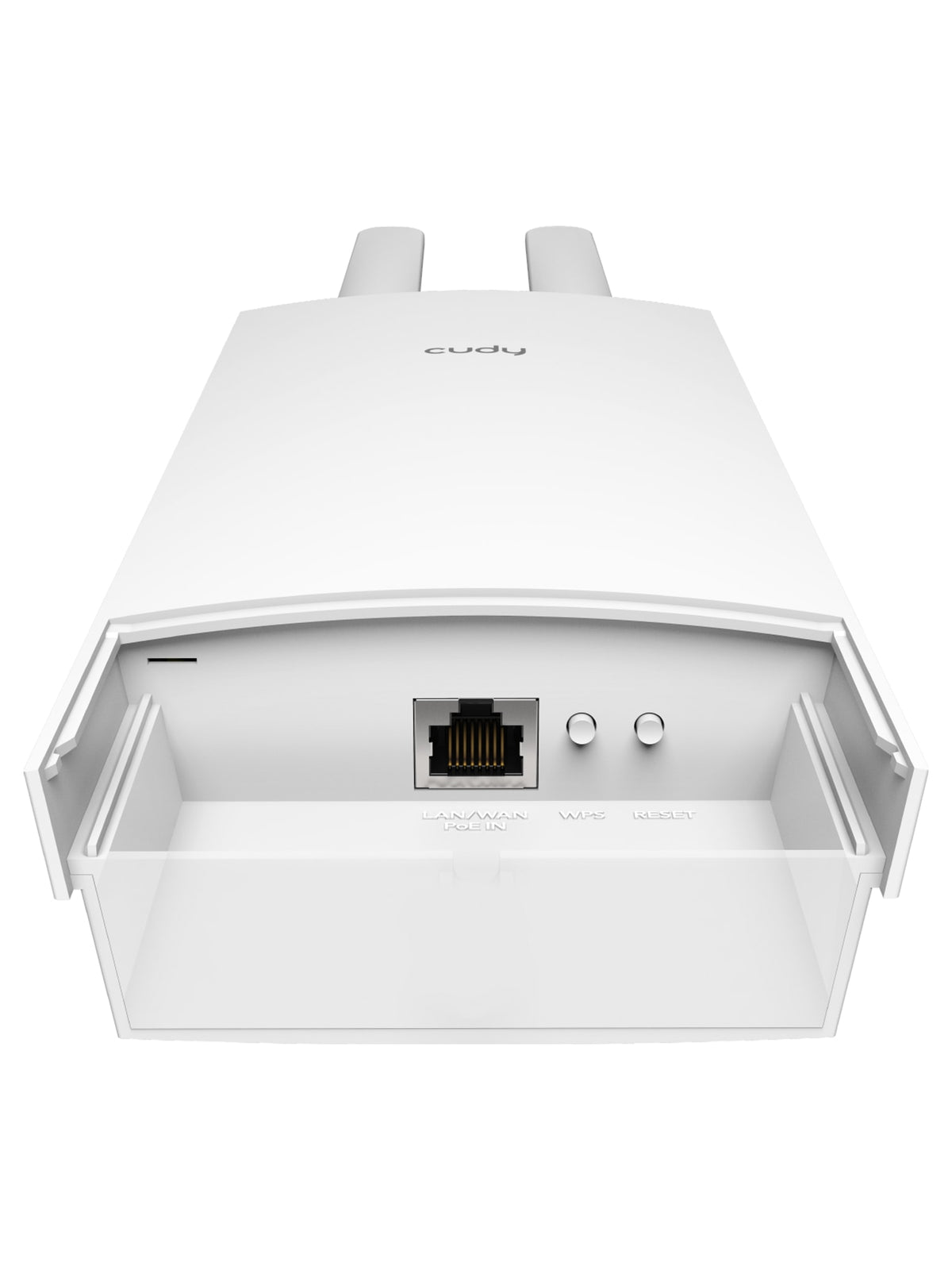

Physical Buttons
WPS Button, Reset Button
Power Input Type
PoE via Ethernet Port
Power Methods
802.3at PoE, Passive PoE
Power Input
PoE: 802.3at, Passive PoE: 48-57V⎓
Max Power Consumption (W)
19W
Idle Power Consumption (W)
5 W
Power Adapter In the Box
Input: 100-240V~, 50/60Hz, Output: 48V⎓ Passive PoE
Advanced
Hardware Watchdog
EMC
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment
Operating Temperature: -40 ℃ ~ 65 ℃ (-40 ℉ ~149 ℉), Extend Operating Temperature with Industrial Grade SIM Card: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉), Operating Humidity: 0% ~ 100% non-condensing, Storage Humidity: 10% ~ 95% non-condensing
Ingress Protection Rating
IP65 When devices is installed vertically
Certifications
FCC, CE
Installation
Wall-mount, Pole-mount
Dimension
Main Part: 240×100×53.7 mm, 9.45×3.94×2.11 inches, Antenna: 197.5×21.6×15.5 mm, 7.78×0.85×0.61 inches
Product Weight
455 g (16.05 oz.)

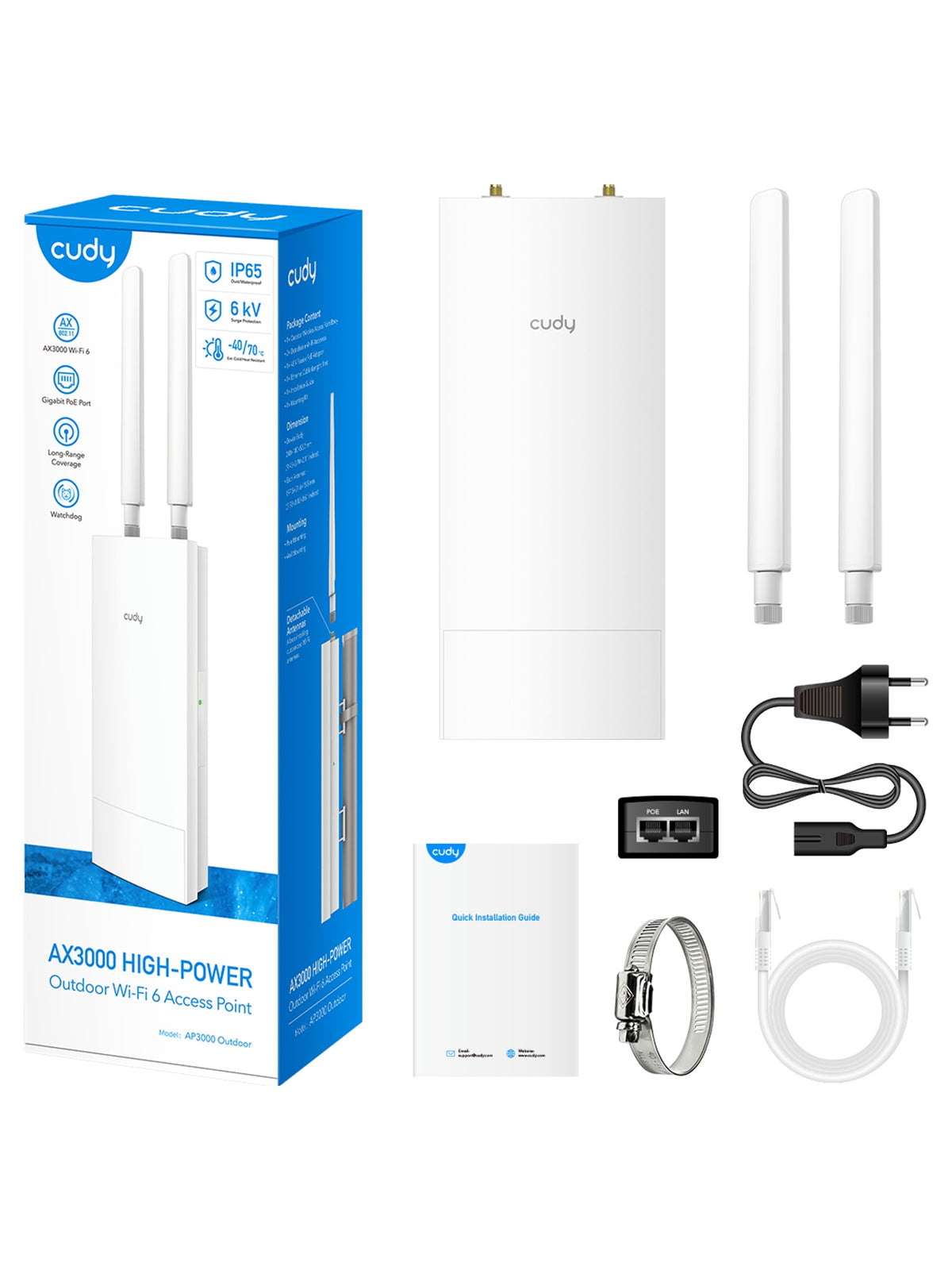

Package Content
AP3000 Outdoor, Detachable Antennas, PoE Adapter, Power Cord, Mounting Kit, Ethernet Cable, Installation Guide
Compatible Products
C200P 1.0, C500P 1.0
Compatible Accessories
POE200 2.0, POE300 2.0, POE400 2.0, POE350 2.0, POE200H 1.0, POE400X 2.0, POE350 3.0, POE400 3.0, POE300 3.0, POE52-30W 1.0, POE48-18W 1.0
Wi-Fi Standards
Wi-Fi 6
Max Wi-Fi Modulation
1024-QAM
Wi-Fi Efficiency
OFDMA, MU-MIMO, BSS Color
Max Capacity
256
Recommended Client Upper Limit
200
Wi-Fi Channel Width
Auto/20/40/80/160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Multi-SSID (Max Number)
8 SSIDs (Up to 4 SSIDs on each band), VLAN Support
WPS
Yes
Operation Modes
Wi-Fi Router, Access Point, Range Extender, WISP, Client
Mesh
Cudy Mesh
Mesh Backhaul
Wireless Backhaul, Wired Backhaul
Multi-Band Backhaul
Yes
WAN Mode
DHCP, Static IP, PPPOE, PPTP, L2TP
Internet Failover Sequence
WAN, WISP
Multi-AP Management
Via Cudy AP Controller
All Devices Management
Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding
Per-Devices Management
Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
Content Management
Domain Filter, IP Filter
QoS
Per-User Rate Limiting
DHCP
Address Reservation, DHCP Client List, Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
Multicast
Yes
IPTV/VLAN
Tag VLAN
TTL Customization
Extend, Spoof, Custom
IGMP
IGMP Proxy, IGMP Snooping
Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall
SPI Firewall, DoS Protection, Block PING
Application Layer Gateway
IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
Captive Portal
Yes
Captive Portal Authentication
No Authentication, Local Password, External Portal Server
VPN Server
WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Client
WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
DNS Options
DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS
DNS over TLS Providers
Cloudflare, Google, Quad9, Custom
Wake on LAN
Yes
Online Detection
Yes
LED Control
Yes
Local Control Method
Config Web Page, App Control
Remote Control Method
Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
Local Update, App (Over the Air), Online Update
Reliability
Timed Reboot, Backup and Restore
Diagnostic Tools
Diagnosis, Ping, Traceroute, NSLookup, System Log
Languages
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese
