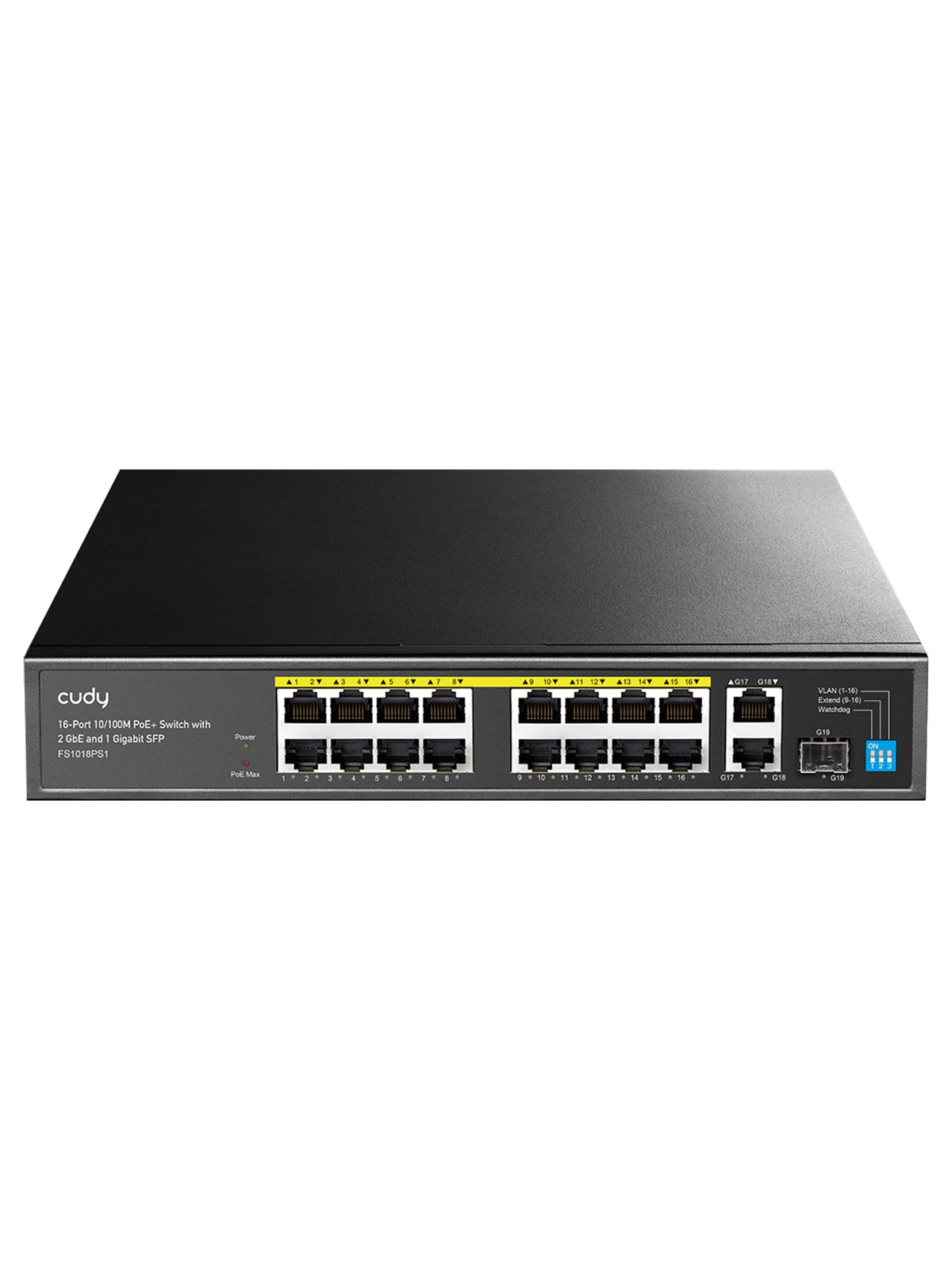

Cudy FS1018PS1 16-Port 10/100M PoE+ Switch with 2 Uplink GbE and 1 Uplink SFP Slot
The Cudy FS1018PS1 is a 16-Port 10/100M PoE+ switch with 2 Uplink GbE and 1 Uplink SFP Slot that powers up to 16 cameras, access points or IP phones from a 200W PoE budget. It combines 2 Gigabit ports, 16× 10/100 Mbps ports, 1 Gigabit SFP slot, 250 m Extend Mode for far cameras and port isolation. It is a good fit for CCTV systems with up to 16 IP cameras and a Gigabit or fiber uplink.
Main Specs
- Ports: 2× Gigabit ports, 16× 10/100 Mbps ports, 1× Gigabit SFP slot
- PoE: 16 PoE+ ports (802.3af/at), up to 30W per port, 200W total budget
- Extend Mode: Ports 9~16 reach 250 m at 10 Mbps
- VLAN Mode: One switch isolates ports 1~16 from each other
- Management: Unmanaged, plug and play
- Switching Capacity: 9.2 Gbps
- Casing: Metal
- Installation: Desktop, Rackmount via Brackets
- Ideal for CCTV systems with up to 16 IP cameras and a Gigabit or fiber uplink
Main Characteristics
Brand
Cudy
Model
FS1018PS1
Hardware Version
4.0
Product Type
Network Switch
1.25G SFP Slots
1
Gigabit RJ45 Ports
2
10/100 Mbps RJ45 Ports
16
10/100 Mbps RJ45 PoE Ports
#1~#16
Max Power on a Single PoE Port
30W
PoE Port Notes
The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority
Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port
Yes
Extend Mode Ports
#9~#16
VLAN Mode Ports
#1~#16
LED
Power, Link/ACT of Each Ethernet Port, PoE Max Status
Physical Buttons
Extend On/Off, VLAN On/Off, PoE Watchdog On/Off
Physical Buttons Note
The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Max Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 100 meters at Gigabit, Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note
Gigabit speed is only available on the uplink ports. 250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance
Depends on the Installed Optical Module
MAC Address Table
2048
VLANs
2048
Max Switching Capacity
9.2 Gbps
Max Forwarding Rate
6.844 Mpps
Jumbo Frame
2 KB
Packet Buffer
2 Mbit
Power Input Type
AC Inlet
Power Methods
AC
Power Input
100-240V~ 50/60Hz
Power Supply
200W
Max Power Excluding PoE
6W
802.3 Protocols
802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
Ethernet
Full Duplex, Half Duplex (CSMA/CD), Auto-Negotiation, Auto MDI/MDIX
Forwarding Method
Store-and-Forward
PoE Management
Intelligent Power Management
MTBF
>200,000 h
Grounding Methods
Three-Prong Plug, Grounding Point
EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment
Operating Temperature: 0~40 ℃ (32~104 ℉), Storage Temperature: -40~70℃ (-40~158 ℉), Operating Humidity: 10~90% non-condensing, Storage Humidity: 10~95% non-condensing
Dimension
270×182×44 mm, 10.63×7.17×1.73 inches
Product Weight
1226.9 g (43.28 oz.)
Casing Material
Metal
Installation
Desktop, Rackmount via Brackets

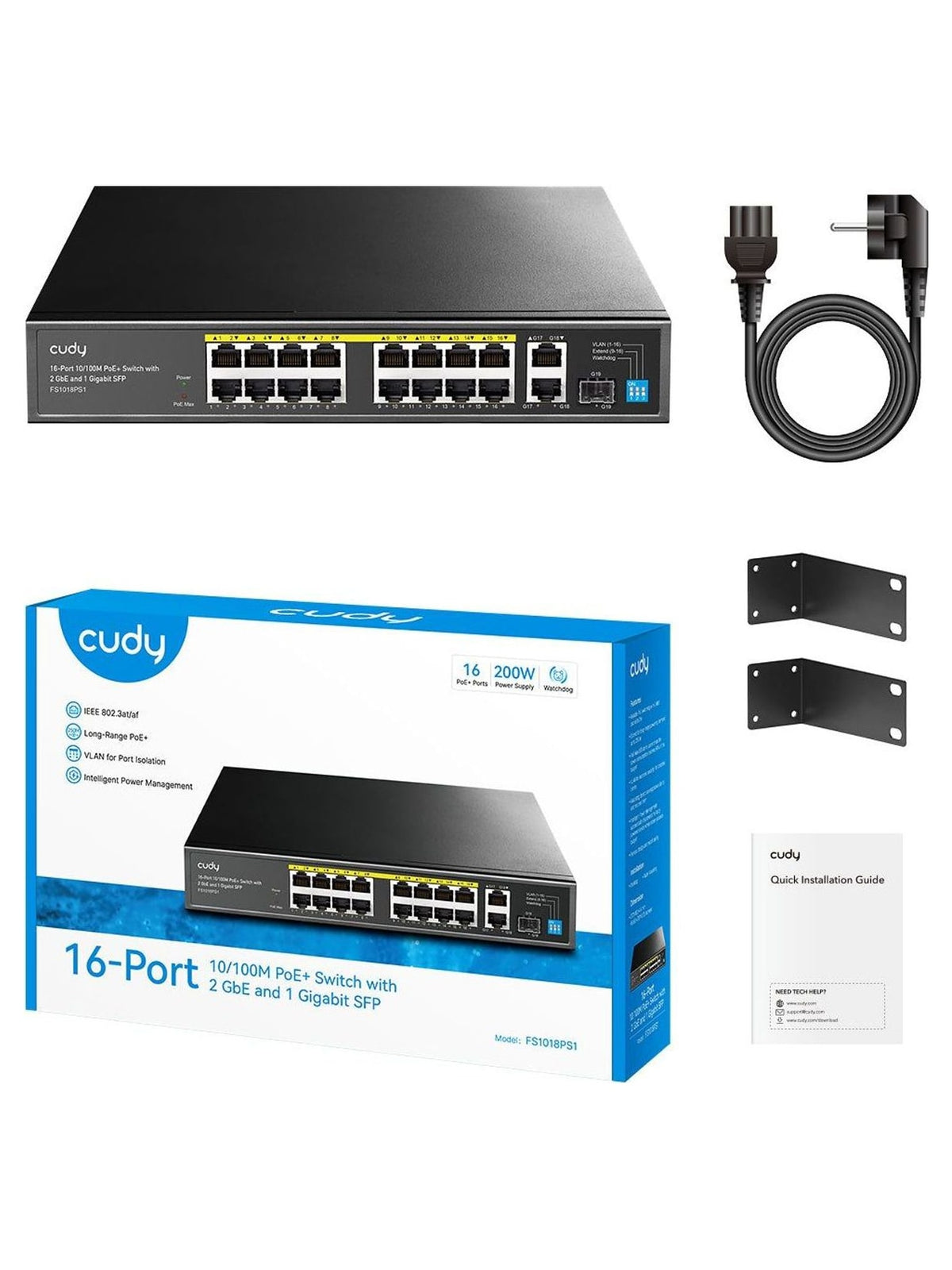

Package Content
FS1018PS1, Power Cord, Mounting Kit, Installation Guide
