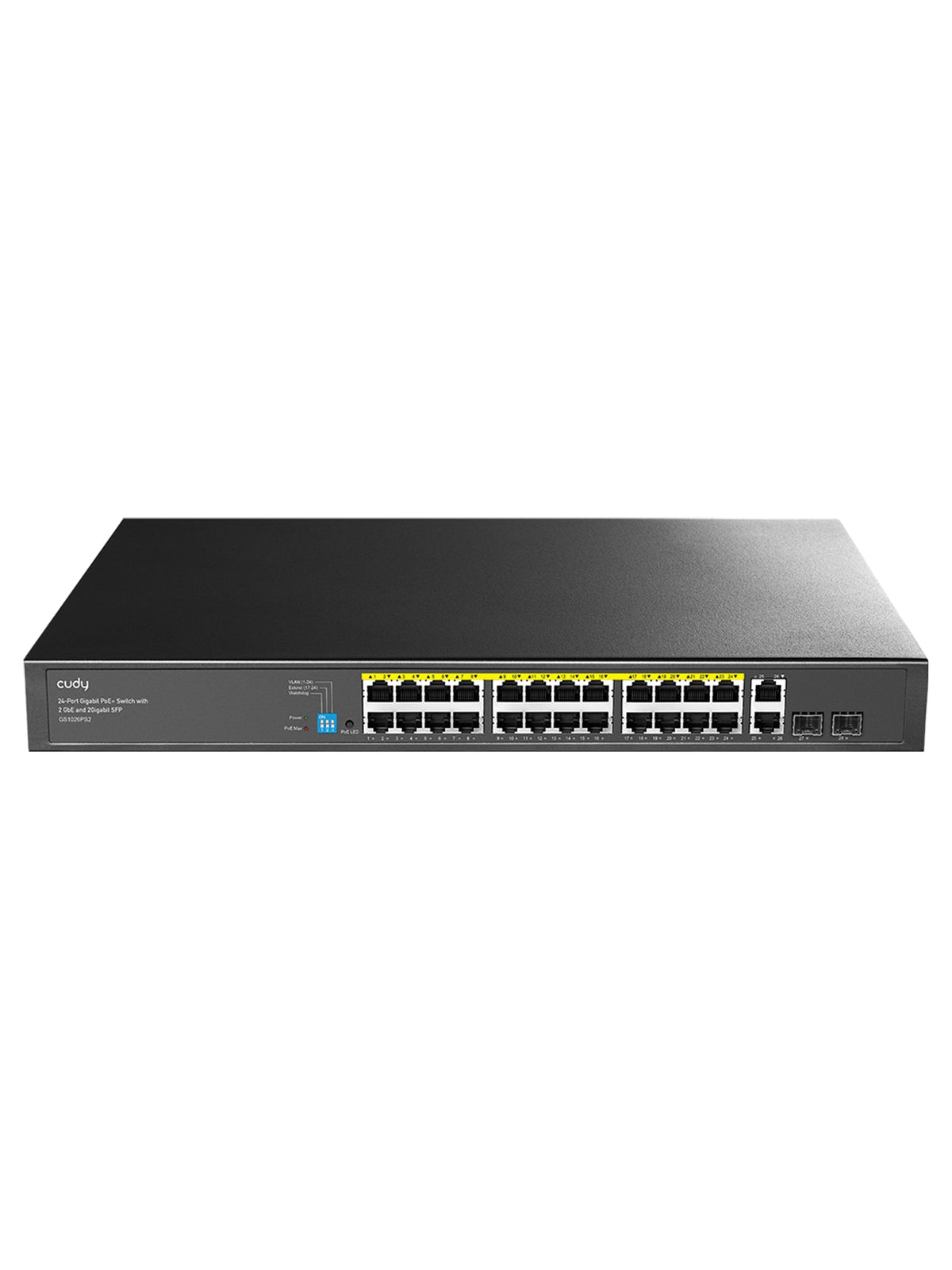

Cudy GS1026PS2 24-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP
24-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP, 300W PoE budget
Read More- Regular price
- $121.00 USD
- Sale price
- $121.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Cudy GS1026PS2 24-Port Gigabit PoE+ Switch with 2 GbE and 2 Gigabit SFP
The Cudy GS1026PS2 is a 24-Port Gigabit PoE+ switch with 2 GbE and 2 Gigabit SFP that powers up to 24 cameras, access points or IP phones from a 300W PoE budget. It combines 26 Gigabit ports, 2 Gigabit SFP slots, 250 m Extend Mode for far cameras and port isolation. It is a good fit for larger offices and CCTV installations with up to 24 Gigabit PoE devices.
Main Specs
- Ports: 26× Gigabit ports, 2× Gigabit SFP slots
- PoE: 24 PoE+ ports (802.3af/at), up to 30W per port, 300W total budget
- Extend Mode: Ports 17~24 reach 250 m at 10 Mbps
- VLAN Mode: One switch isolates ports 1~24 from each other
- Management: Unmanaged, plug and play
- Switching Capacity: 56 Gbps
- Cooling: 1 smart fan (speed follows the load)
- Casing: Metal
- Installation: Desktop, Rackmount via Brackets
- Ideal for larger offices and CCTV installations with up to 24 Gigabit PoE devices
Main Characteristics
Brand
Cudy
Model
GS1026PS2
Hardware Version
3.0
Product Type
Network Switch
1.25G SFP Slots
2
Gigabit RJ45 Ports
26
Gigabit RJ45 PoE Ports
#1~#24
Max Power on a Single PoE Port
30W
PoE Port Notes
The PoE ports comply with IEEE 802.3at/af standards.
PoE Priority
Intelligent Power Management: Automatically disconnect the lastly powered device when power exceeds budget.
Shielded RJ45 Port
Yes
Extend Mode Ports
#17~#24
VLAN Mode Ports
#1~#24
LED
Power, PoE Status of Each PoE Port, Link/ACT of Each Ethernet Port, PoE Max Status
Physical Buttons
Extend On/Off, VLAN On/Off, PoE Watchdog On/Off, PoE LED Toggle
Physical Buttons Note
The PoE Watchdog will attempt to reboot the plugged-in clients that have been inactive for 5 minutes. Do not turn it on for clients with online auto-upgrade feature.
Max Copper Speed and Distance
Cat. 3 or higher cable: 100 meters at 10 Mbps, Cat. 5 or higher cable: 100 meters at 100 Mbps, Cat. 5e or higher cable: 100 meters at Gigabit, Cat. 5e or higher cable: 250 meters at 10 Mbps
Copper Speed and Distance Note
250-meter transmission is only available on the Extend Mode ports when the Extend Mode is activated.
Optical Spec and Distance
Depends on the Installed Optical Module
MAC Address Table
2048
VLANs
4096
Max Switching Capacity
56 Gbps
Max Forwarding Rate
41.664 Mpps
Jumbo Frame
15 KB
Packet Buffer
3 Mbit
Power Input Type
AC Inlet
Power Methods
AC
Power Input
100-240V~ 50/60Hz
Power Supply
300W
Max Power Excluding PoE
20W
802.3 Protocols
802.3i 10BASE-T, 802.3u 100BASE-TX, 802.3ab 1000BASE-T, 802.3z 1000BASE-X, 802.3x Flow Control, 802.3af PoE, 802.3at PoE
Ethernet
Full Duplex, Half Duplex (CSMA/CD), Auto-Negotiation, Auto MDI/MDIX
Forwarding Method
Store-and-Forward
PoE Management
Intelligent Power Management
Fans
1
MTBF
>200,000 h
Fan Note
Smart Cooling: The fan speed adjusts in real time based on power consumption.
Grounding Methods
Three-Prong Plug
EMS
IEC/EN 61000-4-2, Level 3 ESD: Contact: 6kV; Air: 8kV, IEC/EN 61000-4-5, Level 4 Surge: Power: DM 2kV, CM 4kV; RJ45: CM 4kV
Environment
Operating Temperature: 0~40 ℃ (32~104 ℉), Storage Temperature: -40~70℃ (-40~158 ℉), Operating Humidity: 10~90% non-condensing, Storage Humidity: 10~95% non-condensing
Dimension
440×180×44 mm, 17.32×7.09×1.73 inches
Product Weight
2349.0 g (82.86 oz.)
Casing Material
Metal
Installation
Desktop, Rackmount via Brackets

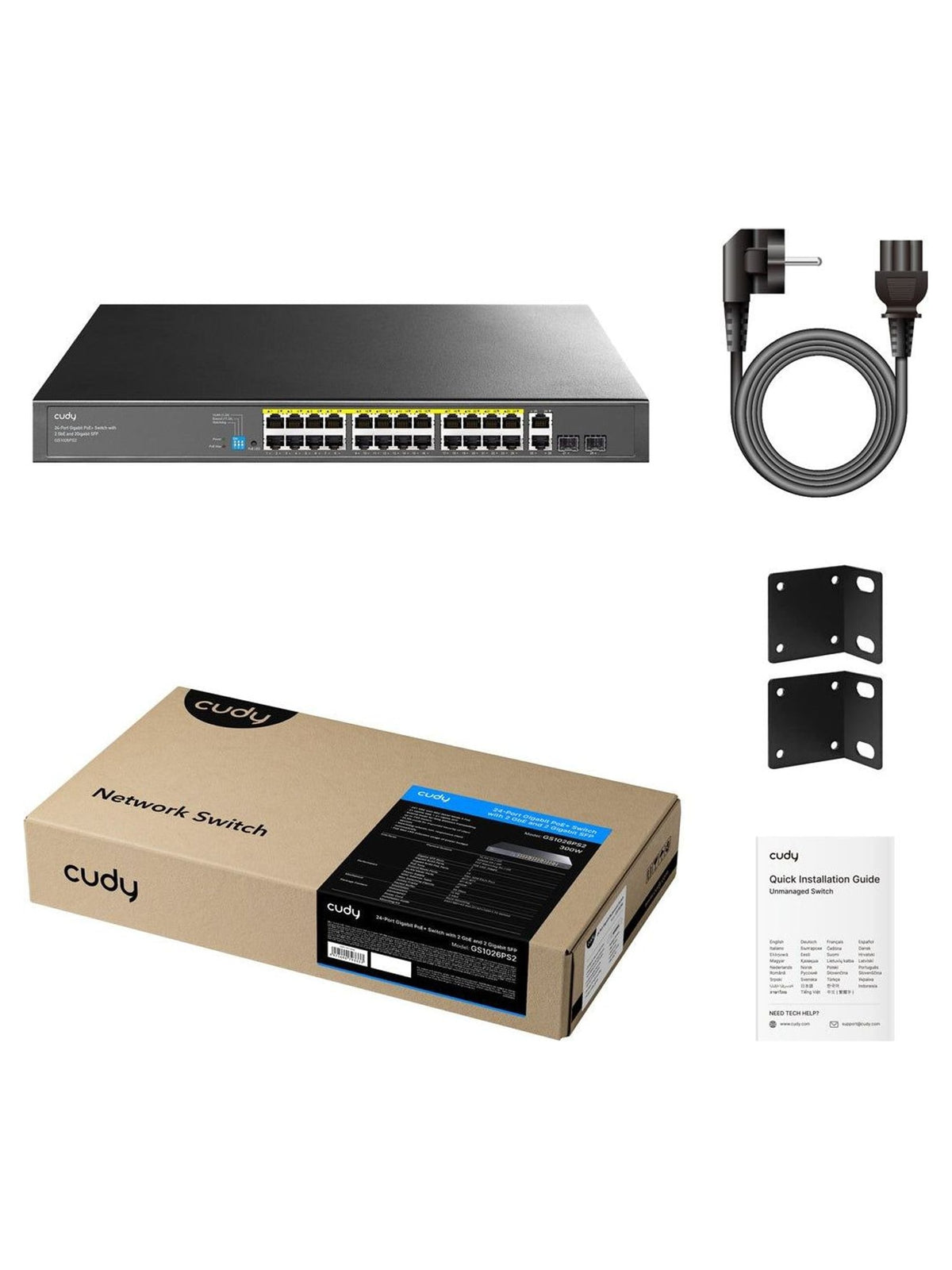

Package Content
GS1026PS2, Power Cord, Mounting Kit, Installation Guide
