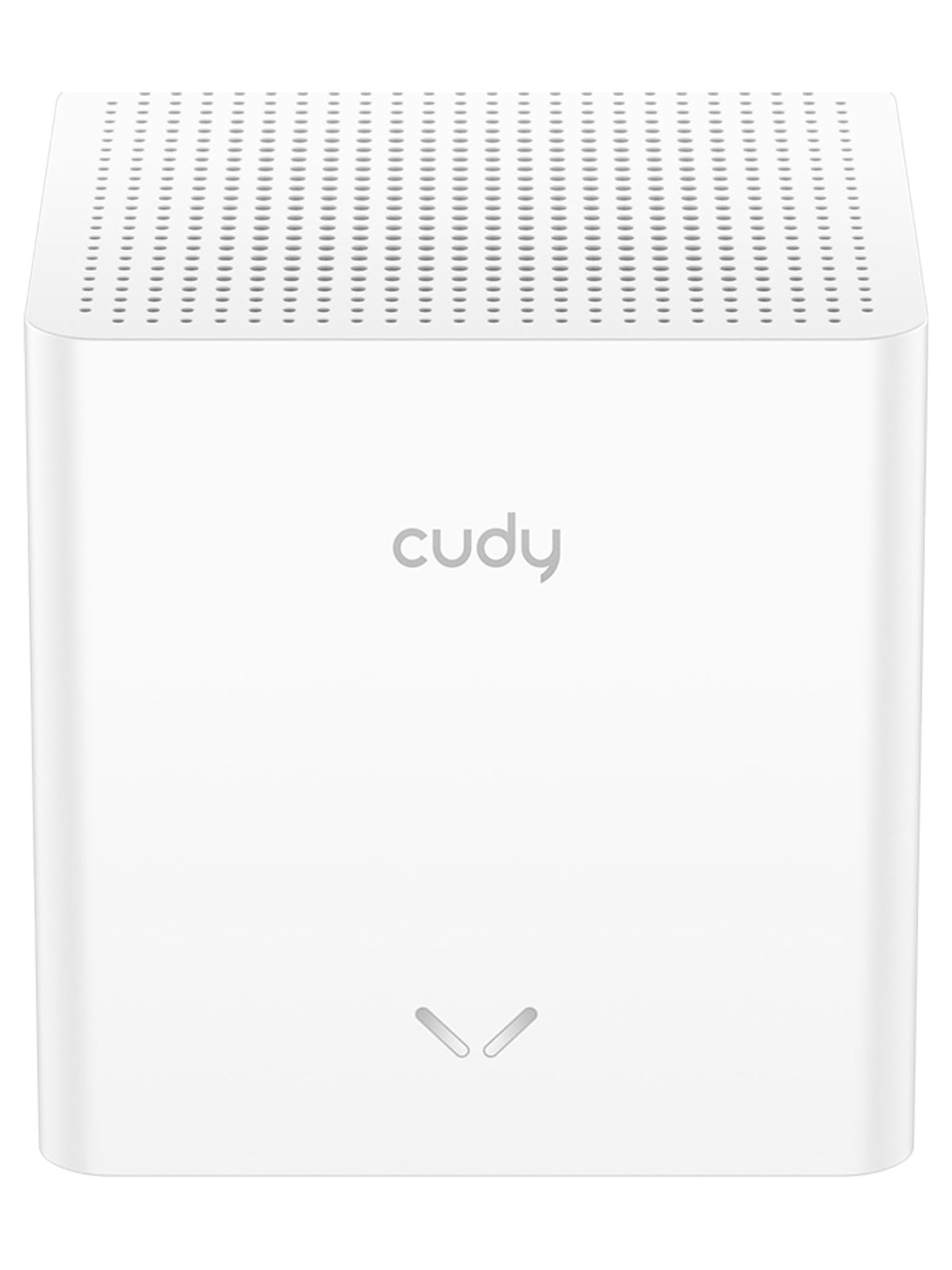

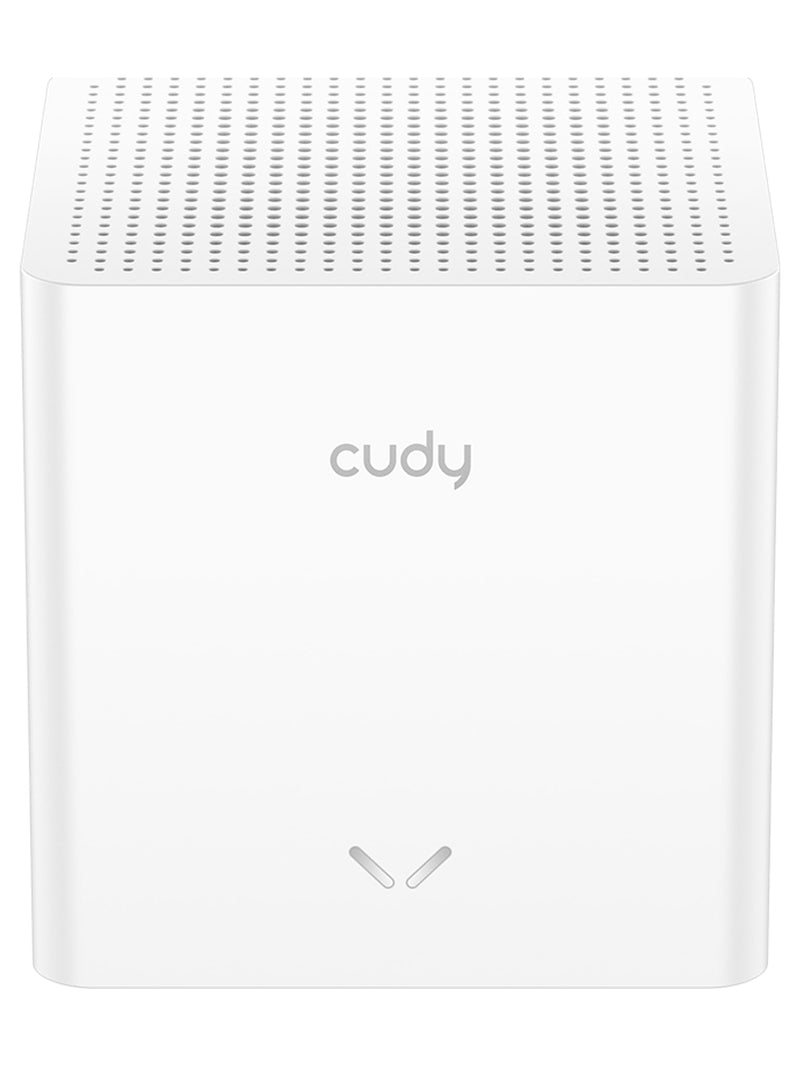

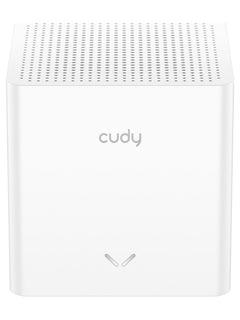

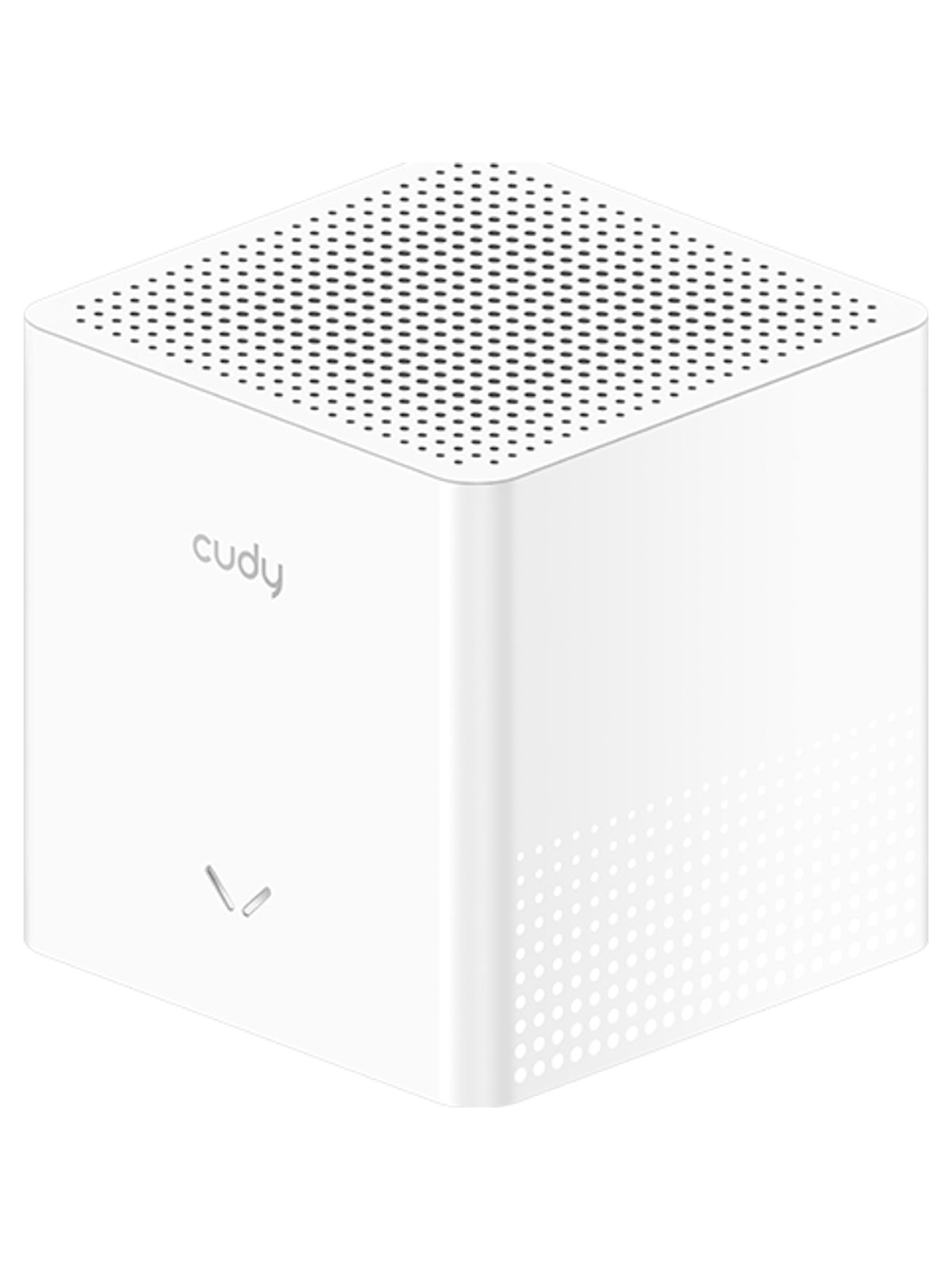

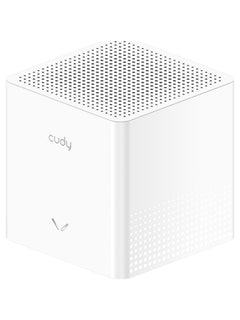

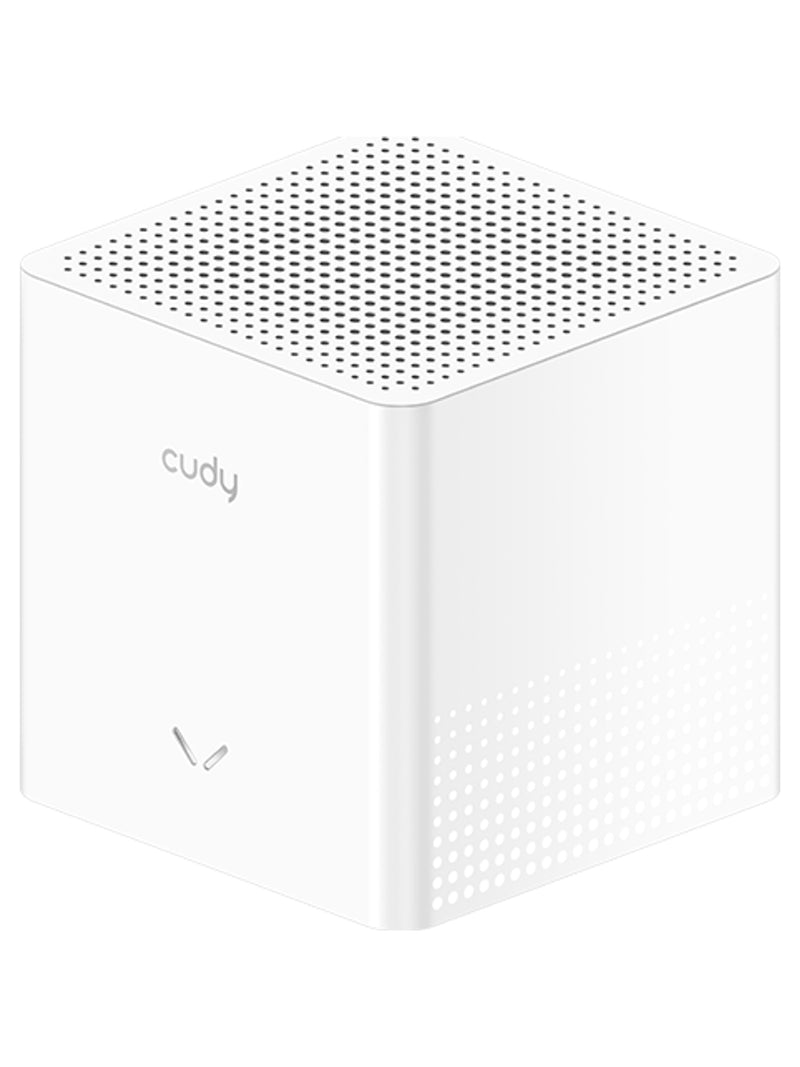

Cudy M3000S AX3000 Gigabit Mesh Wi-Fi 6 System - 1 Pack
Wi-Fi 6 mesh unit with 2 Gigabit ports, Cudy Mesh roaming and WPA3
Read More- Regular price
- $32.00 USD
- Sale price
- $32.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Cudy M3000S AX3000 Gigabit Mesh Wi-Fi 6 System - 1 Pack
The Cudy M3000S is one unit of Cudy's AX3000 Gigabit Mesh Wi-Fi 6 system, with dual-band Wi-Fi 6 (5 GHz 2402 Mbps + 2.4 GHz 574 Mbps) and 2 Gigabit ports. It combines Cudy Mesh roaming between units, a built-in VPN server, WPA3 security and setup from the Cudy app. It is a good fit for extending a Cudy Wi-Fi 6 mesh into rooms and floors with weak signal.
Main Specs
- Wi-Fi: Wi-Fi 6, 5 GHz 2402 Mbps + 2.4 GHz 574 Mbps
- Antennas: 2× Internal

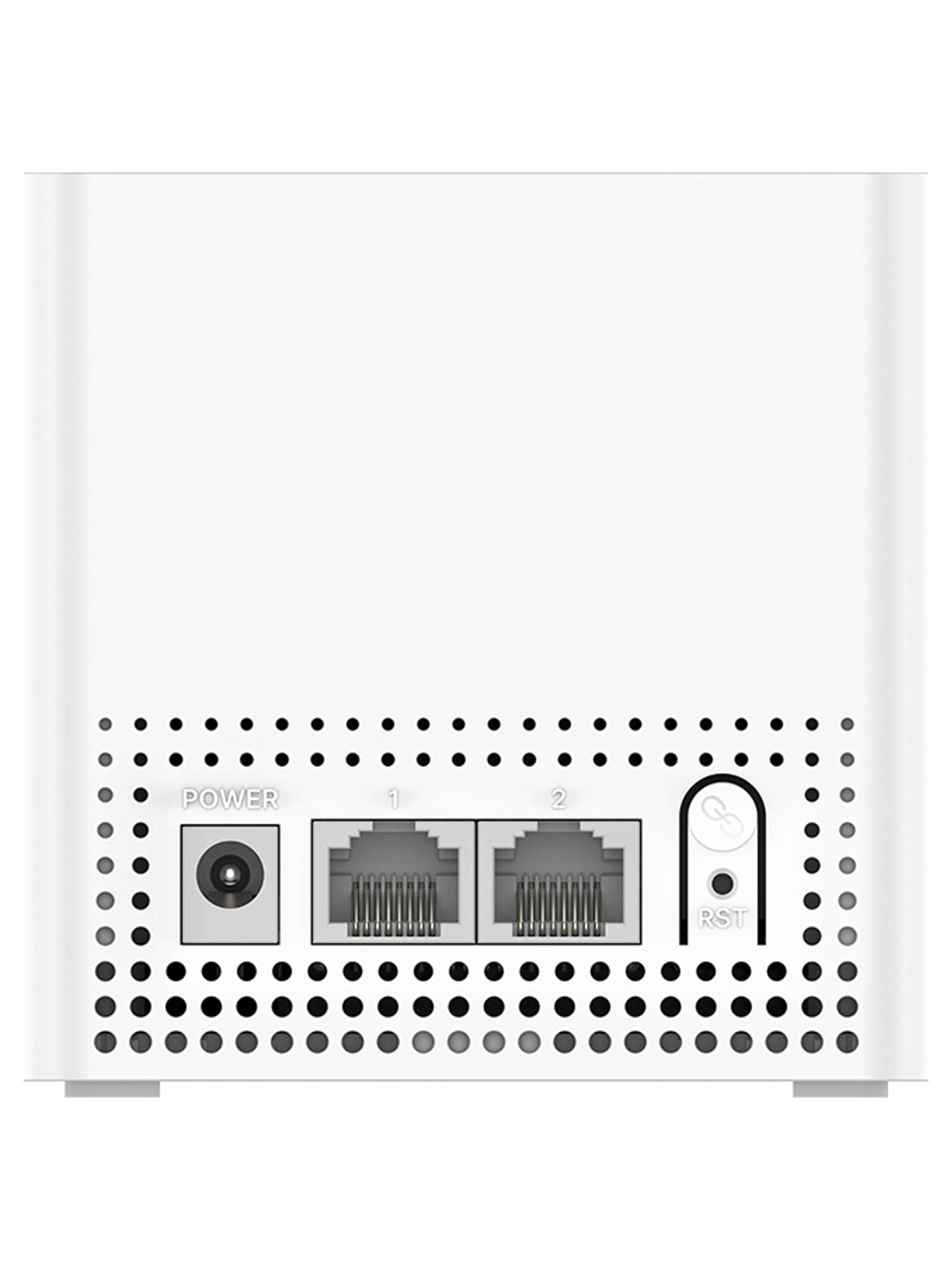

- Ethernet: 2× Gigabit ports (Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode)
- Mesh: Cudy Mesh
- Modes: Wi-Fi Router, Access Point, Range Extender, WISP, Client
- VPN Server: WireGuard, OpenVPN, PPTP, L2TP, IPsec
- Security: WPA/WPA2/WPA3
- Max Devices: 128 (recommended up to 50)
- Coverage: Up to 200 m (656 ft) in open space
- Ideal for extending a Cudy Wi-Fi 6 mesh into rooms and floors with weak signal
Main Characteristics
Brand
Cudy
Model
M3000S
Hardware Version
2.0
Product Type
Mesh System
CPU Details
1.2 GHz Dual-Core
Flash/ROM
32 MB (256 Mbit) NOR
DDR/RAM
128 MB (1 Gbit) DDR3
5 GHz Wi-Fi Speed
2402 Mbps
2.4 GHz Wi-Fi Speed
574 Mbps
5 GHz Wi-Fi Streams
2 Spatial Streams
2.4 GHz Wi-Fi Streams
2 Spatial Streams
Wi-Fi Antennas
2× Internal
FEM or PA/LNA
5 GHz: 2× Internal, 2.4 GHz: 2× Internal
Beamforming
Yes
Range Performance
Max: 200 m (656 ft)
Wall Performance
Two wooden walls with thickness < 10 cm (4''), One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'')
Indoor Coverage Reference
2 Pack: 170 m² (1800 sq ft), 3 Pack: 230 m² (2500 sq ft), Applied to wireless backhaul situation. Place in the center of each floor, with a maximum of three obstacles to each room.
Gigabit RJ45 Ports
2
Ethernet Notes
Port 1 is the WAN port by default. All ports are LAN ports in Mesh satellite mode
LED
System
Physical Buttons
WPS Button, Reset Button
Power Input Type
DC Jack
Power Methods
DC
Power Input
12V⎓1A
Max Power Consumption (W)
7.1W
Idle Power Consumption (W)
3.2W
Power Adapter In the Box
Input: 100-240V~, 50/60Hz, Output: 12V⎓1A
Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉), Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 95% non-condensing
Certifications
FCC, CE
Installation
Desktop
Dimension
85×85×86.5 mm, 3.35×3.35×3.41 inches
Product Weight
299.0 g (10.55 oz.)
Package Content
M3000S, Power Adapter, Ethernet Cable, Installation Guide
Wi-Fi Standards
Wi-Fi 6
Separate Client
Yes
Max Wi-Fi Modulation
1024-QAM
Wi-Fi Efficiency
OFDMA, MU-MIMO, BSS Color
Max Capacity
128
Recommended Client Upper Limit
50
Wi-Fi Channel Width
Auto/20/40/80/160 MHz
Wi-Fi Security
WPA/WPA2/WPA3
Guest Network
2.4 GHz, 5 GHz
WPS
Yes
Operation Modes
Wi-Fi Router, Access Point, Range Extender, WISP, Client
Mesh
Cudy Mesh
Mesh Backhaul
Wireless Backhaul, Wired Backhaul
Multi-Band Backhaul
Yes
WAN Mode
DHCP, Static IP, PPPOE, PPTP, L2TP
QoS
Per-User Rate Limiting, Guest Network Rate LImiting
DHCP
Address Reservation, DHCP Client List, Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
Multicast
Yes
IPTV/VLAN
Bridge, Tag VLAN, VoIP VLAN, IPTV VLAN
TTL Customization
Extend, Spoof, Custom
IGMP
IGMP Proxy, IGMP Snooping
Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall
SPI Firewall, DoS Protection, Block PING
Application Layer Gateway
IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
VPN Server
WireGuard, OpenVPN, PPTP, L2TP, IPsec
VPN Client
WireGuard, OpenVPN, PPTP, L2TP, IPsec
DNS Options
DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS
DNS over TLS Providers
Cloudflare, Google, Quad9, Custom
Wake on LAN
Yes
Online Detection
Yes
Parental Controls
Profiles Settings, Offline Time, Online Time, Pause the Internet, Web Filter
All Devices Management
Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding
Per-Devices Management
Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
Content Management
Domain Filtering, IP Filtering
LED Control
Yes
Local Control Method
Config Web Page, App Control
Remote Control Method
Config Page via HTTPS, App Control, TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
Local Update, App (Over the Air), Online Update
Reliability
Timed Reboot, Backup and Restore
Diagnostic Tools
Diagnosis, Ping, Traceroute, NSLookup, System Log
Languages
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese, Traditional Chinese
Pack
1 unit
