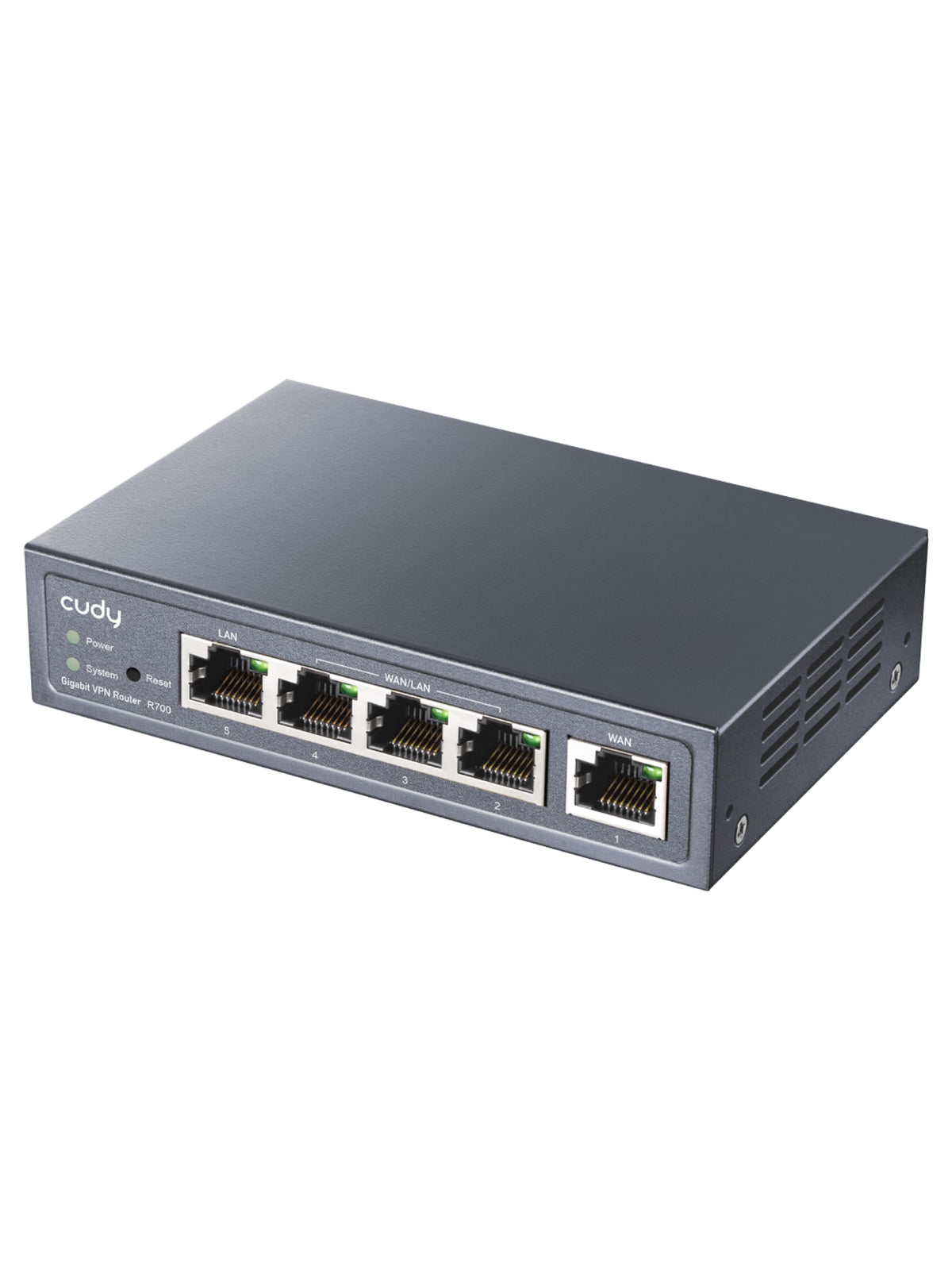

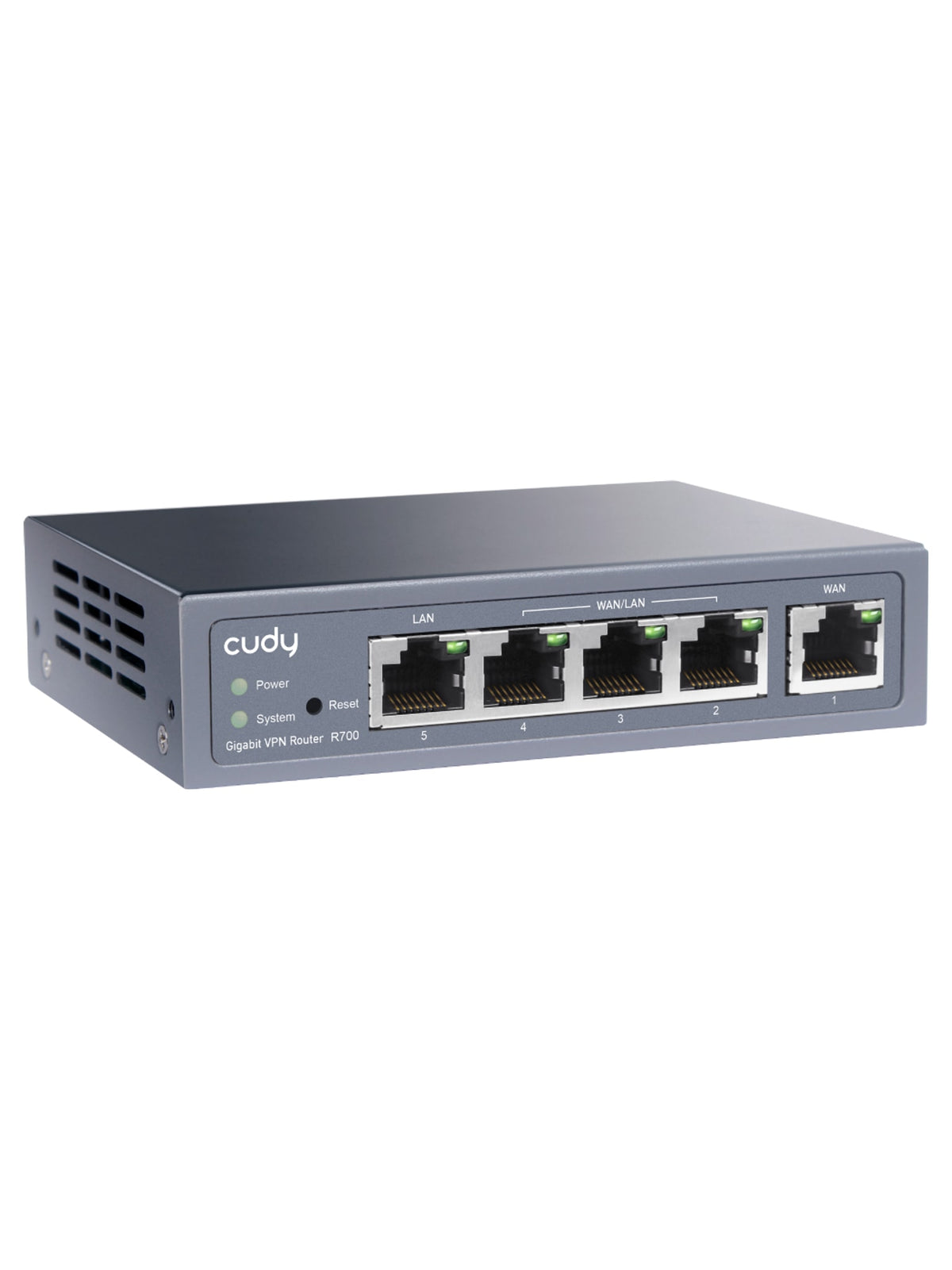

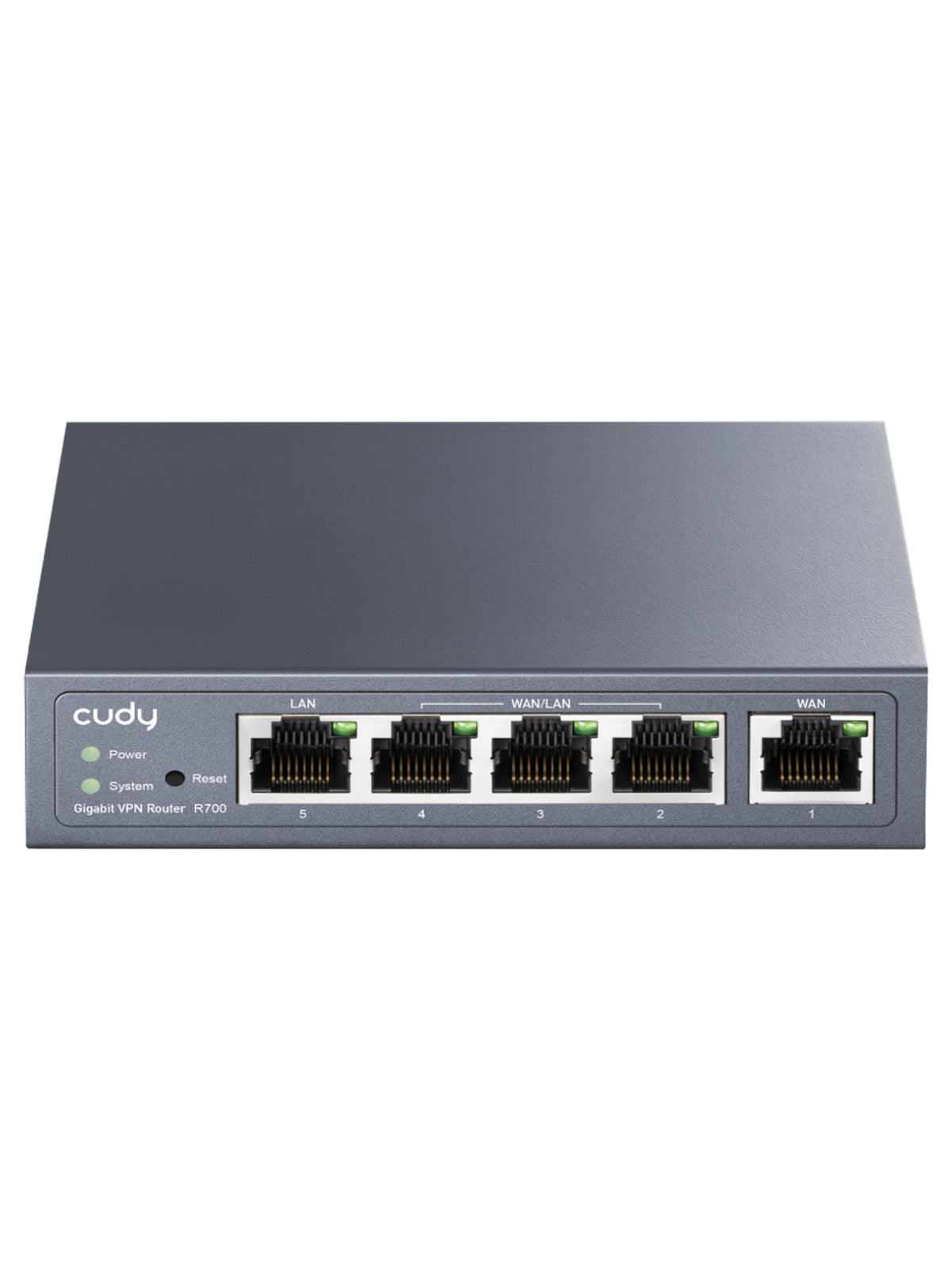

Cudy R700 Gigabit Multi-WAN Router
Multi-WAN VPN router with 5× Gigabit ports, load balancing and WireGuard / OpenVPN / IPsec VPN
Read More- Regular price
- $30.00 USD
- Sale price
- $30.00 USD
- Regular price
-
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Cudy R700 Gigabit Multi-WAN Router
The Cudy R700 is a wired multi-WAN VPN router with 5× Gigabit ports, several of which can work as WAN or LAN. It combines load balancing across internet lines, WireGuard, OpenVPN, IPsec VPN, a firewall and control of Cudy access points. It is a good fit for small offices and shops that want two or more internet lines, load balancing and VPN.
Main Specs
- Ethernet: 5× Gigabit ports (1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port)
- Multi-WAN: Up to 4× WAN Ports
- Load Balancing: Online Detection, Weighted Diversion, Reply to Origin
- VPN Server: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN Client: WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
- VPN Tunnels: IPSec: 20, PPTP/L2TP: 16, OpenVPN: 16
- VPN Speed: OpenVPN Client (UL/DL): 22 / 24.7 Mbps, OpenVPN Server (UL/DL): 22 / 20.9 Mbps, WireGuard Client (UL/DL): 142 / 233.9 Mbps
- AP Management: Captive Portal, Multi-SSID (Up to 4 SSIDs on each band), Radio (Channel, Transmit Power, RSSI Threshold, Roaming Threshold), Rate Limit
- Firewall: SPI Firewall, DoS Protection, Block PING
- Ideal for small offices and shops that want two or more internet lines, load balancing and VPN
Main Characteristics
Brand
Cudy
Model
R700
Hardware Version
1.0
Product Type
Router
CPU Details
880 MHz Dual-Core
Flash/ROM
16 MB (128 Mbit) NOR
DDR/RAM
128 MB (1 Gbit) DDR3
Gigabit RJ45 Ports
5
Ethernet Notes
1× WAN Port, 3× WAN/LAN Ports, 1× LAN Port
LED
Power, System, Speed/Link/ACT of Ethernet Port
Physical Buttons
Reset Button

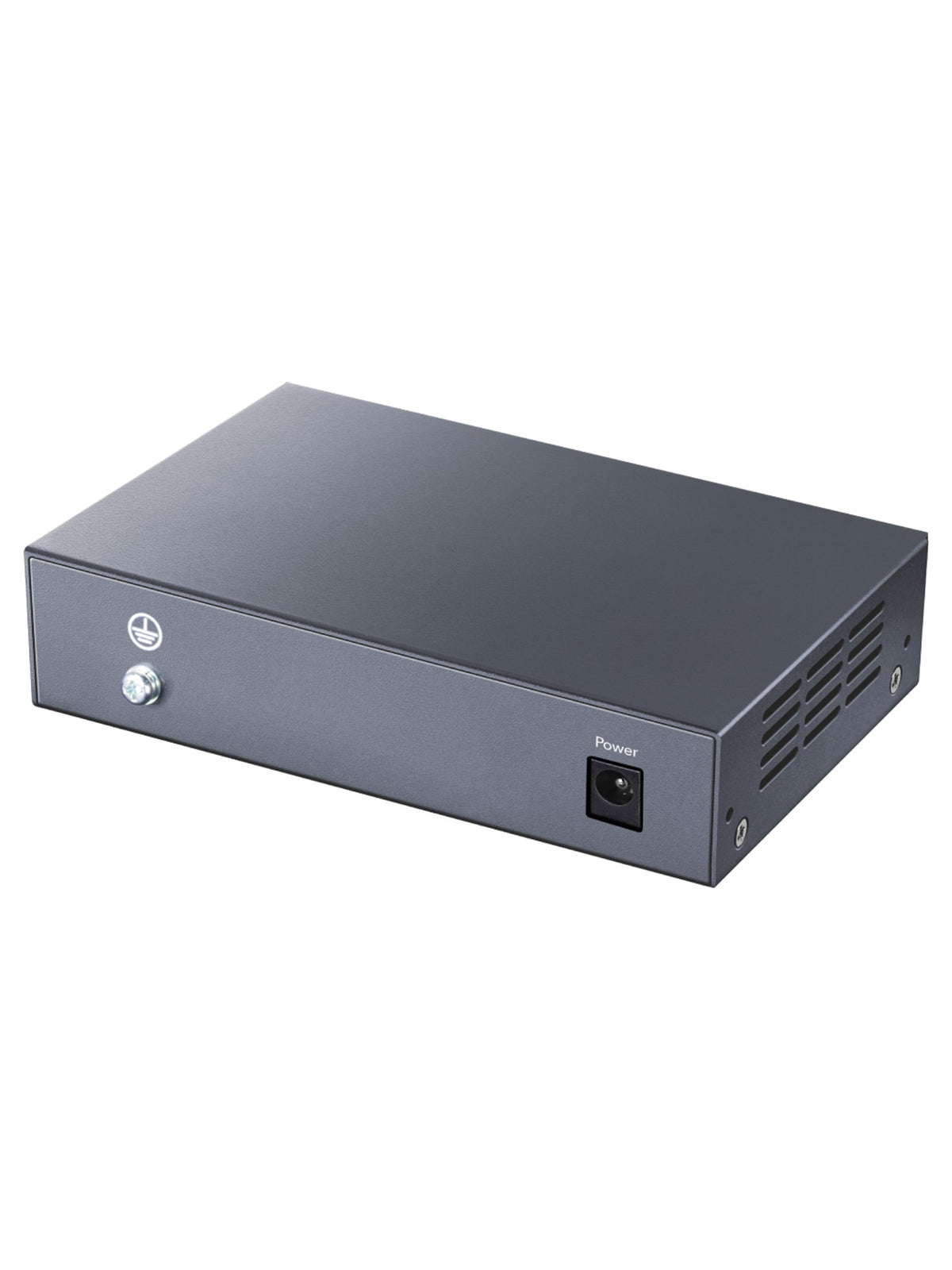

Power Input Type
DC Jack
Power Methods
DC
Power Input
12V⎓1A
Power Adapter In the Box
Input: 100-240V~, 50/60Hz, Output: 12V⎓1A
Environment
Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉), Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉), Operating Humidity: 10% ~ 90% non-condensing, Storage Humidity: 5% ~ 90% non-condensing
Grounding Methods
Grounding Point
Certifications
FCC, CE
Installation
Desktop, Wall-mount
Casing Material
Metal
Dimension
119×85×28 mm, 4.69×3.35×1.1 inches
Product Weight
273 g (9.63 oz.)

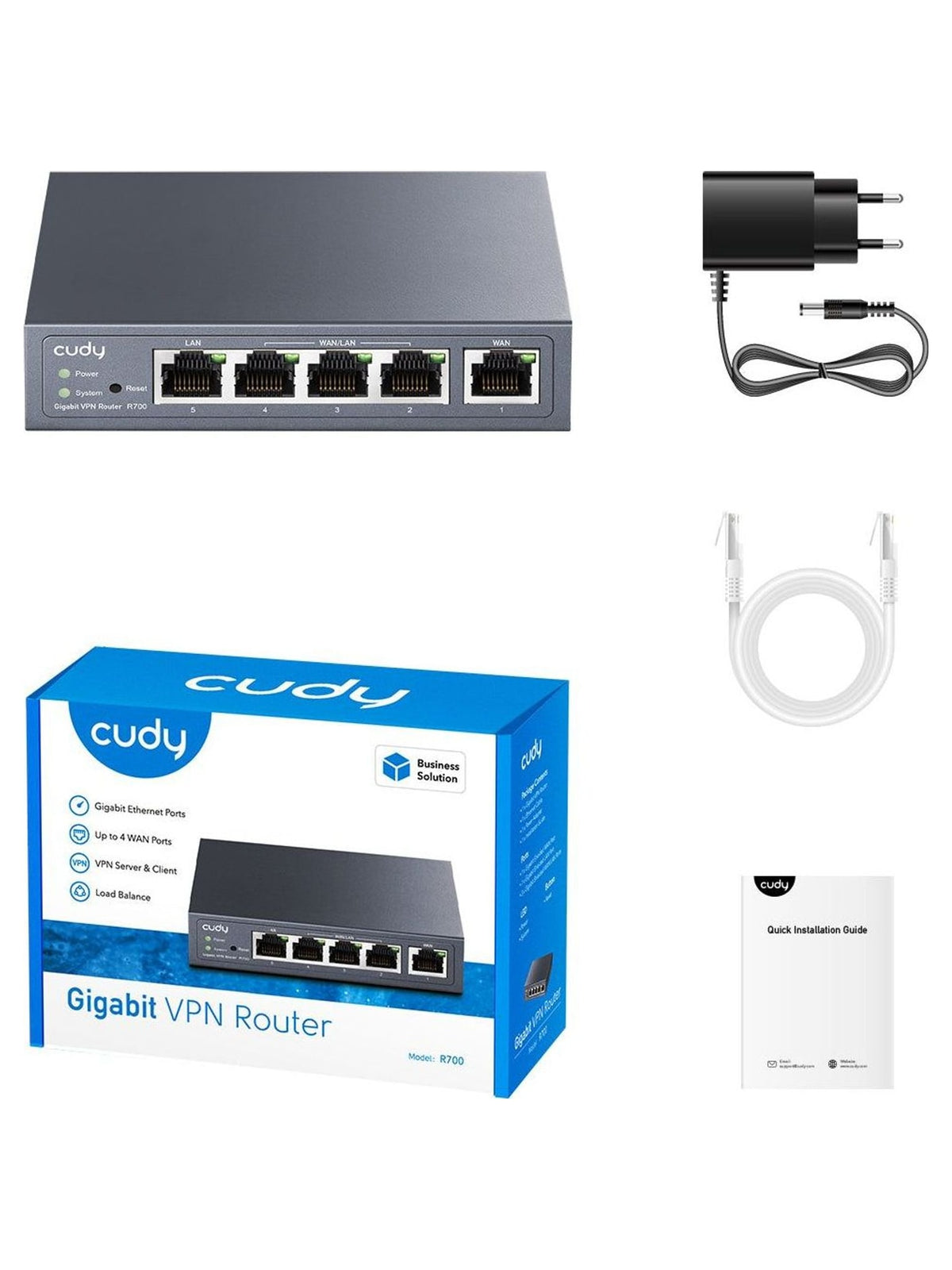

Package Content
R700, Power Adapter, Ethernet Cable, Installation Guide
WAN Mode
DHCP, Static IP, PPPOE
Multi-WAN
Up to 4× WAN Ports
Load Balancing
Online Detection, Weighted Diversion, Reply to Origin
QoS
Rate Limiting
DHCP
Address Reservation, DHCP Client List, Server
IP Versions
IPv4/IPv6
IPv6 Protocols
Relay, Dynamic (SLAAC/DHCPv6), Static (Fixed IP), Passthrough, 464XLAT, MAP-E, DS-Lite
TTL Customization
Extend, Spoof, Custom
IGMP
IGMP Proxy, IGMP Snooping
Forwarding
Port Forwarding, Port Triggering, UPnP, DMZ
Firewall
SPI Firewall, DoS Protection, Block PING
Application Layer Gateway
IPSec Passthrough, L2TP Passthrough, PPTP Passthrough, FTP Passthrough, TFTP Passthrough, H323 Passthrough, SIP Passthrough, RTSP Passthrough
VPN Server
WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Client
WireGuard, OpenVPN, IPsec, Zerotier, PPTP, L2TP
VPN Performance
OpenVPN Client (UL/DL): 22 / 24.7 Mbps, OpenVPN Server (UL/DL): 22 / 20.9 Mbps, WireGuard Client (UL/DL): 142 / 233.9 Mbps, WireGuard Server (UL/DL): 213 / 152 Mbps
Max Concurrent VPN Tunnels
IPSec: 20, PPTP/L2TP: 16, OpenVPN: 16
DNS Options
DNS over TLS, Manual DNS, Rebind Protection, Override Clients' DNS
DNS over TLS Providers
Cloudflare, Google, Quad9, Custom
USB Functions
Samba Server
Wake on LAN
Yes
Online Detection
Yes
All Devices Management
Wi-Fi Time Schedule, MAC Filter, IP/MAC Binding
Per-Devices Management
Internet On/Off, VPN On/Off, Online Time Schedule, Device Rename
Content Management
Domain Filter, IP Filter
AP Management Features
Captive Portal, Multi-SSID（Up to 4 SSIDs on each band）, Radio (Channel, Transmit Power, RSSI Threshold, Roaming Threshold), Rate Limit
Local Control Method
Config Web Page
Remote Control Method
Config Page via HTTPS, TR069/TR098/TR111/TR143/TR181
Firmware Upgrade
Local Update
Reliability
Timed Reboot, Backup and Restore
Diagnostic Tools
Diagnosis, Ping, Traceroute, NSLookup, System Log
Multi-Band Backhaul
Yes
Languages
English, Bengali, Catalan, Czech, German, Greek, Spanish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Khmer, Korean, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Slovak, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Simplified Chinese
Internet Failover Sequence
WAN, WISP
