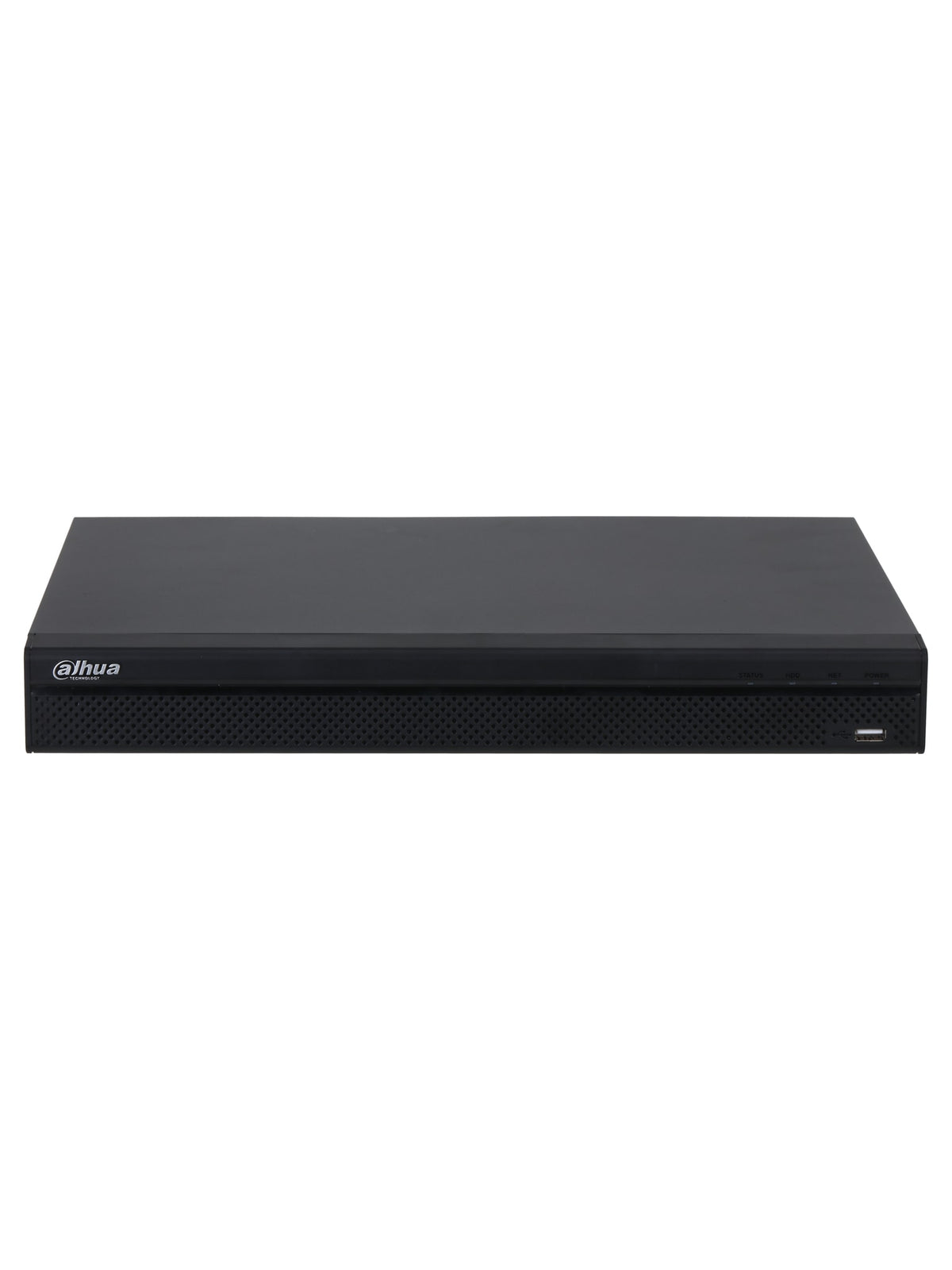

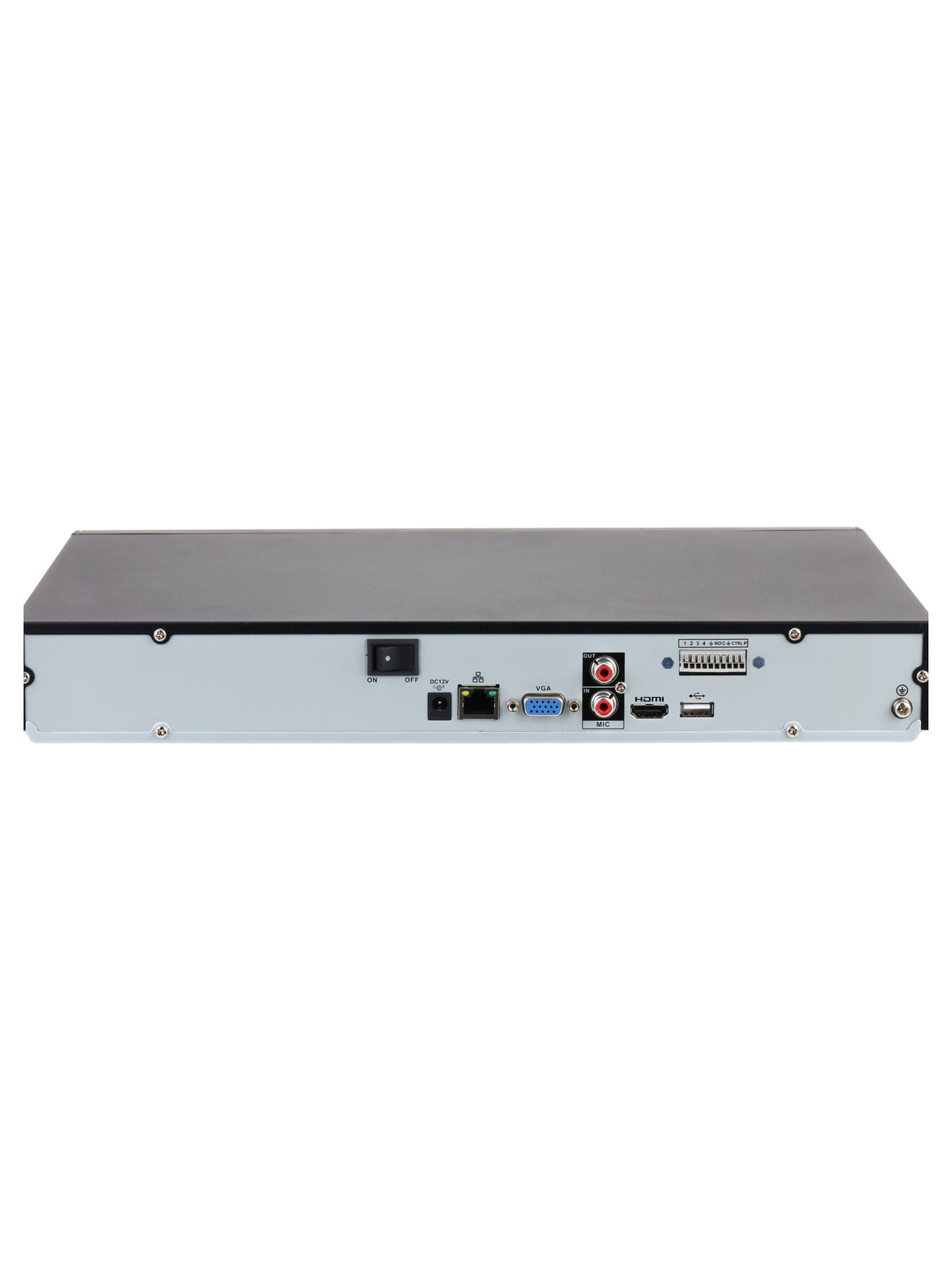

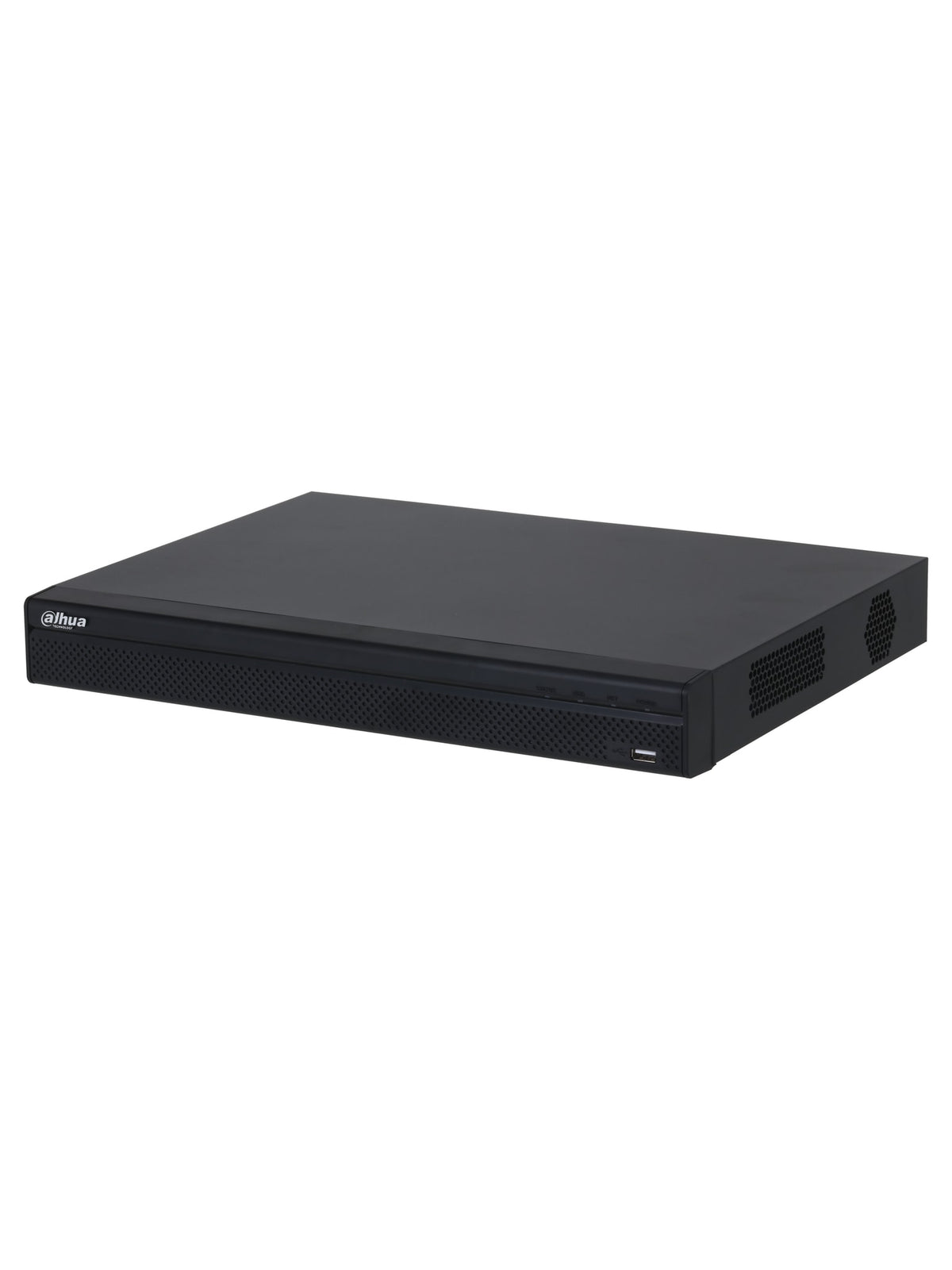

Dahua 16-Channel Lite 4K NVR, Up to 12MP, 4K HDMI, 2 SATA - DHI-NVR4216-4KS3
16-channel Lite NVR for IP cameras up to 12MP, 4K HDMI + VGA output, 2 SATA bays up to 20TB each and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DHI-NVR4216-4KS3
Product Type
Network Video Recorder (NVR)
Series
Lite
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua 16-Channel Lite 4K NVR, Up to 12MP, 4K HDMI, 2 SATA - DHI-NVR4216-4KS3
The Dahua NVR4216-4KS3 is a 16-channel Lite series network video recorder in a 1U case. It combines 160 Mbps incoming bandwidth, IP cameras up to 12MP, 4K HDMI and VGA output and 2 SATA bays of up to 20TB each. It suits offices, retail stores and small businesses that want reliable, easy recording.
Main Specs
- 16 IP channels, cameras up to 12MP
- Bandwidth: 160 Mbps incoming / 160 Mbps recording / 80 Mbps outgoing
- Decoding: up to 8 x 1080p@30 fps
- Video output: 1 x HDMI (up to 4K 3840 x 2160) + 1 x VGA
- Storage: 2 SATA bays, up to 20TB per HDD
- AI by recorder: 4-ch SMD
- Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264
- Network: 1 x RJ-45 (10/100/1000 Mbps); USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- Ideal for offices and shops running up to 16 IP cameras
Main Characteristics
Brand
Dahua
Model
DHI-NVR4216-4KS3
Product Type
Network Video Recorder (NVR)
Series
Lite
Channels
16 IP channels
Max Camera Resolution
12MP
Network Bandwidth
AI disabled: 160 Mbps incoming, 160 Mbps recording and 80 Mbps outgoing; AI enabled: 80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability
8 Γ 1080p@30 fps
Video Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Multi-screen Display
Main Screen: 1/4/8/9/16; Sub Screen: 1/4/8/9/16
Video Compression
Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM; G726
AI by Recorder
4-ch SMD
AI by Camera
Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map
HDD Interface
2 SATA ports. Each disk can contain up to 20 TB.
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
USB
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Audio Input
1-channel RCA
Audio Output
1-channel RCA
Alarm Input
4 channels
Alarm Output
2 channels (1-channel 12 V 1 A outputοΌ
Interoperability
ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
Mobile Access
iOS; Android
Power Supply
12 VDC, 4 A
Power Consumption
Total output of NVR is <10 W(without HDD)
Dimensions
375.0 mm Γ 282.9 mm Γ 53.0 mm (W x D x H)
Weight
1.49 kg
Operating Temperature
β10 Β°C to +55 Β°C
