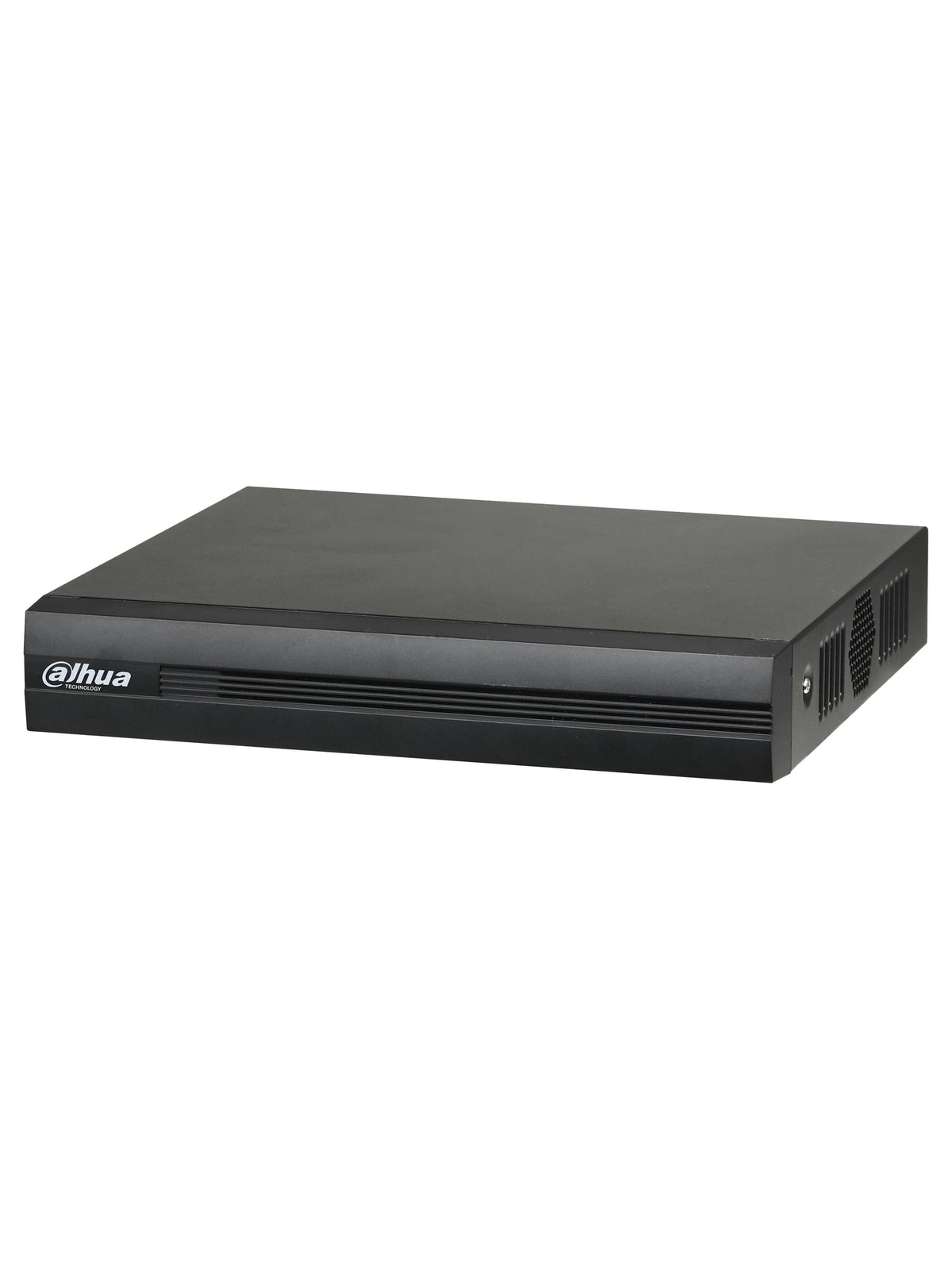

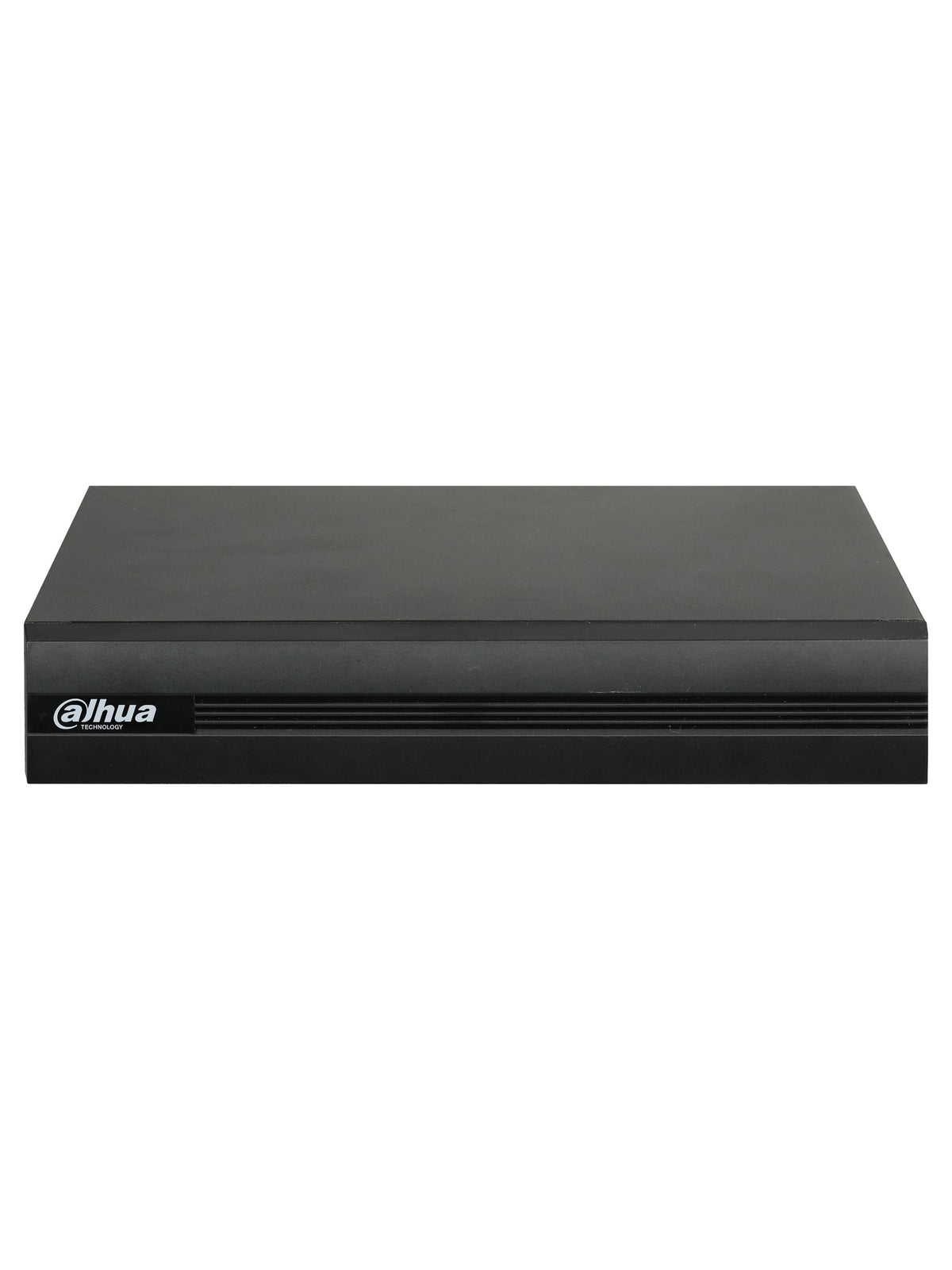

Dahua 16-Channel Penta-brid 5MP XVR, WizSense AI, 1 SATA - DH-XVR1B16H-I
16-channel Penta-brid 5MP XVR for HDCVI, AHD, TVI, CVBS and IP cameras (up to 24 IP channels), 4K HDMI + VGA, 1 SATA bay up to 16TB, WizSense AI and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DH-XVR1B16H-I
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua 16-Channel Penta-brid 5MP XVR, WizSense AI, 1 SATA - DH-XVR1B16H-I

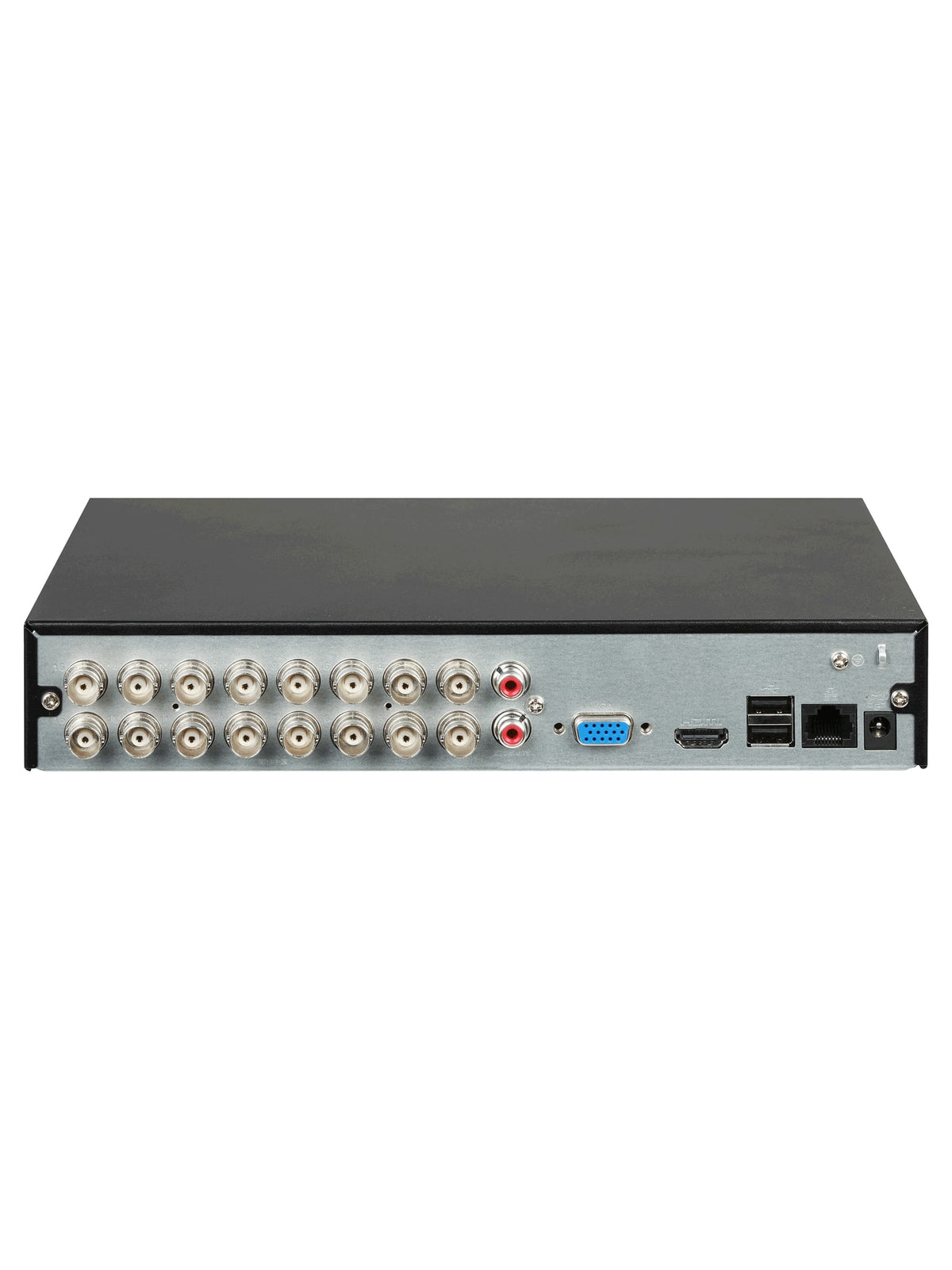

The Dahua XVR1B16H-I is a 16-channel Penta-brid digital video recorder from the WizSense range in a Compact 1U case. It combines 16 BNC inputs that auto-detect HDCVI, AHD, TVI and CVBS cameras, encoding up to 5M-N @ 12fps/1080p @ 15fps, up to 24 IP channels (cameras up to 6MP), 4K HDMI and VGA output and one SATA bay of up to 16TB. It suits offices, retail stores and small businesses that want to keep or upgrade coaxial cameras while adding IP cameras.
Main Specs
- 16 analog BNC inputs: HDCVI / AHD / TVI / CVBS auto-detect
- Encoding: up to 5M-N@12fps/1080p@15fps
- IP cameras: up to 24 channels (up to 6MP)
- Video output: HDMI (up to 4K 3840 x 2160) + VGA
- Storage: 1 SATA bay, up to 16TB per HDD
- AI: 16-ch SMD, 16-ch AI Coding
- Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
- Network: 1 x RJ-45 10/100/1000 Mbps; USB: 2 rear USB 2.0 ports
- Ideal for offices and shops with 16 coaxial (HDCVI/AHD/TVI) cameras
Main Characteristics
Brand
Dahua
Model
DH-XVR1B16H-I
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Channels
16 analog + up to 24 IP
Analog Camera Input
16 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input
Up to 24 channels of IPC access 8 IP channels by default + 16 channels (analog channels are converted to IP channels) incoming bandwidth: 128 Mbps, recording bandwidth: 128 Mbps and outgoing bandwidth: 128 Mbps *After IP channels are added beyond the existing channels, the AI Function SMD will be disabled.
Max Encoding
5M-N@12fps/1080p@15fps
AI Functions
16-ch SMD, 16-ch AI Coding
Video Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Multi-screen Display
When IP extension mode not enabled: 1/4/8/9/16 When IP extension mode enabled: 1/4/8/9/16/25
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Audio Input
1-channel RCA 16-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
HDD Interface
1 SATA port, up to 16 TB.
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
USB
2 (2 rear USB 2.0 ports)
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Power Supply
12 VDC, 2 A
Dimensions
260.0 mm Γ 231.4 mm Γ 47.6 mm (W x D x H)
Weight
0.93 kg
Operating Temperature
β10 Β°C to +45 Β°C
