Dahua 16-Channel WizSense AI NVR, Up to 32MP, 8K HDMI, 2 SATA, 16 PoE Ports - DHI-NVR5216-16P-EI
16-channel WizSense NVR for IP cameras up to 32MP, 8K HDMI + VGA output, 2 SATA bays up to 20TB each, 16 PoE ports (130W), AI by recorder and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DHI-NVR5216-16P-EI
Product Type
Network Video Recorder (NVR)
Series
WizSense
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.

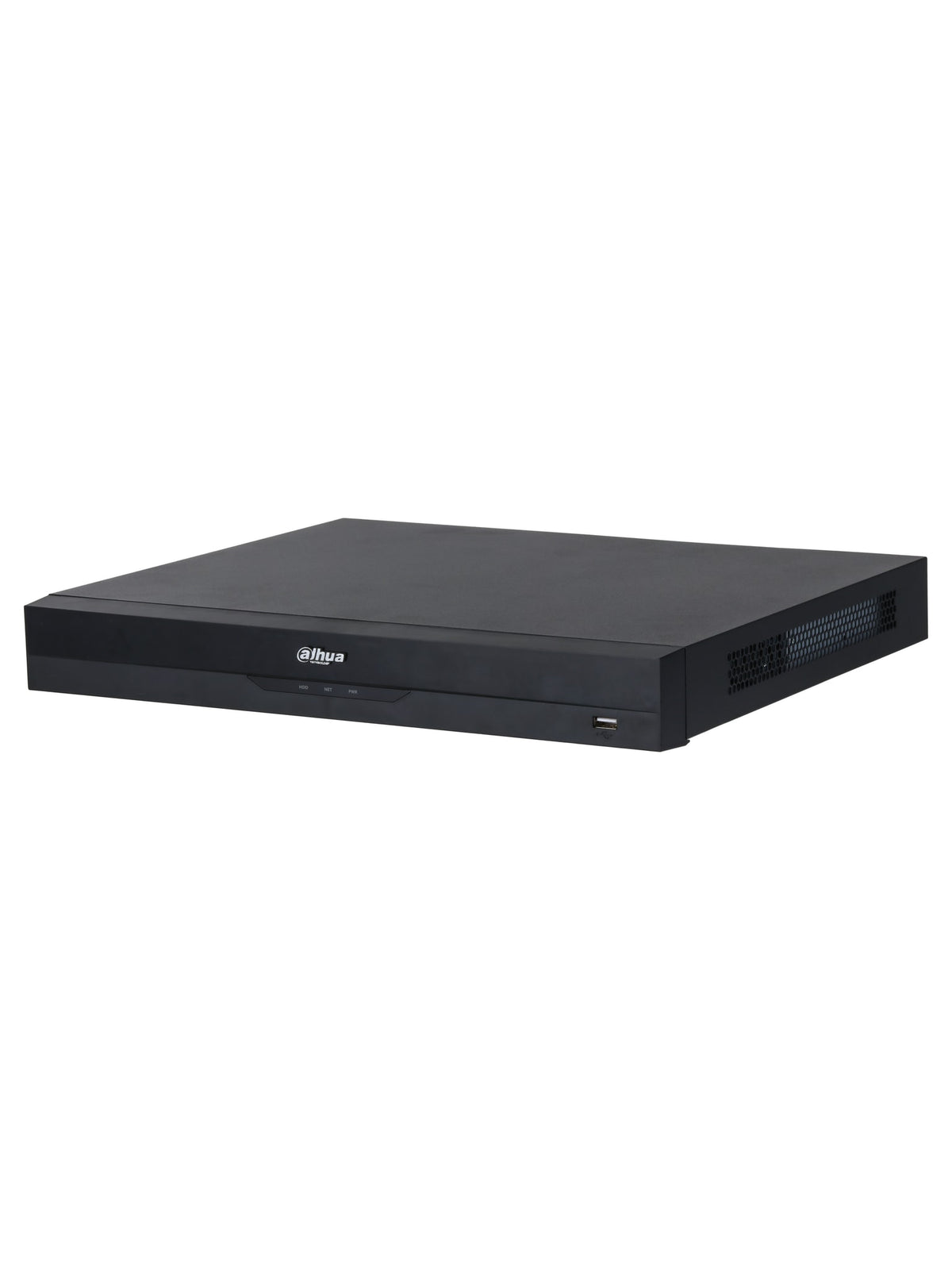

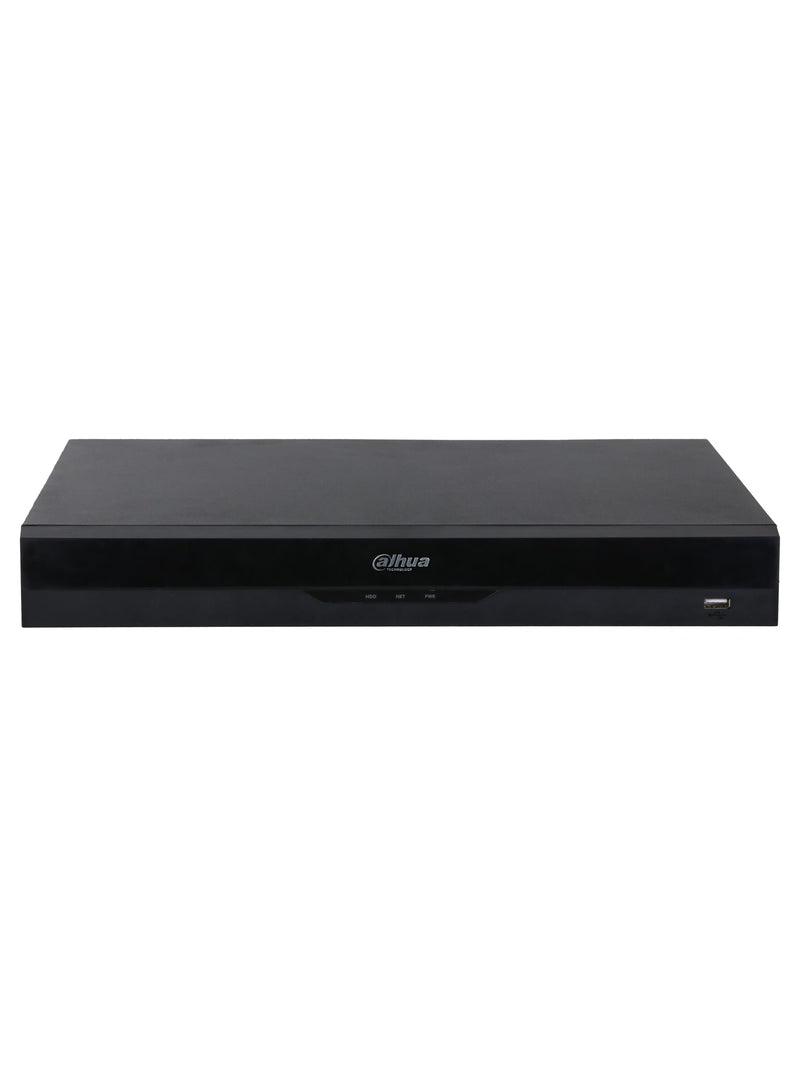

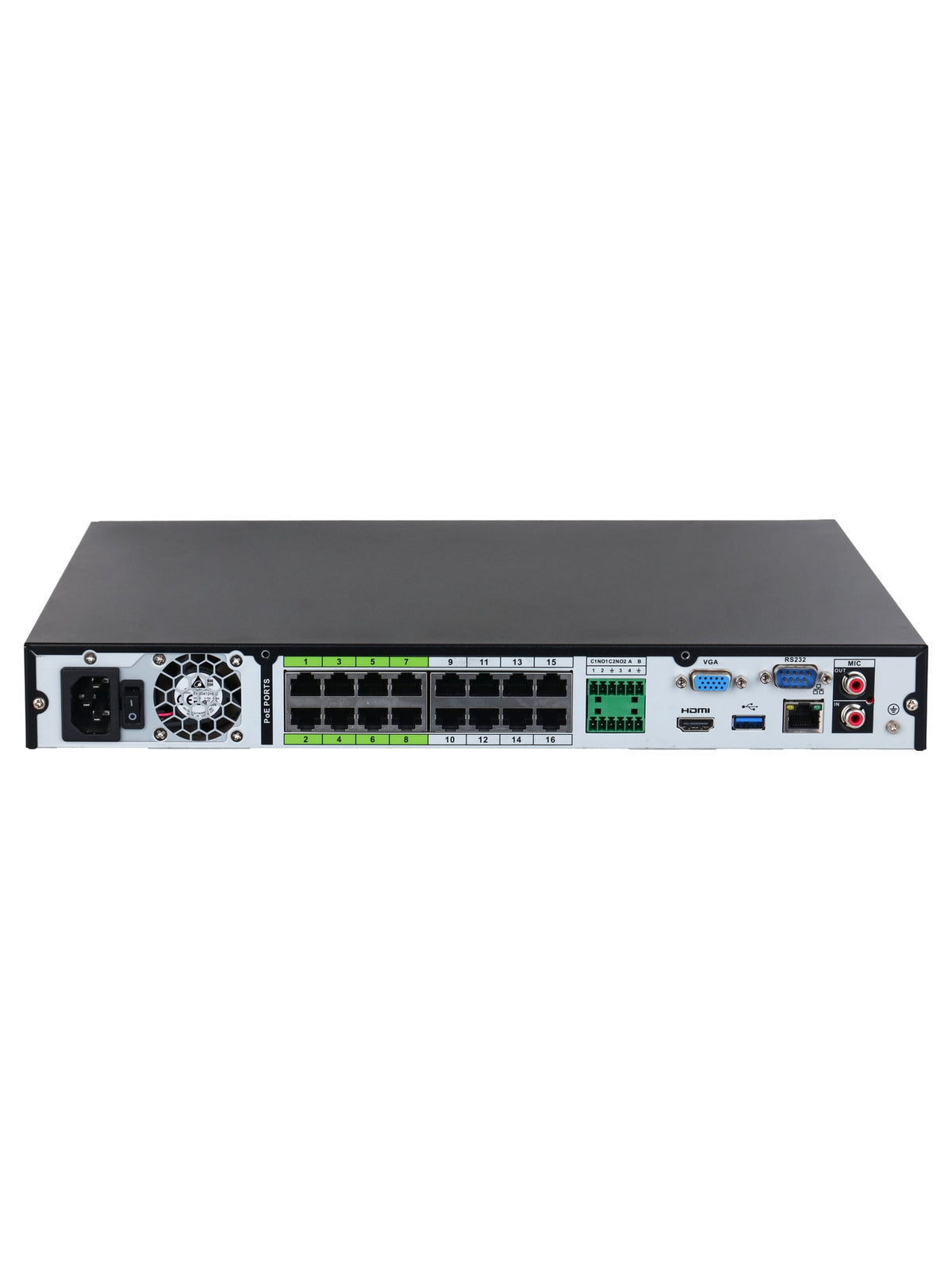

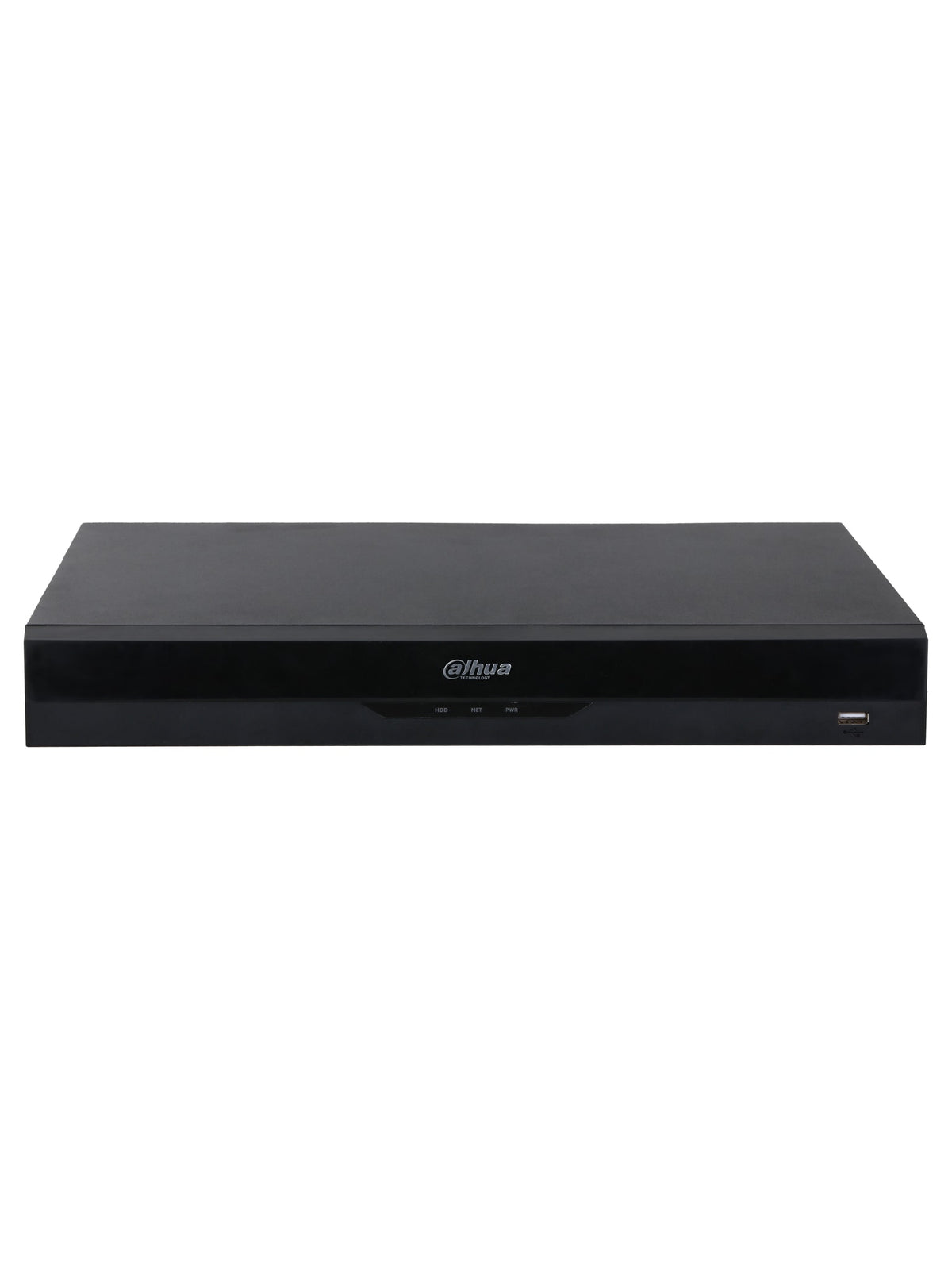

Dahua 16-Channel WizSense AI NVR, Up to 32MP, 8K HDMI, 2 SATA, 16 PoE Ports - DHI-NVR5216-16P-EI
The Dahua NVR5216-16P-EI is a 16-channel WizSense series AI network video recorder in a 1U case. It combines 384 Mbps incoming bandwidth, IP cameras up to 32MP, 8K HDMI and VGA output and 2 SATA bays of up to 20TB each, with 16 built-in PoE ports to power the cameras. It suits offices, retail stores and small businesses that want smart search and fewer false alarms.
Main Specs
- 16 IP channels, cameras up to 32MP
- Bandwidth: 384 Mbps incoming / 384 Mbps recording / 384 Mbps outgoing
- Decoding: up to 32 x 1080p@30 fps
- Video output: 1 x HDMI (up to 8K 7680 x 4320) + 1 x VGA
- Storage: 2 SATA bays, up to 20TB per HDD
- PoE: 16 ports (IEEE 802.3 af/at), 130W total
- AI by recorder: 2-ch Face Detection and Recognition, 8-ch SMD, 4-ch Perimeter Protection
- Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264 / MJPEG
- Network: 1 x RJ-45 (10/100/1000 Mbps); USB: 1 front USB 2.0 port, 1 rear USB 3.0 port
- Ideal for offices and shops running up to 16 IP cameras
Main Characteristics
Brand
Dahua
Model
DHI-NVR5216-16P-EI
Product Type
Network Video Recorder (NVR)
Series
WizSense
Channels
16 IP channels
Max Camera Resolution
32MP
Network Bandwidth
AI disabled: 384 Mbps incoming, 384 Mbps recording and 384 Mbps outgoing; AI enabled: 200 Mbps incoming, 200 Mbps recording and 200 Mbps outgoing
Decoding Capability
32 Γ 1080p@30 fps
Video Output
1 x HDMI (up to 7680 x 4320), 1 x VGA (up to 1920 x 1080)
Multi-screen Display
Main screen: 1/4/8/9/16; Sub screen: 1/4/8/9/16
Video Compression
Smart H.265+; H.265; Smart H.264+; H.264; MJPEG
Audio Compression
G.711a; G.711u; PCM; G726
AI by Recorder
2-ch Face Detection and Recognition, 8-ch SMD, 4-ch Perimeter Protection
AI by Camera
Face detection; face recognition; video metadata (human, motor vehicles, and non-motor vehicles); perimeter protection; SMD; stereo analysis; crowd distribution; people counting; ANPR; vehicle density; heat map; PPE detection; smart object detection; smart sound detection
HDD Interface
2 SATA ports, each disk can contain up to 20 TB.
PoE Ports
16 ports, 10/100 Mbps, IEEE 802.3 af/at, 1-8 ports support ePoE
PoE Budget
130 W total, max 25.5W per port
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
USB
2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
Audio Input
1-channel RCA
Audio Output
1-channel RCA
Alarm Input
4 channels
Alarm Output
2 channels
RS-232
1
RS-485
1
Interoperability
ONVIF 25.06 (Profile T; Profile S; Profile G; Profile M); CGI; SDK
Mobile Access
iOS; Android
Power Supply
100β240 VAC, 47-63 Hz
Power Consumption
Total output of NVR is β€ 10W (without HDD); Total output power of PoE is 130W, the maximum output power of a single port is 25.5W
Dimensions
375.0 mm Γ 329.3 mm Γ 53.0 mm (W x D x H)
Weight
2.66 kg
Operating Temperature
β10 Β°C to +55 Β°C
