Dahua 2MP Smart Dual Light HDCVI Pan & Tilt Camera, 2.8mm, 40m, Built-in Mic - DH-HAC-PT1200AP-IL-A-0280B-S6

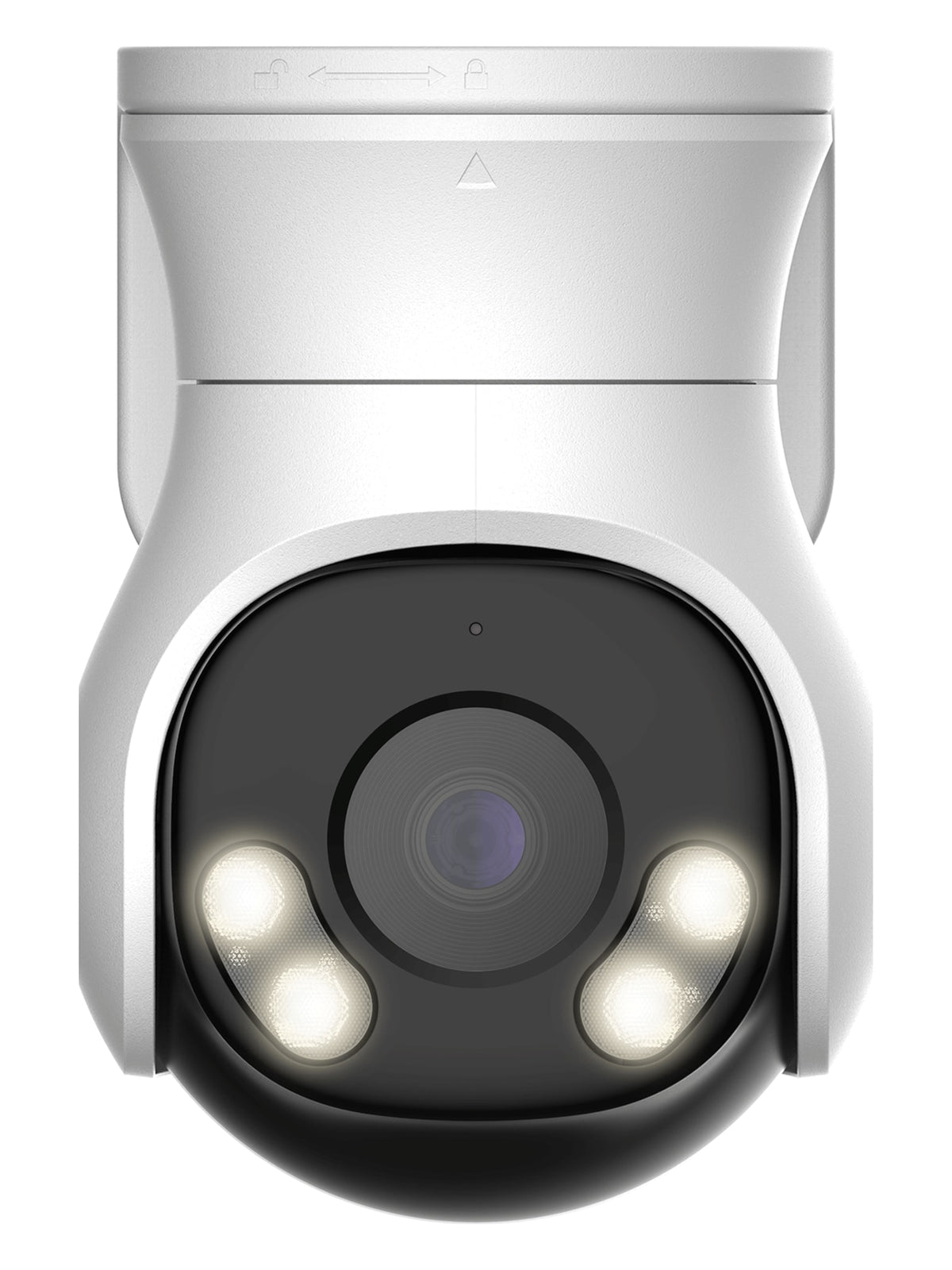

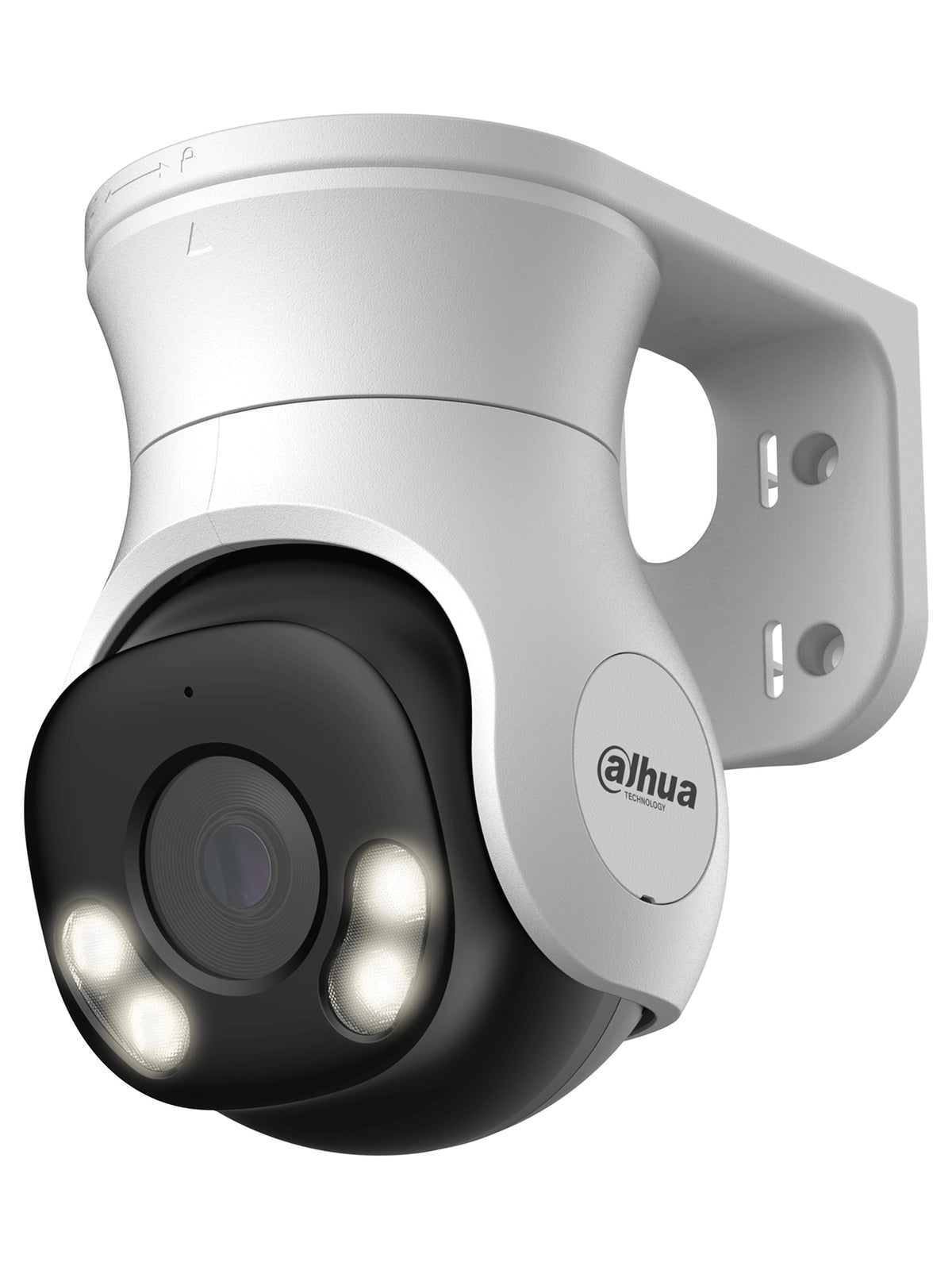

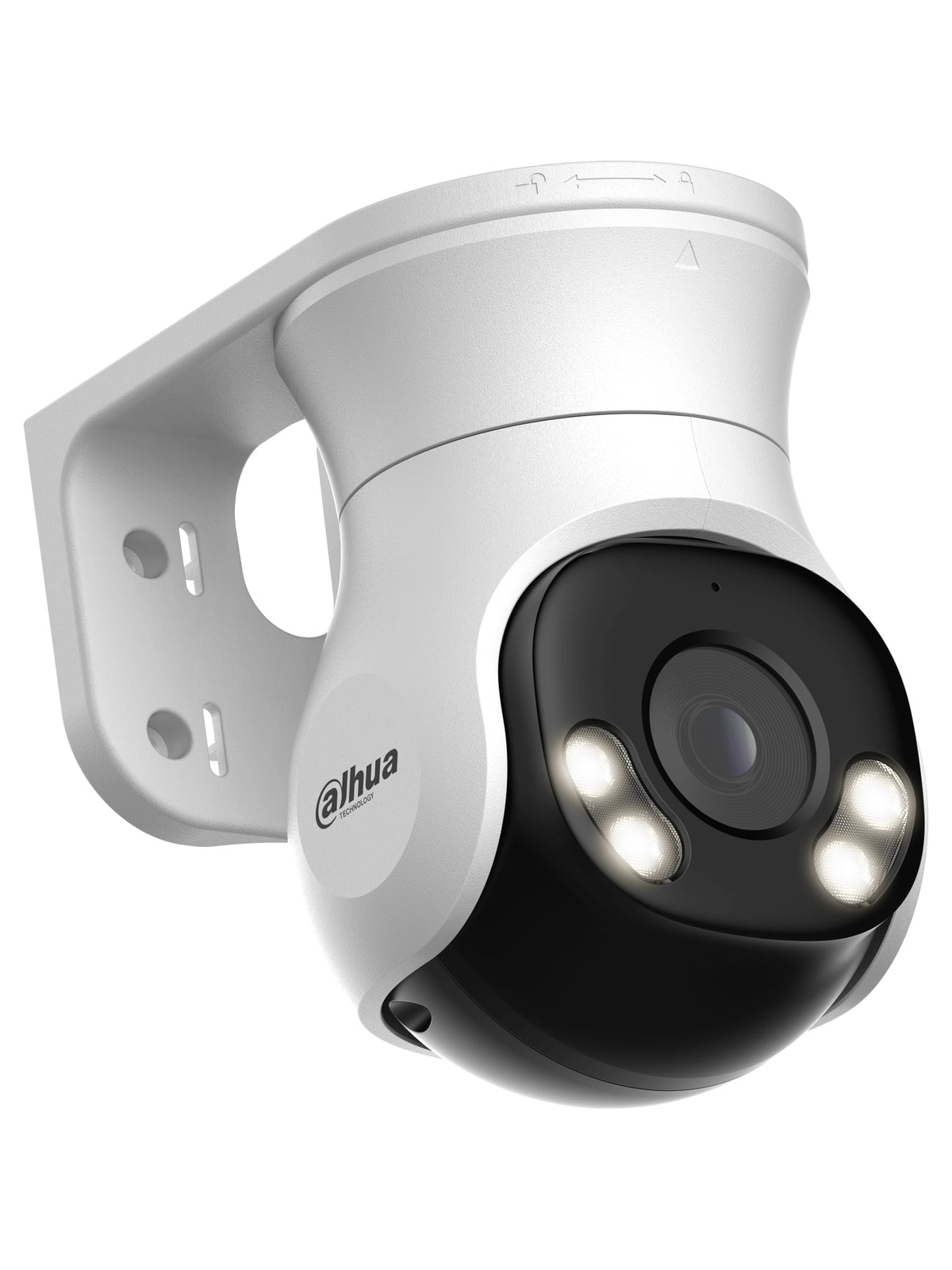

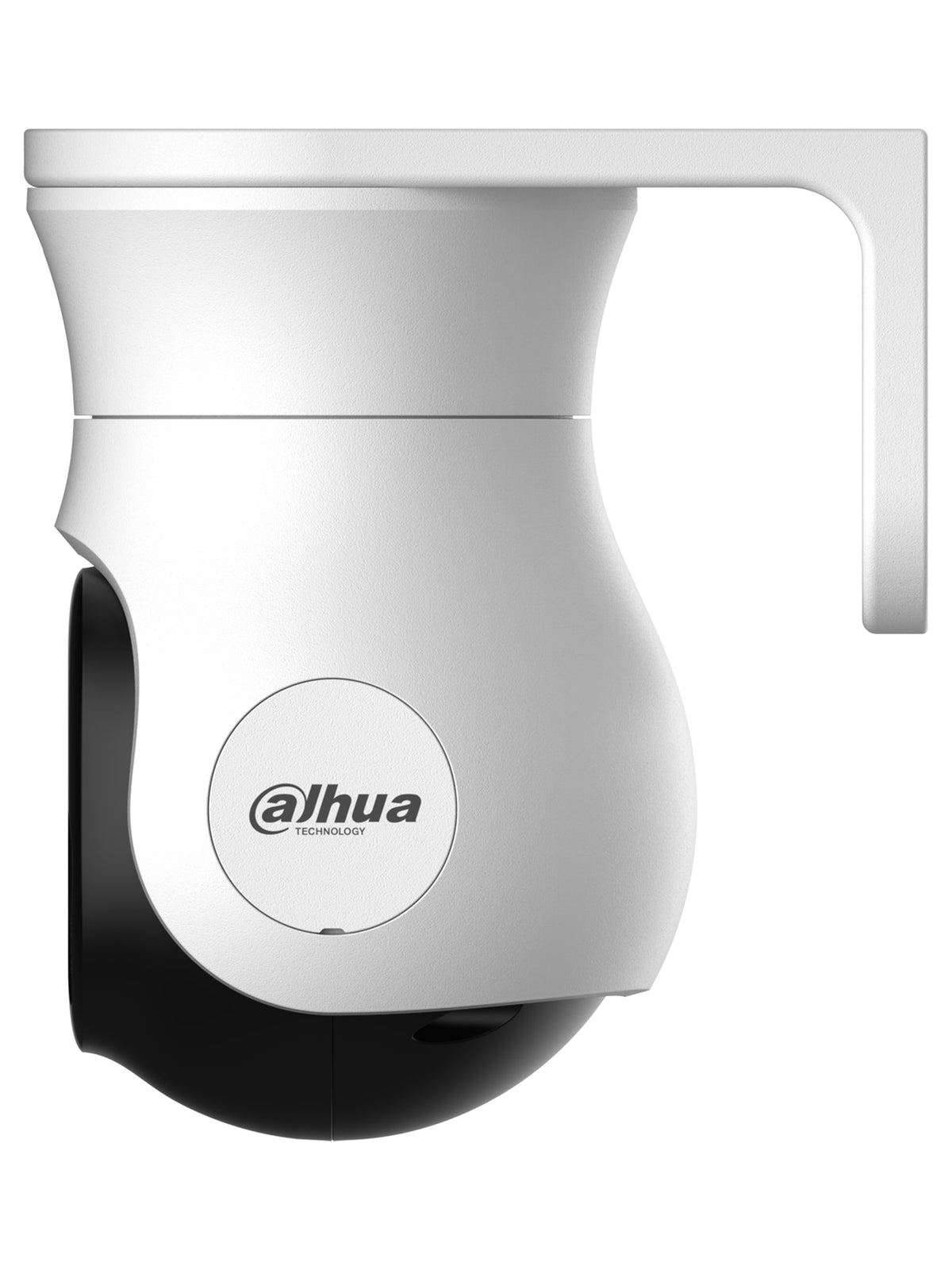

The Dahua HAC-PT1200A-IL-A is a 2MP HDCVI pan and tilt camera with Smart Dual Light illumination. It combines a 2MP sensor and a 2.8 mm lens with IR and warm light up to 40 m, a built-in microphone, IP66 protection and switchable CVI/TVI/AHD/CVBS output. It suits users who want to turn the view of one camera around a yard, parking or shop from the recorder.
Main Specs
- 2MP resolution (1920 × 1080), 2 MP CMOS sensor
- Fixed-focal 2.8 mm lens, 102° horizontal view
- Smart Dual Light: IR: 40 m; Warm light: 40 m
- Switchable CVI / TVI / AHD / CVBS video output over one BNC coax cable
- Built-in microphone
- Power: 12 VDC ± 30%
- IP66 protection, plastic housing
- Ideal for covering a wide outdoor area with one coax camera you can pan and tilt
Main Characteristics
Brand
Dahua
Model
DH-HAC-PT1200AP-IL-A-0280B-S6
Product Type
HDCVI Pan & Tilt Camera
Series
PT Series
Resolution
2MP, 1920 × 1080
Image Sensor
2 MP CMOS
Lens
Fixed-focal, 2.8 mm
Field of View
H: 102°; V: 60°; D: 129°
Aperture
F2.0
Illumination Range
IR: 40 m; Warm light: 40 m
Min. Illumination
0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
WDR
DWDR
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio
audio in: One channel built-in Mic
Power/PoE
12 VDC ± 30%
Power Consumption
Max 6.1 W (12 V DC, LED on)
Protection
IP66
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Housing
Plastic
Dimensions
92.9 mm × 91.3 mm × 130 mm
Weight
0.39 kg
