Dahua 32-Channel Penta-brid 4K XVR, WizSense AI, 2 SATA, Two-Way Talk - DH-XVR5232AN-4KL-I3/T
32-channel Penta-brid 4K XVR for HDCVI, AHD, TVI, CVBS and IP cameras (up to 64 IP channels), 4K HDMI + VGA, 2 SATA bays up to 16TB, WizSense AI and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DH-XVR5232AN-4KL-I3/T
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua 32-Channel Penta-brid 4K XVR, WizSense AI, 2 SATA, Two-Way Talk - DH-XVR5232AN-4KL-I3/T

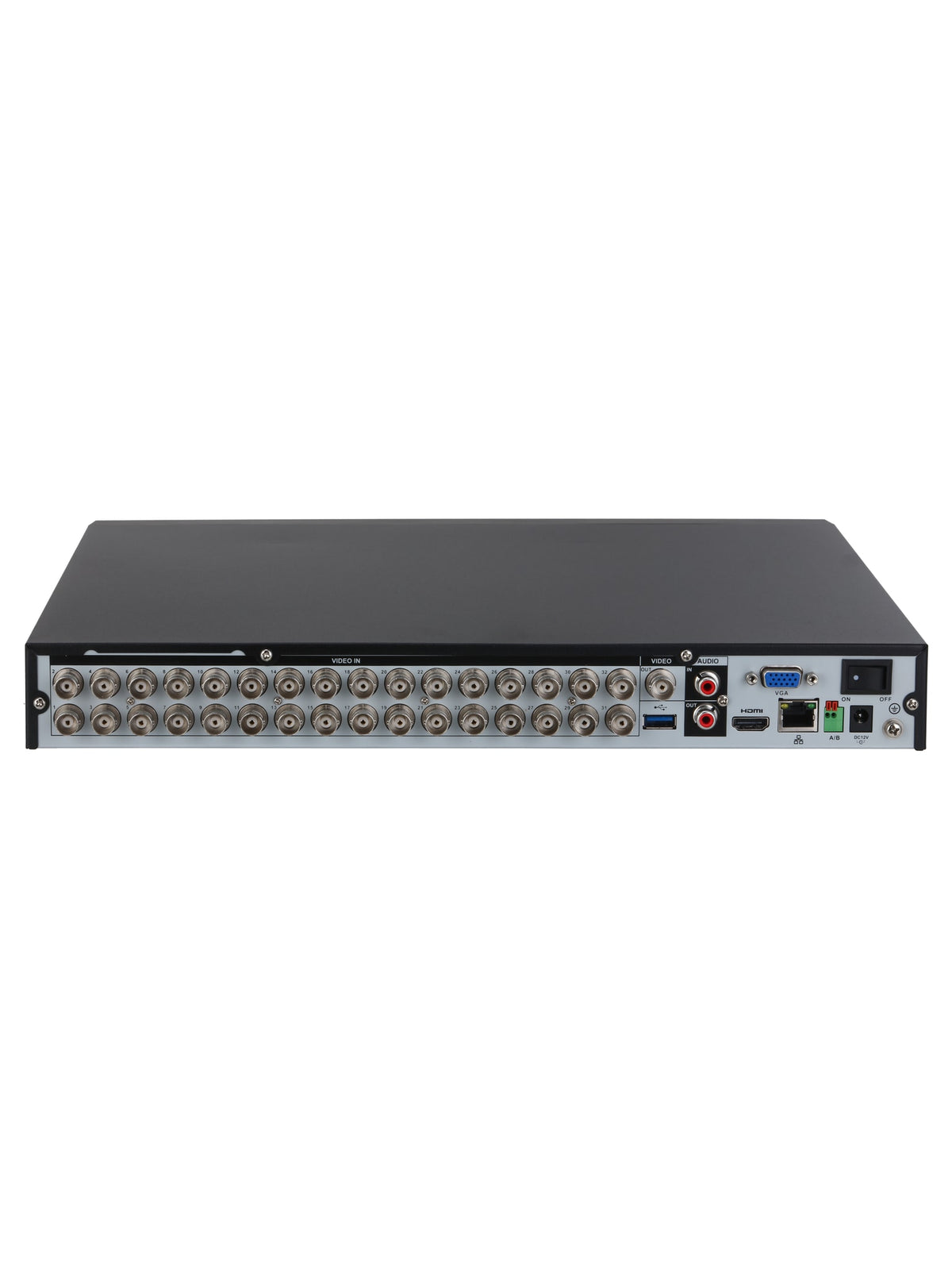

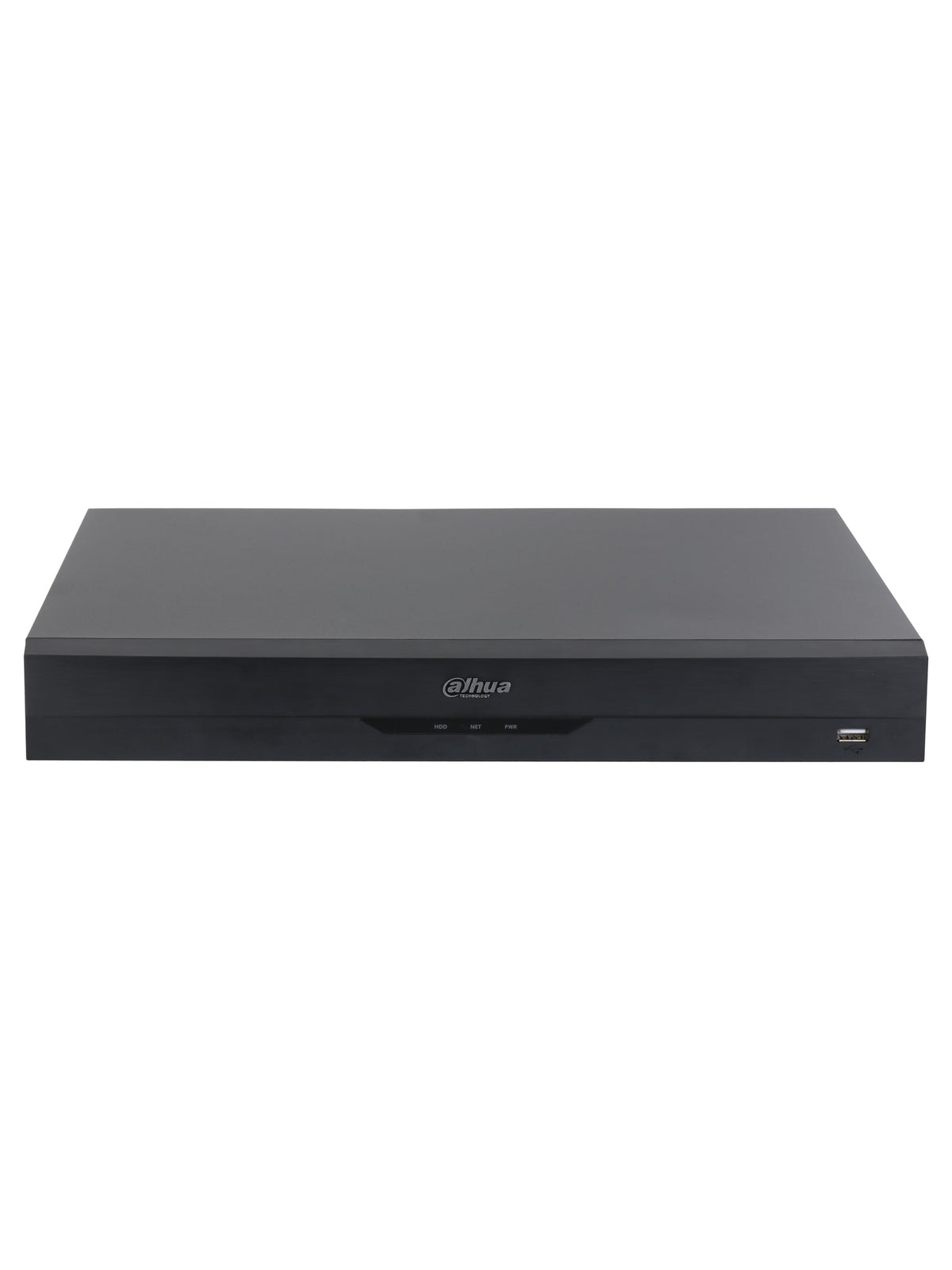

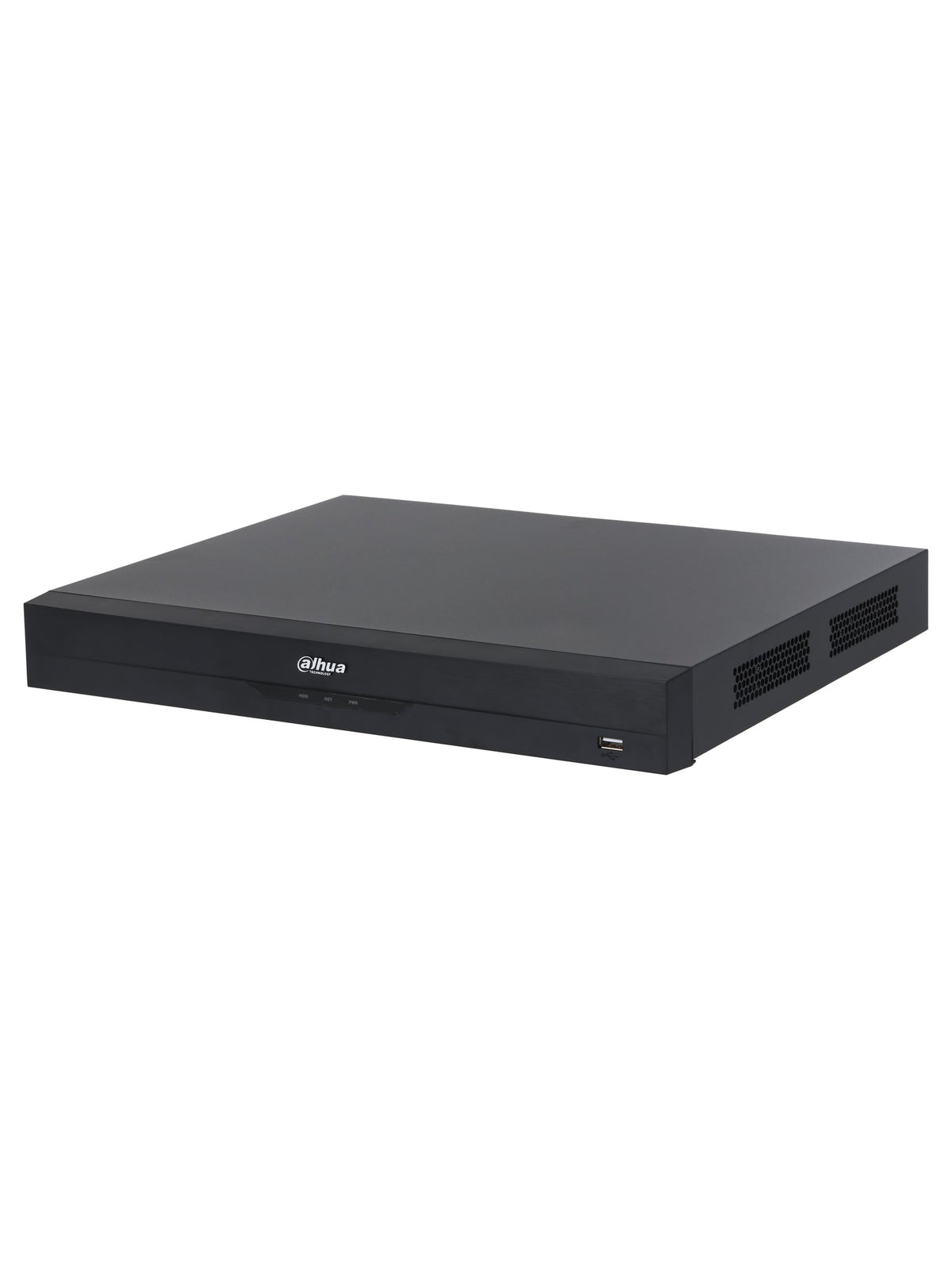

The Dahua XVR5232AN-4KL-I3/T is a 32-channel Penta-brid digital video recorder from the WizSense range in a 1U case. It combines 32 BNC inputs that auto-detect HDCVI, AHD, TVI and CVBS cameras, encoding up to 4K @ 15fps/5MP @ 25fps, up to 64 IP channels (cameras up to 12MP), 4K HDMI and VGA output and 2 SATA bays of up to 16TB each. It suits medium sites such as warehouses, schools and office buildings that want to keep or upgrade coaxial cameras while adding IP cameras.
Main Specs
- 32 analog BNC inputs: HDCVI / AHD / TVI / CVBS auto-detect
- Encoding: up to 4K@15fps/5MP@25fps
- IP cameras: up to 64 channels (up to 12MP)
- Video output: HDMI (up to 4K 3840 x 2160) + VGA + CVBS
- Storage: 2 SATA bays, up to 16TB per HDD
- AI: 12-ch AcuPick, 6-ch FR, 12-ch Perimeter Protection, 1-ch EPTZ, 1-ch Privacy Protection, 32-ch SMD, 32-ch AI Coding
- 32-channel two-way talk over coax
- Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
- Network: 1 x RJ-45 10/100/1000 Mbps; USB: 1 front USB 2.0 port, 1 rear USB 3.0 port
- Ideal for medium sites with 32 coaxial (HDCVI/AHD/TVI) cameras
Main Characteristics
Brand
Dahua
Model
DH-XVR5232AN-4KL-I3/T
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Channels
32 analog + up to 64 IP
Analog Camera Input
32 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input
Up to 64 channels of IPC access; 32 IP channels by default + 32 channels (analog channels are converted to IP channels); Incoming bandwidth: 256 Mbps, recording bandwidth: 256 Mbps and outgoing bandwidth: 256 Mbps
Max Encoding
4K@15fps/5MP@25fps
AI Functions
12-ch AcuPick, 6-ch FR, 12-ch Perimeter Protection, 1-ch EPTZ, 1-ch Privacy Protection, 32-ch SMD, 32-ch AI Coding
Video Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080), 1 x CVBS
Multi-screen Display
Main Screen: 1/4/8/9/16/25/36; Sub Screen: 1/4/8/9/16; The sub screen display conflicts with IP extension function.
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Audio Input
1-channel RCA; 32-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Coaxial two-way talk: 32-channel BNC; Local and network user two-way talk: Shares the same audio input with the first channel
HDD Interface
2 SATA ports, Each disk can contain up to 16 TB.
Network Port
1 (10/100/1000 Mbps Ethernet port, RJ-45)
USB
2 (1 front USB 2.0 port, 1 rear USB 3.0 port)
RS-485
1
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Power Supply
12 VDC, 5 A
Power Consumption
< 32 W (without HDD)
Dimensions
375.0 mm Γ 333.9 mm Γ 53.0 mm (W x D x H)
Weight
2.378 kg
Operating Temperature
β10 Β°C to +55 Β°C
