Dahua 4-Channel Lite 4K NVR, Up to 12MP, 4K HDMI, 1 SATA - DHI-NVR4104HS-4KS3
4-channel Lite NVR for IP cameras up to 12MP, 4K HDMI + VGA output, 1 SATA bay up to 20TB and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DHI-NVR4104HS-4KS3
Product Type
Network Video Recorder (NVR)
Series
Lite
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua 4-Channel Lite 4K NVR, Up to 12MP, 4K HDMI, 1 SATA - DHI-NVR4104HS-4KS3

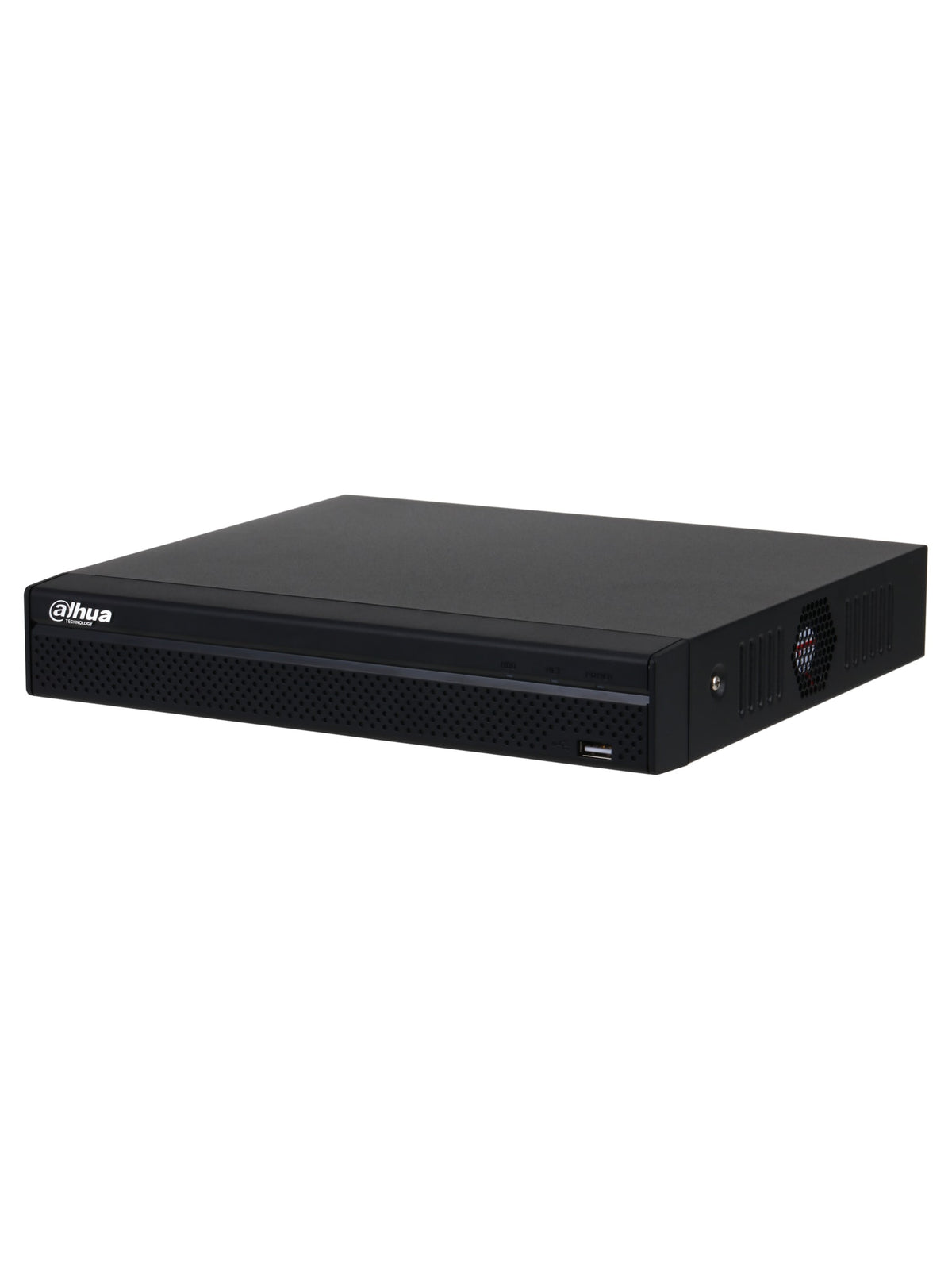

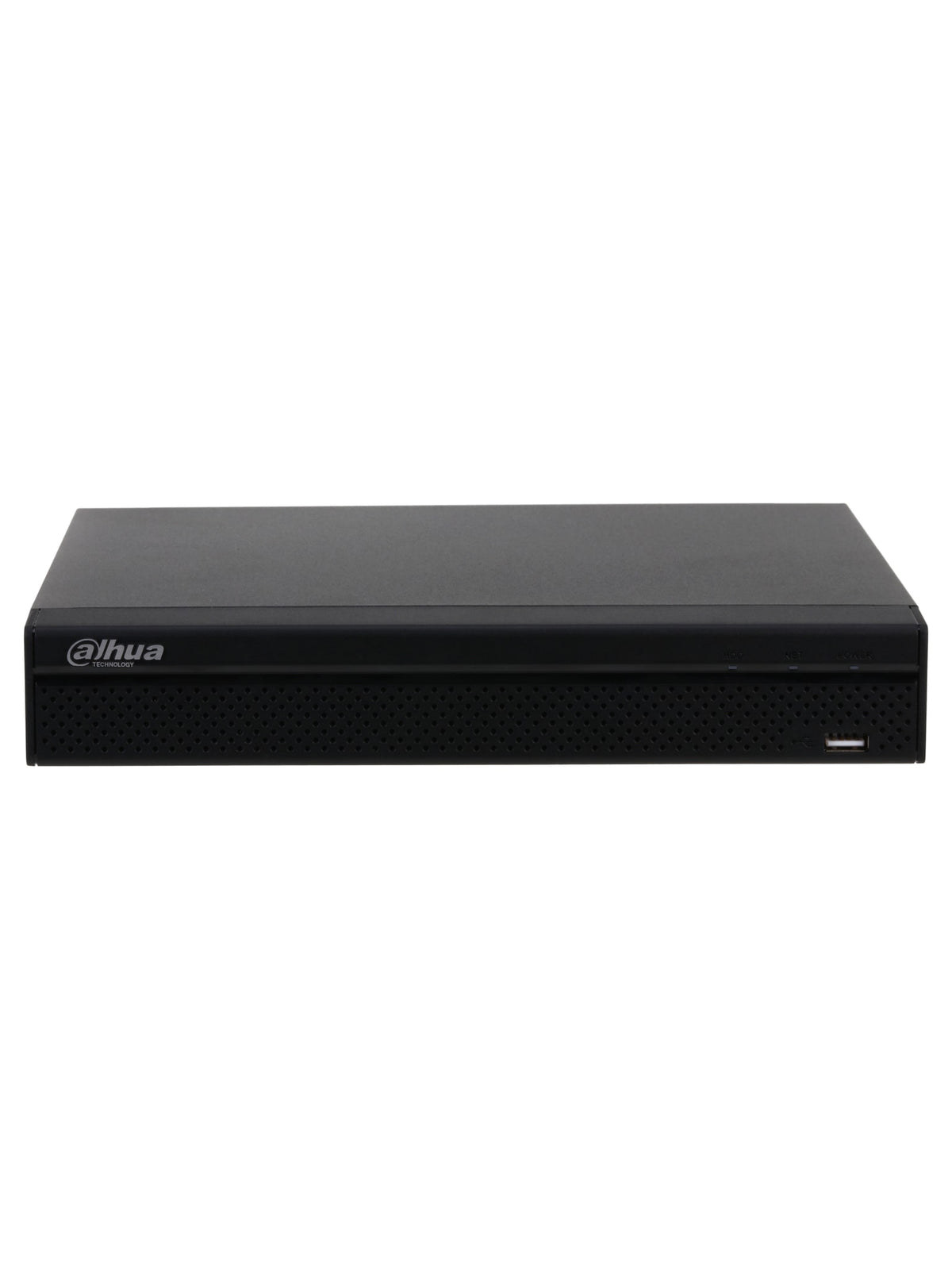

The Dahua NVR4104HS-4KS3 is a 4-channel Lite series network video recorder in a Compact 1U case. It combines 80 Mbps incoming bandwidth, IP cameras up to 12MP, 4K HDMI and VGA output and one SATA bay of up to 20TB. It suits homes, shops and small offices that want reliable, easy recording.
Main Specs
- 4 IP channels, cameras up to 12MP
- Bandwidth: 80 Mbps incoming / 80 Mbps recording / 60 Mbps outgoing
- Decoding: up to 8 x 1080p@30 fps

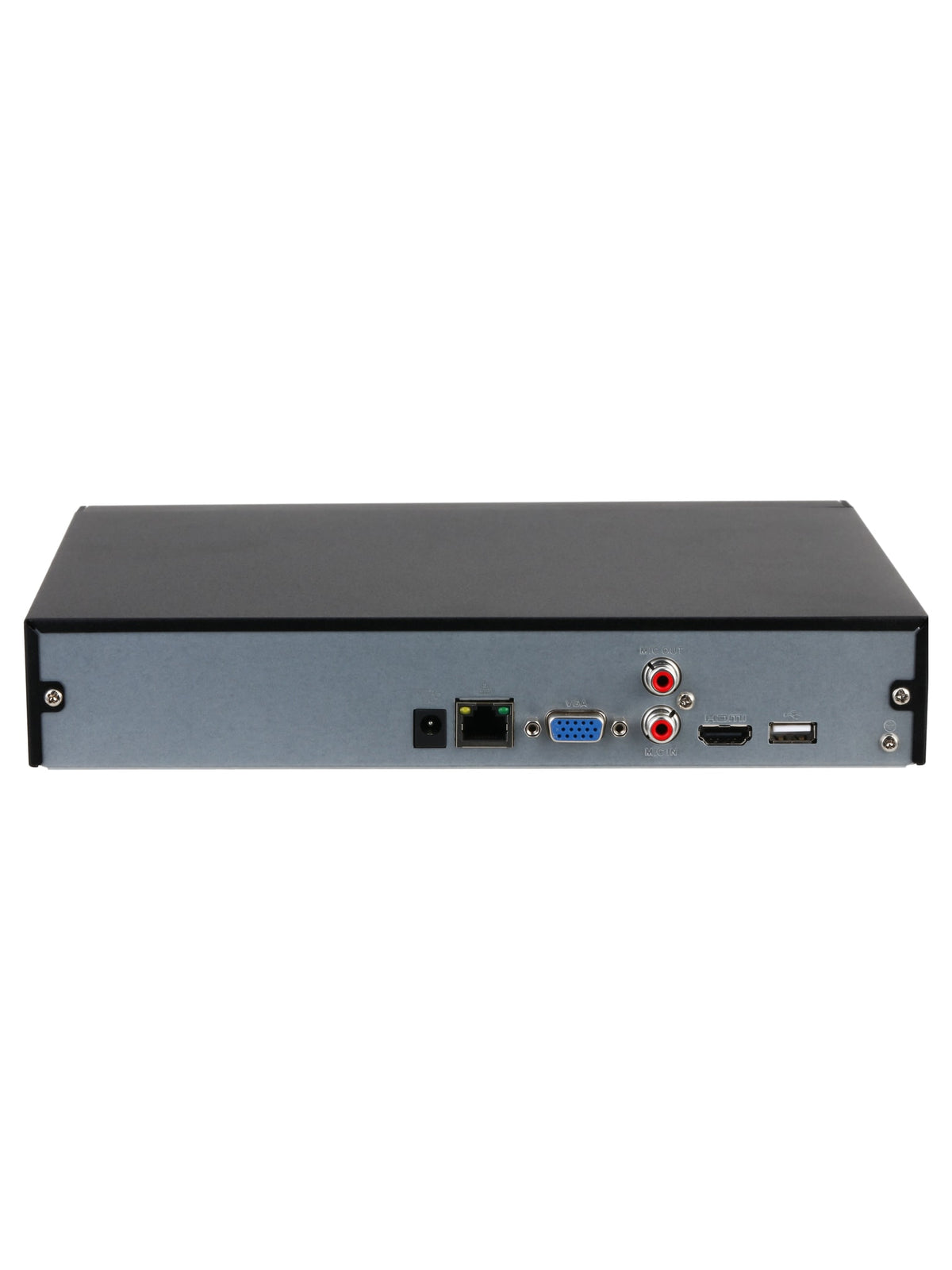

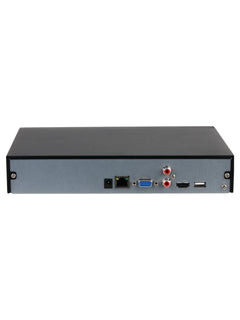

- Video output: 1 x HDMI (up to 4K 3840 x 2160) + 1 x VGA
- Storage: 1 SATA bay, up to 20TB per HDD
- AI by recorder: 4-ch SMD
- Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264
- Network: 1 x RJ-45 (10/100 Mbps); USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- Ideal for homes and small businesses that need a 4-camera IP system
Main Characteristics
Brand
Dahua
Model
DHI-NVR4104HS-4KS3
Product Type
Network Video Recorder (NVR)
Series
Lite
Channels
4 IP channels
Max Camera Resolution
12MP
Network Bandwidth
80 Mbps incoming, 80 Mbps recording and 60 Mbps outgoing
Decoding Capability
8 Γ 1080p@30 fps
Video Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Multi-screen Display
Main Screen: 1/4; Sub Screen: 1/4
Video Compression
Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM; G726
AI by Recorder
4-ch SMD
AI by Camera
Face detection; face recognition; perimeter protection; SMD; people counting; stereo analysis; heat map
HDD Interface
1 SATA port. Each disk can contain up to 20 TB.
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
USB
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
Audio Input
1-channel RCA
Audio Output
1-channel RCA
Interoperability
ONVIF 24.12 (Profile T; Profile S; Profile G); CGI; SDK
Mobile Access
iOS; Android
Power Supply
12 VDC, 2 A
Power Consumption
Total output of NVR is <10 W(without HDD)
Dimensions
260.0 mm Γ 232.5 mm Γ 47.6 mm (W x D x H)
Weight
0.81 kg
Operating Temperature
β10 Β°C to +55 Β°C
