Dahua 4-Channel Lite NVR, Up to 8MP, 1080p HDMI, 1 SATA - DHI-NVR1104HS-S3/H
4-channel Lite NVR for IP cameras up to 8MP, 1080p HDMI + VGA output, 1 SATA bay up to 8TB and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DHI-NVR1104HS-S3/H
Product Type
Network Video Recorder (NVR)
Series
Lite
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua 4-Channel Lite NVR, Up to 8MP, 1080p HDMI, 1 SATA - DHI-NVR1104HS-S3/H

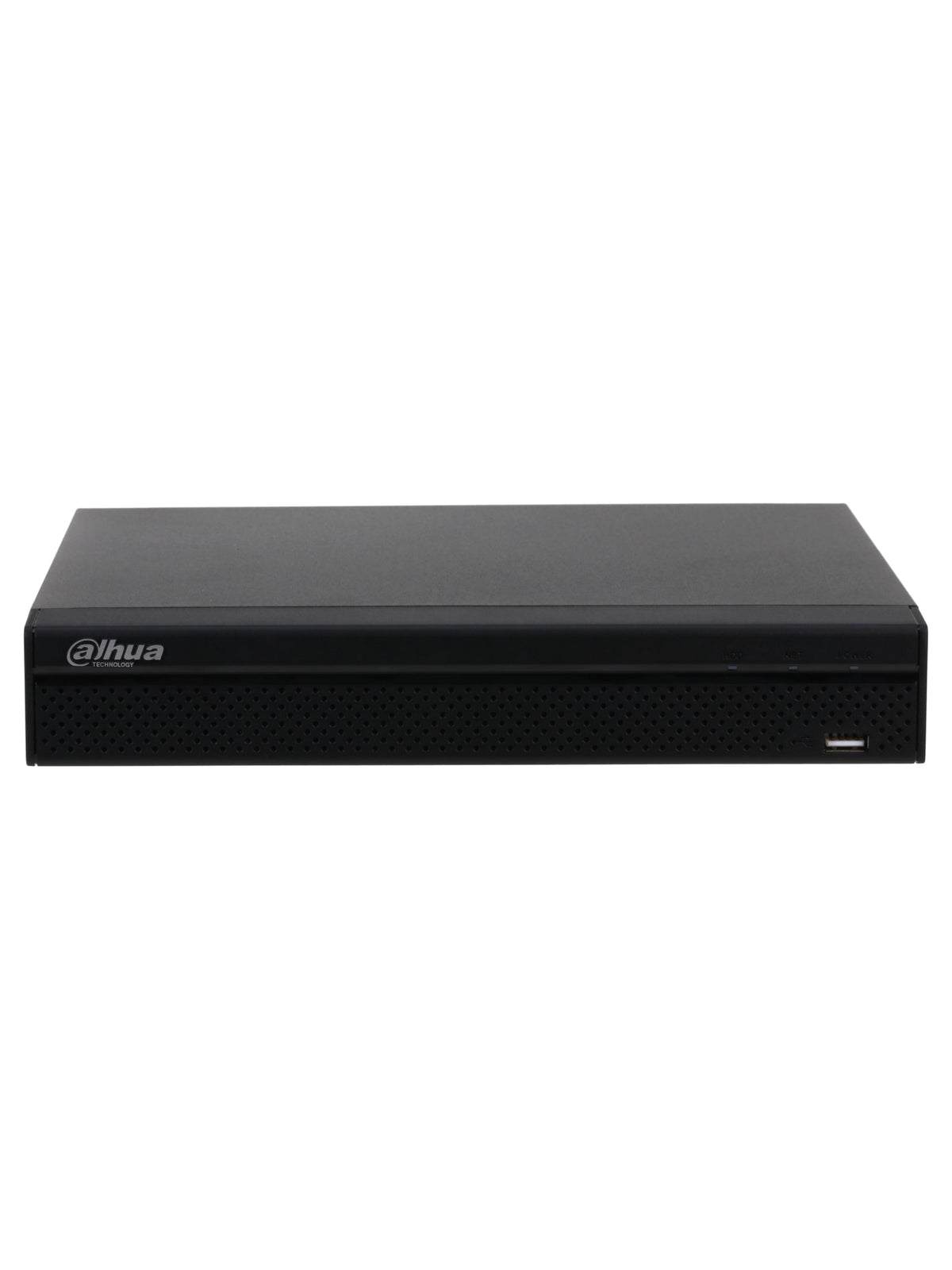

The Dahua NVR1104HS-S3/H is a 4-channel Lite series network video recorder in a Compact 1U case. It combines 80 Mbps incoming bandwidth, IP cameras up to 8MP, 1080p HDMI and VGA output and one SATA bay of up to 8TB. It suits homes, shops and small offices that want reliable, easy recording.
Main Specs
- 4 IP channels, cameras up to 8MP
- Bandwidth: 80 Mbps incoming / 80 Mbps recording / 60 Mbps outgoing
- Decoding: up to 4 x 1080p@30 fps

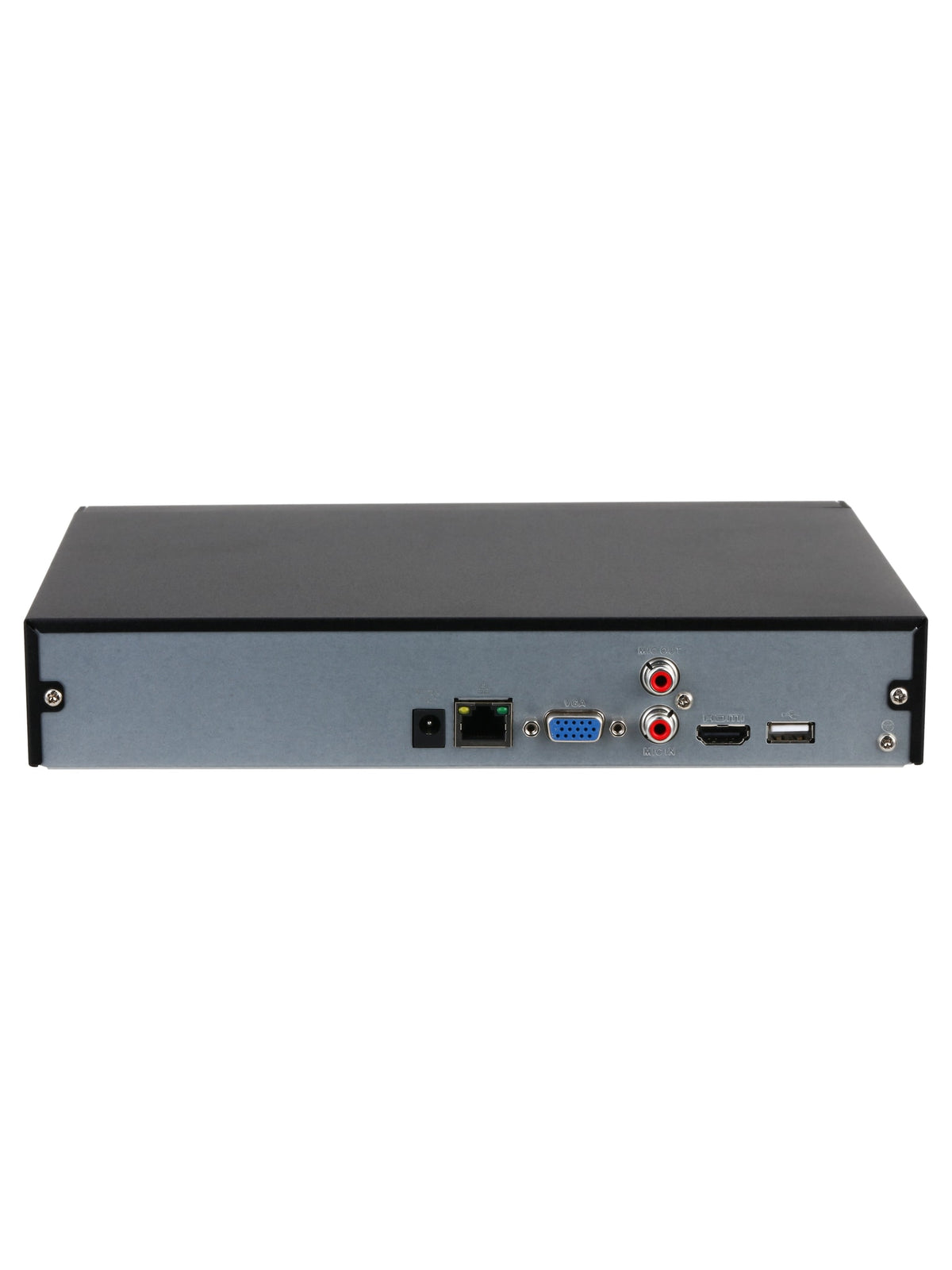

- Video output: 1 x HDMI (up to 1080p) + 1 x VGA
- Storage: 1 SATA bay, up to 8TB per HDD
- Compression: Smart H.265+ / H.265 / Smart H.264+ / H.264
- Network: 1 RJ-45 Port (10/100Mbps); USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- Ideal for homes and small businesses that need a 4-camera IP system
Main Characteristics
Brand
Dahua
Model
DHI-NVR1104HS-S3/H
Product Type
Network Video Recorder (NVR)
Series
Lite
Channels
4 IP channels
Max Camera Resolution
8MP
Network Bandwidth
80 Mbps access, 80 Mbps storage and 60 Mbps for forwarding
Decoding Capability
4 Γ 1080p@30 fps
Video Output
1 x HDMI (up to 1920 x 1080), 1 x VGA (up to 1920 x 1080)
Multi-screen Display
1/4 views
Video Compression
Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
PCM; G711A; G711U; G726
HDD Interface
1 SATA 2.0 port, up to 8TB for single HDD.
Network Port
1 RJ-45 Port (10/100Mbps)
USB
1 front USB 2.0 port, 1 rear USB 2.0 port
Audio Input
1
Audio Output
1
Interoperability
ONVIF (profile T/S/G); CGI; SDK
Mobile Access
Android; iOS
Power Supply
DC 12V, 1.5 A
Power Consumption
Total output of NVR is β€ 10 W (without HDD)
Dimensions
260 mm Γ 232.4 mm Γ 47.6 mm (W x D x H)
Weight
0.81 kg
Operating Temperature
β10 Β°C to 45 Β°C
