Dahua 4-Channel Penta-brid 1080N XVR, WizSense AI, 1 SATA, Two-Way Talk - DH-XVR1B04-I/T
4-channel Penta-brid 1080N XVR for HDCVI, AHD, TVI, CVBS and IP cameras (up to 5 IP channels), 1080p HDMI + VGA, 1 SATA bay up to 6TB, WizSense AI and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DH-XVR1B04-I/T
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua 4-Channel Penta-brid 1080N XVR, WizSense AI, 1 SATA, Two-Way Talk - DH-XVR1B04-I/T

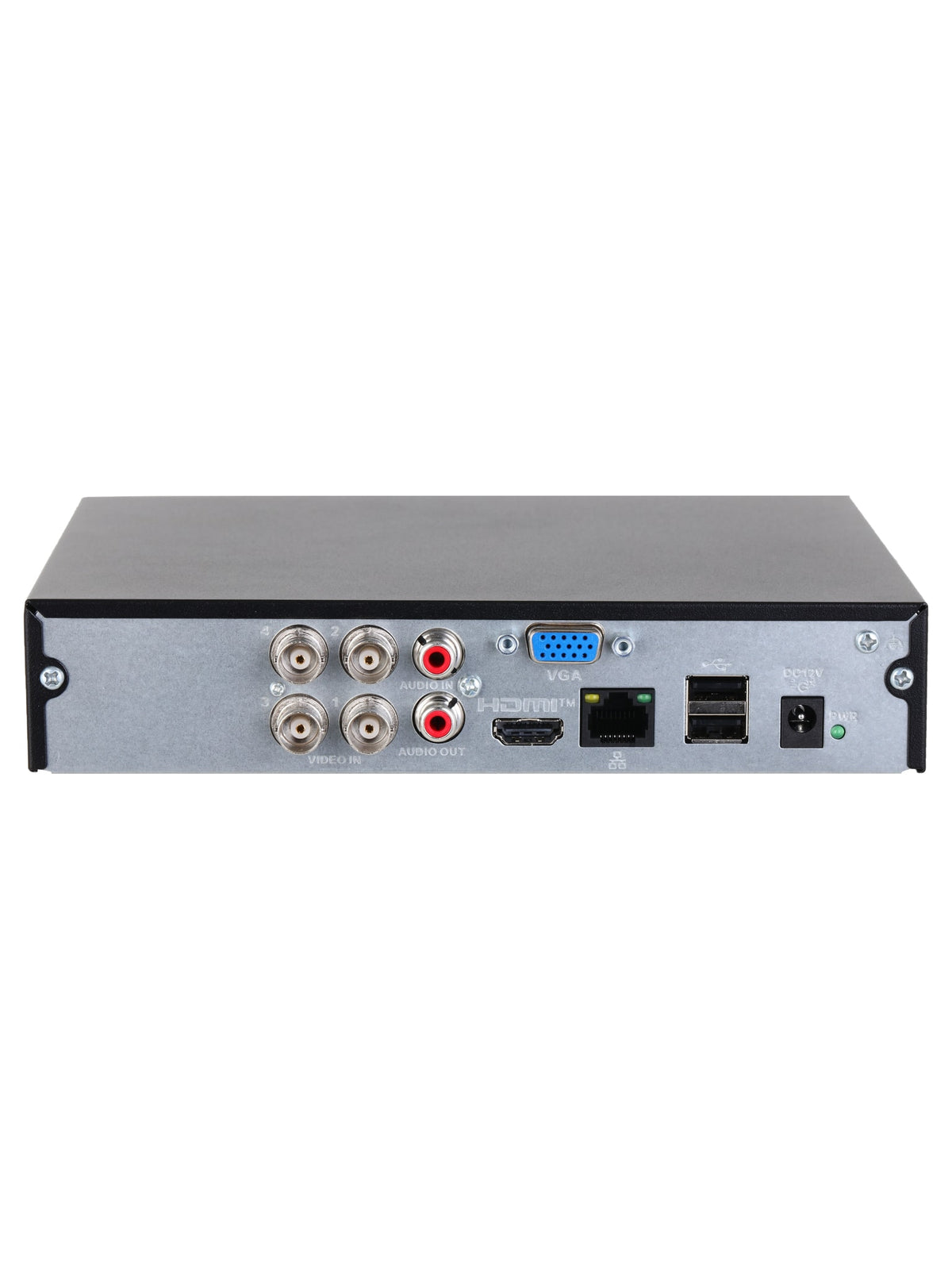

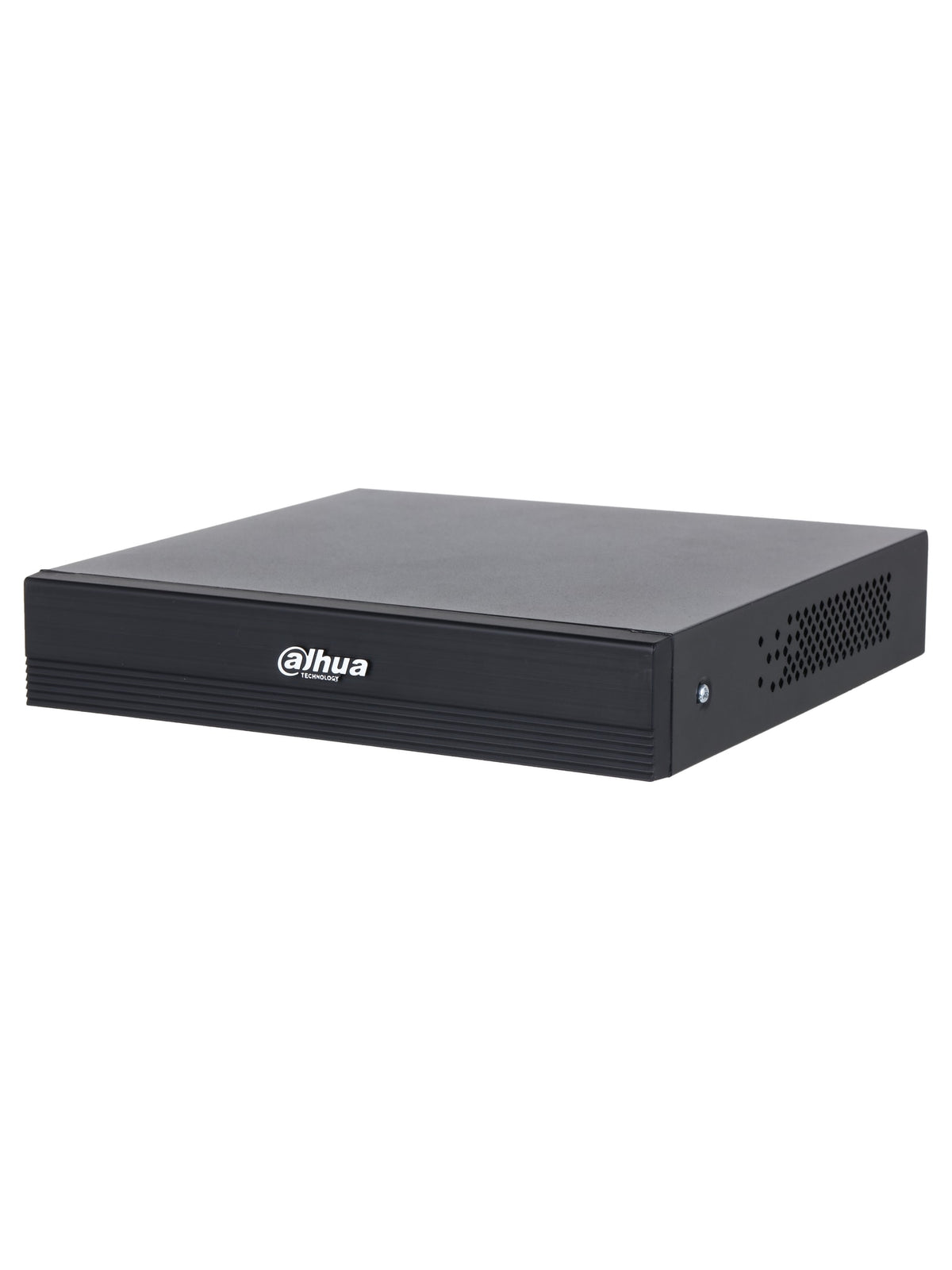

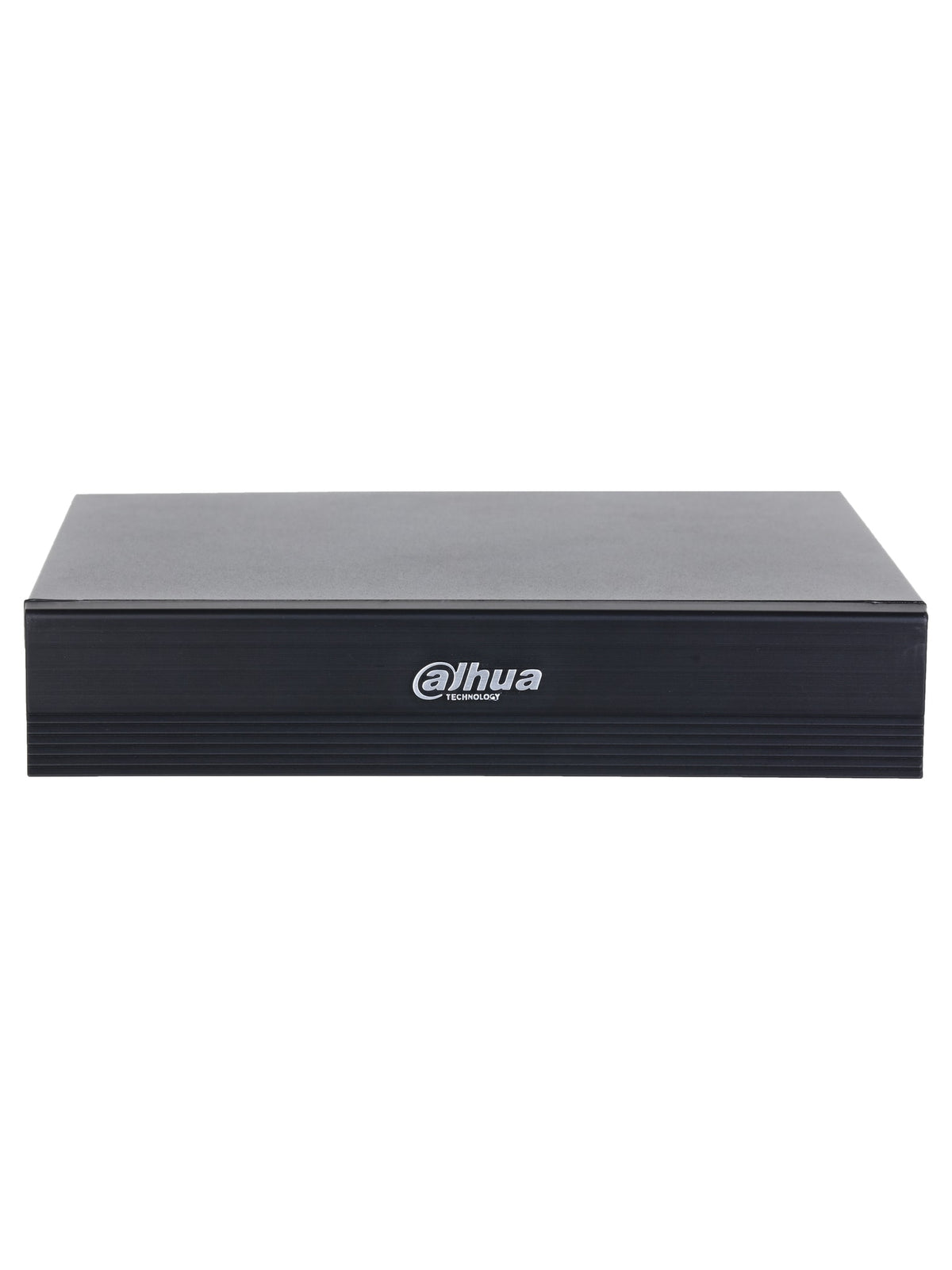

The Dahua XVR1B04-I/T is a 4-channel Penta-brid digital video recorder from the WizSense range in a 1U case. It combines 4 BNC inputs that auto-detect HDCVI, AHD, TVI and CVBS cameras, encoding up to 1080N/720p @ 30fps, up to 5 IP channels (cameras up to 2MP), 1080p HDMI and VGA output and one SATA bay of up to 6TB. It suits homes, shops and small offices that want to keep or upgrade coaxial cameras while adding IP cameras.
Main Specs
- 4 analog BNC inputs: HDCVI / AHD / TVI / CVBS auto-detect
- Encoding: up to 1080N/720p@30fps
- IP cameras: up to 5 channels (up to 2MP)
- Video output: HDMI (up to 1080p) + VGA
- Storage: 1 SATA bay, up to 6TB per HDD
- AI: 4-ch SMD, 4-ch AI Coding
- 4-channel two-way talk over coax
- Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
- Network: 1 x RJ-45 10/100 Mbps; USB: 2 rear USB 2.0 ports
- Ideal for homes and small shops with 4 coaxial (HDCVI/AHD/TVI) cameras
Main Characteristics
Brand
Dahua
Model
DH-XVR1B04-I/T
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Channels
4 analog + up to 5 IP
Analog Camera Input
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input
Up to 5 channels of IPC access; 1 IP channel by default + 4 channels (analog channels are converted to IP channels); Incoming bandwidth: 20 Mbps, recording bandwidth: 20 Mbps and outgoing bandwidth: 20 Mbps
Max Encoding
1080N/720p@30fps
AI Functions
4-ch SMD, 4-ch AI Coding
Video Output
1 x HDMI (up to 1920 x 1080), 1 x VGA (up to 1920 x 1080)
Multi-screen Display
When IP extension mode not enabled: 1/4; When IP extension mode enabled: 1/4/6
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Audio Input
1-channel RCA; 4-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
Two-way Talk
Coaxial two-way talk: 4-channel BNC; Local and network user two-way talk: Shares the same audio input with the first channel
HDD Interface
1 SATA port, up to 6 TB.
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
USB
2 (2 rear USB 2.0 ports)
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Power Supply
12 VDC, 1.5 A
Power Consumption
<7 W (without HDD)
Dimensions
197.0 mm Γ 204.3 mm Γ 41.5 mm (W x D x H)
Weight
0.54 kg
Operating Temperature
β10 Β°C to +45 Β°C
