Dahua 4-Channel Penta-brid 4K XVR, WizSense AI, 1 SATA - DH-XVR5104HS-4KL-I3
4-channel Penta-brid 4K XVR for HDCVI, AHD, TVI, CVBS and IP cameras (up to 8 IP channels), 4K HDMI + VGA, 1 SATA bay up to 16TB, WizSense AI and Smart H.265+.
Read MoreSpecs
Brand
Dahua
Model
DH-XVR5104HS-4KL-I3
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua 4-Channel Penta-brid 4K XVR, WizSense AI, 1 SATA - DH-XVR5104HS-4KL-I3

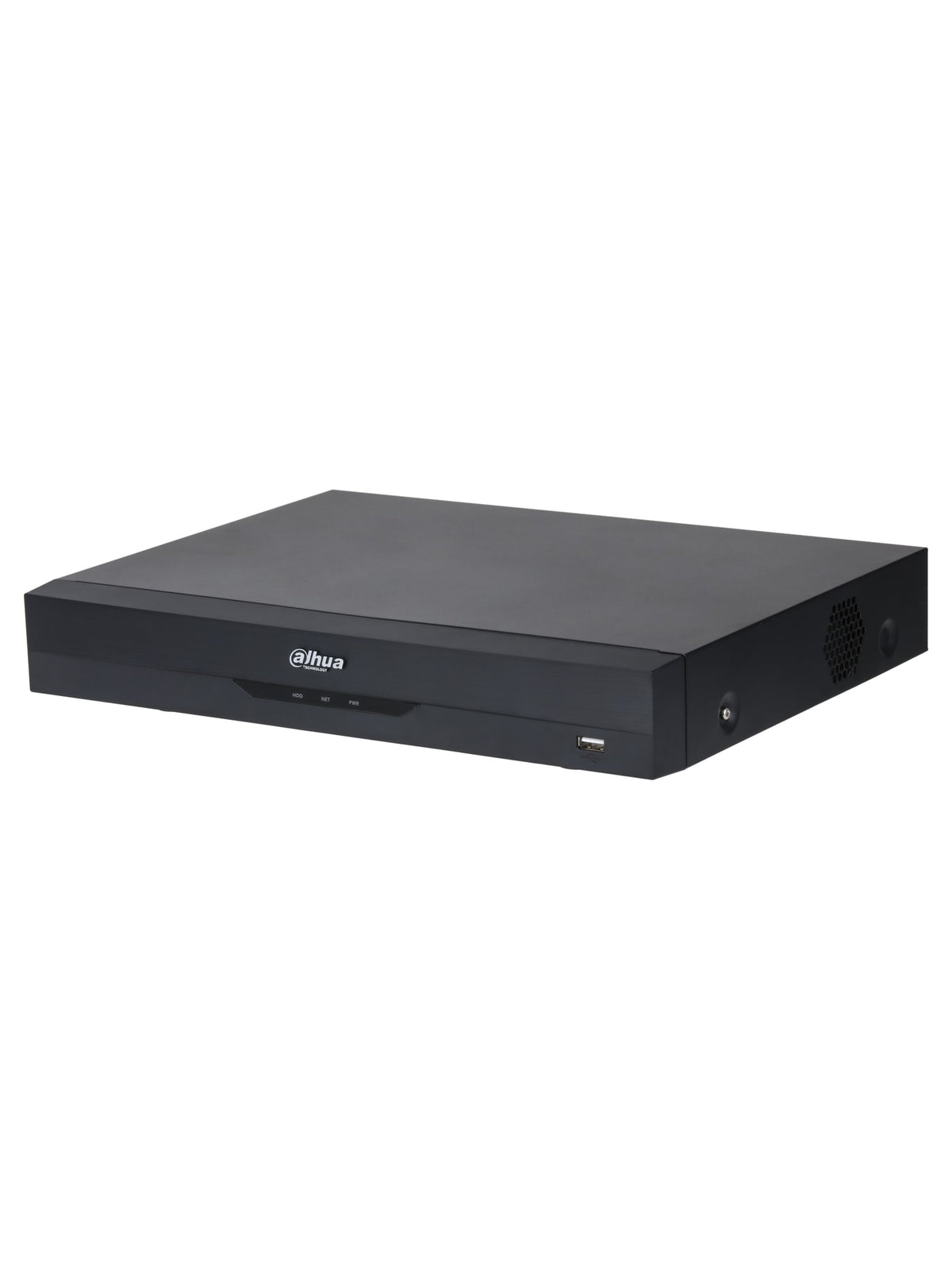

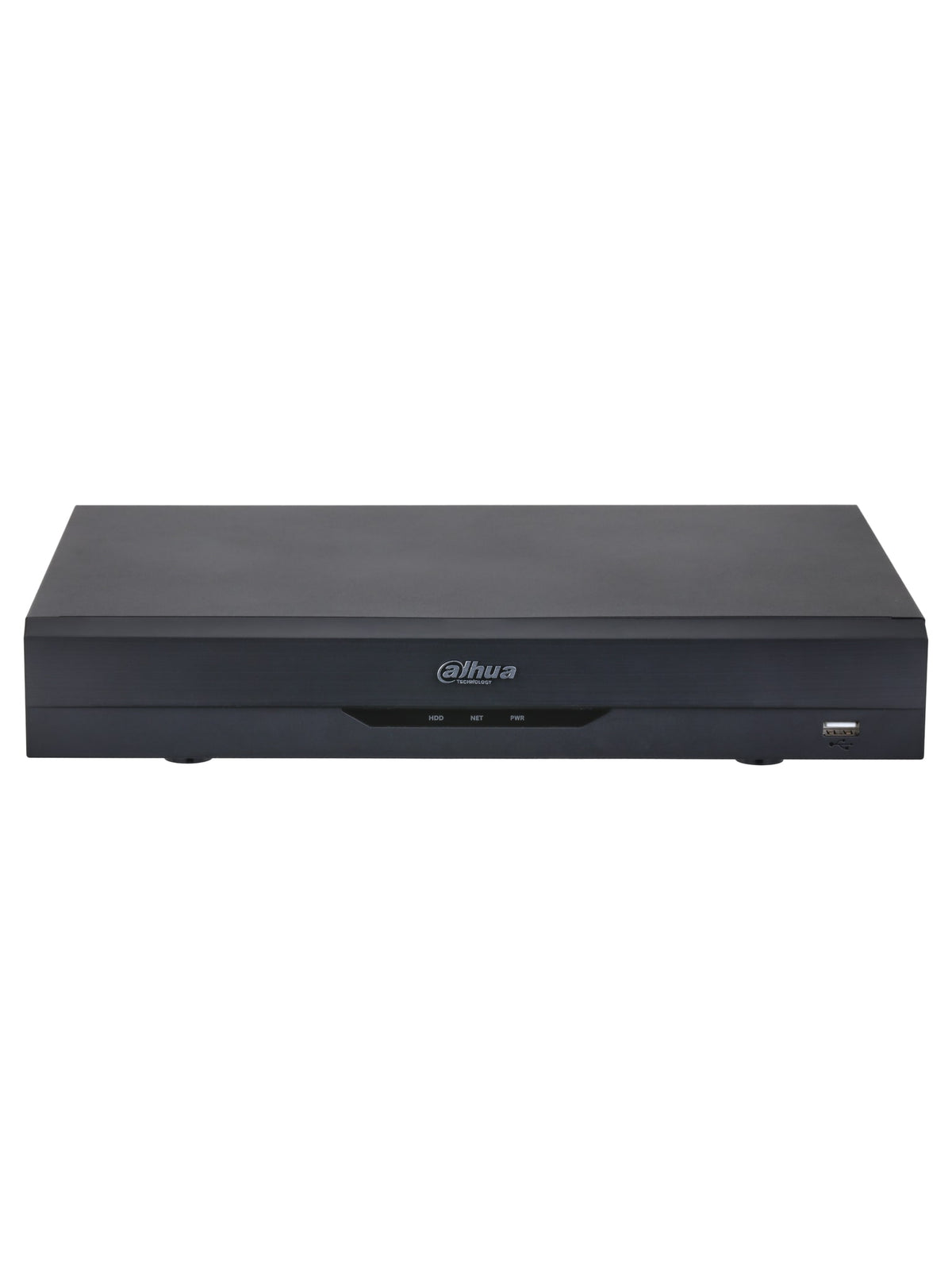

The Dahua XVR5104HS-4KL-I3 is a 4-channel Penta-brid digital video recorder from the WizSense range in a Compact 1U case. It combines 4 BNC inputs that auto-detect HDCVI, AHD, TVI and CVBS cameras, encoding up to 4K @ 15fps/5MP @ 25fps, up to 8 IP channels (cameras up to 8MP), 4K HDMI and VGA output and one SATA bay of up to 16TB. It suits homes, shops and small offices that want to keep or upgrade coaxial cameras while adding IP cameras.
Main Specs

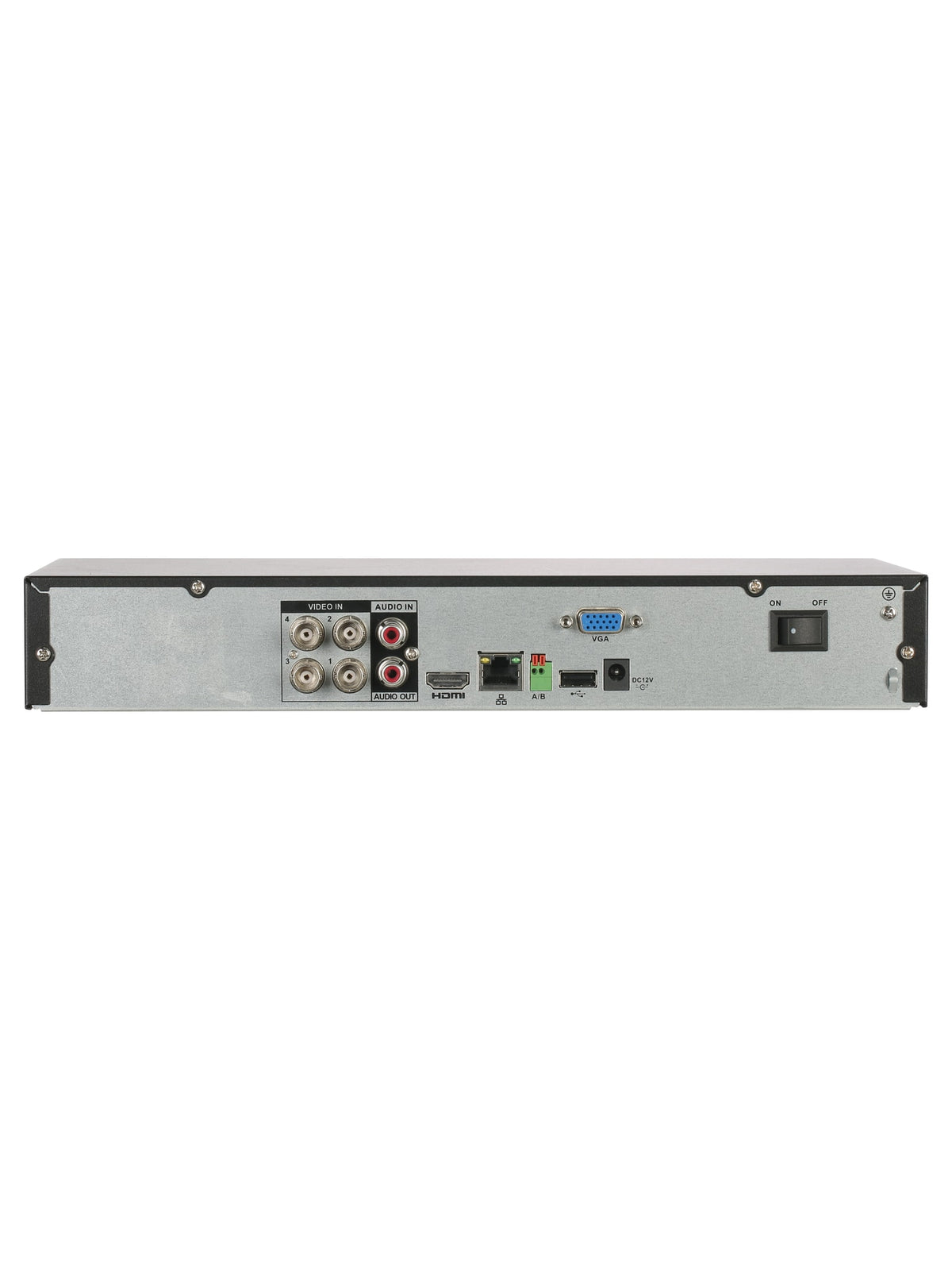

- 4 analog BNC inputs: HDCVI / AHD / TVI / CVBS auto-detect
- Encoding: up to 4K@15fps/5MP@25fps
- IP cameras: up to 8 channels (up to 8MP)
- Video output: HDMI (up to 4K 3840 x 2160) + VGA
- Storage: 1 SATA bay, up to 16TB per HDD
- AI: 2-ch QuickPick 2.0, 2-ch FR, 4-ch Perimeter Protection, 1-ch EPTZ, 1-ch Privacy Protection, 4-ch SMD, 4-ch AI Coding
- Compression: AI Coding / Smart H.265+ / H.265 / Smart H.264+ / H.264
- Network: 1 x RJ-45 10/100 Mbps; USB: 1 front USB 2.0 port, 1 rear USB 2.0 port
- Ideal for homes and small shops with 4 coaxial (HDCVI/AHD/TVI) cameras
Main Characteristics
Brand
Dahua
Model
DH-XVR5104HS-4KL-I3
Product Type
Digital Video Recorder (XVR)
Series
WizSense (Penta-brid)
Channels
4 analog + up to 8 IP
Analog Camera Input
4 BNC ports, supports HDCVI/AHD/TVI/CVBS auto-detect
IP Camera Input
Up to 8 channels of IPC access 4 IP channels by default + 4 channels (analog channels are converted to IP channels) Incoming bandwidth: 64 Mbps, recording bandwidth: 64 Mbps and outgoing bandwidth: 64 Mbps *After IP extension is enabled, EPTZ, Video Quality Analytics, Scene Changing, Face Recognition, Face Detection, SMD, Perimeter Protection, QuickPick 2.0 and Privacy Protection cannot be used.
Max Encoding
4K@15fps/5MP@25fps
AI Functions
2-ch QuickPick 2.0, 2-ch FR, 4-ch Perimeter Protection, 1-ch EPTZ, 1-ch Privacy Protection, 4-ch SMD, 4-ch AI Coding
Video Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Multi-screen Display
When IP extension mode not enabled: 1/4 When IP extension mode enabled: 1/4/8/9
Video Compression
AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio Compression
G.711a; G.711u; PCM
Audio Input
1-channel RCA 4-channel BNC (Coaxial Audio)
Audio Output
1-channel RCA
HDD Interface
1 SATA port. up to 16 TB.
Network Port
1 (10/100 Mbps Ethernet port, RJ-45)
USB
2 (1 front USB 2.0 port, 1 rear USB 2.0 port)
RS-485
1
Third-party Camera Access
Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Power Supply
12 VDC, 2 A
Dimensions
260.0 mm Γ 237.8 mm Γ 47.6 mm (W x D x H)
Weight
0.96 kg
Operating Temperature
β10 Β°C to +55 Β°C
