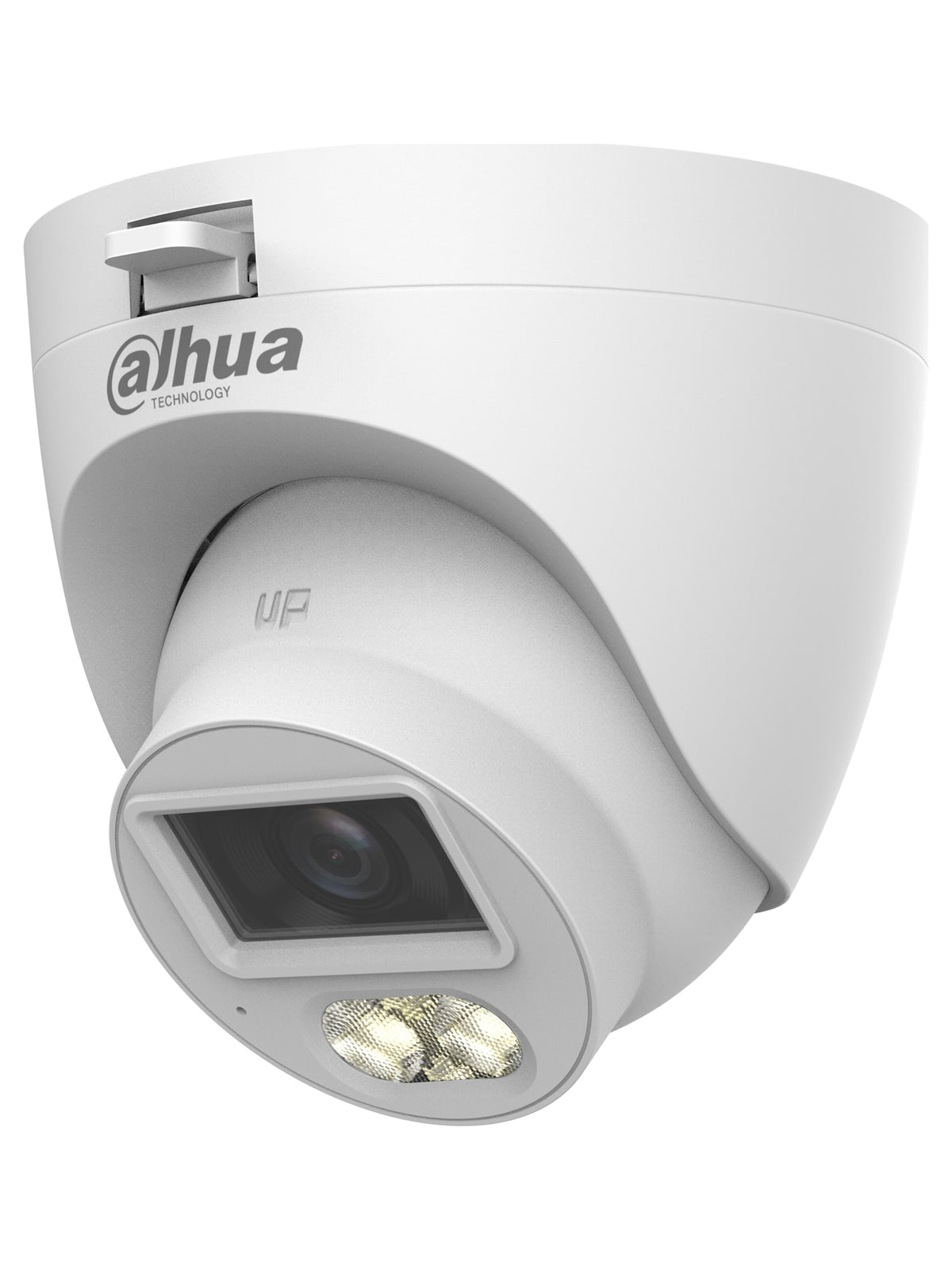

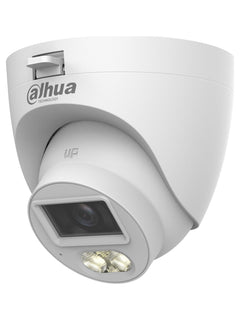

Dahua 4K Smart Dual Light HDCVI Eyeball Camera, 2.8mm, 30m, Built-in Mic - DH-HAC-HDW1801CLQP-IL-A-0280B-S3-DIP
4K (8MP) HDCVI eyeball camera with a wide 2.8 mm lens, Smart Dual Light IR and warm light up to 30 m, built-in mic, DIP-switch 4-in-1 output and IP67 housing.
Read MoreSpecs
Brand
Dahua
Model
DH-HAC-HDW1801CLQP-IL-A-0280B-S3-DIP
Product Type
HDCVI Eyeball Camera
Series
Lite
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua 4K Smart Dual Light HDCVI Eyeball Camera, 2.8mm, 30m, Built-in Mic - DH-HAC-HDW1801CLQP-IL-A-0280B-S3-DIP
The Dahua HAC-HDW1801CLQ-IL-A is a 4K HDCVI eyeball camera from the Lite series with Smart Dual Light illumination. It combines a 4K CMOS sensor and a wide 2.8 mm lens with IR and warm light up to 30 m, a built-in microphone and a DIP switch for CVI, TVI, AHD or CVBS output. It suits indoor and covered outdoor areas where a compact dome-style camera needs 4K detail.
Main Specs
- 4K 8MP resolution (3840 × 2160), 4K CMOS sensor
- Fixed-focal 2.8 mm lens, 105.5° horizontal view
- Smart Dual Light: IR: 30 m; Warm Light: 30 m
- Switchable CVI / TVI / AHD / CVBS video output over one BNC coax cable (DIP switch)
- Built-in microphone
- Power: 12 VDC (±30%)
- IP67 protection, plastic housing
- Ideal for shops, offices and entrances that need wide 4K coverage on an XVR
Main Characteristics
Brand
Dahua
Model
DH-HAC-HDW1801CLQP-IL-A-0280B-S3-DIP
Product Type
HDCVI Eyeball Camera
Series
Lite
Resolution
4K 8MP, 3840 × 2160
Image Sensor
4K CMOS
Lens
Fixed-focal, 2.8 mm
Field of View
H: 105.5°; V: 56.5°; D: 125.3°
Aperture
F2.0
Illumination Range
IR: 30 m; Warm Light: 30 m
Min. Illumination
0.01 lux@F2.0 (Color, 30 IRE); 0.001 lux@F2.0 (B/W, 30 IRE); 0 lux (Illuminator on)
WDR
WDR
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port (DIP Switch)
Audio
built-in mic
Power/PoE
12 VDC (±30%)
Power Consumption
Max 4.1 W (12 VDC, IR on)
Protection
IP67
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Housing
Plastic
Dimensions
Φ97.4 mm × 92.9 mm
Weight
0.19 kg
