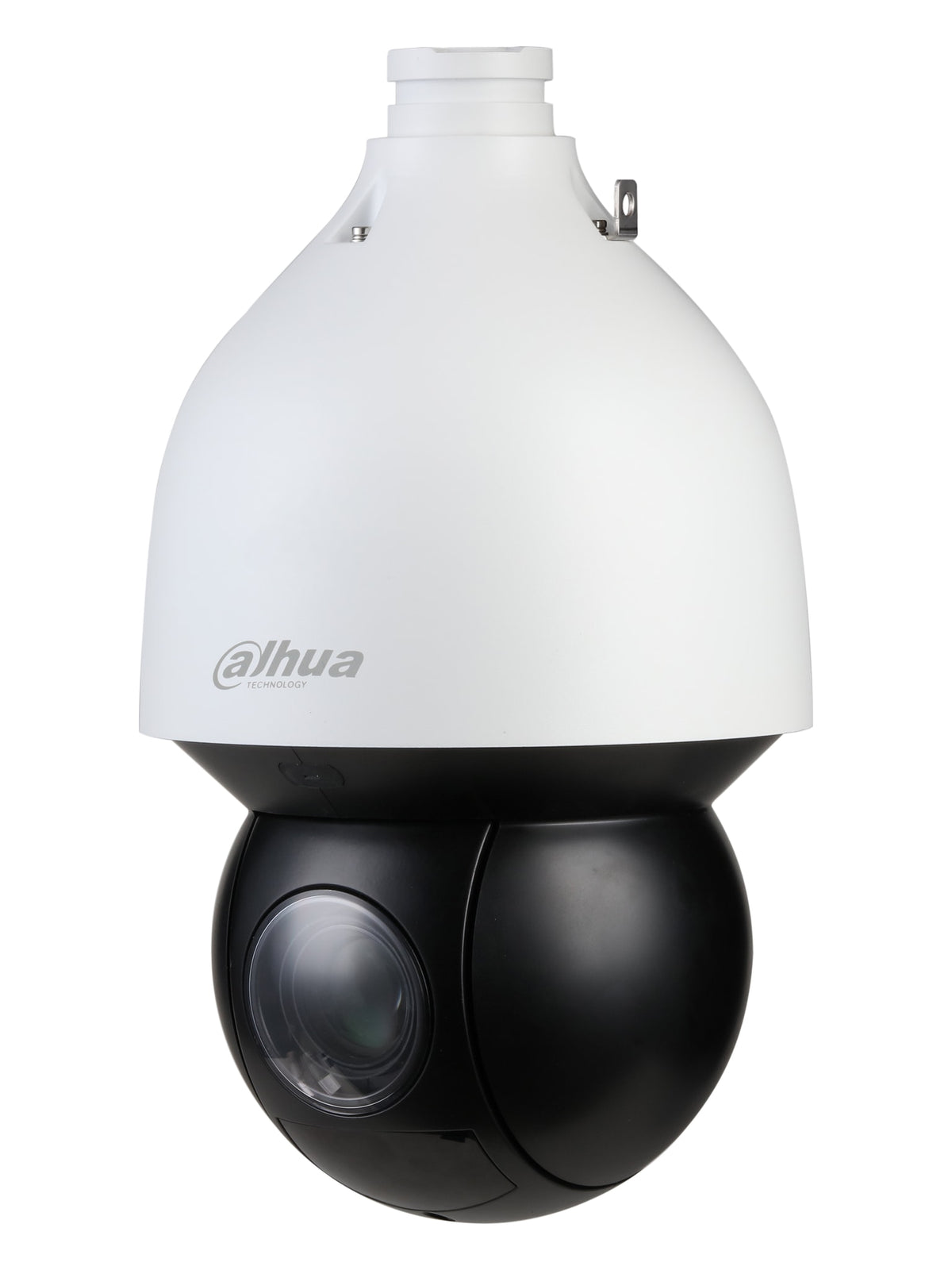

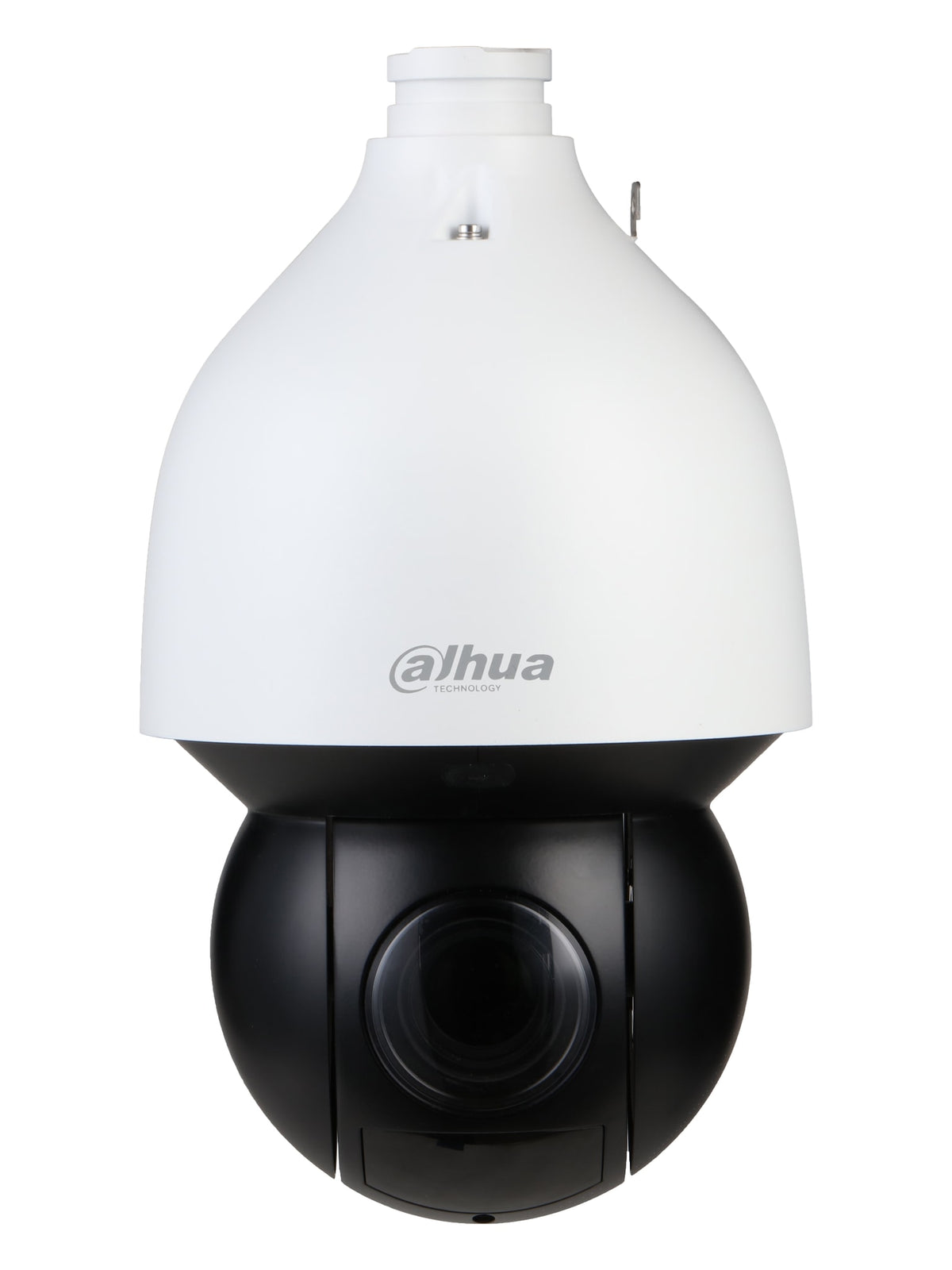

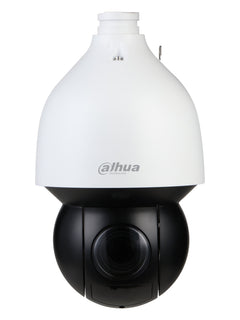

Dahua 4MP 32x Starlight IR WizSense PTZ IP Camera, IR 150m, IK10, PoE+ - DH-SD5A432GB-HNR
4MP Starlight WizSense PTZ IP camera with 32x optical zoom (4.8–154 mm), IR up to 150 m, IVS, SMD 4.0, PoE+ and IP67/IK10 housing.
Read MoreExpress Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua 4MP 32x Starlight IR WizSense PTZ IP Camera, IR 150m, IK10, PoE+ - DH-SD5A432GB-HNR
The Dahua SD5A432GB-HNR is a 4MP WizSense PTZ network camera with 32x optical zoom and long-range IR. It combines a Starlight 1/2.8" sensor, a 4.8–154 mm lens, IR up to 150 m, IVS perimeter protection and SMD 4.0 in a vandal-proof IP67/IK10 housing. It suits large car parks, factories and city areas where targets must be seen at long distance.
Main Specs
- 4MP resolution (2560 × 1440), 1/2.8" CMOS sensor
- Lens: 4.8 mm–154 mm, 32× optical zoom, 55.8° horizontal view
- IR range: 150 m (IR)
- H.265 / H.264 with Smart H.265+ / H.264+ to save bandwidth and storage
- Smart detection: Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving
- MicroSD card slot, up to 512 GB
- Power: 24 VDC, 2.5 A ± 25% / PoE +(802.3at)
- IP67 / IK10 protection
- Ideal for long-distance PTZ monitoring of large outdoor sites
Main Characteristics
Brand
Dahua
Model
DH-SD5A432GB-HNR
Product Type
PTZ IP Camera
Series
WizSense SD5
Resolution
4MP, 2560 × 1440
Image Sensor
1/2.8" CMOS
Lens
4.8 mm–154 mm, 32× optical zoom
Field of View
H: 55.8°–2.4°; V: 31.9°–1.3°; D: 63.7°–2.7°
Aperture
F1.6–F4.0
Optical Zoom
32×
Illumination Range
150 m (IR)
Min. Illumination
Color: 0.005 lux@F1.6; B/W: 0.0005 lux@F1.6; 0 lux (IR light on)
WDR
120 dB
Compression
Smart H.265+; H.265; Smart H.264+; H.264; H.264B; H.264H; MJPEG (Sub Stream 1)
Smart Features
IVS: Tripwire; intrusion; climbing fences; loitering detection; abandoned/missing object; fast moving; parking detection; people gathering; SMD 4.0; Face detection
Storage
FTP; Micro SD card (512 GB); NAS
Network
RJ-45 (10/100 Base-T)
Power/PoE
24 VDC, 2.5 A ± 25%; PoE +(802.3at)
Power Consumption
Basic: 13 W Max: 22 W (illuminator + PTZ working + Heater + Fan)
Protection
IP67; IK10; TVS 6000 V lightning proof; surge protection; voltage transient protection
Operating Temperature
–40 °C to +70 °C (–40 °F to +158 °F)
Dimensions
332 mm × Φ190 mm
Weight
4.7 kg
