Dahua 5MP IR Motorized Vandal-Proof Dome IP Camera, 2.7-13.5mm, IR 40m, IK10, PoE - DH-IPC-HDBW2541RP-ZS-27135-S2
5MP WizSense dome IP camera with a motorized 2.7–13.5 mm lens, IR up to 40 m, IVS human/vehicle alarms, built-in mic, microSD, PoE and IP67/IK10.
Read MoreSpecs
Brand
Dahua
Model
DH-IPC-HDBW2541RP-ZS-27135-S2
Product Type
IP Motorized Dome Camera
Series
WizSense 2
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua 5MP IR Motorized Vandal-Proof Dome IP Camera, 2.7-13.5mm, IR 40m, IK10, PoE - DH-IPC-HDBW2541RP-ZS-27135-S2

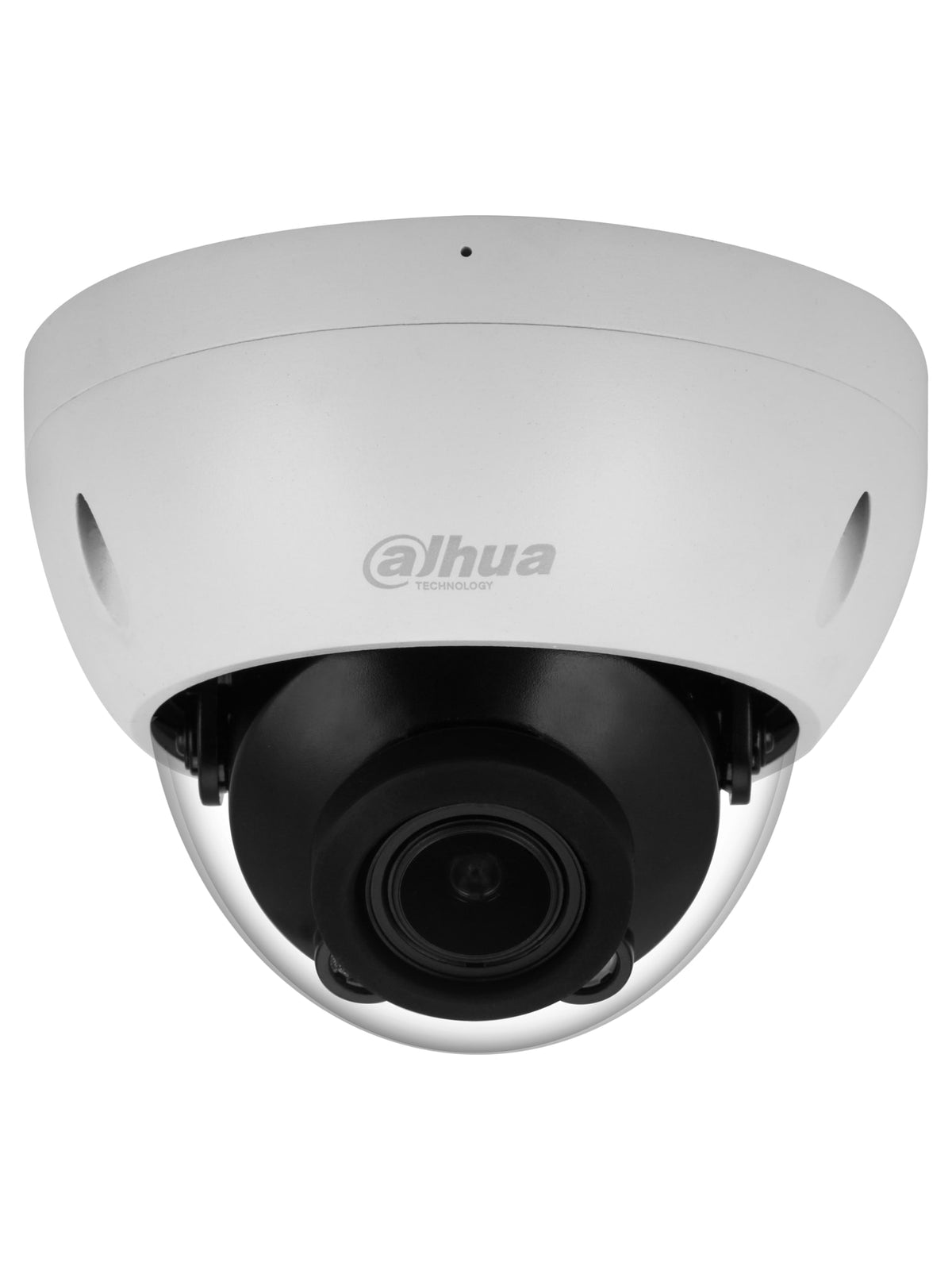

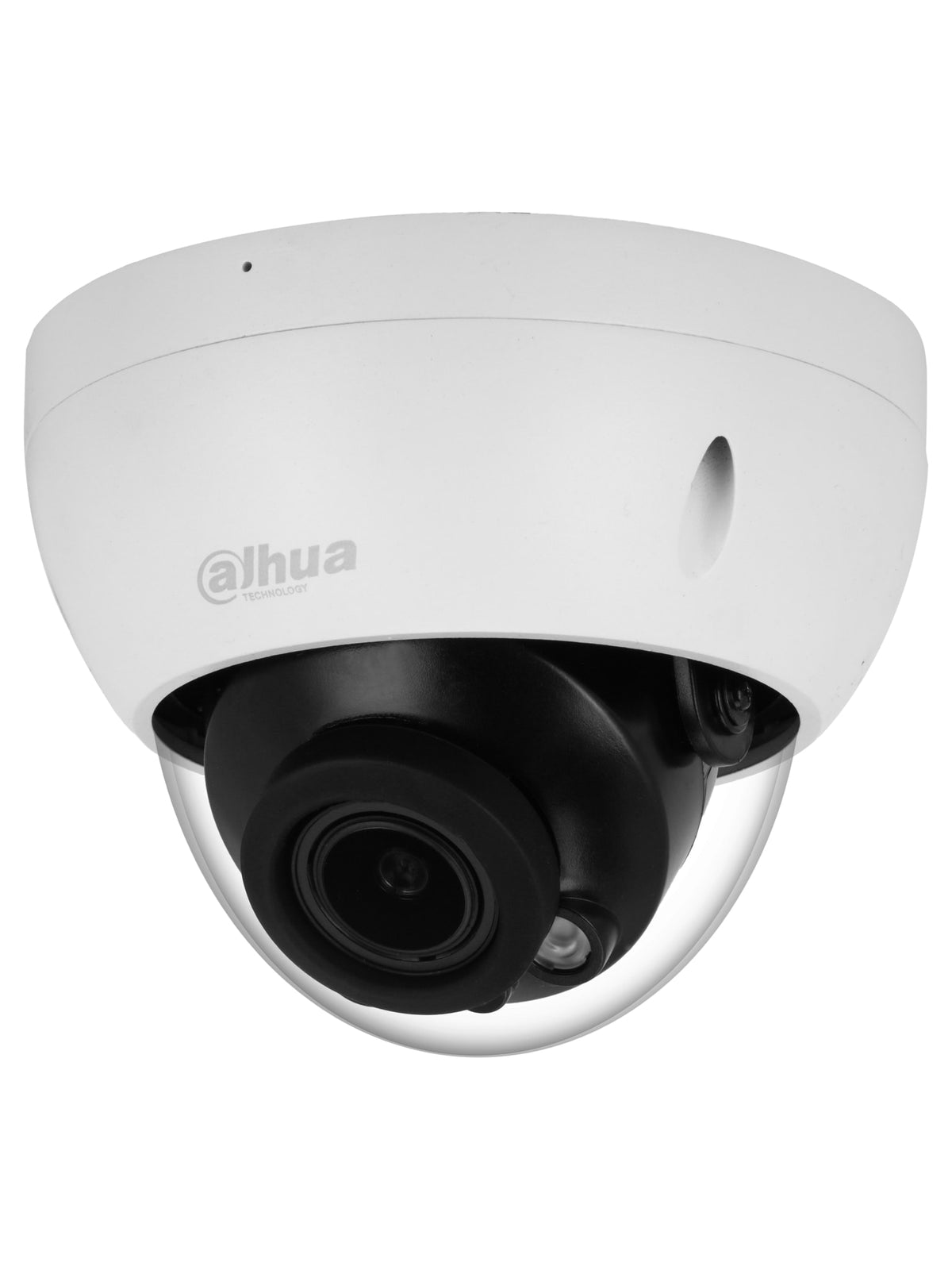

The Dahua IPC-HDBW2541R-ZS is a 5MP WizSense 2 vandal-proof dome network camera with a motorized vari-focal lens. It combines a 5MP sensor, a 2.7–13.5 mm lens adjustable remotely, IR up to 40 m, IVS human and vehicle alarms and a built-in microphone in an IP67/IK10 metal housing. It suits warehouses, halls and car parks where the view needs zooming after installation.
Main Specs
- 5MP resolution (2960 × 1668), 1/2.7" CMOS sensor
- Motorized vari-focal 2.7 mm–13.5 mm lens, 113° horizontal view
- IR range: 40 m (IR)
- H.265 / H.264 with Smart H.265+ / H.264+ to save bandwidth and storage
- Smart detection: Intrusion, tripwire (vehicle/human classification)
- Built-in microphone, audio input, audio output
- MicroSD card slot, up to 256 GB
- Power: 12 VDC/PoE (802.3af)
- IP67 / IK10 protection, metal housing
- Ideal for adjustable tamper-resistant coverage of halls and car parks
Main Characteristics
Brand
Dahua
Model
DH-IPC-HDBW2541RP-ZS-27135-S2
Product Type
IP Motorized Dome Camera
Series
WizSense 2
Resolution
5MP, 2960 × 1668
Image Sensor
1/2.7" CMOS
Lens
Motorized vari-focal, 2.7 mm–13.5 mm
Field of View
H: 113°–31°; V: 58°–18°; D: 138°–36°
Aperture
F1.5
Illumination Range
40 m (IR)
Min. Illumination
0.007 lux@F1.5 (Color, 30 IRE); 0.0007 lux@F1.5 (B/W, 30 IRE); 0 lux (Illuminator on)
WDR
120 dB
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream); Smart H.265+; Smart H.264+
Smart Features
IVS: Intrusion, tripwire (vehicle/human classification)
Audio
built-in mic; audio in: 1 channel (RCA port); audio out: 1 channel (RCA port)
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Network
RJ-45 (10/100 Base-T)
Power/PoE
12 VDC/PoE (802.3af)
Power Consumption
-ZS:; Basic: 2.4 W (12 VDC); 3 W (PoE); Max. (H.265+ max. resolution + max. stream+ WDR + IR intensity + IVS): 6.1 W (12 VDC); 7.3 W (PoE); -ZAS:
Protection
IP67; IK10
Operating Temperature
–30 °C to +60 °C (–22 °F to +140 °F)
Housing
Metal
Dimensions
93.4 mm × Φ122 mm
Weight
-ZS: 0.50 kg; -ZAS: 0.51 kg
