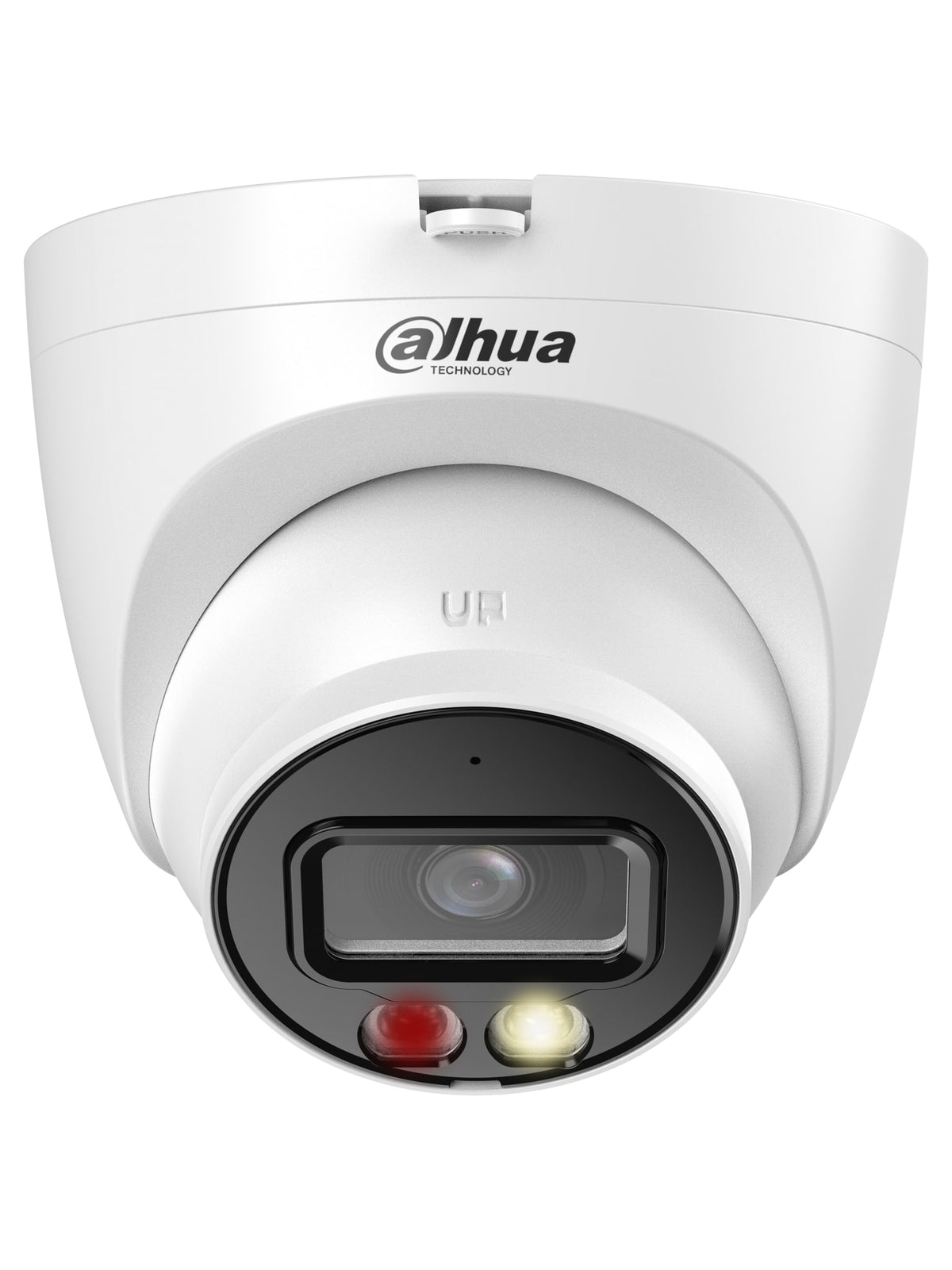

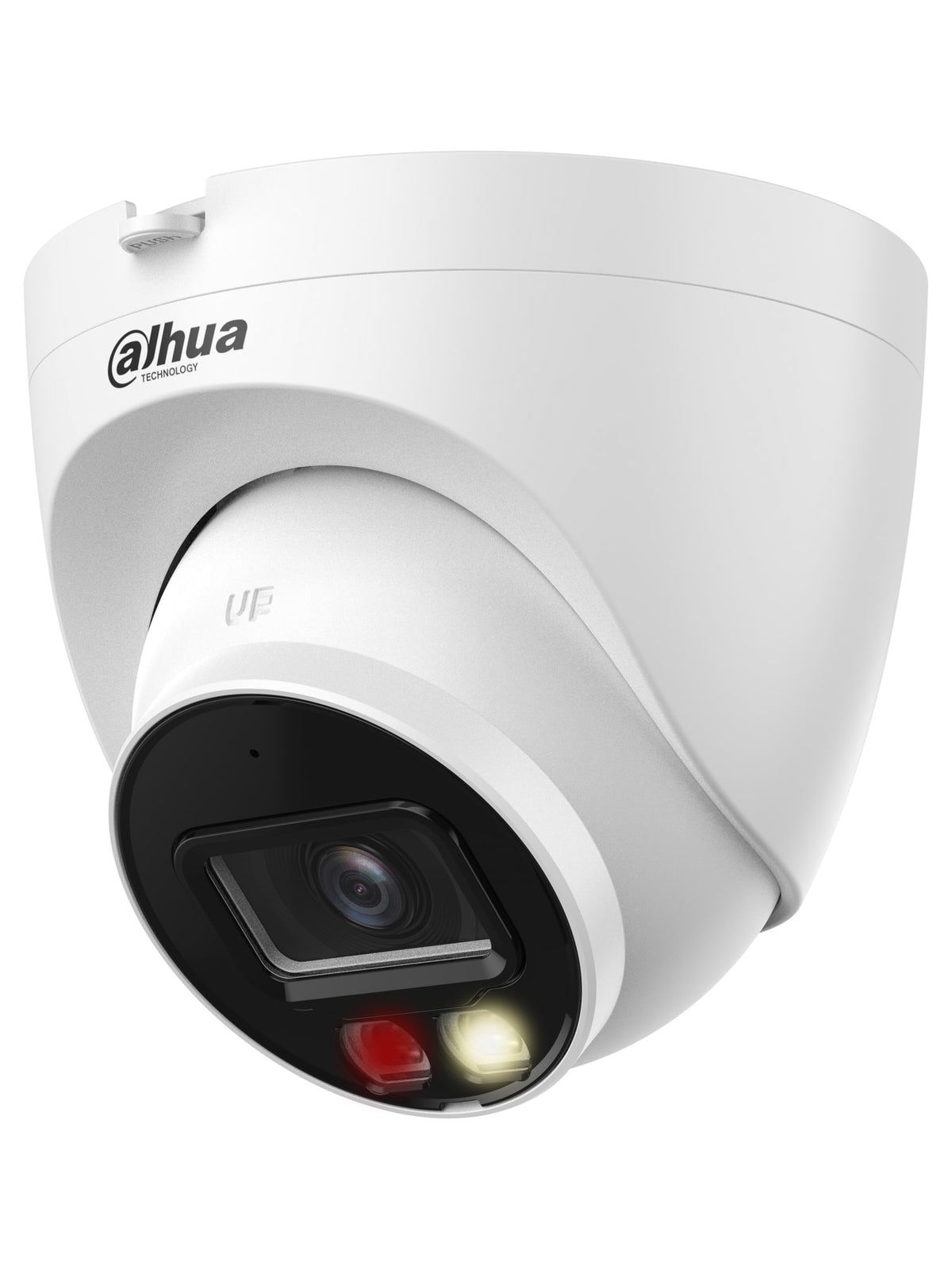

Dahua 5MP Smart Dual Light Eyeball IP Camera, 2.8mm, 30m, Built-in Mic, PoE - DH-IPC-HDW2549TP-S-IL-0280B
5MP WizSense eyeball IP camera with a 2.8 mm lens, Smart Dual Light IR and warm light up to 30 m, IVS with human/vehicle filter, built-in mic, PoE.
Read MoreSpecs
Brand
Dahua
Model
DH-IPC-HDW2549TP-S-IL-0280B
Product Type
IP Eyeball Camera
Series
WizSense 2
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua 5MP Smart Dual Light Eyeball IP Camera, 2.8mm, 30m, Built-in Mic, PoE - DH-IPC-HDW2549TP-S-IL-0280B
The Dahua IPC-HDW2549T-S-IL is a 5MP WizSense 2 eyeball network camera with Smart Dual Light illumination. It combines a 1/2.7" 5MP sensor, a 2.8 mm lens, IR and warm light up to 30 m, tripwire and intrusion alarms that recognise humans and vehicles, and a built-in microphone. It suits homes and businesses that want accurate alarms and colour evidence on an NVR.
Main Specs
- 5MP resolution (2960 × 1668), 1/2.7" CMOS sensor
- Fixed-focal 2.8 mm lens, 111° horizontal view
- Smart Dual Light: 30 m (IR); 30 m (Warm light)
- H.265 / H.264 with Smart H.265+ / H.264+ to save bandwidth and storage
- Smart detection: Intrusion, tripwire (vehicle/human classification)
- Built-in microphone
- MicroSD card slot, up to 256 GB
- Power: 12 VDC/PoE (802.3af)
- IP67 protection, metal core, plastic cover housing
- Ideal for accurate human/vehicle alarms with colour evidence
Main Characteristics
Brand
Dahua
Model
DH-IPC-HDW2549TP-S-IL-0280B
Product Type
IP Eyeball Camera
Series
WizSense 2
Resolution
5MP, 2960 × 1668
Image Sensor
1/2.7" CMOS
Lens
Fixed-focal, 2.8 mm
Field of View
H: 111°; V: 58°; D: 132°
Aperture
F1.6
Illumination Range
30 m (IR); 30 m (Warm light)
Min. Illumination
0.007 Lux@F1.6(Color,30IRE) 0.0007 Lux@F1.6(B/W,30IRE) 0 lux (Illuminator on)
WDR
120 dB
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream); Smart H.265+; Smart H.264+
Smart Features
IVS: Intrusion, tripwire (vehicle/human classification)
Audio
built-in mic
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Network
RJ-45 (10/100 Base-T)
Power/PoE
12 VDC/PoE (802.3af)
Power Consumption
Basic: 2.2 W (12 VDC); 2.9 W (PoE); Max. (H.265+ max. resolution + max. stream+ WDR + warm light intensity + IVS): 4.6 W (12 VDC); 5.4 W (PoE)
Protection
IP67
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Housing
Inner core: Metal; Cover: Plastic
Dimensions
100.9 mm × Φ109.9 mm
Weight
0.38 kg
