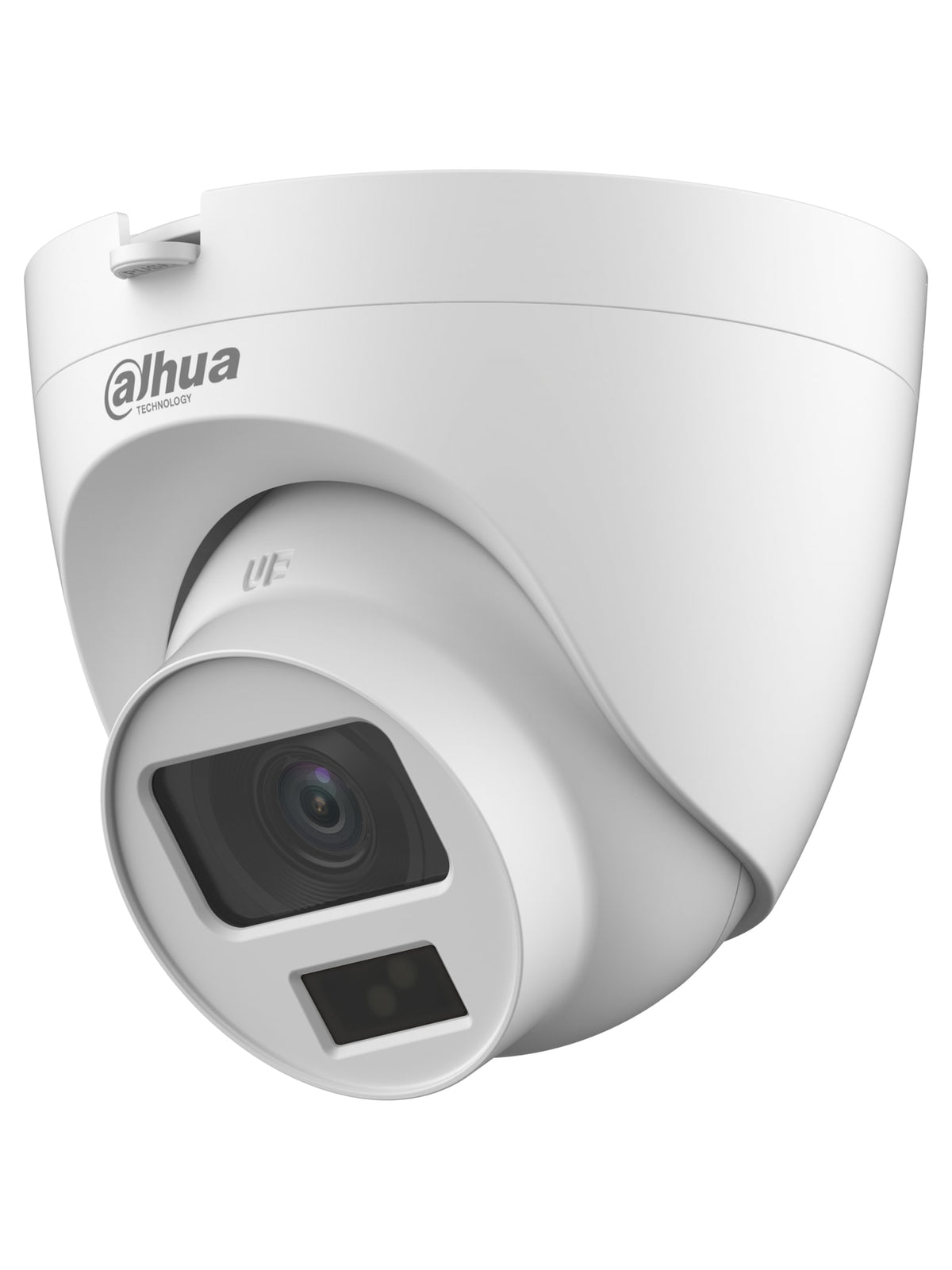

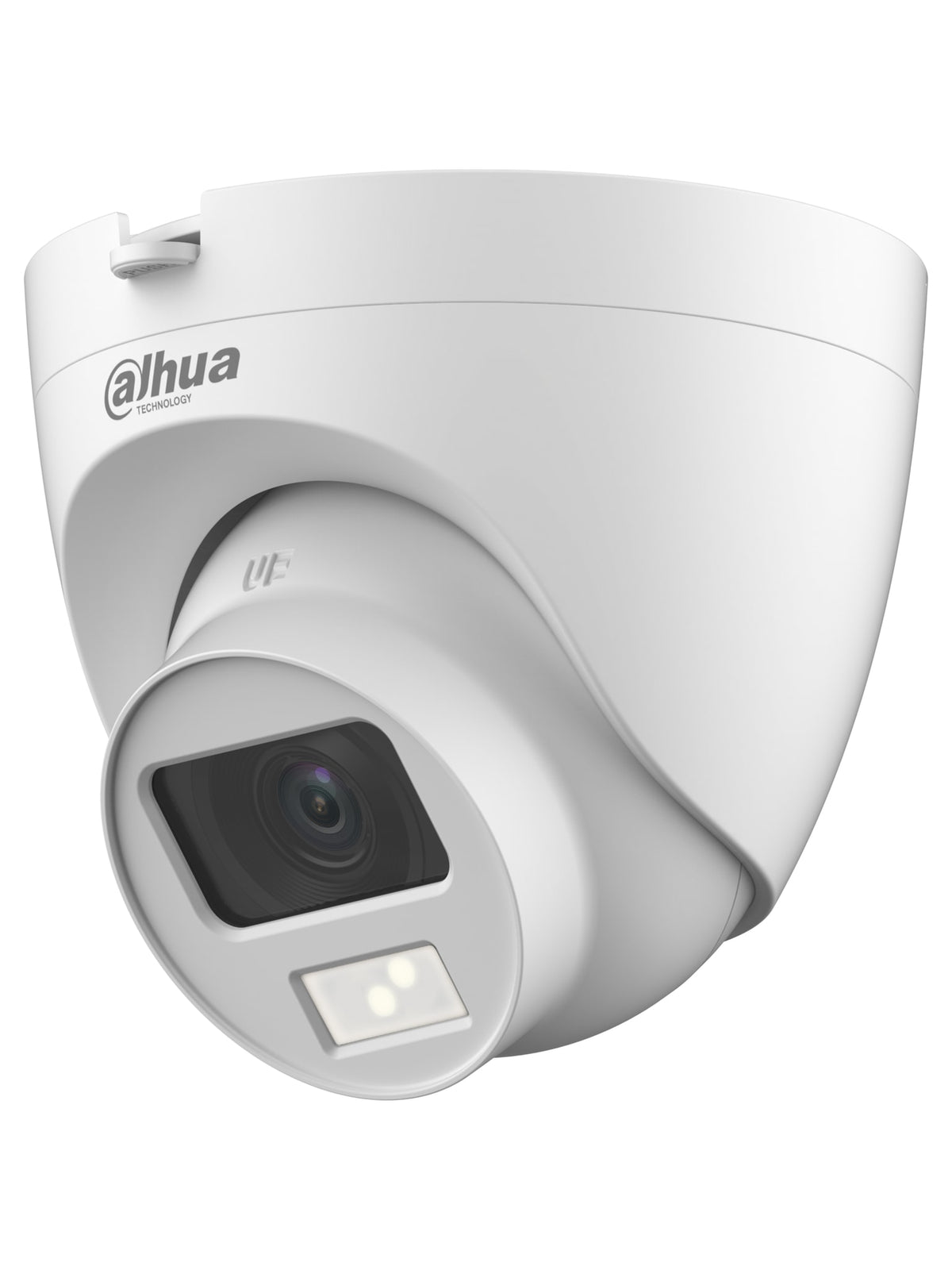

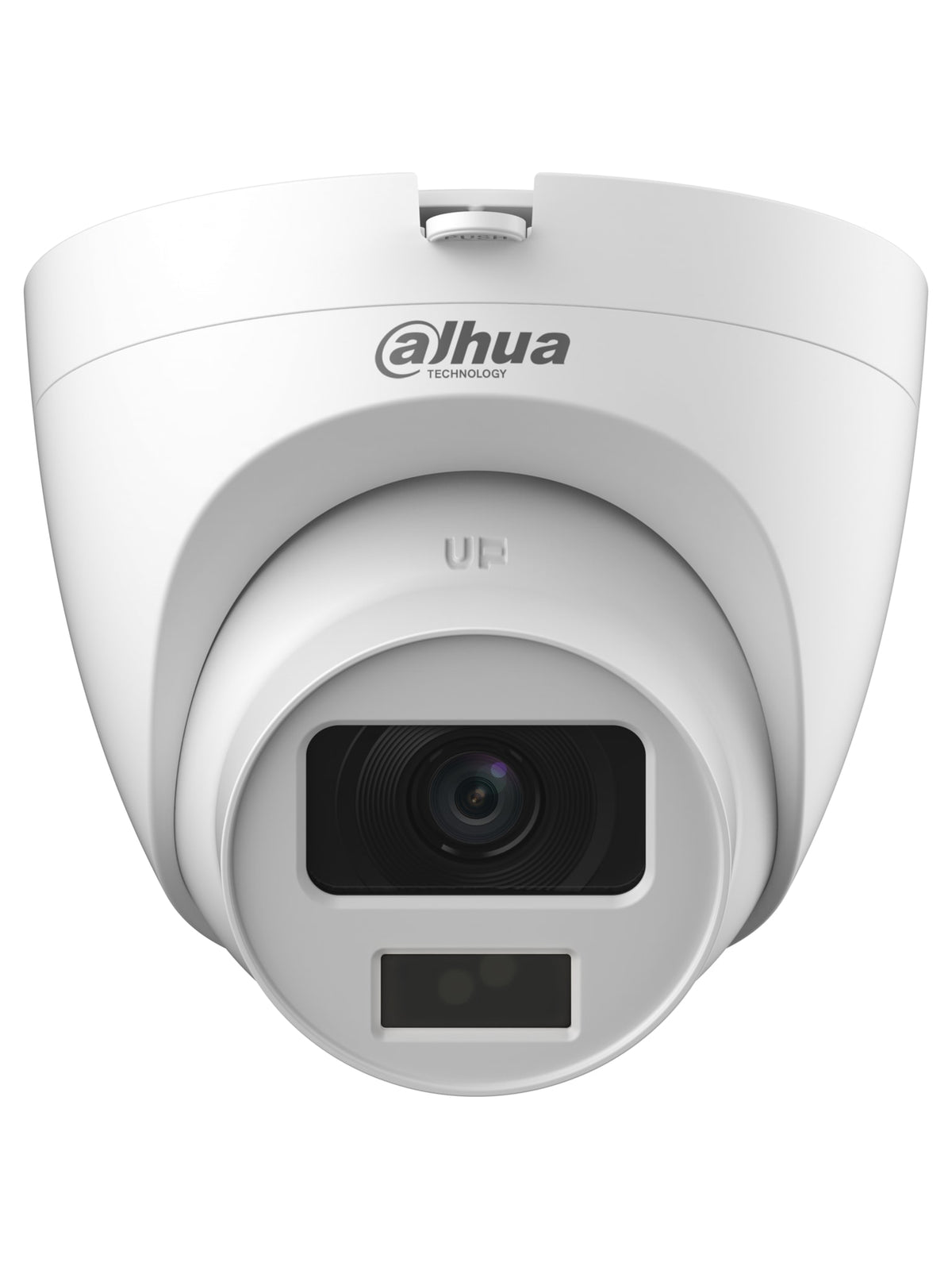

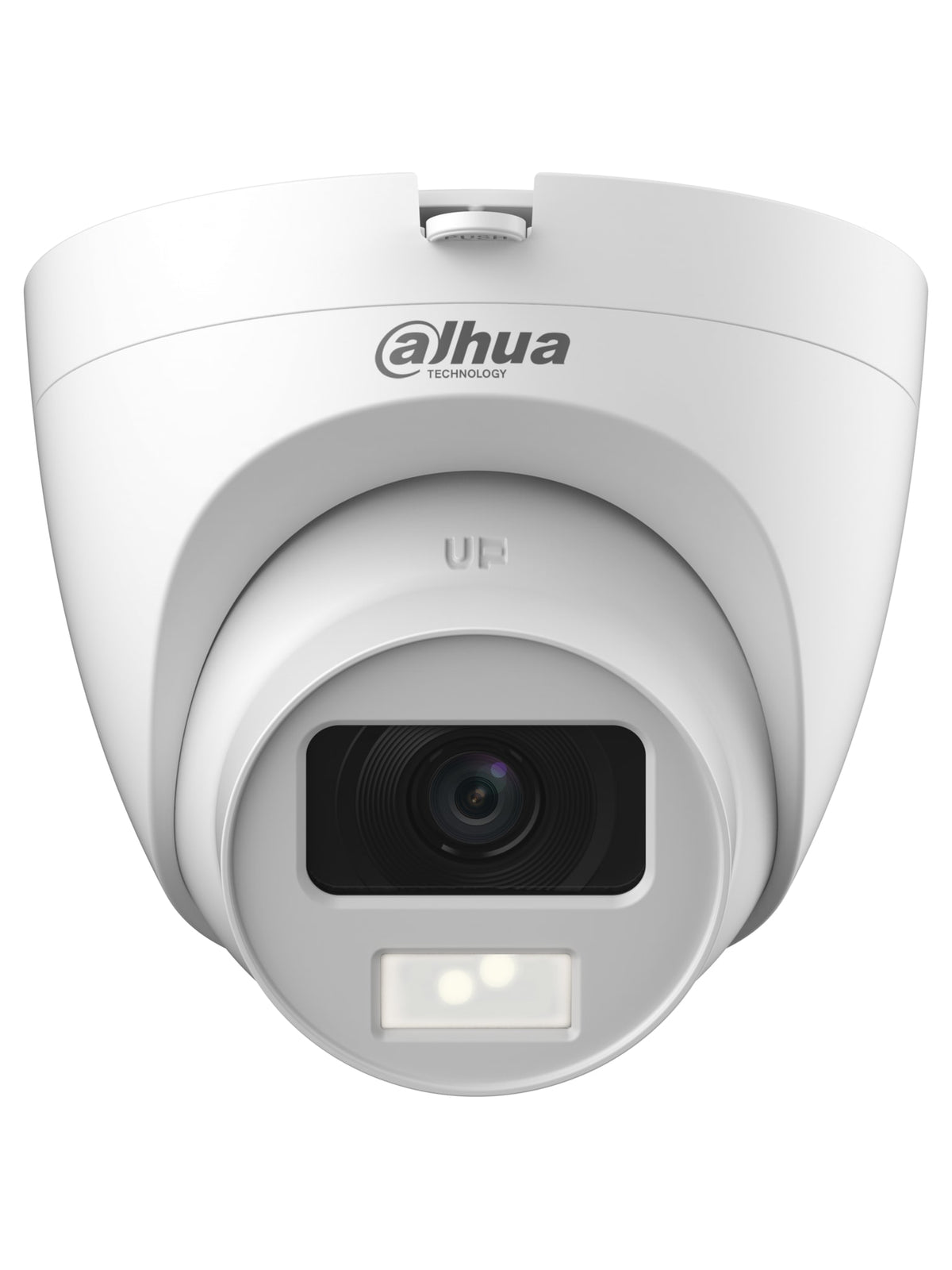

Dahua 5MP Smart Dual Light HDCVI Eyeball Camera, 2.8mm, 20m, Built-in Mic - DH-HAC-HDW1500CLQP-IL-A-0280B-S3-DIP
5MP HDCVI eyeball camera with a 2.8 mm lens, Smart Dual Light IR and warm light up to 20 m, built-in microphone, 4-in-1 output and IP67 housing.
Read MoreSpecs
Brand
Dahua
Model
DH-HAC-HDW1500CLQP-IL-A-0280B-S3-DIP
Product Type
HDCVI Eyeball Camera
Series
Lite
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua 5MP Smart Dual Light HDCVI Eyeball Camera, 2.8mm, 20m, Built-in Mic - DH-HAC-HDW1500CLQP-IL-A-0280B-S3-DIP
The Dahua HAC-HDW1500CLQ-IL-A is a 5MP HDCVI eyeball camera with Smart Dual Light illumination and a built-in microphone. It combines a 5MP sensor and a 2.8 mm wide lens with IR and warm light up to 20 m and switchable CVI/TVI/AHD/CVBS output. It suits homes, shops and offices that want 5MP video with sound on a coax recorder.
Main Specs
- 5MP resolution (2880 × 1620), 5 MP CMOS sensor
- Fixed-focal 2.8 mm lens, 106° horizontal view
- Smart Dual Light: IR: 20 m; Warm Light: 20 m
- Switchable CVI / TVI / AHD / CVBS video output over one BNC coax cable
- Built-in microphone
- Power: 12 VDC ± 30%
- IP67 protection, plastic housing
- Ideal for indoor and porch coverage with audio on an XVR
Main Characteristics
Brand
Dahua
Model
DH-HAC-HDW1500CLQP-IL-A-0280B-S3-DIP
Product Type
HDCVI Eyeball Camera
Series
Lite
Resolution
5MP, 2880 × 1620
Image Sensor
5 MP CMOS
Lens
Fixed-focal, 2.8 mm
Field of View
H: 106°; V: 56°; D: 125°
Aperture
F1.6
Illumination Range
IR: 20 m; Warm Light: 20 m
Min. Illumination
0.05 lux@F1.6 (Color, 30 IRE); 0.005 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
WDR
DWDR
Video Output
Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio
audio in: One channel built-in mic
Power/PoE
12 VDC ± 30%
Power Consumption
Max 4.5 W (12 VDC, WLED on)
Protection
IP67
Operating Temperature
–40 °C to +55 °C (–40 °F to +131 °F)
Housing
Plastic
Dimensions
φ97.1 mm × 93.8 mm
Weight
0.19 kg
