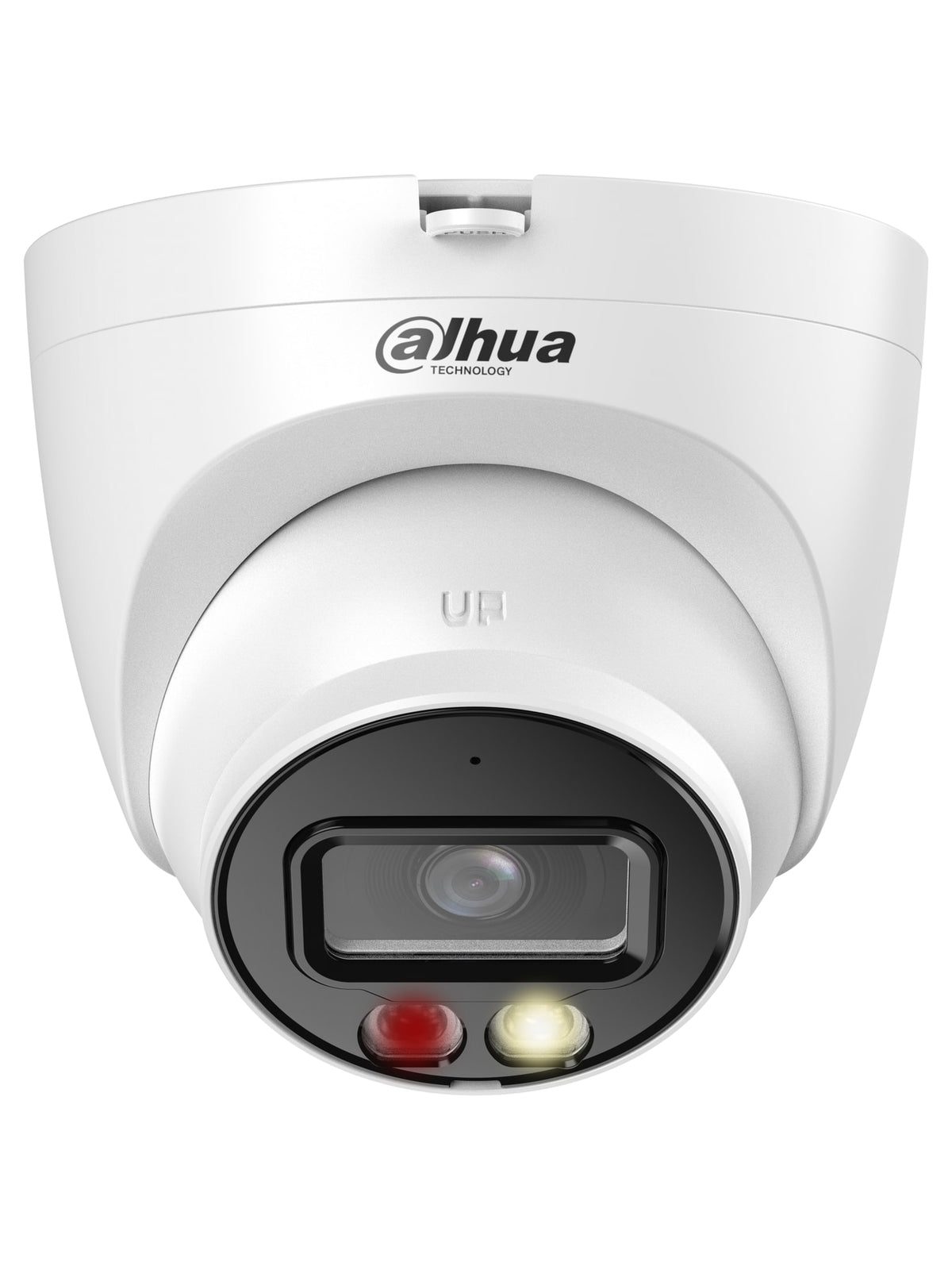

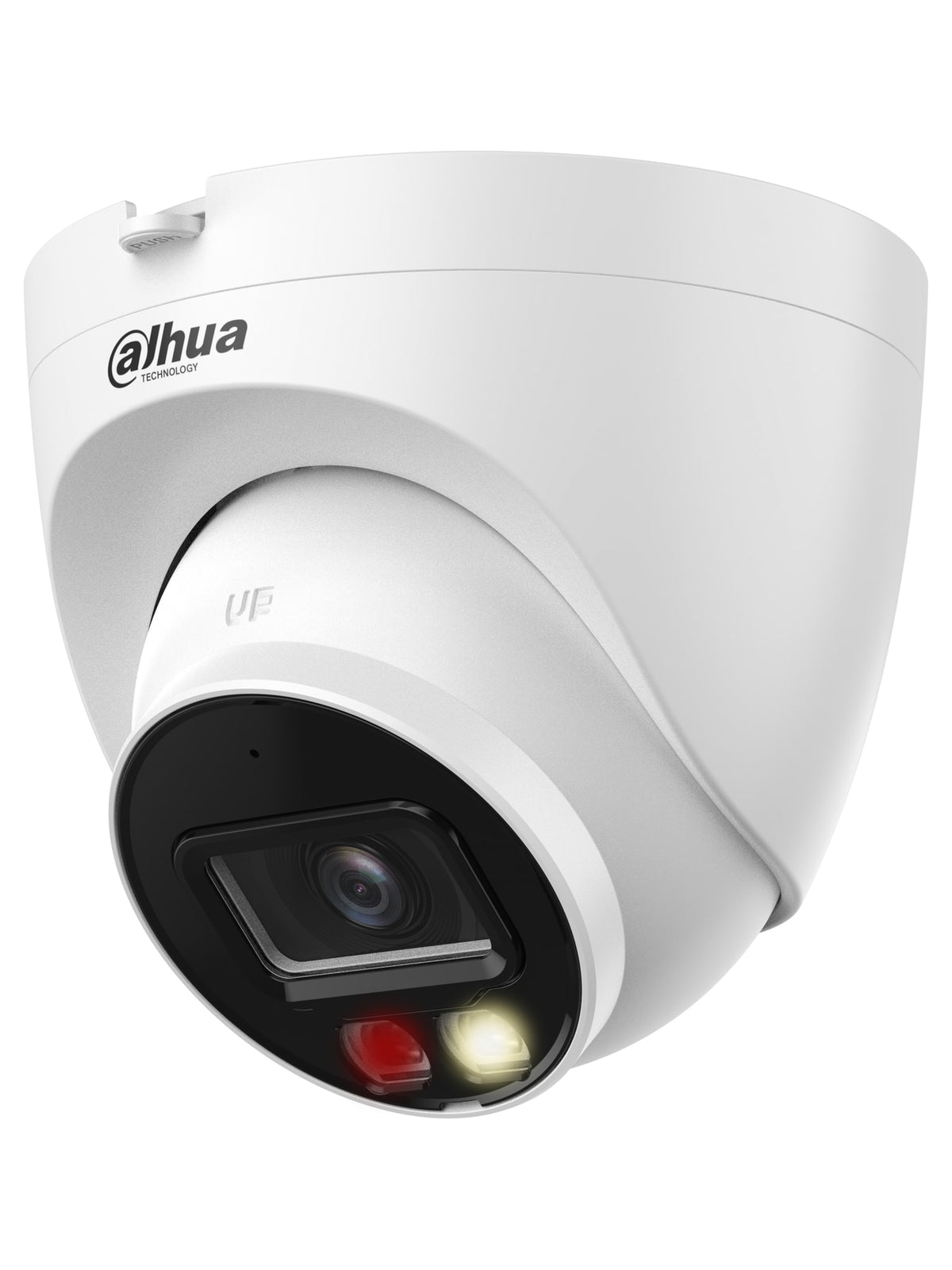

Dahua 6MP Smart Dual Light Eyeball IP Camera, 2.8mm, 30m, Built-in Mic, PoE - DH-IPC-HDW2649TP-S-IL-0280B
6MP WizSense eyeball IP camera with a 2.8 mm lens, Smart Dual Light up to 30 m, IVS and SMD Plus human/vehicle filter, built-in mic, PoE and IP67.
Read MoreSpecs
Brand
Dahua
Model
DH-IPC-HDW2649TP-S-IL-0280B
Product Type
IP Eyeball Camera
Series
WizSense 2
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua 6MP Smart Dual Light Eyeball IP Camera, 2.8mm, 30m, Built-in Mic, PoE - DH-IPC-HDW2649TP-S-IL-0280B
The Dahua IPC-HDW2649T-S-IL is a 6MP WizSense 2 eyeball network camera with Smart Dual Light illumination. It combines a 1/2.7" 6MP sensor, a 2.8 mm wide lens, IR and warm light up to 30 m, IVS and SMD Plus for alarms on people and vehicles only, and a built-in microphone. It suits homes, shops and offices that want more detail than 4MP with fewer false alarms.
Main Specs
- 6MP resolution (3288 × 1850), 1/2.7" CMOS sensor
- Fixed-focal 2.8 mm lens, 112° horizontal view
- Smart Dual Light: Up to 30 m (IR); Up to 30 m (Warm light)
- H.265 / H.264 with Smart H.265+ / H.264+ to save bandwidth and storage
- Smart detection: Intrusion, tripwire (vehicle/human classification); SMD Plus
- Built-in microphone
- MicroSD card slot, up to 256 GB
- Power: 12 VDC / PoE
- IP67 protection, metal core, plastic cover housing
- Ideal for detailed 6MP coverage with smart alarms on an NVR
Main Characteristics
Brand
Dahua
Model
DH-IPC-HDW2649TP-S-IL-0280B
Product Type
IP Eyeball Camera
Series
WizSense 2
Resolution
6MP, 3288 × 1850
Image Sensor
1/2.7" CMOS
Lens
Fixed-focal, 2.8 mm
Field of View
H: 112°; V: 61°; D: 132°
Aperture
F1.6
Illumination Range
Up to 30 m (IR); Up to 30 m (Warm light)
Min. Illumination
0.007 lux@F1.6 (Color, 30 IRE); 0.0007 lux@F1.6 (B/W, 30 IRE); 0 lux (Illuminator on)
WDR
120 dB
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by sub stream); Smart H.265+; Smart H.264+
Smart Features
IVS: Intrusion, tripwire (vehicle/human classification); SMD Plus
Audio
built-in mic
Storage
FTP; SFTP; Micro SD card (support max. 256 GB); NAS
Network
RJ-45 (10/100 Base-T)
Power/PoE
12 VDC; PoE
Power Consumption
Basic: 2.5 W (12 VDC); 3.4 W (PoE); Max.: 4.6 W (12 VDC); 5.7 W (PoE) (H.265 + intelligence on+ WDR + illuminator intensity)
Protection
IP67
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Housing
Inner core: Metal; Cover: Plastic
Dimensions
100.9 mm × Φ109.9 mm
Weight
0.38 kg
