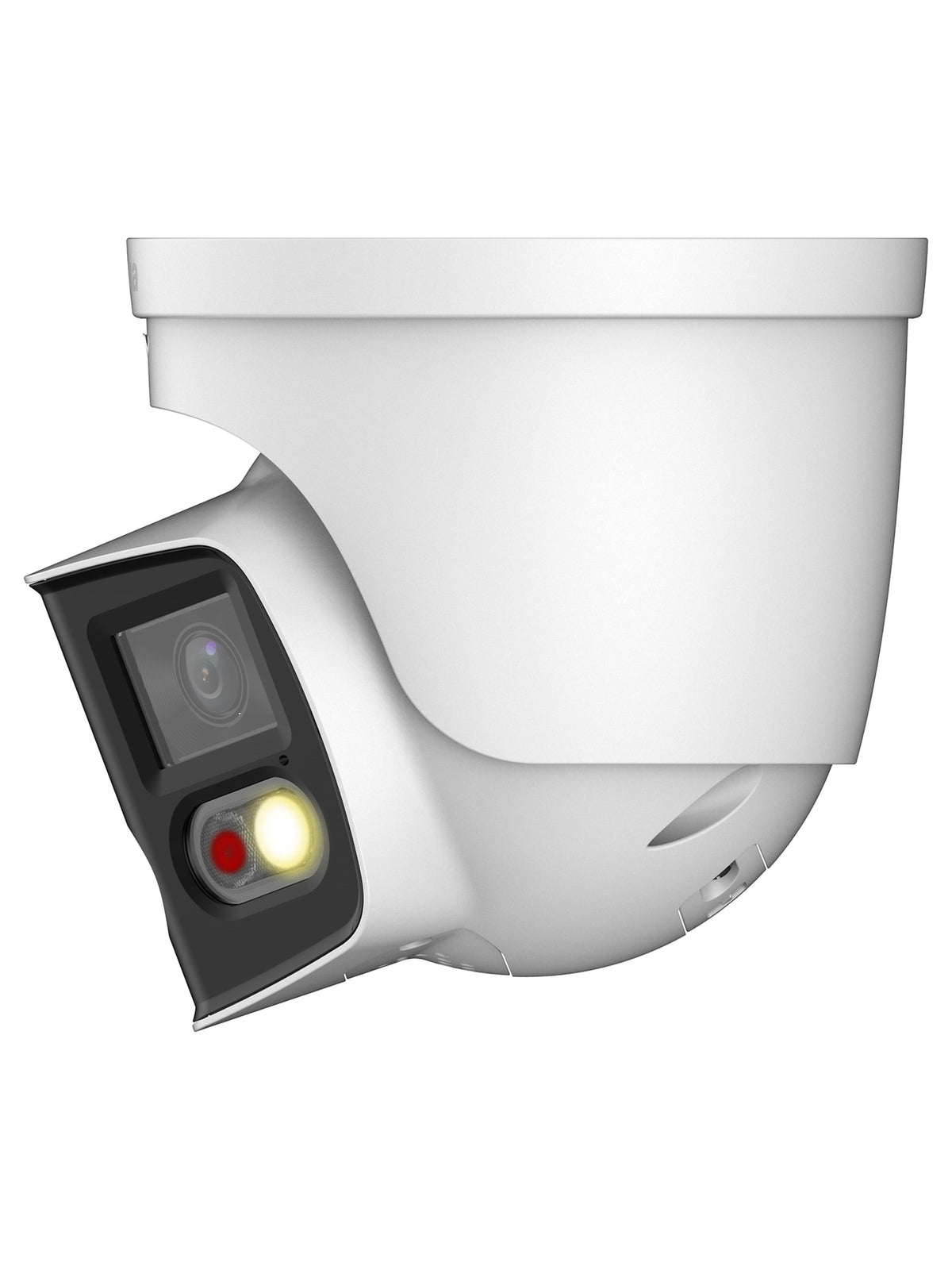

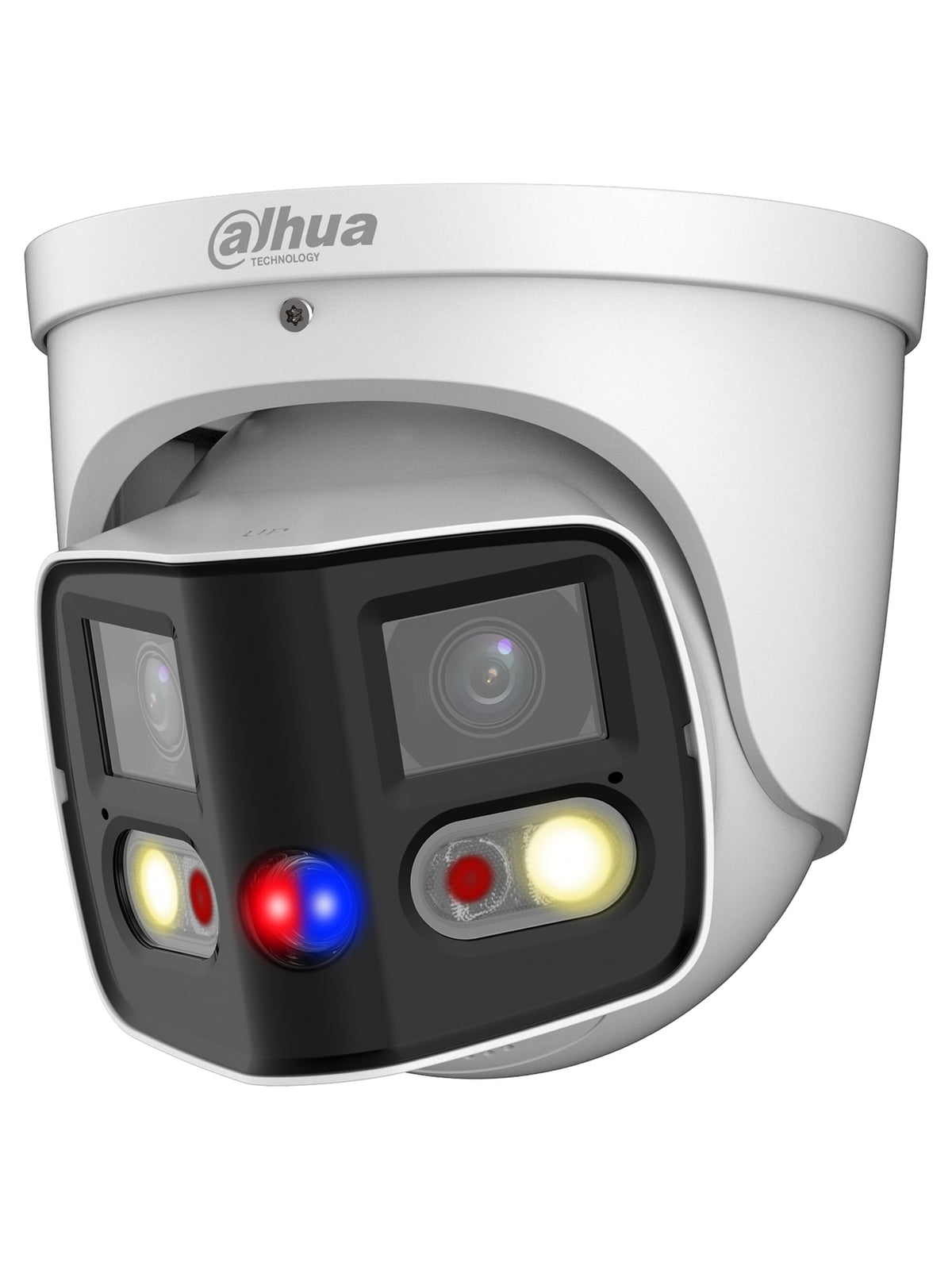

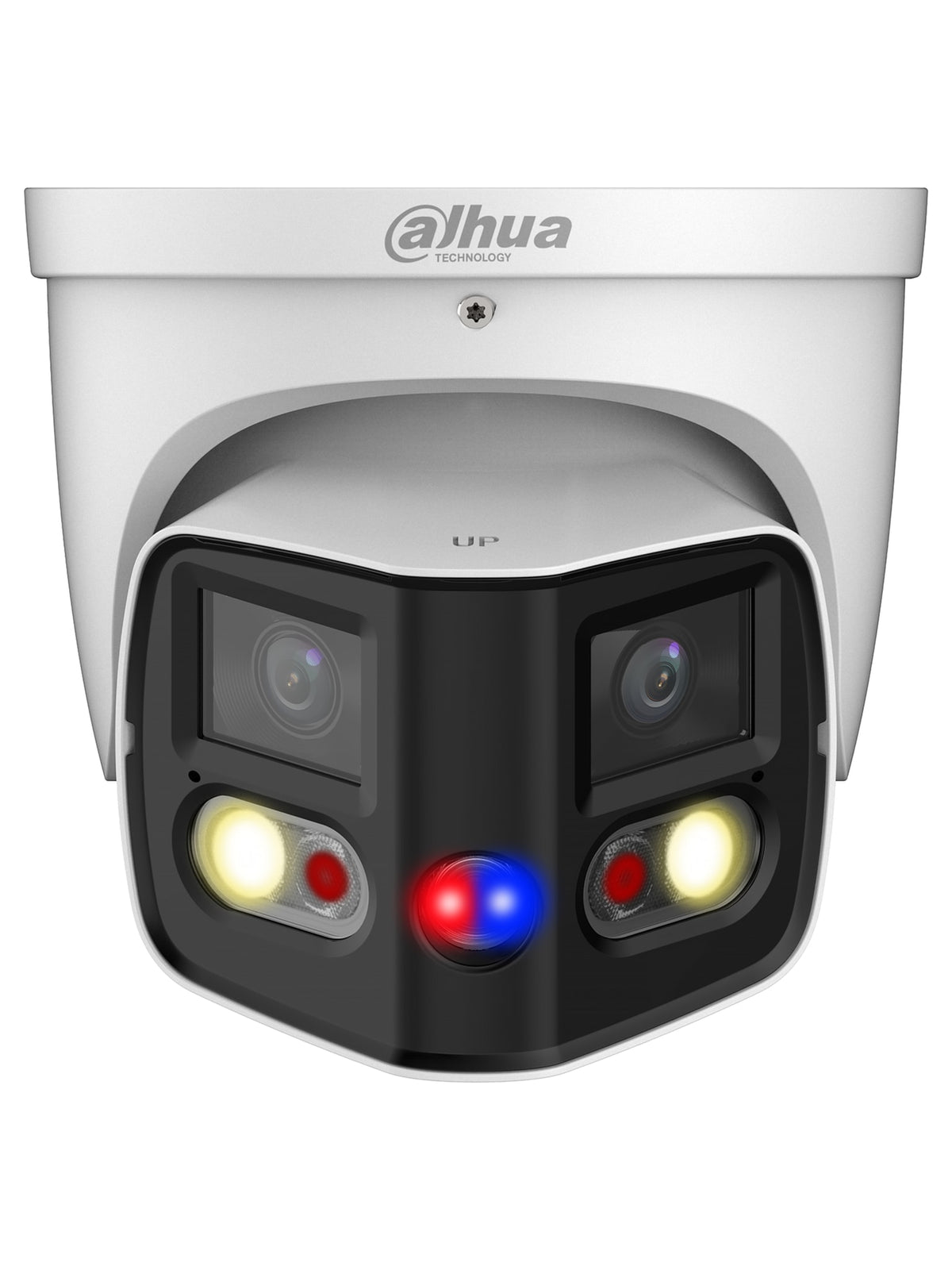

Dahua 8MP 180° Panoramic TiOC Eyeball IP Camera, Active Deterrence, PoE - DH-IPC-PDW3849P-A180-E2-AS-PV-0280B
The Dahua IPC-PDW3849-A180-AS-PV is an 8MP WizSense 3 TiOC camera that stitches two lenses into one 180° panoramic view. It combines a 4096 × 1860 image, IR up to 25 m and warm light up to 20 m, a siren and red-blue warning lights, IVS and SMD 4.0 detection and a dual microphone. It suits wide yards, car parks and shop floors that would otherwise need two cameras.
Main Specs
- 8MP resolution (4096 × 1860), Dual 1/2.7" CMOS sensor
- Lens: Dual 2.8 mm fixed lenses, stitched 180° view
- Smart Dual Light: Up to 25 m (IR LED) Up to 20 m (Warm light)
- H.265 video compression
- Smart detection: Intrusion, tripwire (vehicle/human classification), stay detection, loitering detection; SMD 4.0
- Active deterrence: siren (built-in 110 dB speaker) + warning light
- Built-in microphone, audio input, audio output, built-in speaker for two-way talk
- MicroSD card slot, up to 512 GB
- Power: 12 VDC (±30%) / PoE (802.3af)
- Ideal for covering a wide area with one 180° camera
Main Characteristics
Brand
Dahua
Model
DH-IPC-PDW3849P-A180-E2-AS-PV-0280B
Product Type
180° Panoramic IP Camera
Series
WizSense 3 TiOC
Resolution
8MP, 4096 × 1860
Image Sensor
Dual 1/2.7" CMOS
Lens
Dual 2.8 mm fixed lenses, stitched 180° view
Field of View
Horizontal: 180°; Vertical: 86°
Aperture
F1.4
Illumination Range
Up to 25 m (IR LED) Up to 20 m (Warm light)
Min. Illumination
0.005 lux@F1.4 (Color, 30 IRE) 0.0005 lux@F1.4 (B/W, 30 IRE) 0 lux (Illuminator on)
WDR
120 dB
Compression
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream)
Smart Features
IVS: Intrusion, tripwire (vehicle/human classification), stay detection, loitering detection; SMD 4.0
Active Deterrence
siren (built-in 110 dB speaker) + warning light
Audio
built-in mic; audio in: 1 channel (RCA port); audio out: 1 channel (RCA port); built-in speaker
Storage
FTP; SFTP; Micro SD card (support max. 512 GB); NAS
Network
RJ-45 (10/100 Base-T)
Power/PoE
12 VDC (±30%); PoE (802.3af)
Power Consumption
Basic: 3.95 W (12 VDC); 4.95 W (PoE) Max. (H.265+WDR+ warm light+siren and light active deterrence + intelligence on): 8.7 W (12 VDC); 10.85 W (PoE)
Protection
IP67
Operating Temperature
–40 °C to +60 °C (–40 °F to +140 °F)
Dimensions
Φ122 mm × 135.2 mm
Weight
990 g
