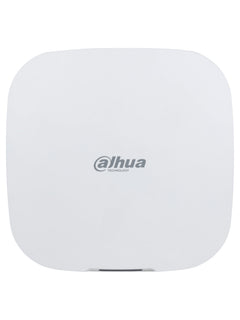

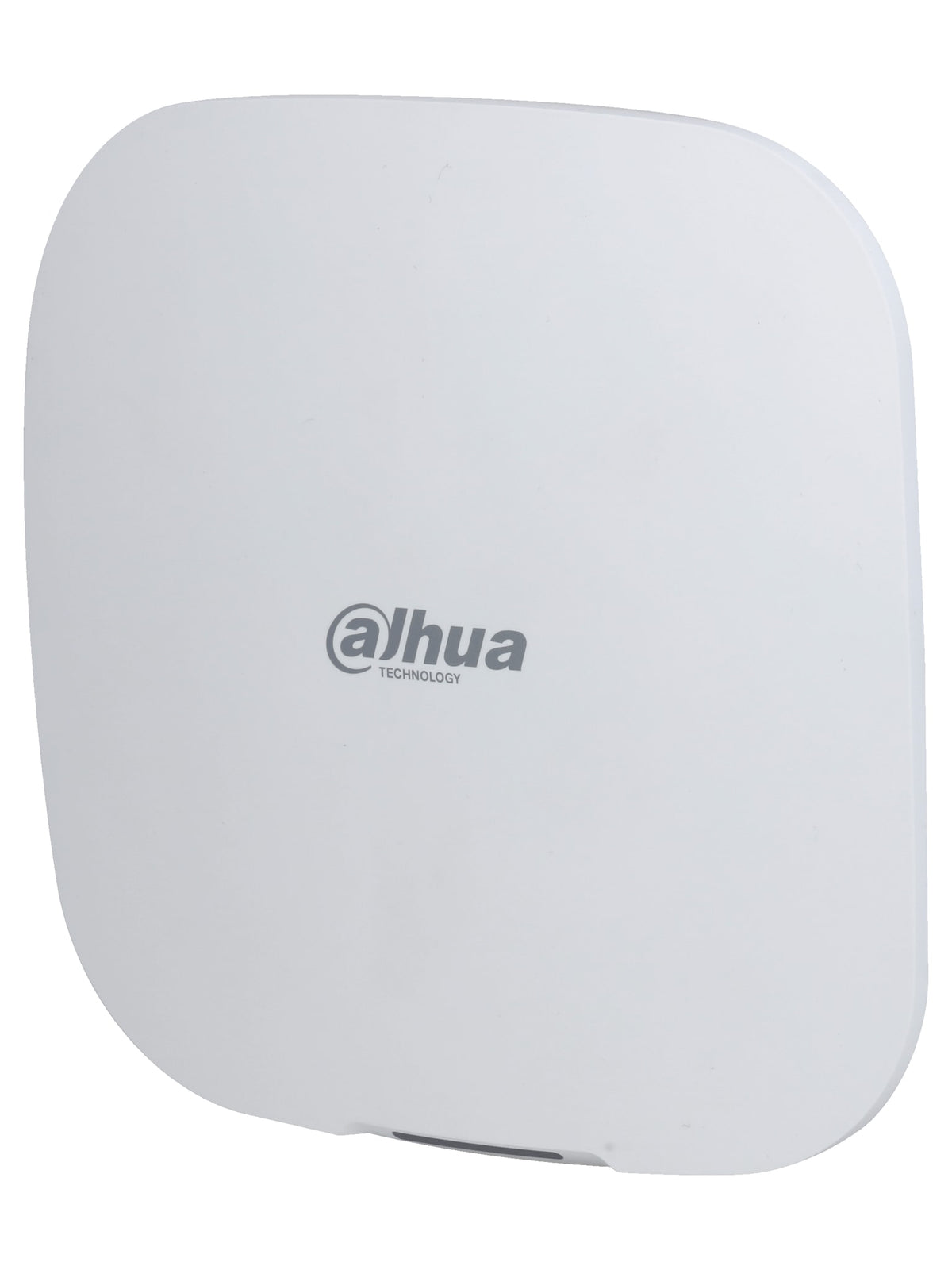

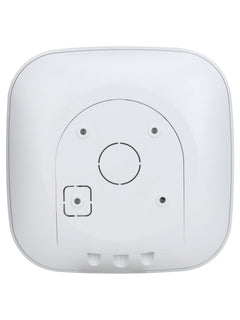

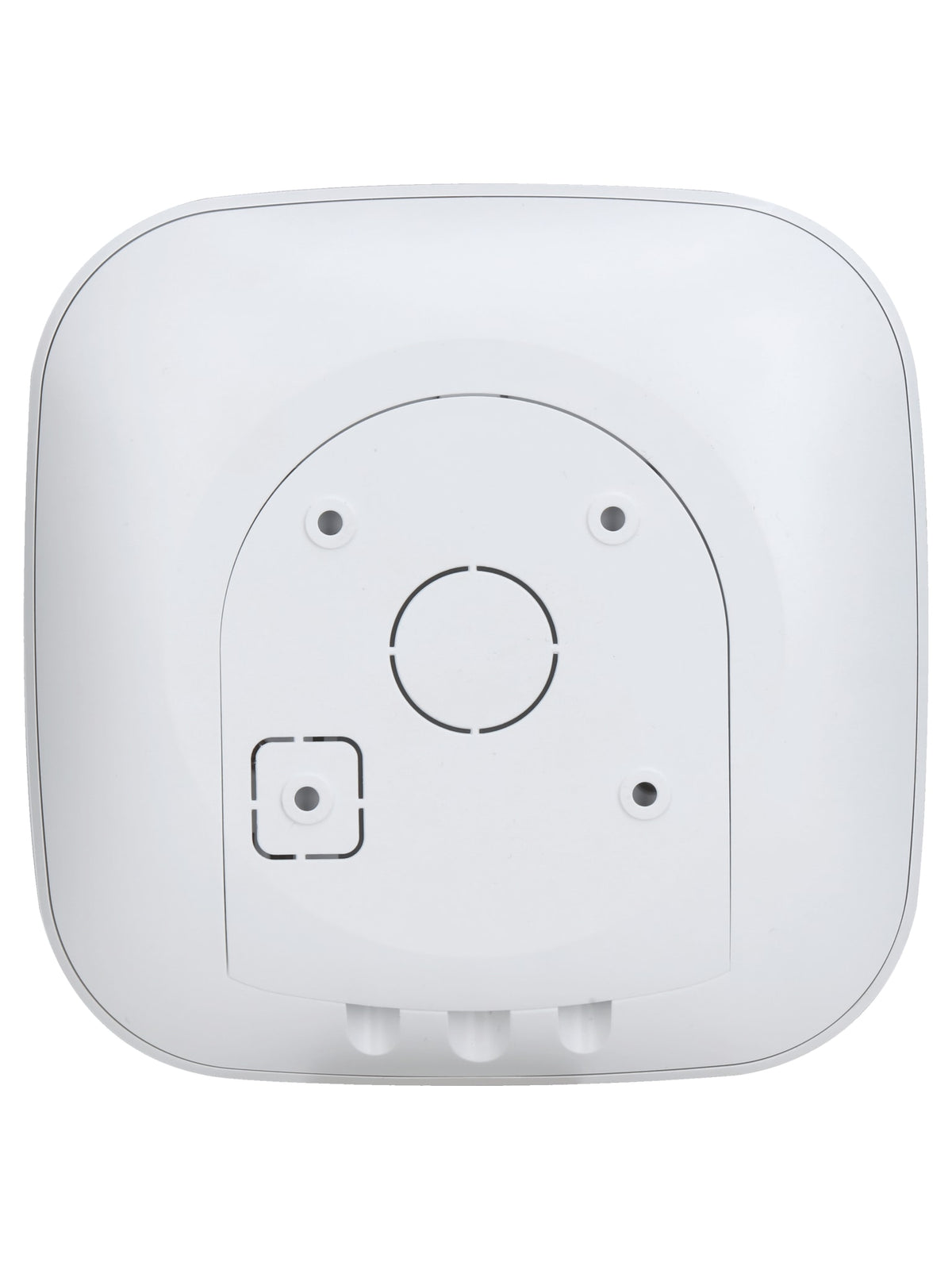

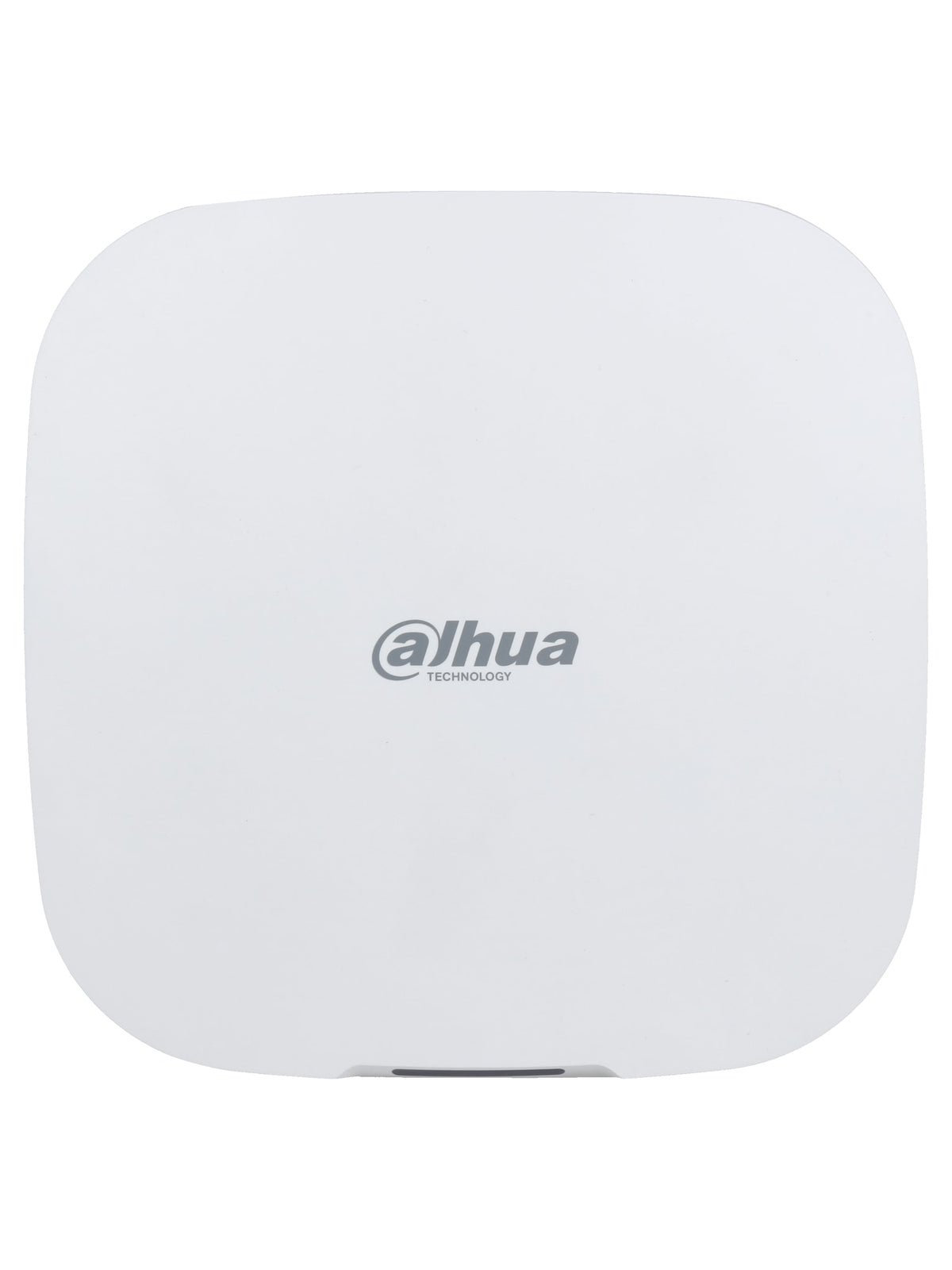

Dahua ARC3000H-W2 Wireless Alarm Hub, Ethernet / Wi-Fi, 868 MHz
Dahua ARC3000H-W2 868 MHz wireless alarm hub with Ethernet and Wi-Fi, 150 wireless peripherals, 4 IP cameras for video linkage and DMSS app control.
Read MoreSpecs
Brand
Dahua
Model
DHI-ARC3000H-W2(868)
Product Type
Wireless alarm hub
Peripherals
150 wireless (64 keyfobs, 8 keypads, 6 sirens, 4 repeaters, 8 PIR cameras, 56 triple-tech detectors, 4 multi I/O)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua ARC3000H-W2 Wireless Alarm Hub, Ethernet / Wi-Fi, 868 MHz
The Dahua ARC3000H-W2 is a wireless alarm hub that connects Dahua AirShield detectors, sirens and keyfobs to the DMSS app over Ethernet or Wi-Fi. It combines 150 wireless peripherals, 4-channel IP camera video linkage, 2,000 m two-way 868 MHz radio with AES128 and a built-in backup battery. It suits homes and small shops that want an easy app-controlled alarm without a SIM card.
Main Specs
- Up to 150 wireless peripherals (64 keyfobs, 8 keypads, 6 sirens, 4 repeaters)
- Video linkage with 4 IP cameras in the app
- Network: Ethernet and Wi-Fi 2.4 GHz
- Two-way 868 MHz radio, up to 2,000 m open space, AES128, frequency hopping
- Built-in lithium battery, 12 h standby
- Arm/disarm by app, keypad, keyfob, card or schedule
- Wired inputs / outputs expandable to 64
- Power: 12 V DC 1.5 A (EU adapter by default)
- EN 50131 Security Grade 2, Environmental Class II
- Ideal for app-controlled wireless home and shop alarms
Main Characteristics
Brand
Dahua
Model
DHI-ARC3000H-W2(868)
Product Type
Wireless alarm hub
Peripherals
150 wireless (64 keyfobs, 8 keypads, 6 sirens, 4 repeaters, 8 PIR cameras, 56 triple-tech detectors, 4 multi I/O)
Wired Input / Output
Expandable to 64 / 64
IP Cameras
4 (video linkage)
Network
Ethernet 10/100, Wi-Fi 2.4 GHz
Arm / Disarm
App, keypad, keyfob, SIA, SMS, card, schedule
Logs
5,000
Carrier Frequency
868.0-868.6 MHz
Communication Mechanism
Two-way
Encryption
AES128
Frequency Hopping
Yes
Communication Distance
Up to 2,000 m in open space
Battery
Built-in lithium, 12 h standby
Power Supply
12 V DC, 1.5 A
Dimensions
163 x 163 x 32 mm
Net Weight
0.38 kg
Installation
Wall or desktop
Casing
PC + ABS
Certifications
CE, EN 50131 Grade 2, Environmental Class II, ATS SP2/DP2
Operating Temperature
-10 Β°C to +50 Β°C
