Dahua ARC3008C 8-Zone Wired Alarm Control Panel, Expandable to 72 Zones
Dahua ARC3008C wired security control panel: 8 zones expandable to 72, 2 PGM outputs expandable to 82, Ethernet, optional 2G/4G and PSTN, DMSS app, EN 50131 Grade 2.
Read MoreSpecs
Brand
Dahua
Model
DHI-ARC3008C
Product Type
Wired alarm controller
Alarm Input
8 on-board zones (expandable to 72)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua ARC3008C 8-Zone Wired Alarm Control Panel, Expandable to 72 Zones

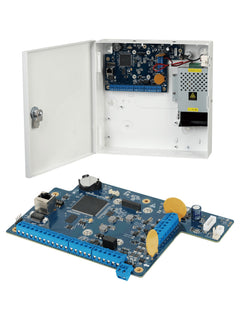

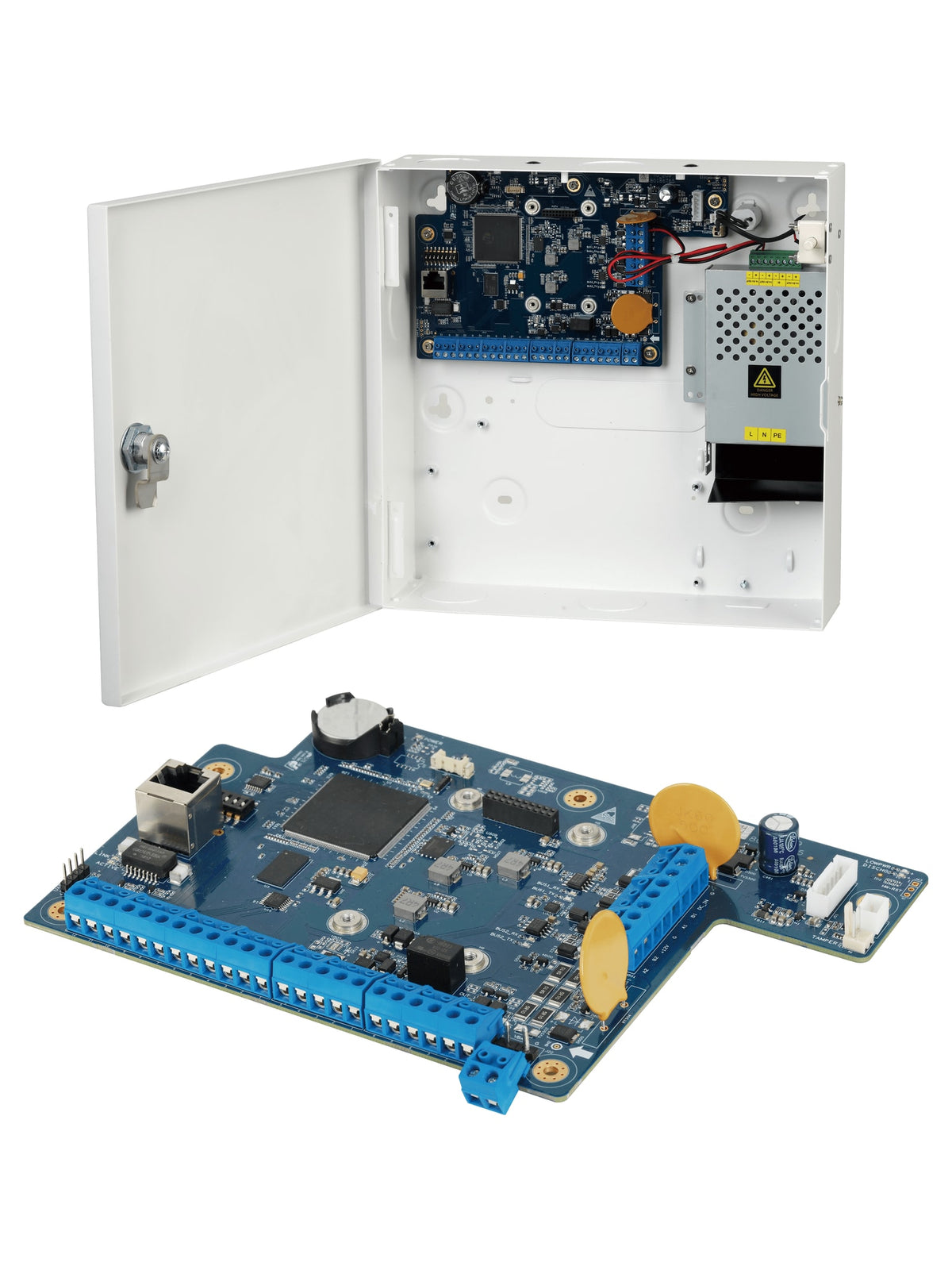

The Dahua ARC3008C is a wired intrusion alarm control panel in a metal cabinet. It combines 8 on-board zones expandable to 72, 2 PGM outputs expandable to 82, Ethernet, optional 2G / 4G and PSTN modules for SMS and voice alerts, 8 areas and DMSS app control. It suits homes, shops and small offices that want a certified Grade 2 wired alarm system.
Main Specs
- 8 on-board zones, expandable to 72
- 2 PGM outputs, expandable to 82
- Ethernet 10/100, optional 2G / 4G and PSTN modules
- SMS and voice call alerts to 8 phone numbers (with 2G / 4G)
- Up to 8 keypads, 8 areas with 2 partitions each
- Arm/disarm by keypad, card, DMSS app, SMS or schedule
- 100 users with 7 permission levels, 1,000 event logs
- 12 V 1 A siren output, 12 V 7 Ah battery port
- EN 50131-3 Security Grade 2, Environment Class II
- Ideal for homes and shops installing a certified wired alarm
Main Characteristics
Brand
Dahua
Model
DHI-ARC3008C
Product Type
Wired alarm controller
Alarm Input
8 on-board zones (expandable to 72)
Alarm Output
2 on-board PGMs (expandable to 82)
Network
1 x RJ-45 10/100 Mbps
Optional Modules
PSTN, 2G (UART), 4G (USB)
RS-485
2 (keypad and expansion module)
Keypads
Up to 8
Areas
8 areas, 2 partitions each
Arm / Disarm
Keypad, swipe card, DMSS app, SMS, schedule
Notifications
SMS and voice calls to 8 numbers (with 2G / 4G module)
Users
100 users, 7 permission levels
Event Logs
1,000
Protocols
TCP/IP, DHCP, P2P, SIA
Siren Output
12 V / 1 A
Aux Power
2 x 12 V / 1 A
Backup Battery
12 V DC / 7 Ah lead-acid
Main Power
110-220 V AC in, 14.5 V DC 2.7 A out
Power Consumption
Max 35 W
Dimensions
275 x 275 x 77 mm
Net Weight
β€ 3 kg
App
DMSS
Certification
CE, EN 50131-3 Security Grade 2, Environment Class II
