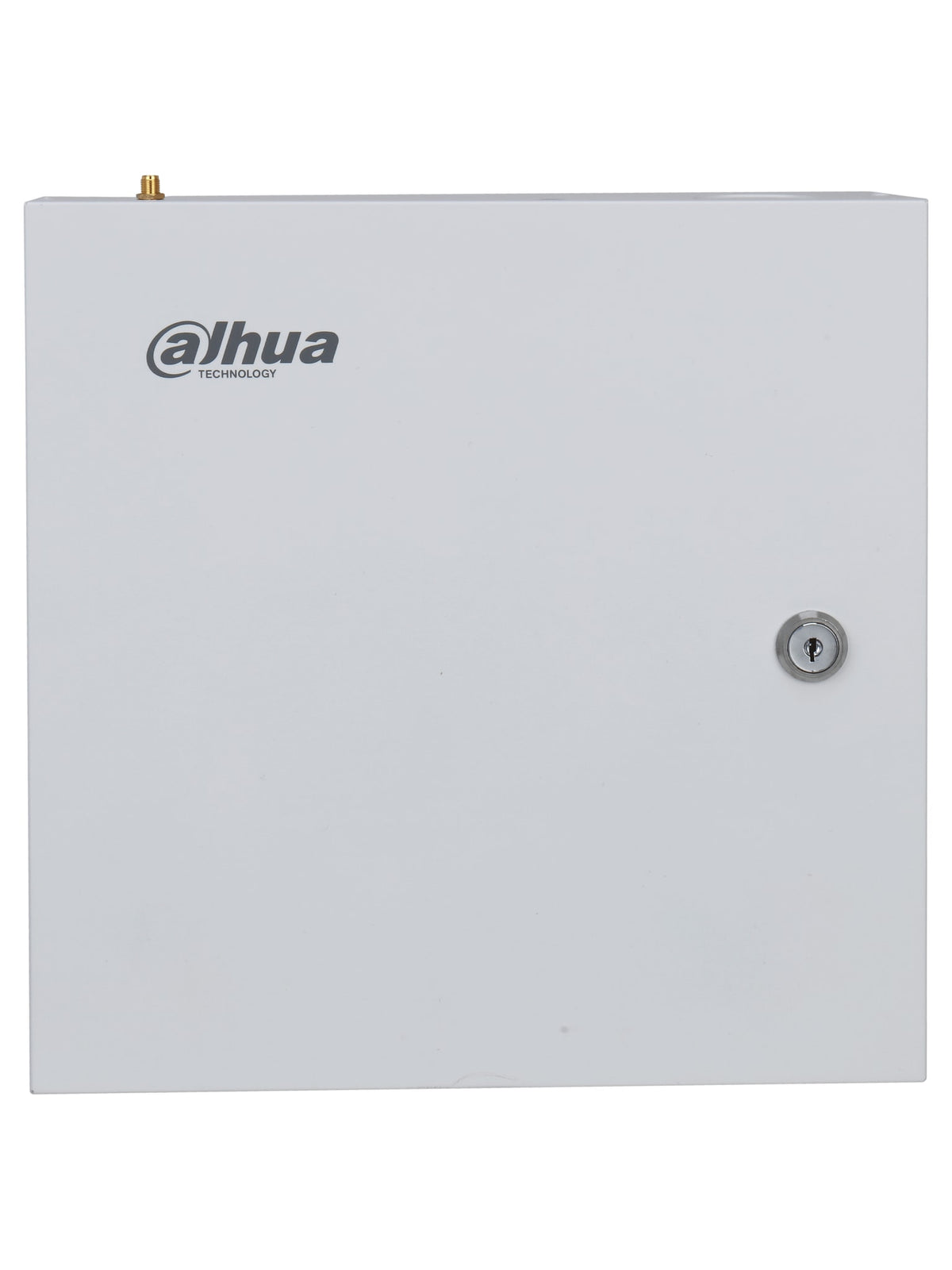

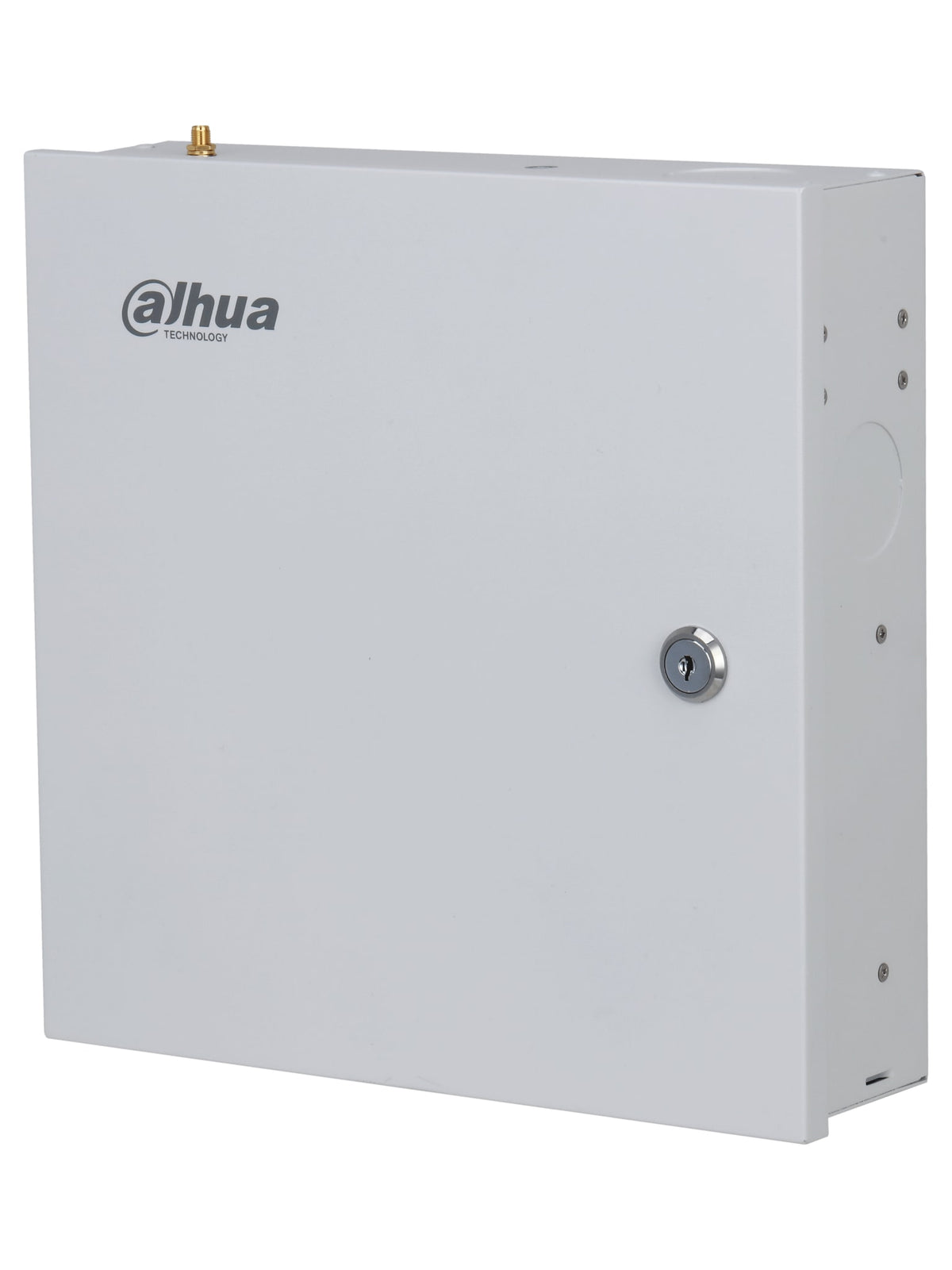

Dahua ARC9016C-V3 16-Zone Wired Alarm Control Panel, Expandable to 256
Dahua ARC9016C-V3 wired alarm controller: 16 zones and 4 outputs expandable to 256, dual Ethernet, PSTN with Contact ID, M-BUS and RS-485, up to 32 keypads.
Read MoreSpecs
Brand
Dahua
Model
DHI-ARC9016C-V3
Product Type
Wired alarm controller
Alarm Input
16 local zones (expandable to 256)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua ARC9016C-V3 16-Zone Wired Alarm Control Panel, Expandable to 256
The Dahua ARC9016C-V3 is a wired intrusion alarm control panel for larger sites. It combines 16 local zones and 4 outputs expandable to 256 each, two Ethernet ports, a PSTN line with Contact ID, 2-channel M-BUS expansion up to 2.4 km and support for 32 LCD keypads. It suits shops, warehouses and offices that need a professional wired alarm system reporting to a monitoring centre.
Main Specs
- 16 local zones, expandable to 256
- 4 alarm outputs, expandable to 256
- Zone types: instant, delayed, 24-hour silent and more
- 2 x RJ-45 10/100 Ethernet, 1 x PSTN (Contact ID)
- 2 x RS-485 (keypads, modules, printer), 2-ch M-BUS up to 2.4 km
- Up to 32 LCD keypads and 32 ARA24-W2 keyfobs
- Arm/disarm by keypad, keyfob, IC card, web or platform
- 64 network users, 200 keypad users, 20,000 logs
- Power: 100-240 V AC; 12 V 7 Ah battery port; 12 V 1 A aux output
- Ideal for larger premises needing a professional wired alarm panel
Main Characteristics
Brand
Dahua
Model
DHI-ARC9016C-V3
Product Type
Wired alarm controller
Alarm Input
16 local zones (expandable to 256)
Alarm Output
4 local outputs (expandable to 256)
Network
2 x RJ-45 10/100 Mbps
Telephone Line
1 x PSTN, Contact ID
RS-485
2 (keypad, expansion module, printer)
RS-232
1
M-BUS
2-ch, up to 2.4 km per channel
Keypads
Up to 32 LCD keypads
Remote Controls
Up to 32 x ARA24-W2
Arm / Disarm
Keypad, keyfob, IC card, web, platform
Users
64 network users, 200 keypad users
Logs
20,000
Aux Power Output
12 V DC, 1 A
Backup Battery
12 V DC / 7 Ah port
Power Supply
100-240 V AC, 50/60 Hz
Power Consumption
5 W idle, 60 W full load
Dimensions
275 x 74.8 x 275 mm
Net Weight
2.1 kg
Installation
Wall mount
Operating Temperature
-10 Β°C to +55 Β°C
Certifications
FCC, CE
