Dahua ARD1233-W2 Wireless PIR Motion Detector, Pet Immune, 868 MHz
Dahua ARD1233-W2 868 MHz wireless PIR detector with 12 m / 90° coverage, pet immunity up to 18 kg, 3 sensitivity levels and 4-year CR123A battery life.
Read MoreSpecs
Brand
Dahua
Model
DHI-ARD1233-W2(868)
Product Type
Wireless PIR detector
Sensor
Dual-element low-noise PIR
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.

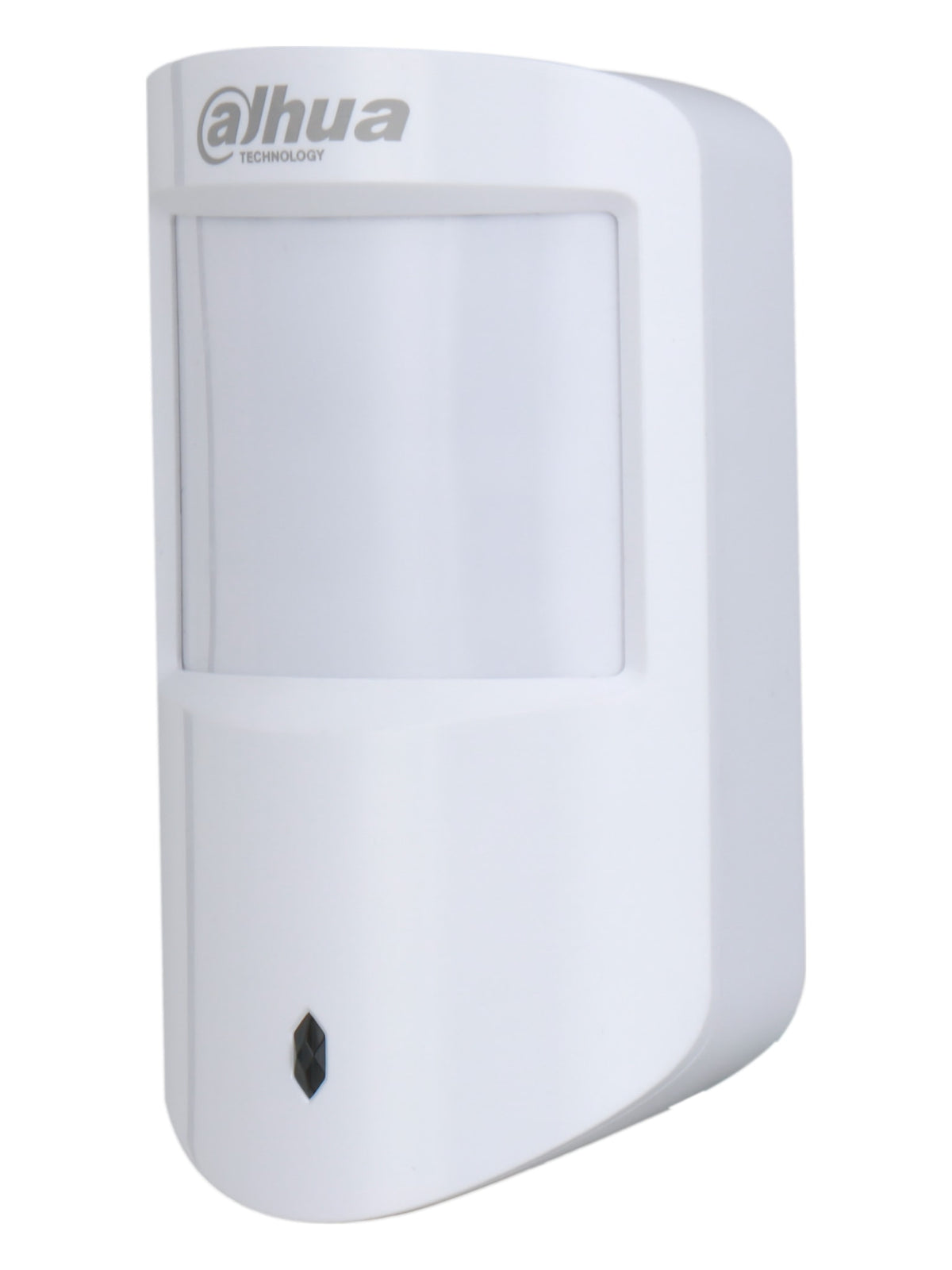

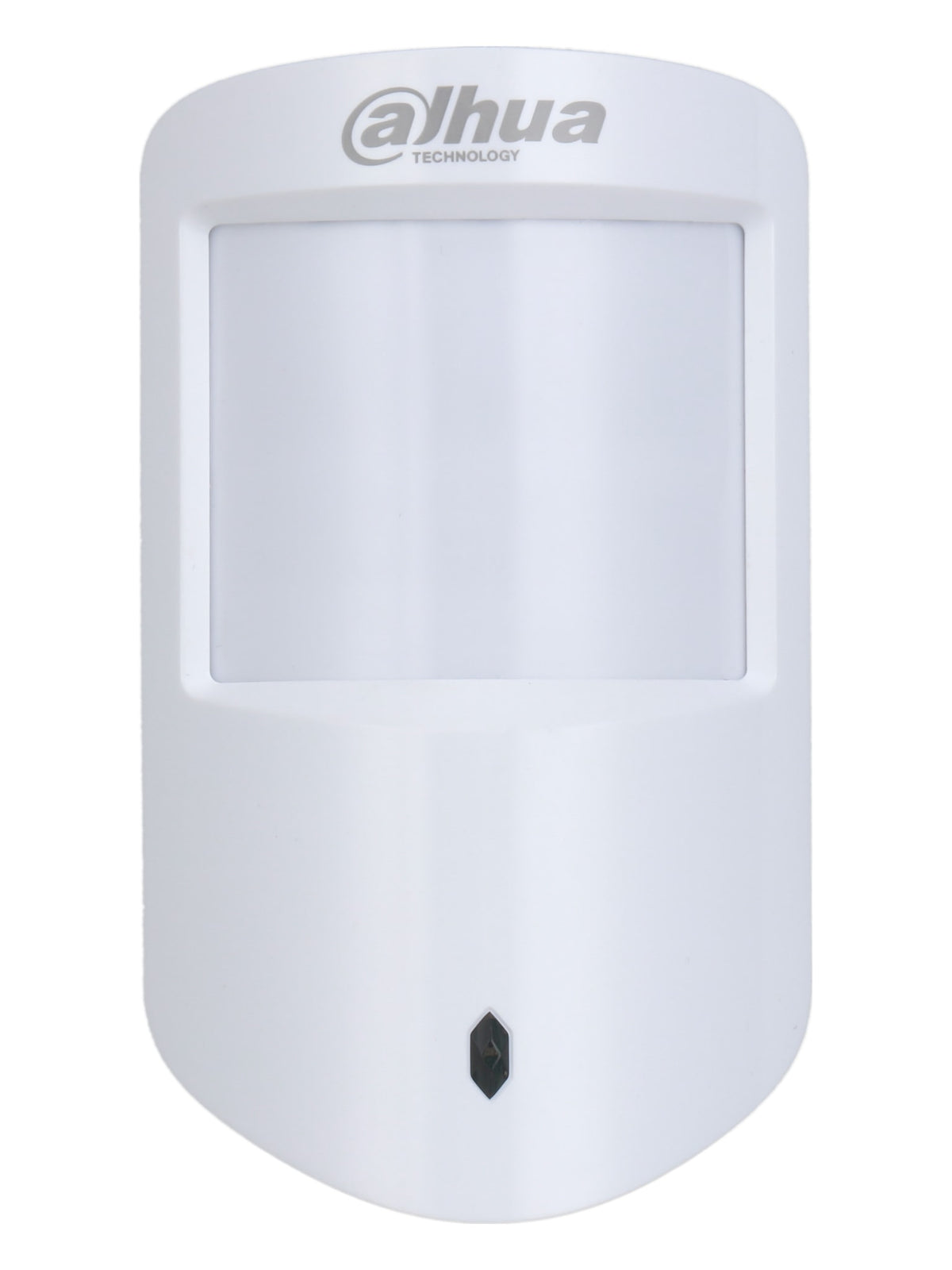

Dahua ARD1233-W2 Wireless PIR Motion Detector, Pet Immune, 868 MHz
The Dahua ARD1233-W2 is an indoor wireless PIR motion detector for Dahua AirShield alarm hubs. It combines a dual-element low-noise PIR sensor with 12 m / 90° coverage, pet immunity up to 18 kg, 3 sensitivity levels and two-way 868 MHz radio with a range of up to 1,600 m. It suits rooms and corridors in homes and offices where pets should not trigger the alarm.
Main Specs
- Detection: dual-element low-noise PIR
- Range: 12 m, 90° at 2.2 m mounting height
- Pet immunity: up to 18 kg
- 3 sensitivity levels, digital temperature compensation
- Two-way 868 MHz radio, up to 1,600 m open space
- AES128 encryption, frequency hopping
- Battery: CR123A, about 4 years
- Tamper alarm, low-battery alarm, temperature reading
- EN 50131 Security Grade 2; 104 x 60 x 50 mm
- Ideal for pet-friendly indoor motion detection
Main Characteristics
Brand
Dahua
Model
DHI-ARD1233-W2(868)
Product Type
Wireless PIR detector
Sensor
Dual-element low-noise PIR
Detection Range
12 m (90°) at 2.2 m height
Detection Speed
0.3-3 m/s
Pet Immunity
≤ 18 kg
Sensitivity
3 levels
White Light Resistance
2,000 lx
Carrier Frequency
868.0-868.6 MHz
Communication Mechanism
Two-way
Encryption
AES128
Frequency Hopping
Yes
Communication Distance
Up to 1,600 m in open space
Power Supply
CR123A battery
Battery Life
4 years
Tamper
Yes
Dimensions
104 x 60 x 50 mm
Net Weight
100 g
Installation
Wall mount
Environment
Indoor, -10 °C to +55 °C
Certifications
CE, EN 50131 Grade 2, Environmental Class II
