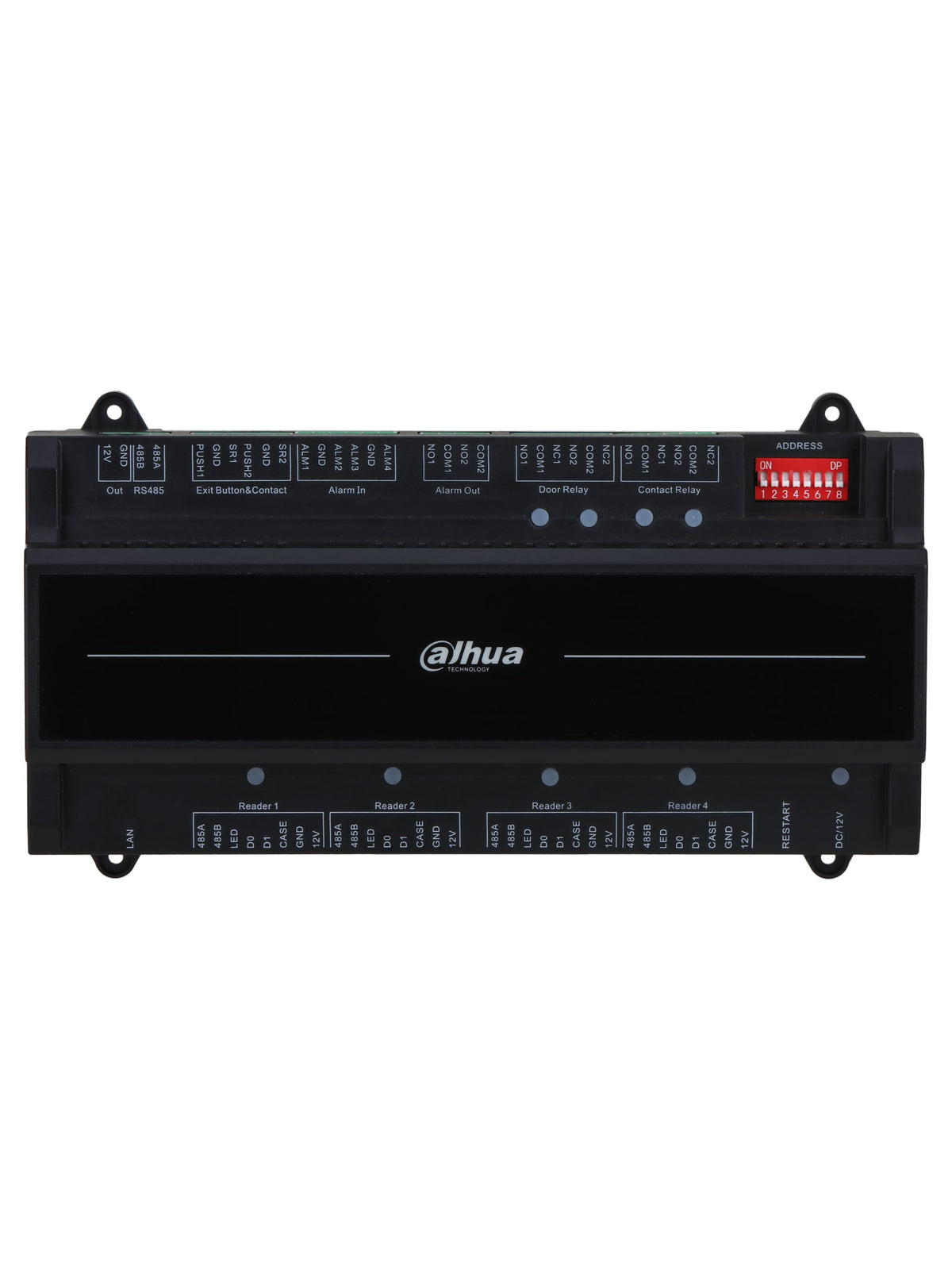

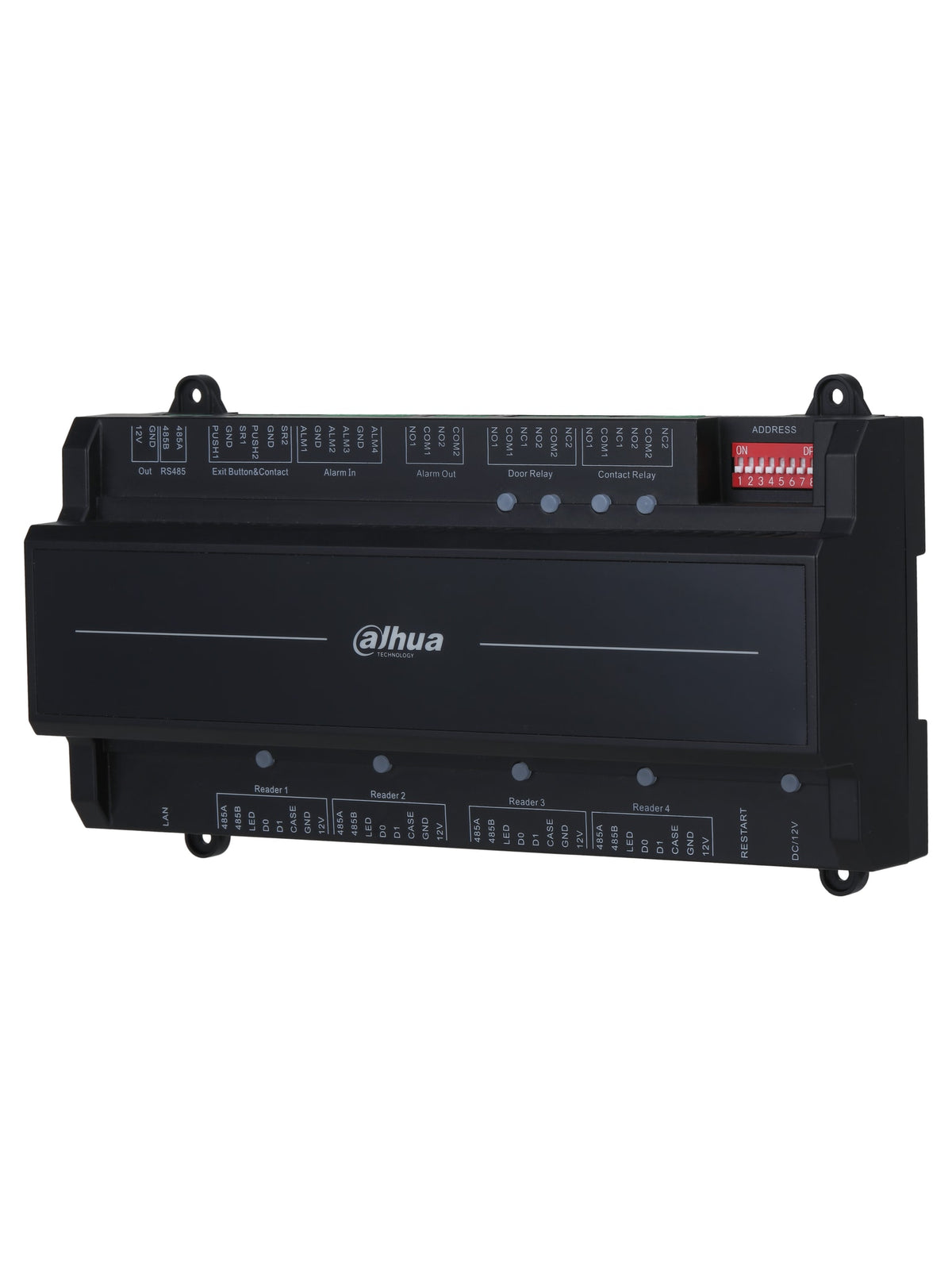

Dahua ASC2202B-D 2-Door 2-Way Networked Access Controller, PoE / 12V

The Dahua ASC2202B-D is a compact networked access controller for two doors with entry and exit readers. It combines 100,000 users, cards and passwords, 3,000 fingerprints and 500,000 records with 5 RS-485 and 4 Wiegand ports, 4 alarm inputs and outputs and PoE or 12 V DC power. It suits offices and shops that need two controlled doors with anti-passback.

Main Specs

• 2 doors, two-way (in and out readers)
• Capacity: 100,000 users / cards / passwords, 3,000 fingerprints
• 500,000 access records
• Ports: 5 x RS-485, 4 x Wiegand, 1 x 10/100 Ethernet
• 4 alarm inputs, 4 relay outputs, 2 exit buttons, 2 door sensors, 2 locks
• Anti-passback, interlock, first-card unlock, remote verification
• Power: standard PoE or 12 V DC (12 V powers the locks)
• Surface or guide rail mount, 210 x 106 x 50 mm
• OSDP and SDK support, CE / FCC / UL
• Ideal for offices and shops controlling two doors
