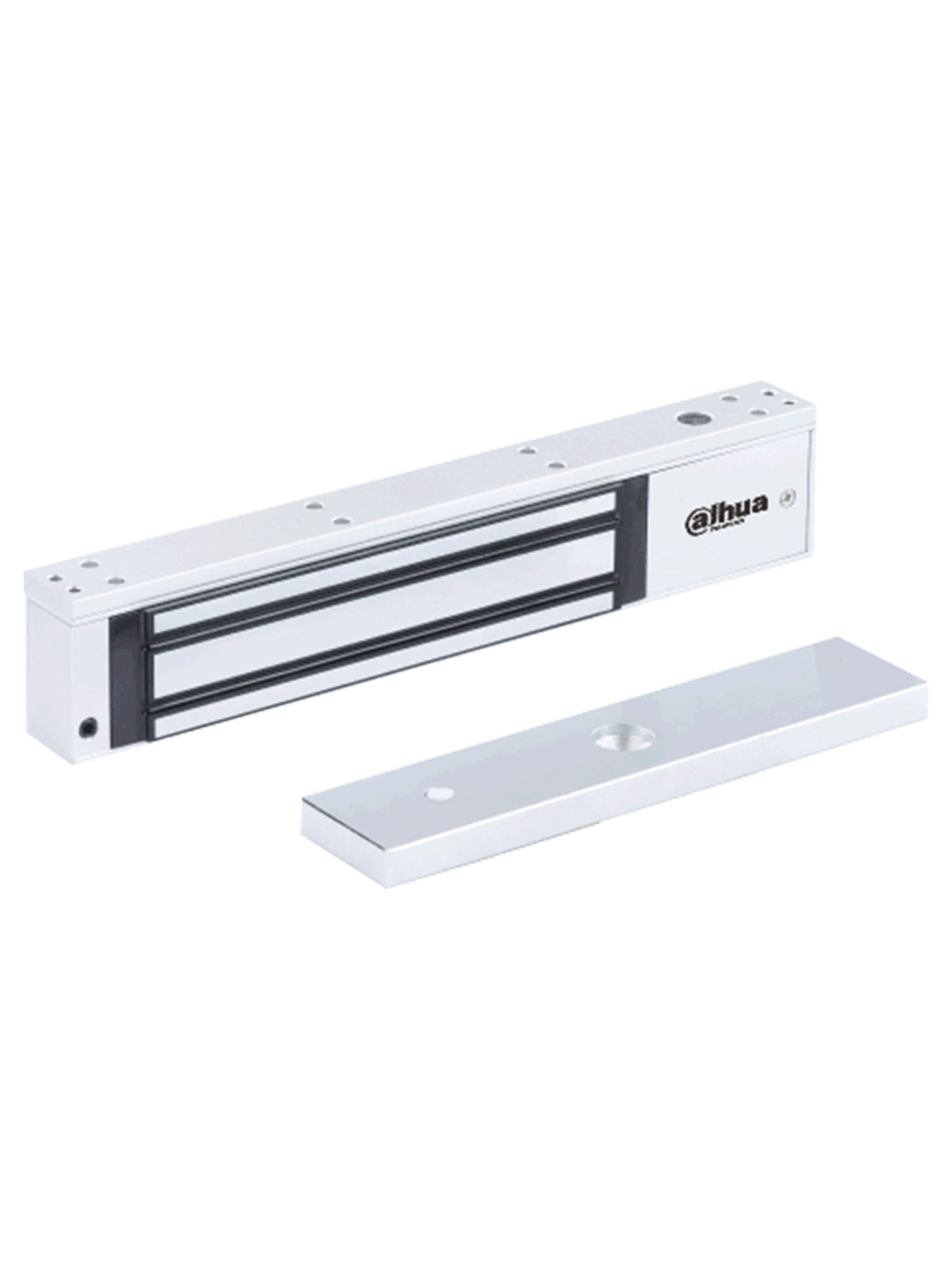

Dahua ASF280A Single Door Magnetic Lock, 280 kg with LED & Door Status
Dahua ASF280A 280 kg (617 lb) single-door magnetic lock with LED status, 5-wire door status feedback, 12/24 V DC, fail-safe (opens when power is off).
Read MoreSpecs
Brand
Dahua
Model
DHI-ASF280A
Product Type
Magnetic lock
Holding Force
280 kg (617 lb)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua ASF280A Single Door Magnetic Lock, 280 kg with LED & Door Status
The Dahua ASF280A is an electromagnetic lock that holds a single door with 280 kg of force. It combines an LED lock-status indicator, 5-wire door status feedback, 12 or 24 V DC operation and fail-safe release when power is cut. It suits wooden, glass, metal and fire doors on Dahua or other access control systems.
Main Specs
- Holding force: 280 kg (617 lb), single door
- LED lock status indicator
- Door status feedback (5-wire)
- Power: 12 V DC (480 mA) or 24 V DC (240 mA)
- Fail-safe: opens when power is off
- Lock: 250 x 47 x 26 mm; plate: 180 x 38 x 11 mm
- For wooden, glass, metal and fire doors
- Optional brackets: 280L, 280U, 280ZL
- Weight: 2 kg
- Ideal for securing single doors in access control systems
Main Characteristics
Brand
Dahua
Model
DHI-ASF280A
Product Type
Magnetic lock
Holding Force
280 kg (617 lb)
Signal Output
Door status feedback
Security
Fail-safe (open while power off)
Power Supply
12 V DC / 24 V DC
Starting Current
480 mA (12 V) / 240 mA (24 V)
Lock Dimensions
250 x 47 x 26 mm
Plate Dimensions
180 x 38 x 11 mm
Door Types
Wooden, glass, metal, fire door
Accessories
280L, 280U, 280ZL brackets (optional)
Net Weight
2 kg
Operating Temperature
-30 Β°C to +60 Β°C
