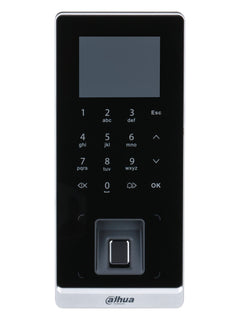

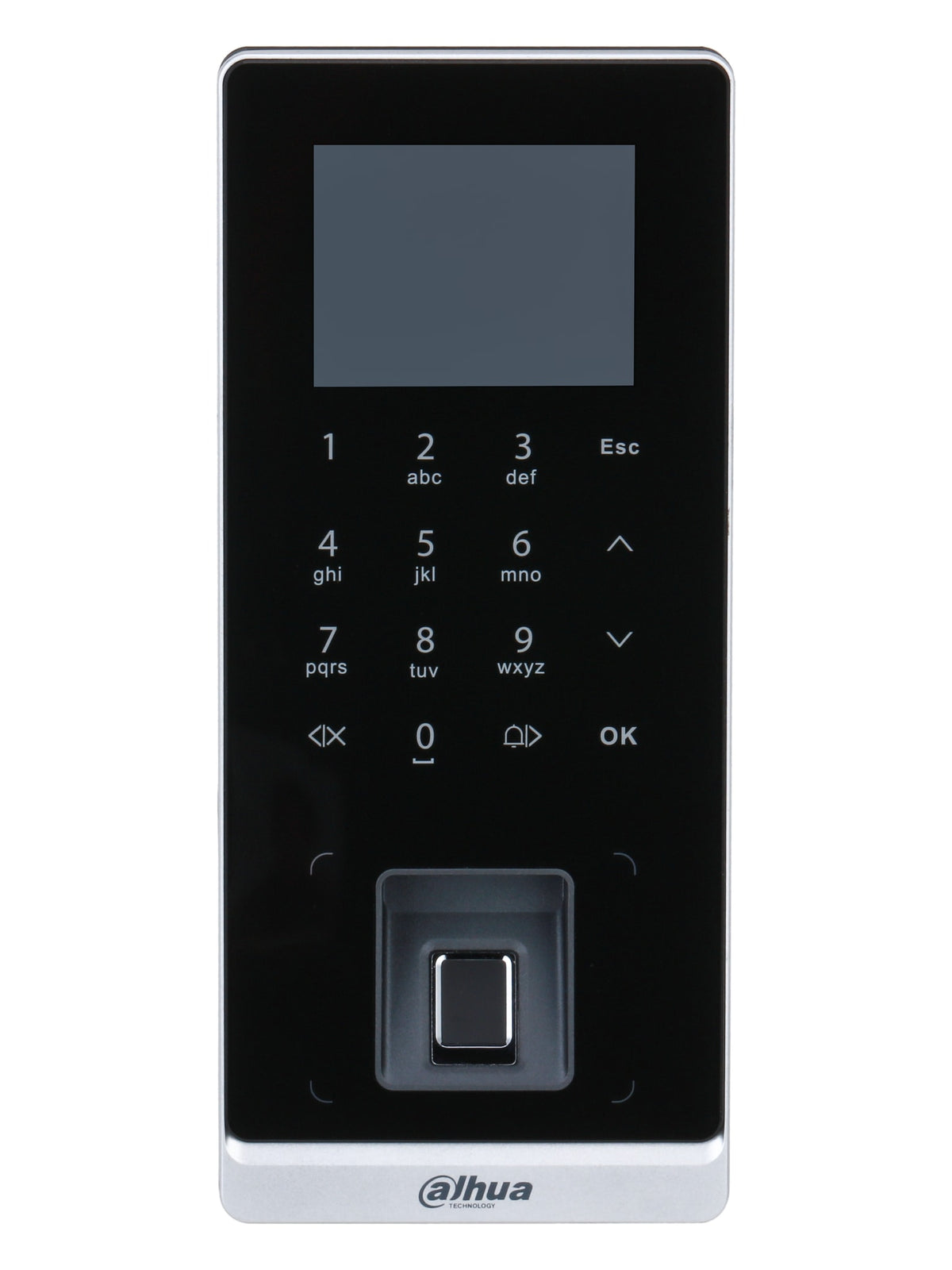

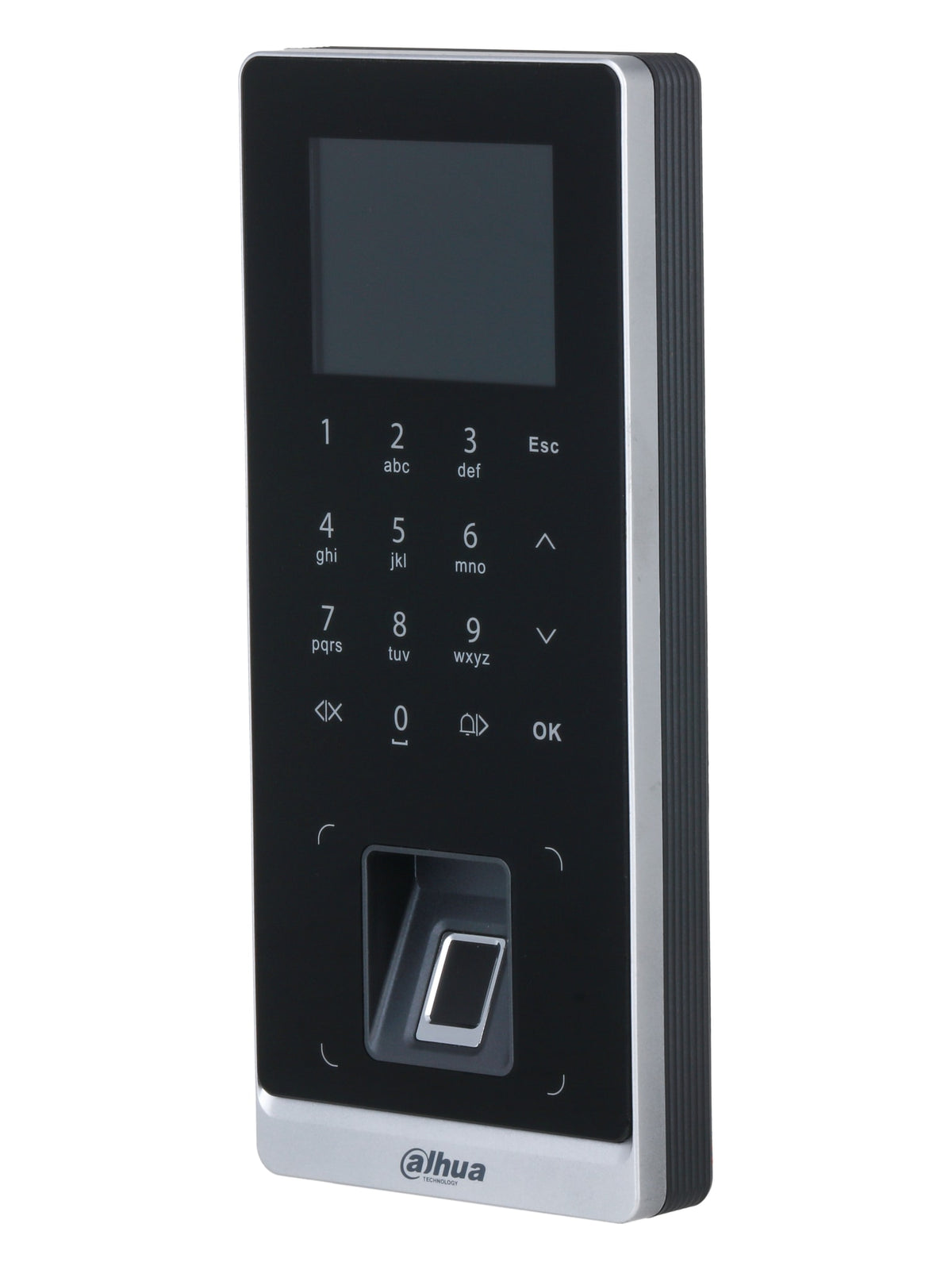

Dahua ASI2212H-W Fingerprint Access Standalone, 2.4" LCD, Wi-Fi, IP65
Dahua ASI2212H-W networked access terminal: capacitive fingerprint, IC card and password unlock, 2.4" LCD, touch keypad, Wi-Fi and Ethernet, IP65, 30,000 users.
Read MoreSpecs
Brand
Dahua
Model
DHI-ASI2212H-W
Product Type
Access standalone
Display
2.4" LCD, 240 x 320
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua ASI2212H-W Fingerprint Access Standalone, 2.4" LCD, Wi-Fi, IP65
The Dahua ASI2212H-W is a standalone access terminal that controls one door by fingerprint, card or password. It combines a capacitive sensor for 3,000 fingerprints, 30,000 cards and passwords, a 2.4-inch LCD with touch keypad, Wi-Fi plus Ethernet and IP65 protection. It suits single doors in offices, clinics and homes that want networked access without a separate controller.
Main Specs
- Unlock: fingerprint, IC card, password, remote and combinations
- Capacity: 30,000 users / cards / passwords, 3,000 fingerprints
- 150,000 unlock records
- 2.4" LCD (240 x 320), touch keypad, voice prompts, doorbell
- Wi-Fi and RJ-45 100 Mbps; web configuration
- 1 lock, 1 exit button, 1 door sensor, 2 alarm inputs, 1 output
- Extra reader via RS-485 or Wiegand
- IP65 (with silicone sealant), indoor / outdoor
- Power: 12 V DC, 1 A; 183 x 80 x 25.5 mm
- Ideal for single doors that need fingerprint access over the network
Main Characteristics
Brand
Dahua
Model
DHI-ASI2212H-W
Product Type
Access standalone
Display
2.4" LCD, 240 x 320
Unlock Modes
Card, remote, password, fingerprint and combinations
Card Type
IC card
Fingerprint Sensor
Capacitive
User Capacity
30,000
Fingerprint Capacity
3,000
Card Capacity
30,000
Password Capacity
30,000
Record Capacity
150,000
Network
RJ-45 100 Mbps, Wi-Fi
Ports
RS-485, RS-232, Wiegand in/out, USB 2.0, 2 alarm in, 1 alarm out, doorbell, exit button, door sensor, lock
Functions
Anti-passback, duress, tamper, first-user unlock, remote verification
Protection
IP65 (silicone sealant needed)
Power Supply
12 V DC, 1 A
Power Consumption
β€ 12 W
Dimensions
183 x 80 x 25.5 mm
Net Weight
264 g
Environment
Indoor / outdoor, -30 Β°C to +65 Β°C
Certifications
CE, FCC
