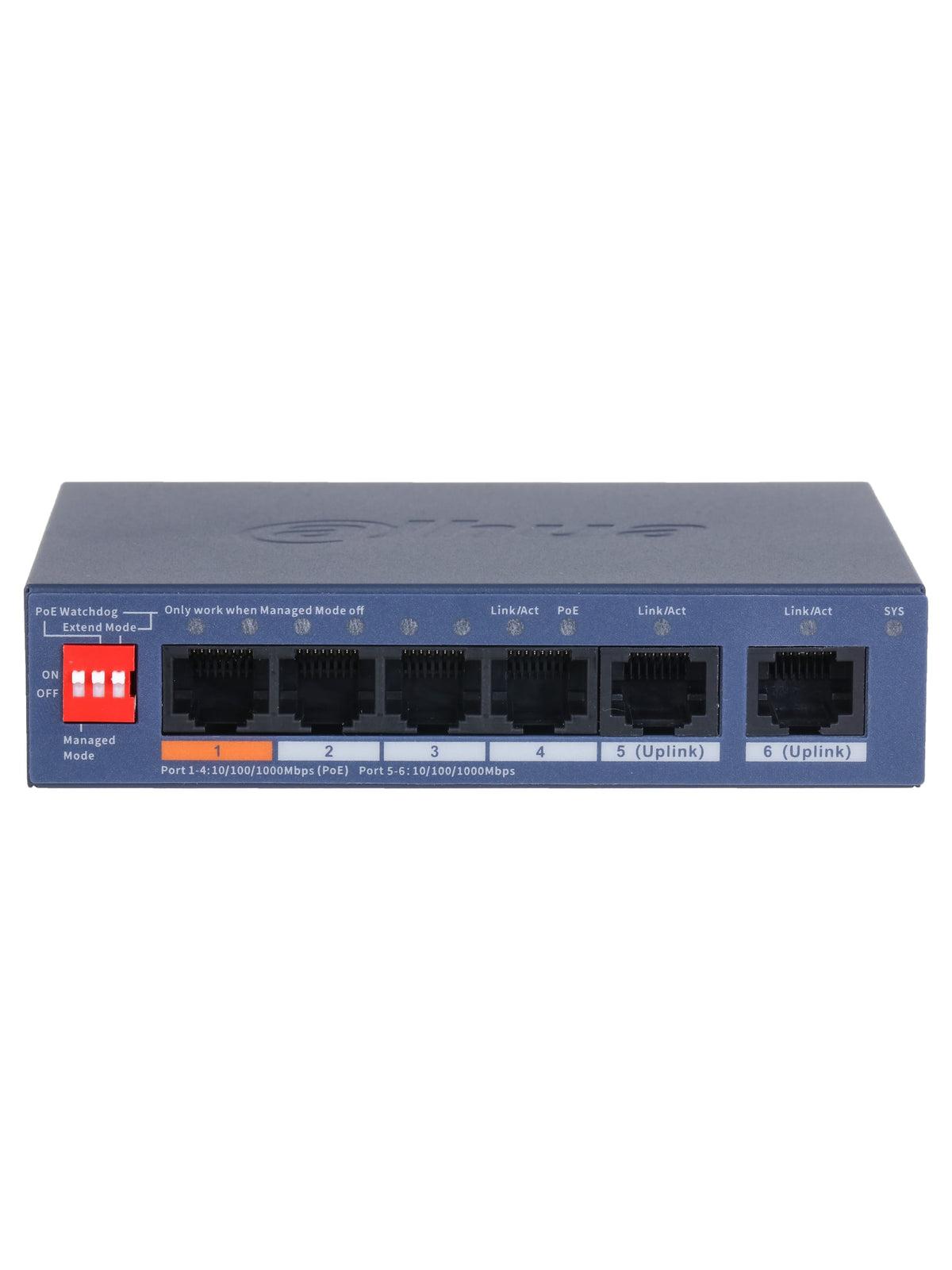

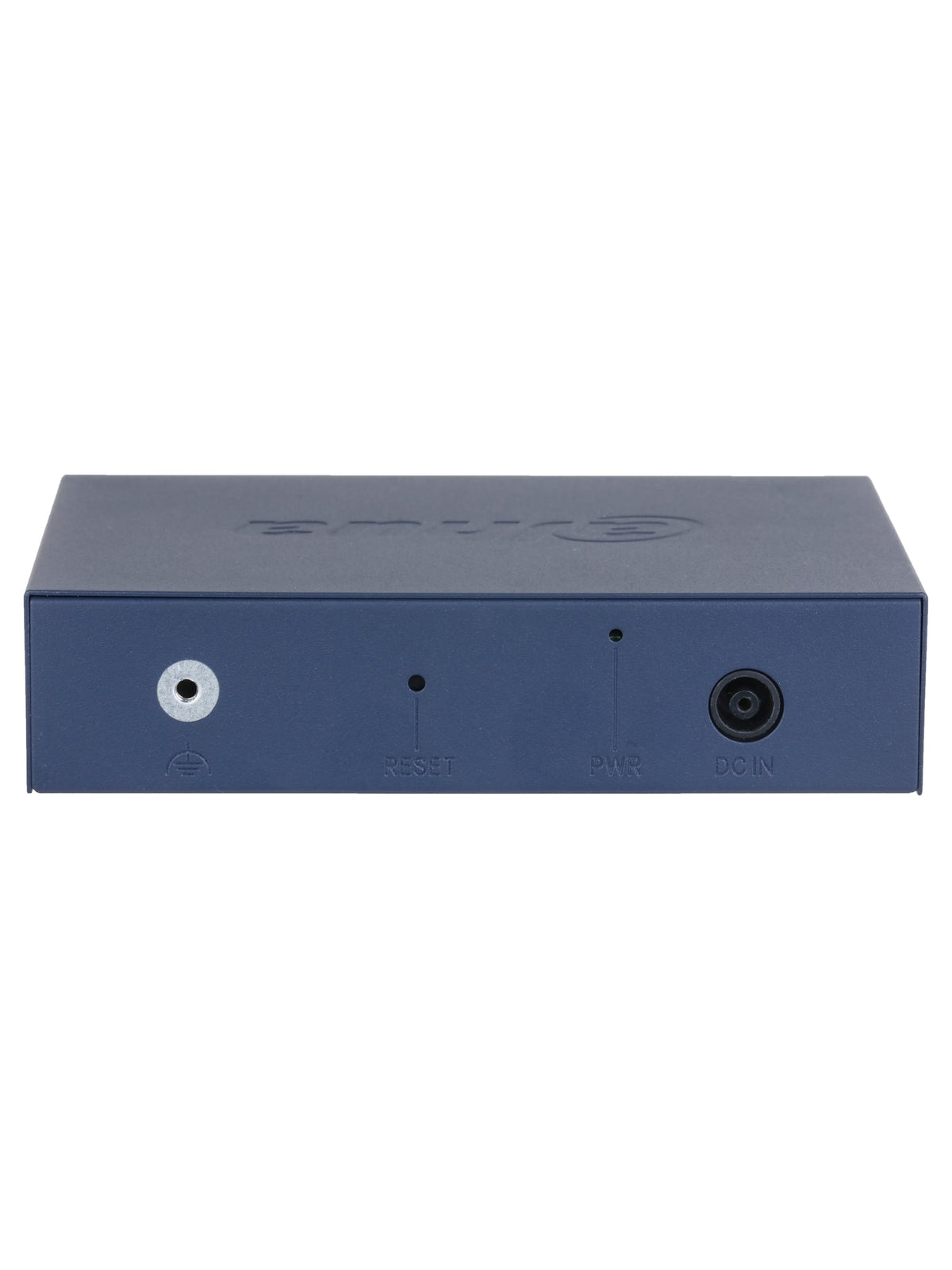

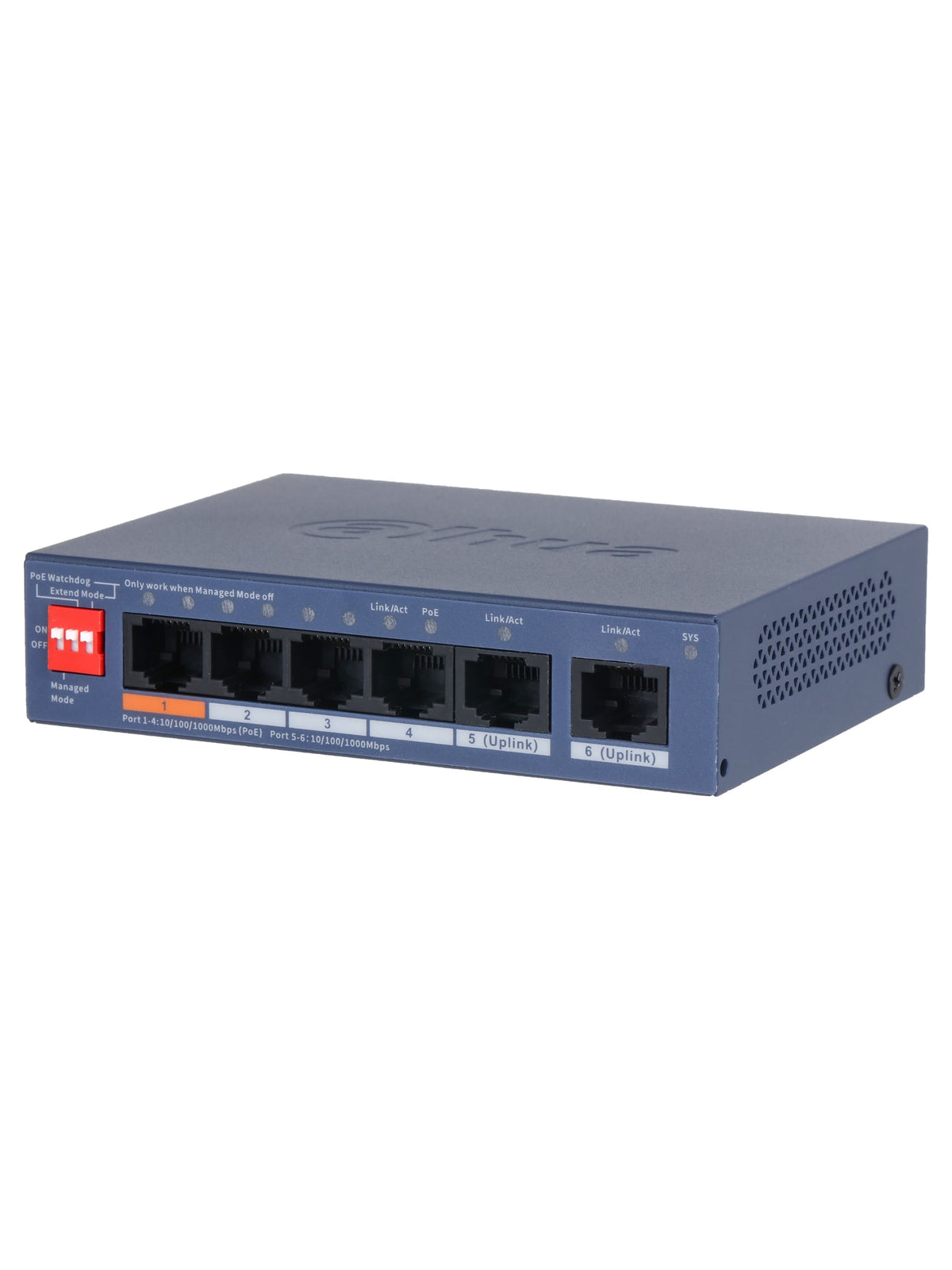

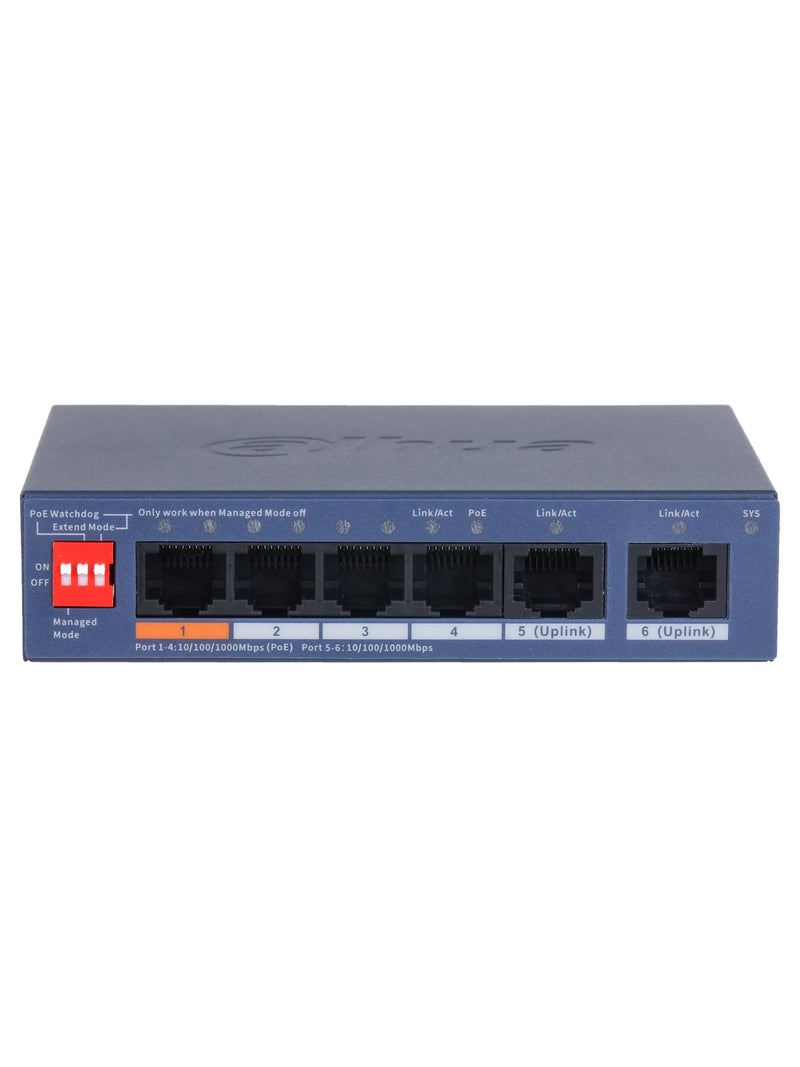

Dahua CS4006-4GT-60-V2 6-Port Cloud Managed Desktop Gigabit Switch with 4-Port PoE (60W)
The Dahua CS4006-4GT-60-V2 is a 6-port cloud managed desktop Gigabit switch with 4-port PoE built for surveillance and small business networks. It combines 4 x RJ-45 10/100/1000 Mbps (PoE), 2 x RJ-45 10/100/1000 Mbps (uplink) with a 60W PoE budget (IEEE802.3af , IEEE802.3at , Hi-PoE), 250 m long-distance PoE mode, web and DoLynk cloud management. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 4 x RJ-45 10/100/1000 Mbps (PoE)
- 2 x RJ-45 10/100/1000 Mbps (uplink)
- PoE: ports 2-4 up to 30 W, port 1 up to 60 W, total up to 60 W
- PoE standards: IEEE802.3af , IEEE802.3at , Hi-PoE
- Switching capacity: 12 Gbps
- Management: web + DoLynk cloud (Layer 2)
- Long-distance PoE up to 250 m
- Power: external power adapter; desktop mount; wall mount
- Operating temperature: –10 °C to +55 °C
- Ideal for small camera kits that need 4 PoE ports and 60W of power
Main Characteristics
Brand
Dahua
Model
CS4006-4GT-60-V2
Product Type
Cloud Managed PoE Switch
Layer
Layer 2
Ports
Port 1-4: 4 × RJ-45 10/100/1000 Mbps (PoE); Port 5-6: 2 × RJ-45 10/100/1000 Mbps (uplink)
Switching Capacity
12 Gbps
Packet Forwarding Rate
8.9 Mpps
PoE Power
Port 2-4≤30 W, port 1≤60 W, total≤60 W
PoE Standards
IEEE802.3af; IEEE802.3at; Hi-PoE
Long Distance PoE
Yes, up to 250 m
Packet Buffer
4 Mbit
MAC Table
2K
Jumbo Frame
9216 Byte
VLAN
IEEE 802.1Q VLAN
Management
Web Management; Cloud Management; Logs; Fault Alarm
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3az
Power Supply
External power supply: 53 VDC, 0.8 A
Power Consumption
Idling: ≤3 W; Full load: 65 W
Surge Protection
Common mode: 6 kV
Dimensions
115 mm × 84 mm × 27 mm (L x W x H)
Weight
0.2 kg
Installation
Desktop mount; wall mount
Operating Temperature
–10 °C to +55 °C
Casing
Sheet metal
