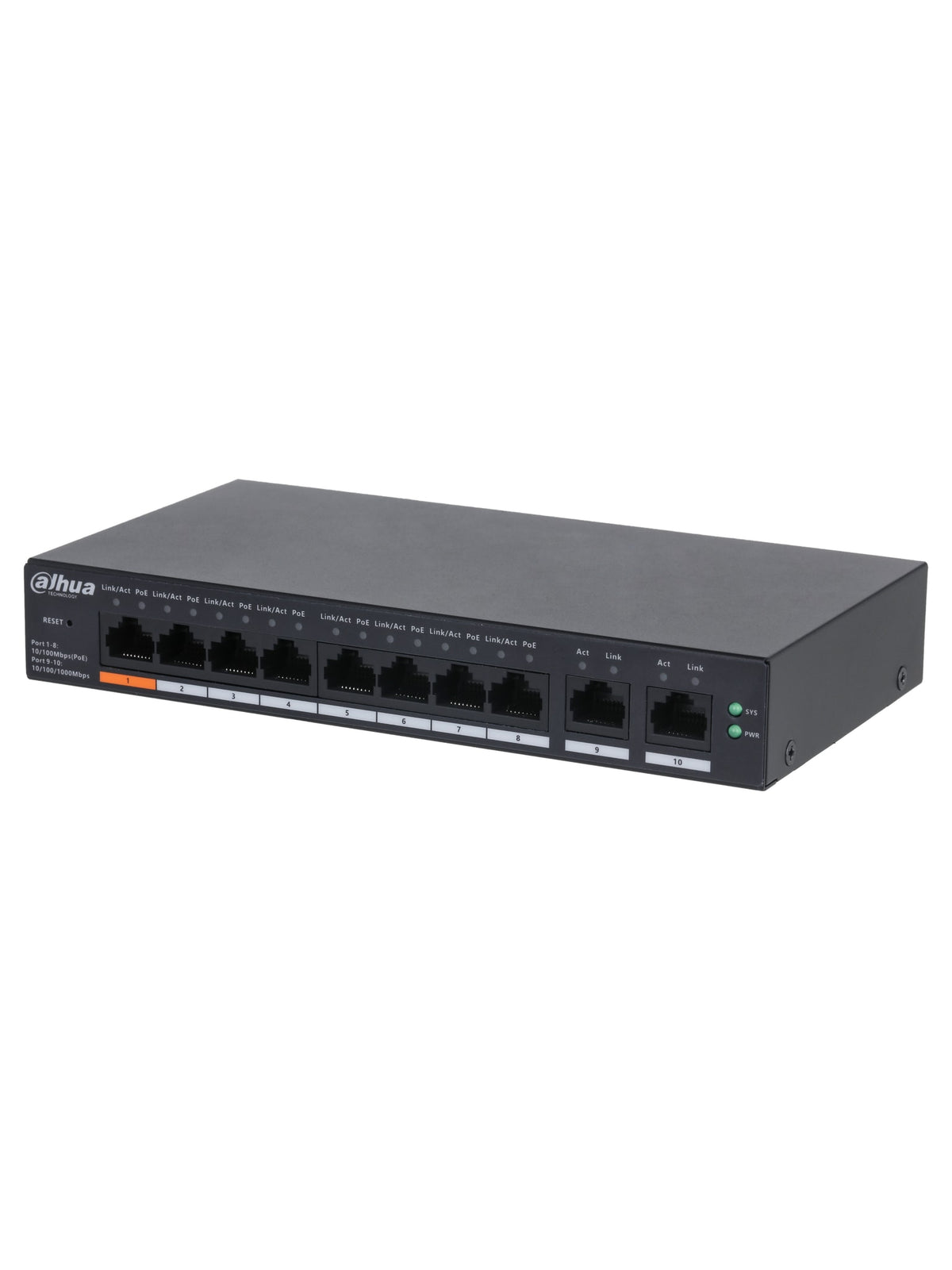

Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE (60W)
10-port 10/100 Mbps cloud-managed switch with 8 PoE ports (60W budget), Gigabit uplinks, 250 m long-distance PoE, ideal for IP cameras and access points.
Read MoreExpress Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua CS4010-8ET-60 10-Port Cloud Managed Desktop Switch with 8-Port PoE (60W)
The Dahua CS4010-8ET-60 is a 10-port cloud managed desktop switch with 8-port PoE built for surveillance and small business networks. It combines 8 x RJ-45 10/100 Mbps (PoE), 2 x RJ-45 10/100/1000 Mbps (uplink) with a 60W PoE budget (IEEE802.3af, IEEE802.3at, Hi-PoE), 250 m long-distance PoE mode, web and DoLynk cloud management. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 8 x RJ-45 10/100 Mbps (PoE)
- 2 x RJ-45 10/100/1000 Mbps (uplink)
- PoE: ports 1 up to 60 W, ports 2-8 up to 30 W, total up to 60 W
- PoE standards: IEEE802.3af, IEEE802.3at, Hi-PoE
- Switching capacity: 4.8 Gbps
- Management: web + DoLynk cloud (Layer 2)
- Long-distance PoE up to 250 m
- Power: external power adapter; desktop mount; wall mount
- Operating temperature: –10 °C to +55 °C
- Ideal for shops and small offices that need 8 PoE ports and 60W of power
Main Characteristics
Brand
Dahua
Model
CS4010-8ET-60
Product Type
Cloud Managed PoE Switch
Layer
Layer 2
Ports
Port 1-8: 8 × RJ-45 10/100 Mbps (PoE); Port 9-10: 2 × RJ-45 10/100/1000 Mbps (uplink)
Switching Capacity
4.8 Gbps
Packet Forwarding Rate
3.57 Mpps
PoE Power
Port 1 ≤ 60 W, Port 2-8 ≤ 30 W, total ≤ 60 W
PoE Standards
IEEE802.3af; IEEE802.3at; Hi-PoE
Long Distance PoE
Yes, up to 250 m
Packet Buffer
4 Mbit
MAC Table
8K
Jumbo Frame
9216 Byte
VLAN
Port-based VLAN
Management
Web management; App management
Standards
IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE802.3ab
Power Supply
External power supply: 53 VDC, 1.226 A
Power Consumption
Idling: ≤3 W; Full load: 65 W
Surge Protection
Common mode: 4 kV; Differential mode: 2 kV
Dimensions
130 mm × 90 mm × 26 mm (L x W x H)
Weight
0.28 kg
Installation
Desktop mount; wall mount
Operating Temperature
–10 °C to +55 °C
Casing
Sheet metal
