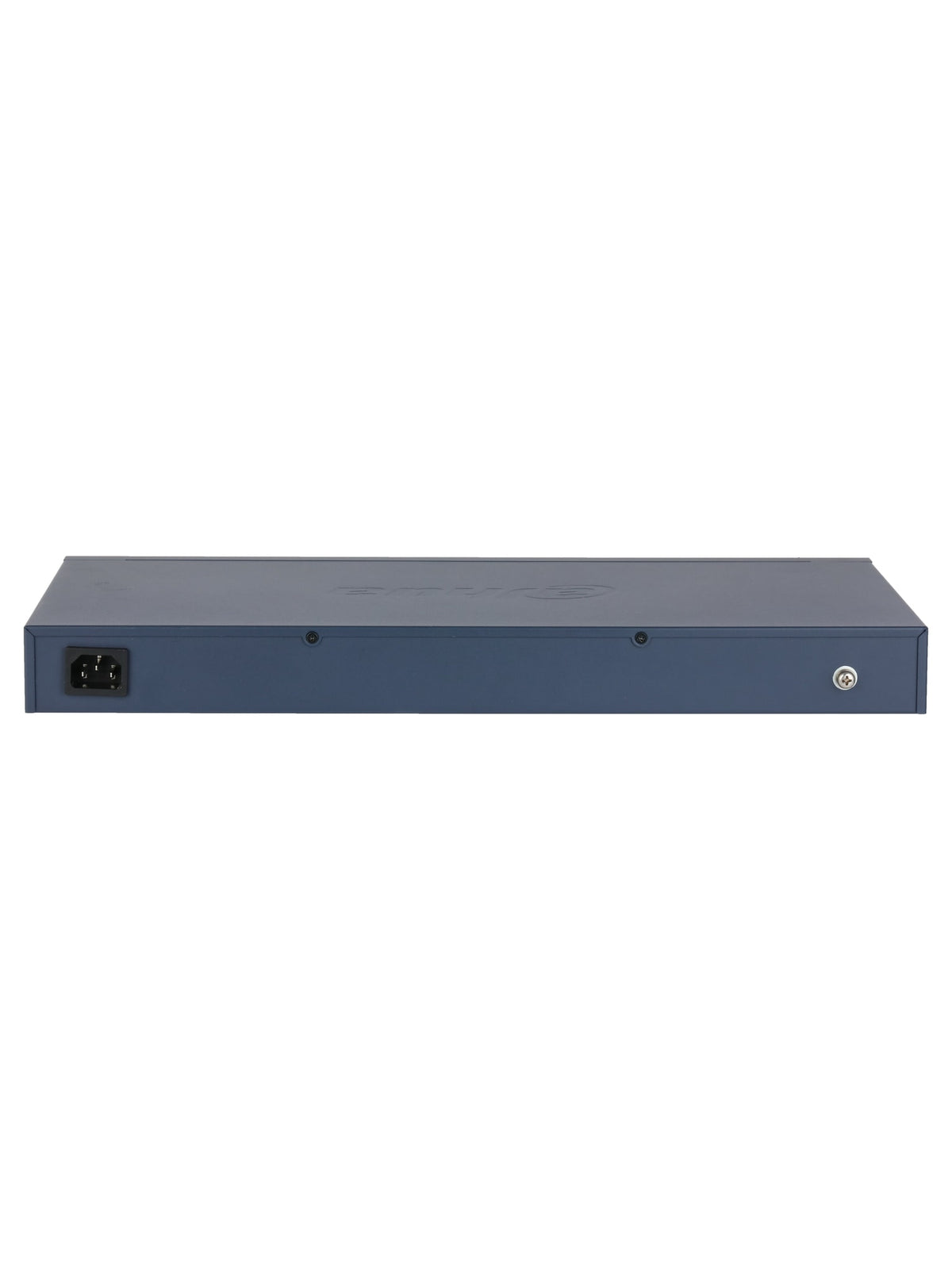

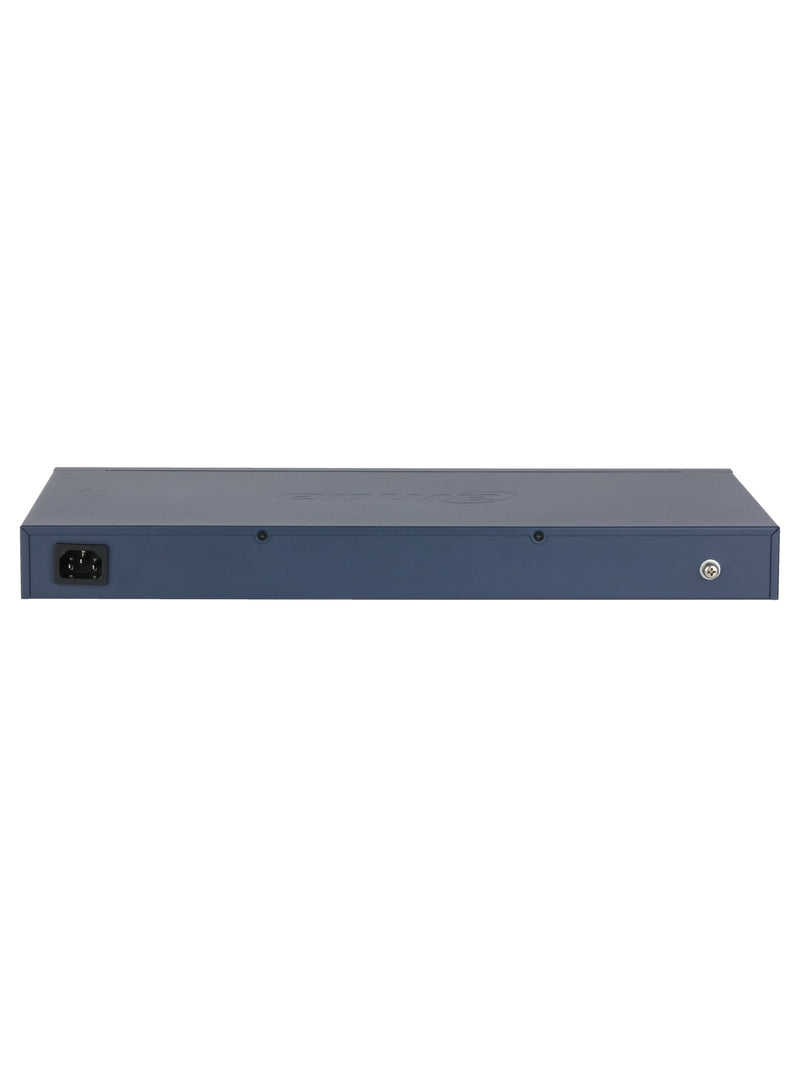

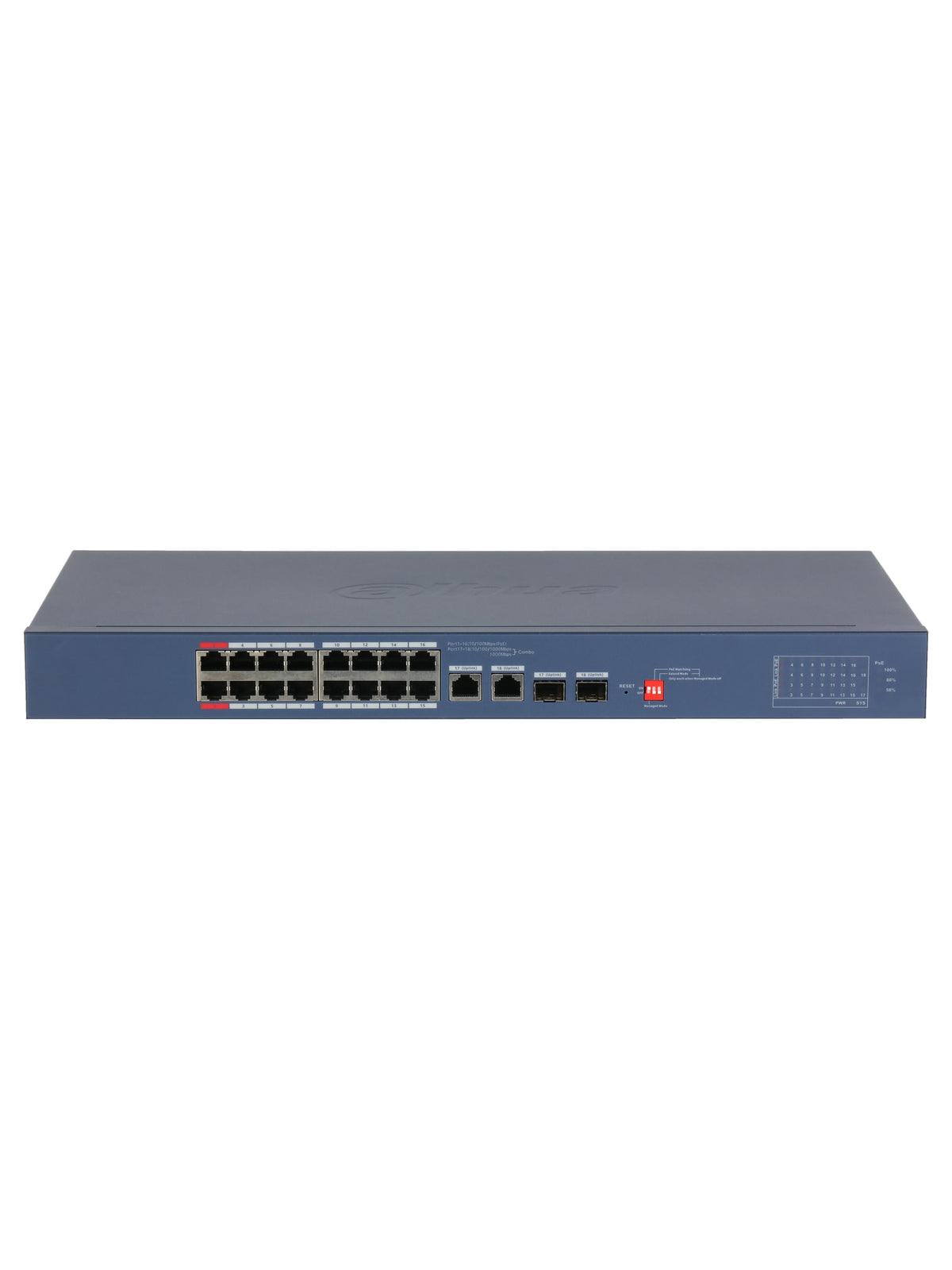

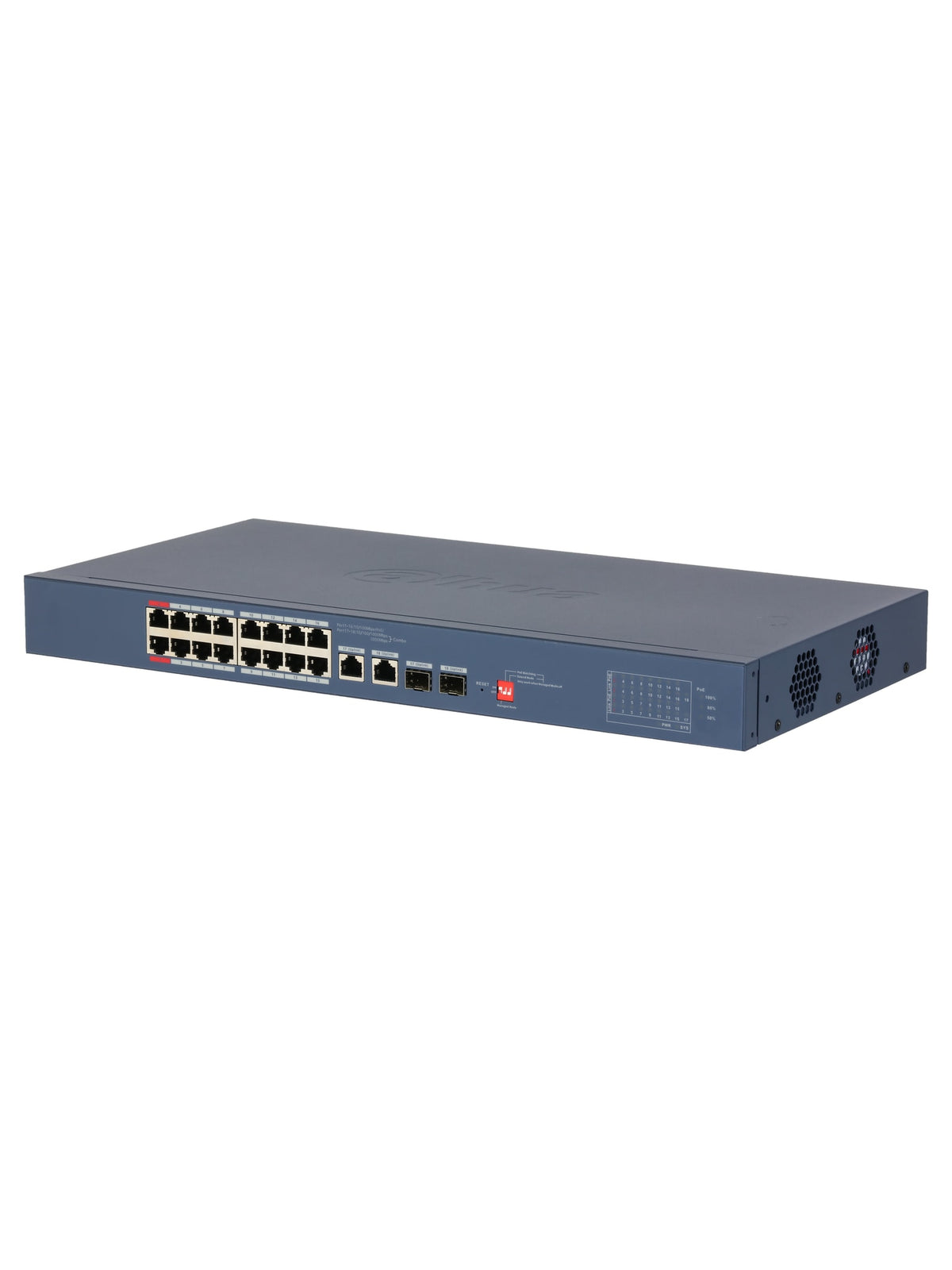

Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch with 16-Port PoE (135W)
18-port 10/100 Mbps cloud-managed switch with 16 PoE ports (135W budget), Gigabit uplinks, 250 m long-distance PoE, 90W 802.3bt port, ideal for IP cameras and access points.
Read MoreSpecs
Brand
Dahua
Model
CS4218-16ET-135
Product Type
Cloud Managed PoE Switch
Layer
Layer 2
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua CS4218-16ET-135 18-Port Cloud Managed Desktop Switch with 16-Port PoE (135W)
The Dahua CS4218-16ET-135 is an 18-port cloud managed desktop switch with 16-port PoE built for surveillance and small business networks. It combines 16 x RJ45 10/100 Mbps(PoE), 2 x RJ45 10/100/1000 Mbps(Combo), 2 x SFP 1000 Mbps(Combo) with a 135W PoE budget (IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt), 250 m long-distance PoE mode, web and DoLynk cloud management. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 16 x RJ45 10/100 Mbps(PoE)
- 2 x RJ45 10/100/1000 Mbps(Combo)
- 2 x SFP 1000 Mbps(Combo)
- PoE: ports 3-16 up to 30 W, port 1-2 up to 90 W, total up to 135 W
- PoE standards: IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt
- Switching capacity: 7.2 Gbps
- Management: web + DoLynk cloud (Layer 2)
- Long-distance PoE up to 250 m
- Power: built-in power supply; desktop mount; rack mount
- Ideal for larger camera systems that need 16 PoE ports and 135W of power
Main Characteristics
Brand
Dahua
Model
CS4218-16ET-135
Product Type
Cloud Managed PoE Switch
Layer
Layer 2
Ports
Port 1-16: 16 Γ RJ45 10/100 Mbps(PoE); Port 17-18: 2 Γ RJ45 10/100/1000 Mbps(Combo); Port 17-18: 2 Γ SFP 1000 Mbps(Combo)
Switching Capacity
7.2 Gbps
Packet Forwarding Rate
5.36 Mpps
PoE Power
Port 3-16β€30 W, port 1-2β€90 W, totalβ€135 W
PoE Standards
IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Long Distance PoE
Yes, up to 250 m
Packet Buffer
4 Mbit
MAC Table
8K
Jumbo Frame
9216 Byte
VLAN
IEEE 802.1Q VLAN
Management
Web Management; Cloud Management; Logs; Fault Alarm
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3X, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3az
Power Supply
Built-in power supply: 100β240 VAC, 47β63 Hz, max 3 A
Power Consumption
Idling: 3 W; Full load: 141.8 W
Surge Protection
Common mode: 6 kV; Differential mode: 1 kV
Dimensions
440 mm Γ 228.81 mm Γ 43.65 mm (L x W x H)
Weight
2.4 kg
Installation
Desktop mount; rack mount
Operating Temperature
β10 Β°C to +55 Β°C
Casing
Sheet metal
