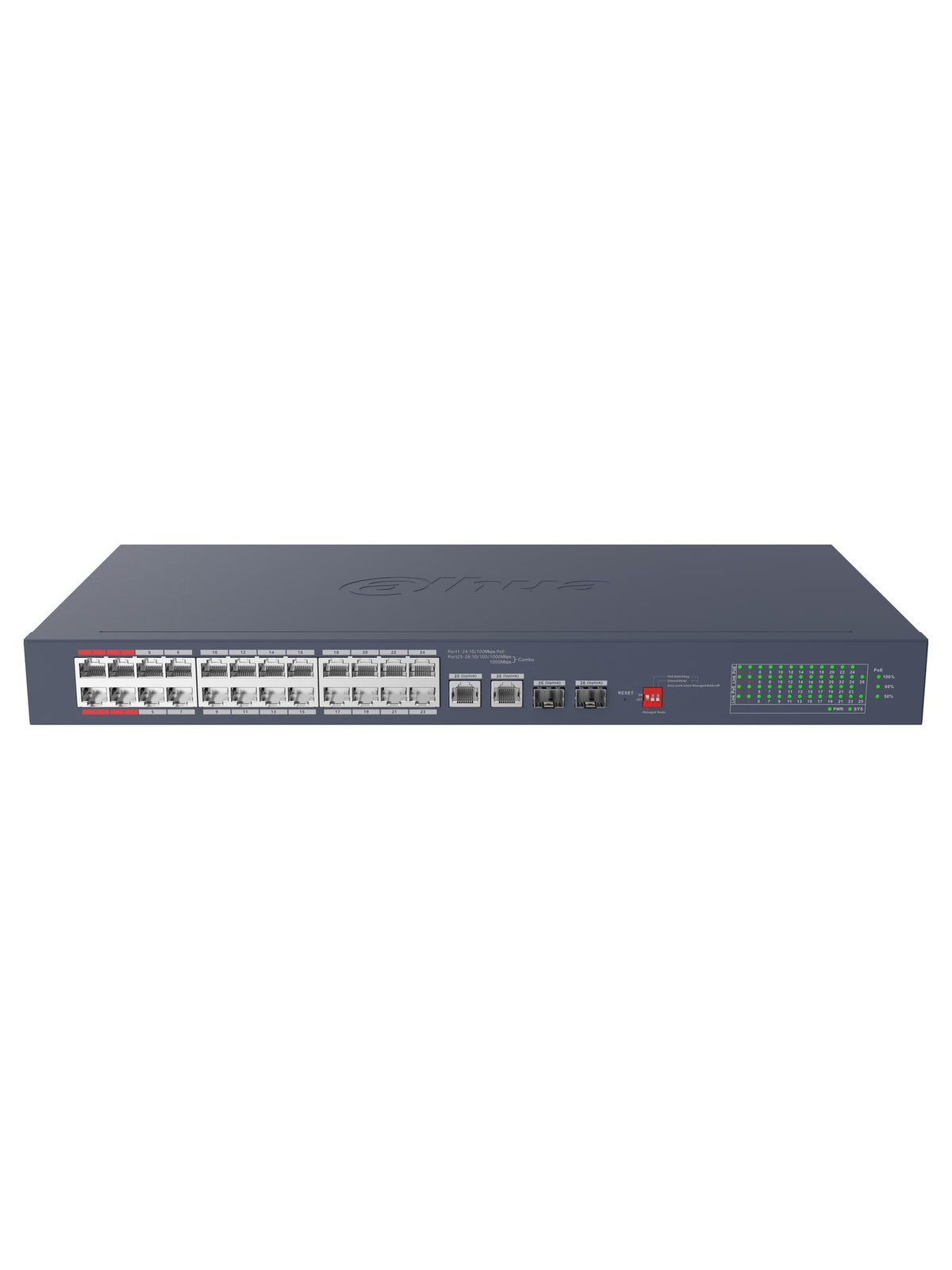

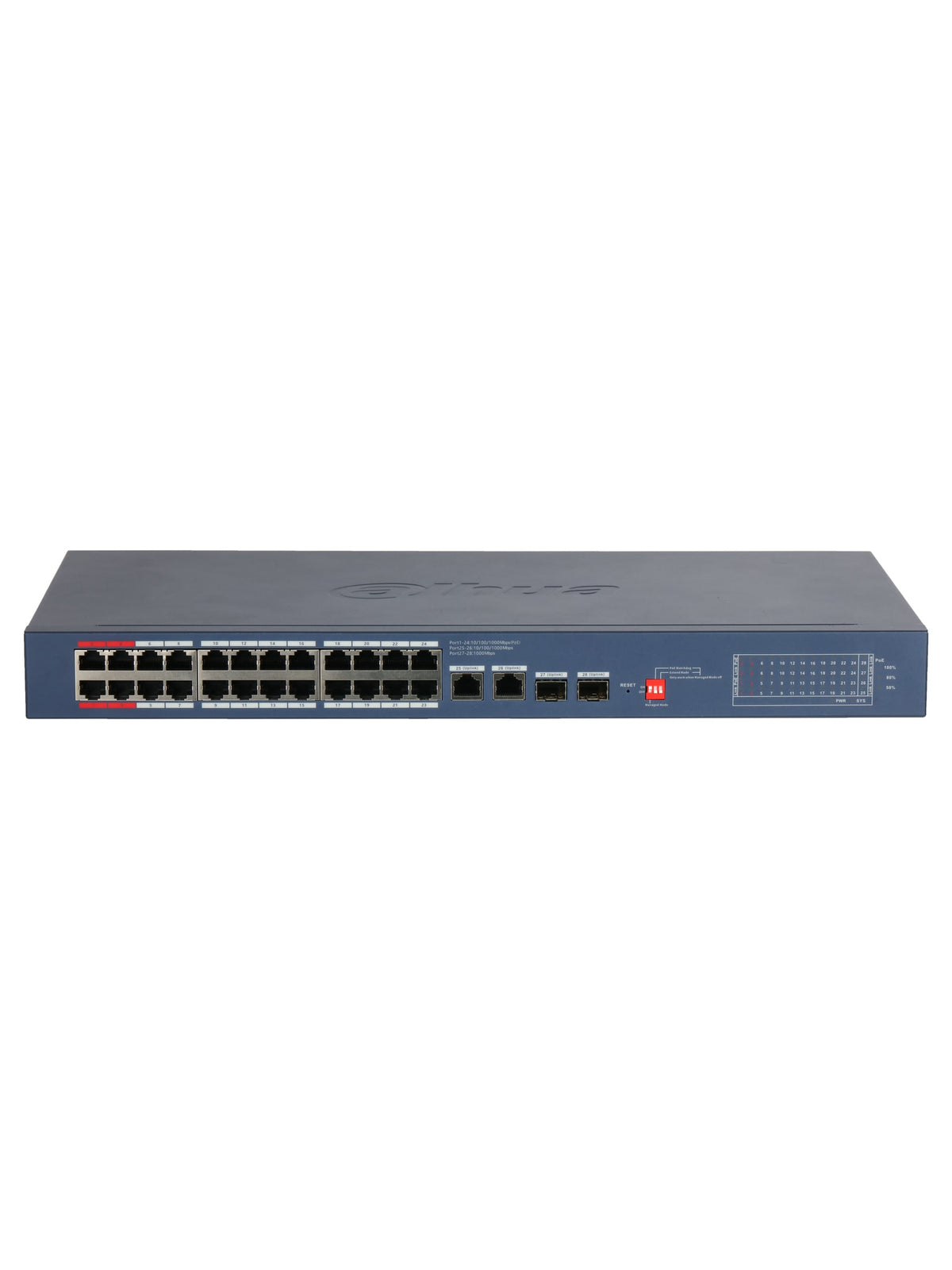

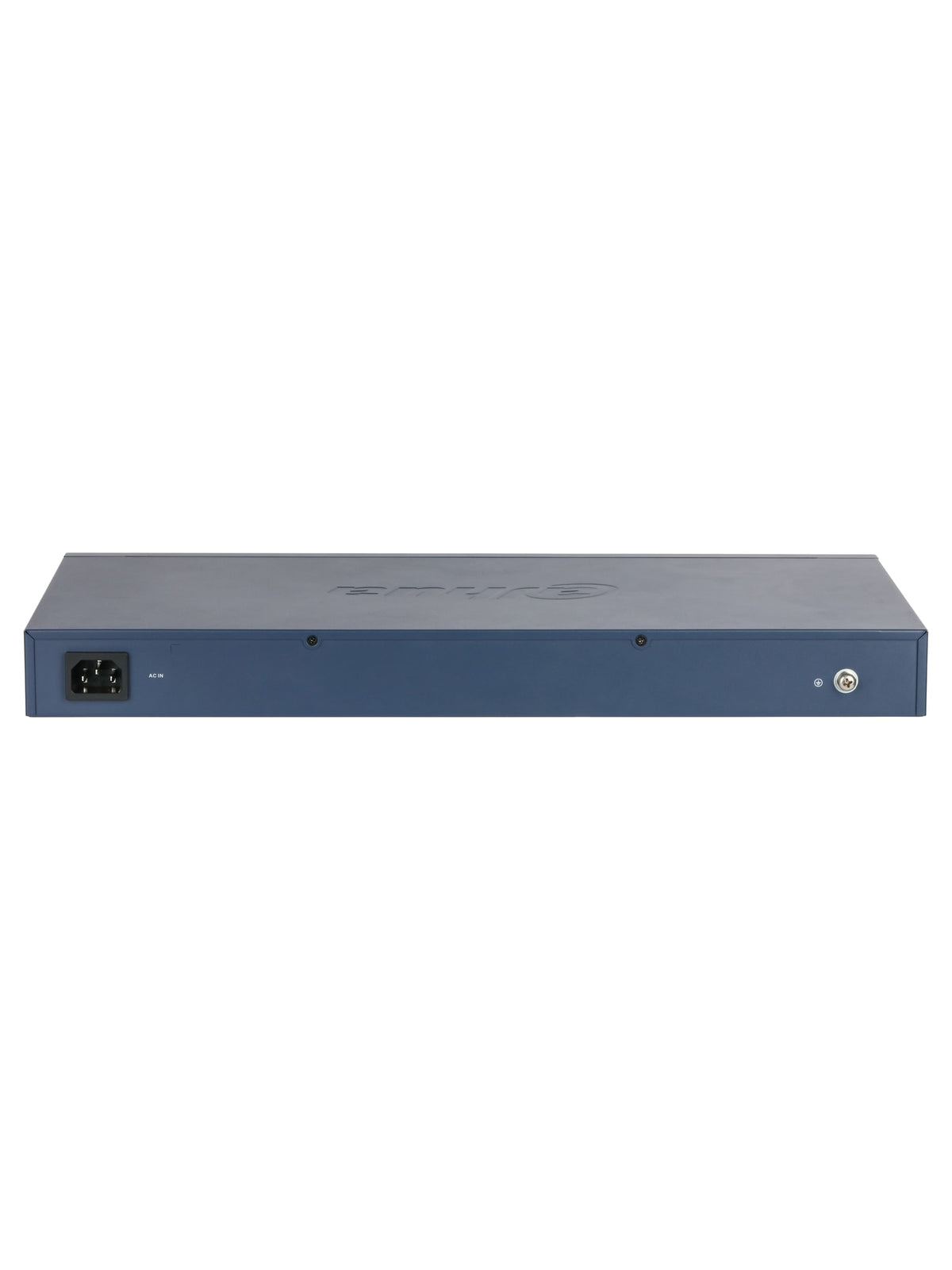

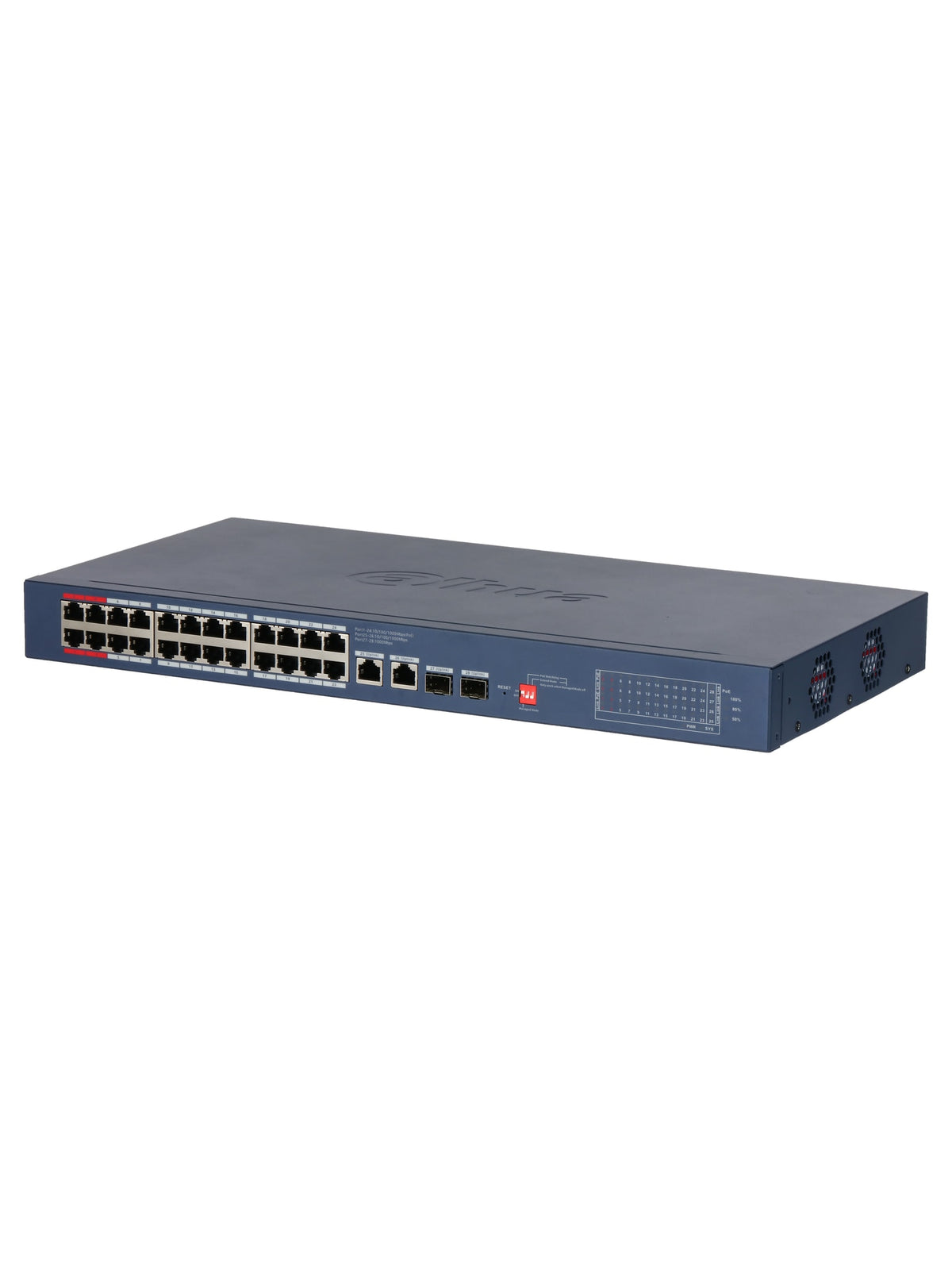

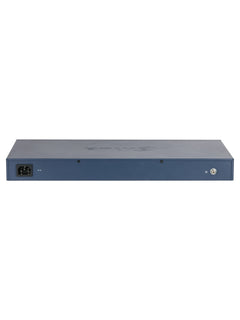

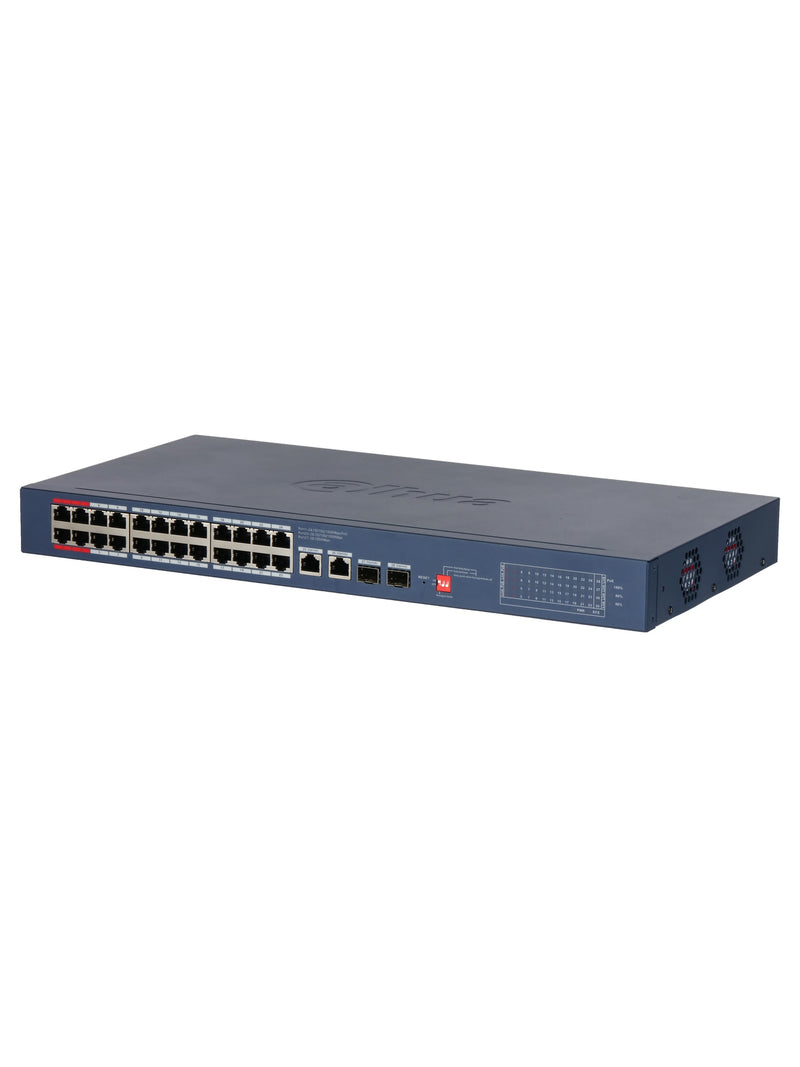

Dahua CS4228-24GT-375-V2 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE (375W)
28-port Gigabit cloud-managed switch with 24 PoE ports (375W budget), 250 m long-distance PoE, 90W 802.3bt port, ideal for IP cameras and access points.
Read MoreSpecs
Brand
Dahua
Model
CS4228-24GT-375-V2
Product Type
Cloud Managed PoE Switch
Layer
Layer 2
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua CS4228-24GT-375-V2 28-Port Cloud Managed Desktop Gigabit Switch with 24-Port PoE (375W)
The Dahua CS4228-24GT-375-V2 is a 28-port cloud managed desktop Gigabit switch with 24-port PoE built for surveillance and small business networks. It combines 24 x RJ-45 10/100/1000 Mbps (PoE), 2 x RJ-45 10/100/1000 Mbps (uplink), 2 x SFP 1000 Mbps (uplink) with a 375W PoE budget (IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt), 250 m long-distance PoE mode, web and DoLynk cloud management. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 24 x RJ-45 10/100/1000 Mbps (PoE)
- 2 x RJ-45 10/100/1000 Mbps (uplink)
- 2 x SFP 1000 Mbps (uplink)
- PoE: ports 5-24 up to 30 W, port 1-4 up to 90 W, total up to 375 W
- PoE standards: IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt
- Switching capacity: 56 Gbps
- Management: web + DoLynk cloud (Layer 2)
- Long-distance PoE up to 250 m
- Power: built-in power supply; desktop mount; rack mount
- Ideal for larger camera systems that need 24 PoE ports and 375W of power
Main Characteristics
Brand
Dahua
Model
CS4228-24GT-375-V2
Product Type
Cloud Managed PoE Switch
Layer
Layer 2
Ports
Port 1-24: 24 Γ RJ-45 10/100/1000 Mbps (PoE); Port 25-26: 2 Γ RJ-45 10/100/1000 Mbps (uplink); Port 27-28: 2 Γ SFP 1000 Mbps (uplink)
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.664 Mpps
PoE Power
Port 5-24β€30 W, port 1-4β€90 W, totalβ€375 W
PoE Standards
IEEE 802.3af; IEEE 802.3at; Hi-PoE; IEEE 802.3bt
Long Distance PoE
Yes, up to 250 m
Packet Buffer
4 Mbit
MAC Table
8K
Jumbo Frame
15360 Byte
VLAN
IEEE 802.1Q VLAN
Loop Protection
STP; RSTP
Link Aggregation
Static Aggregation
Management
Web Management; Cloud Management; Logs; Fault Alarm
Standards
IEEE 802.3; IEEE 802.3u; IEEE 802.3x; IEEE 802.3ab; IEEE 802.3z; IEEE 802.3az; IEEE 802.3ad
Power Supply
Built-in power supply: 100β240 VAC, 47β63 Hz, max 7 A
Power Consumption
Idling: 13.3 W; Full load: 391.7 W
Surge Protection
Common mode: 6 kV; Differential mode: 1 kV
Dimensions
440 mm Γ 228.81 mm Γ 43.65 mm (L x W x H)
Weight
2.7 kg
Installation
Desktop mount; rack mount
Operating Temperature
β10 Β°C to +55 Β°C
Casing
Sheet metal
