Dahua ITC413-PW4D 4MP Access ANPR Camera, Motorized Lens, Built-in IR, PoE+ - DHI-ITC413-PW4D
4MP licence plate recognition camera for car park and gate access, motorized lens, 850 nm IR, barrier relay outputs, Wiegand, RS-485 and IP67/IK10 housing.
Read MoreSpecs
Brand
Dahua
Model
DHI-ITC413-PW4D-IZ1 / DHI-ITC413-PW4D-IZ3
Product Type
ANPR IP Camera
Series
ITC413-PW4D (Access ANPR)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.

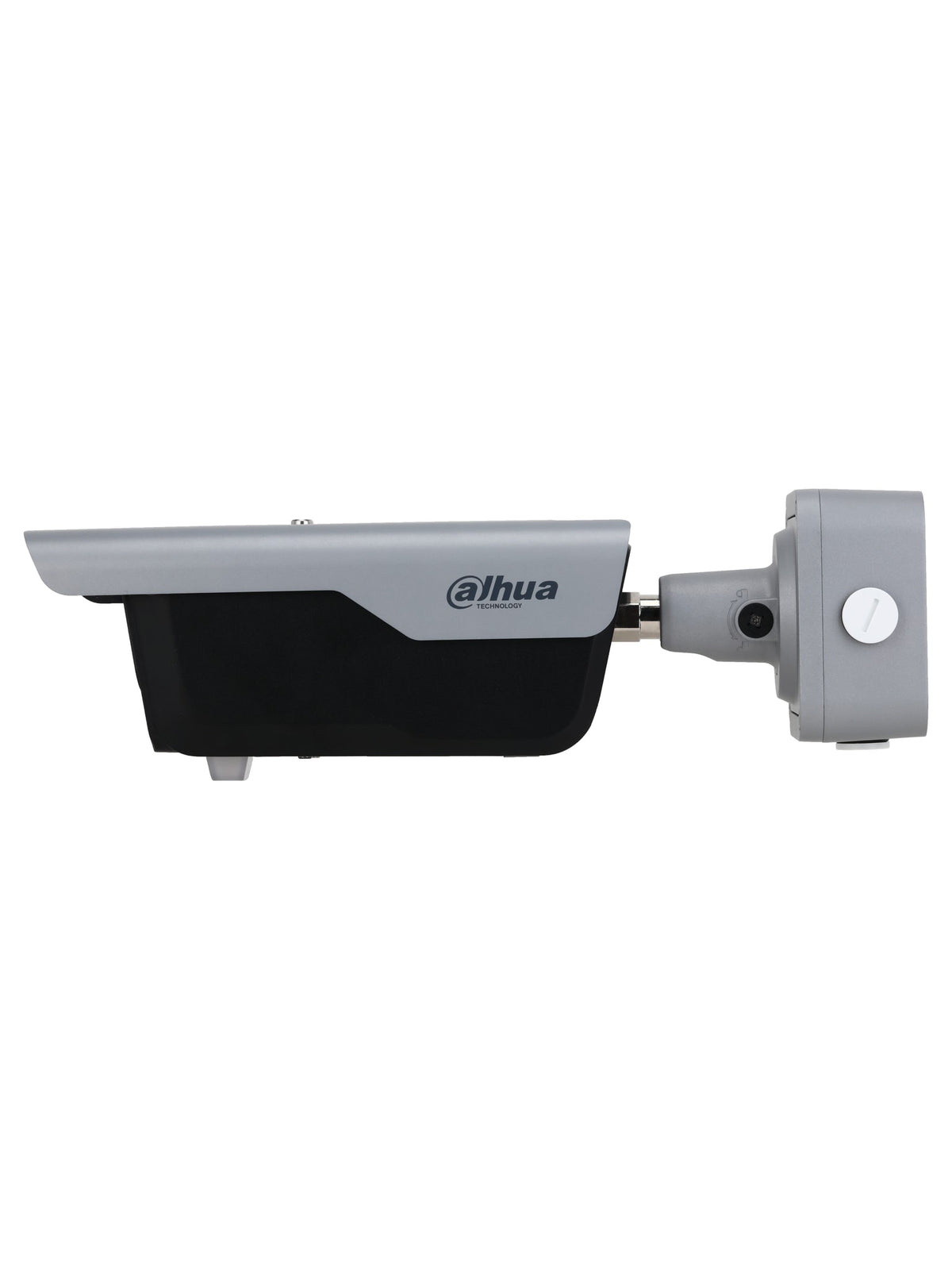

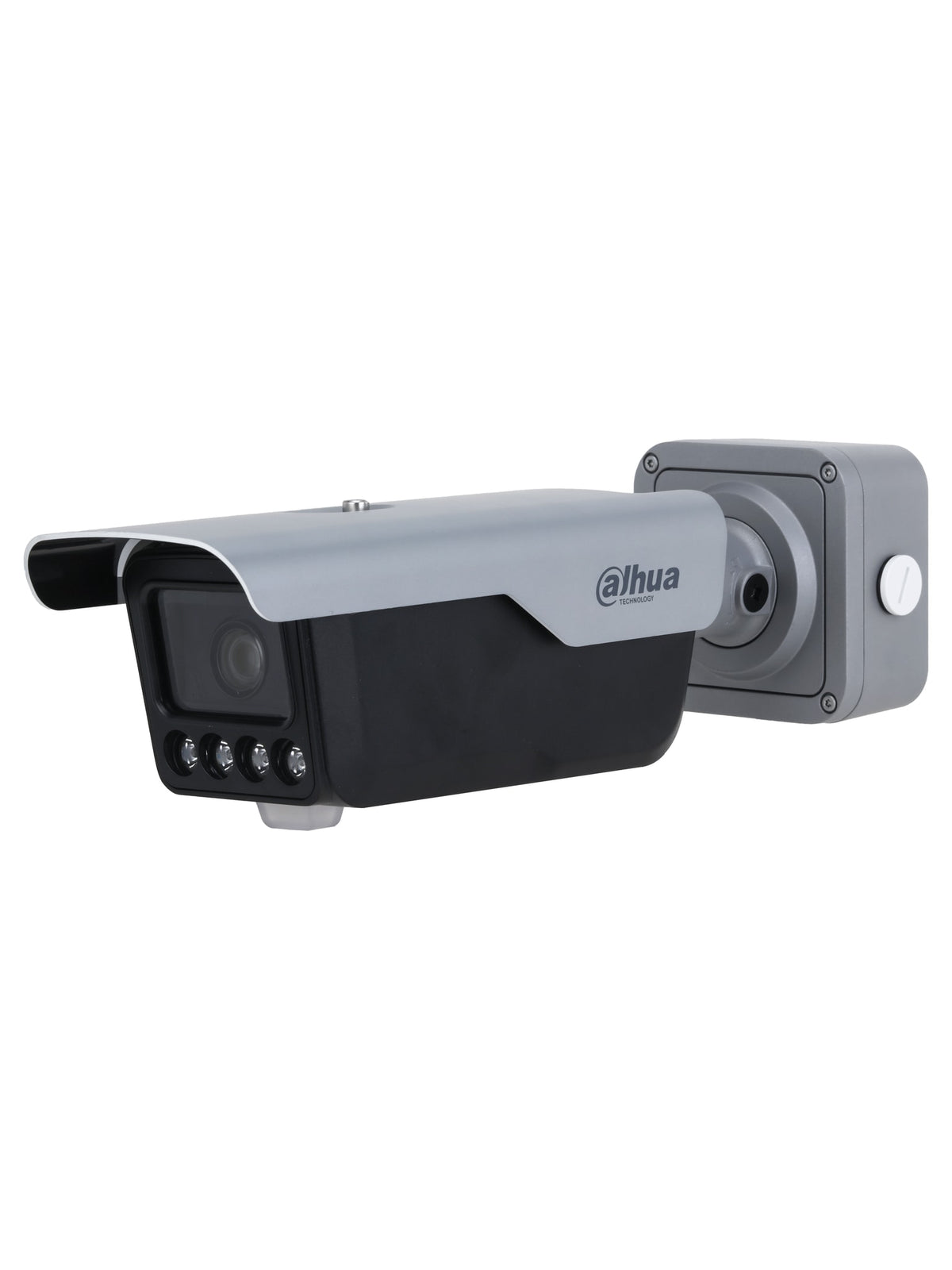

Dahua ITC413-PW4D 4MP Access ANPR Camera, Motorized Lens, Built-in IR, PoE+ - DHI-ITC413-PW4D
The Dahua ITC413-PW4D is a 4MP access ANPR camera that reads licence plates at car park and gate entrances. It combines a 1/1.8" sensor, a motorized lens (2.7–12 mm on IZ1 or 8–32 mm on IZ3), 850 nm IR, vehicle logo, colour and type recognition, and relay outputs that open a barrier directly. It suits residential compounds, company car parks and parking operators that want automatic vehicle entry.
Main Specs
- 4MP resolution (2688 × 1520), 1/1.8" CMOS sensor
- Lens: Motorized vari-focal: IZ1 2.7 mm–12 mm (F1.4, DC-Iris); IZ3 8 mm–32 mm (F1.6, P-Iris)
- Illumination: IR 850 nm, 4 LEDs; IZ1: ANPR 10 m, video 30 m; IZ3: ANPR 30 m, video 60 m
- H.265 video compression
- Built-in microphone, built-in speaker for two-way talk
- MicroSD card slot, up to 256 GB
- Power: 12 VDC, 2 A / PoE+ (802.3at, max. 20 W)
- IP67 / IK10 protection
- Ideal for automatic licence-plate entry at gates and car parks
Available Options
- 2.7-12mm
- 8-32mm
Main Characteristics
Brand
Dahua
Model
DHI-ITC413-PW4D-IZ1 / DHI-ITC413-PW4D-IZ3
Product Type
ANPR IP Camera
Series
ITC413-PW4D (Access ANPR)
Resolution
4MP, 2688 × 1520
Image Sensor
1/1.8" CMOS
Lens
Motorized vari-focal: IZ1 2.7 mm–12 mm (F1.4, DC-Iris); IZ3 8 mm–32 mm (F1.6, P-Iris)
Focus Control
Auto, area focus, manual
Capture Distance
IZ1: 3 m–8 m; IZ3: 8 m–30 m
Max. Detection Speed
IZ1: 80 km/h; IZ3: 120 km/h
Illumination Range
IR 850 nm, 4 LEDs; IZ1: ANPR 10 m, video 30 m; IZ3: ANPR 30 m, video 60 m
Recognition
Plate recognition rate ≥ 96% (≥ 98% for European plates); vehicle capture rate ≥ 99%; 147 vehicle logos, 12 vehicle colours, 10 vehicle types
Compression
H.265; H.264H/B/M; MJPEG
Audio
Built-in mic (3 m pick-up); built-in 2 W speaker
Storage
Built-in TF (microSD) slot up to 256 GB
Interfaces
2 alarm inputs; 2 relay outputs (barrier control); 2 × RS-485; 1 × Wiegand (26 bit)
Network
RJ-45 (10/100 Mbps)
Power/PoE
12 VDC, 2 A; PoE+ (802.3at, max. 20 W)
Protection
IP67; IK10
Operating Temperature
–30 °C to +65 °C
Dimensions
395.0 mm × 120.8 mm × 127.8 mm
Weight
2.3 kg
