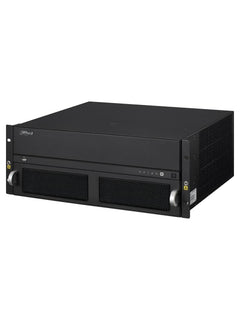

Dahua M70-4U-E Video Wall Controller, 4U Video Matrix Platform, 10 Card Slots - DHI-M70-4U-E
4U modular video matrix and video wall controller with 10 pluggable input/output card slots, up to 40ch 1080p encoding, up to 20ch 32MP decoding and splicing for up to 60 screens.
Read MoreSpecs
Brand
Dahua
Model
DHI-M70-4U-E
Product Type
Video Matrix Platform / Video Wall Controller
Main Processor
Quad-core embedded processor
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.

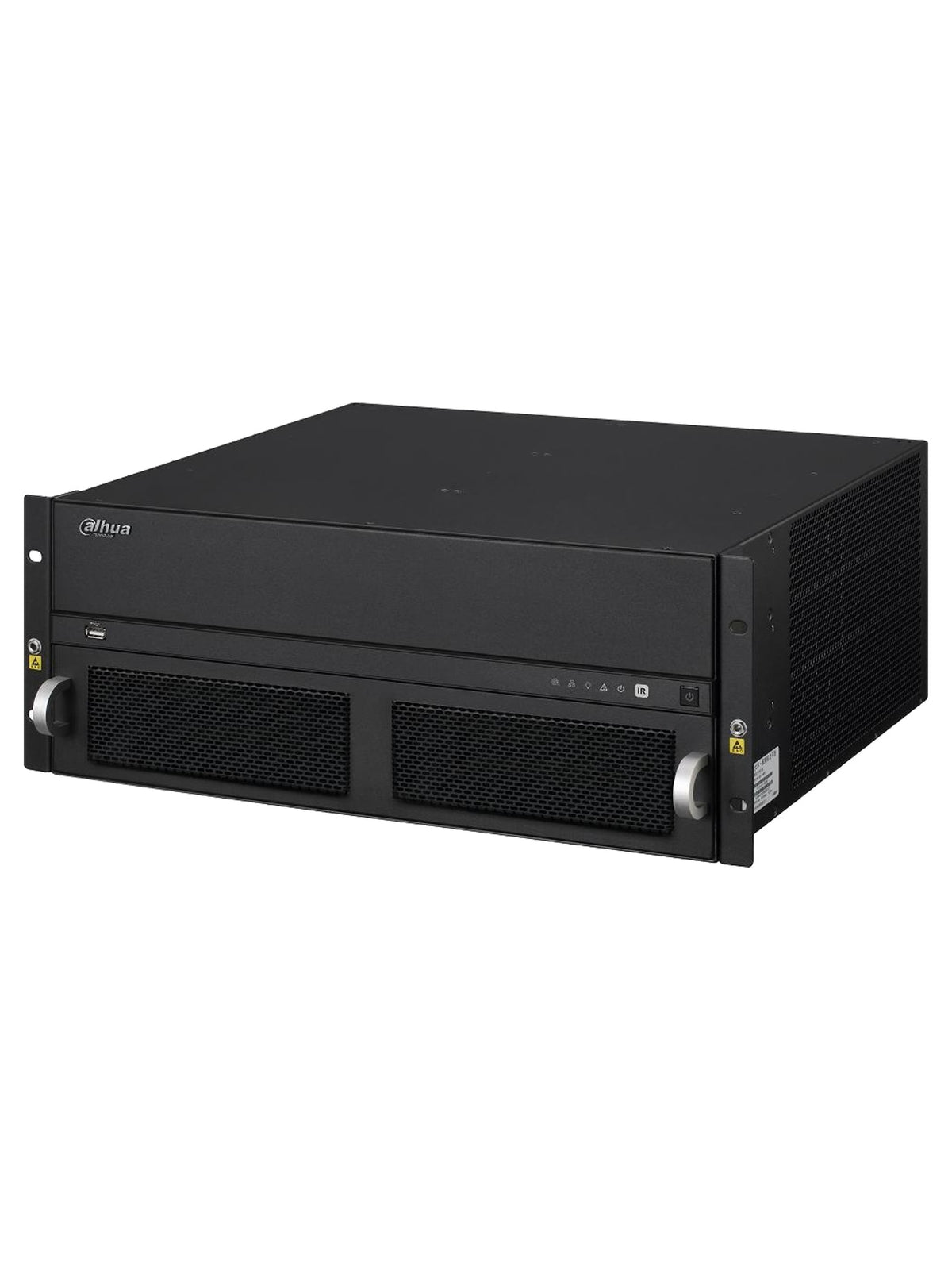

Dahua M70-4U-E Video Wall Controller, 4U Video Matrix Platform, 10 Card Slots - DHI-M70-4U-E
The Dahua M70-4U-E is a 4U multi-service video management platform that drives video walls from IP cameras, recorders and HDMI/DVI sources. It combines a pluggable card design with 12 slots (2 control, 10 video input/output), up to 40ch 1080p encoding, up to 20ch 32MP or 320ch 1080p decoding and wall splicing of up to 60 screens. It suits control rooms, command centres and large surveillance projects that need flexible video wall control.
Main Specs
- 19" 4U chassis, 12 slots: 2 main control + 10 video input/output cards
- Encoding (full configuration): up to 40ch 1080p
- Decoding (full configuration): 20ch 32MP, 80ch 8MP or 320ch 1080p
- Video wall splicing up to 60 screens; splice, zoom, roam, overlay
- Inputs via HDMI / DVI cards; HDMI output cards with 4K
- 6 x Gigabit RJ-45, 4 x RS-232, 1 x RS-485, 3 x USB 2.0 + 1 x USB 3.0
- Control by web, local GUI, video platform, network keyboard or iPad
- Power 100-240 VAC, up to 600W (redundant PSU optional)
- Ideal for control rooms that run large video walls
Main Characteristics
Brand
Dahua
Model
DHI-M70-4U-E
Product Type
Video Matrix Platform / Video Wall Controller
Main Processor
Quad-core embedded processor
Operating System
Embedded Linux
Chassis
19" 4U ATCA
Slots
12 (2 main control board slots, 10 video and audio function board slots)
Video Input Cards
Max. 10
Video Output Cards
Max. 10
Encoding Capability
40ch@1080P (fully configured)
Decoding Capability
20ch@32MP, 80ch@8MP, 320ch@1080P, 720ch@720P or 1280ch@D1 (fully configured)
Video Wall
Splicing up to 60 LCD units; splicing, zoom, merge, roam, overlay
Compatible Cards
VIC0201UH-M70 (2ch HDMI 4K in), VEC0404HH-M70 (4ch HDMI encoding), VEC0404HD-M70 (4ch DVI encoding), VDC0605H-M70 (6ch HDMI decoding)
Network
6 x RJ-45 10/100/1000M (2 on main board, 4 on control board)
Serial Ports
4 x RS232 (RJ45), 1 x RS485
USB
3 x USB 2.0, 1 x USB 3.0
Control Mode
Web, local GUI, video platform, network keyboard, iPad
Power Supply
100-240 VAC, 50/60 Hz (redundant power optional)
Power Consumption
β€600W
Dimensions
482.6 x 437.0 x 177.0 mm (4U)
Weight
β€25 kg fully configured
Operating Temperature
-10 Β°C to +50 Β°C
