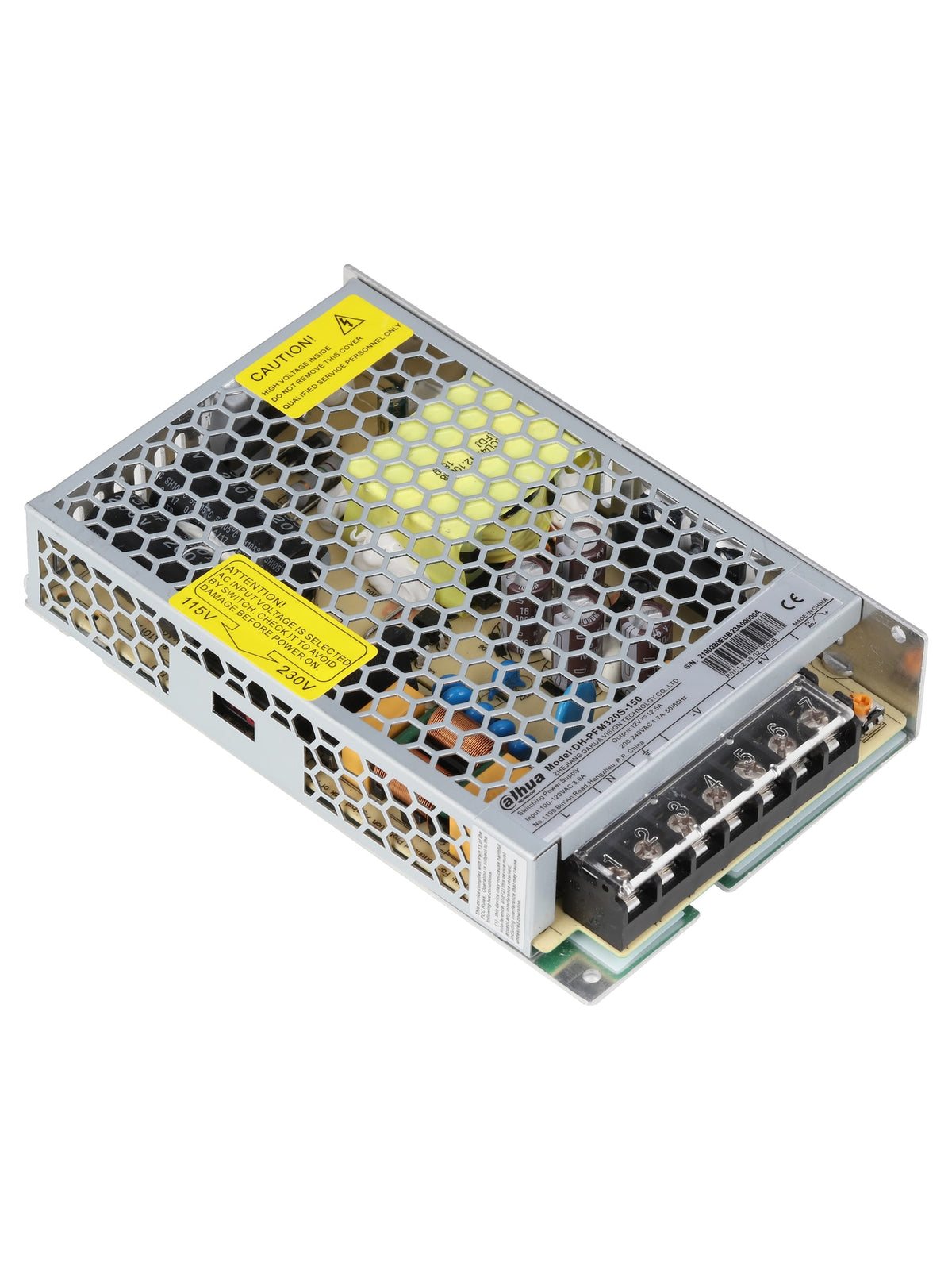

Dahua PFM320S-150 12V 12.5A 150W Switching Power Supply for CCTV
Dahua PFM320S-150 150 W switching power supply with 12 V DC 12.5 A terminal output, adjustable ±10% voltage and surge protection for multi-camera systems.
Read MoreSpecs
Brand
Dahua
Model
DH-PFM320S-150
Product Type
Switching power supply
Input Voltage
88-132 V AC / 176-264 V AC
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua PFM320S-150 12V 12.5A 150W Switching Power Supply for CCTV
The Dahua PFM320S-150 is a 150 W metal-case switching power supply that powers several CCTV cameras from one unit. It combines a 12 V DC 12.5 A terminal output, ±10% output adjustment, 88-132 / 176-264 V AC input and surge and ESD protection. It suits installers building centralised power for small and medium camera systems.
Main Specs
- Output: 12 V DC, 12.5 A, 150 W (terminal output)
- Adjustable output: ±10% (10.8-13.2 V DC)
- Input: 88-132 V AC / 176-264 V AC
- Efficiency: 85% at 230 V AC
- Surge protection: ±2000 V line to ground, ±1000 V line to line
- Operating temperature: -20 °C to +50 °C
- Dimensions: 159 x 97 x 30 mm
- Weight: 0.4 kg
- Wall or ceiling mount, CE and FCC
- Ideal for powering multi-camera CCTV systems from one supply
Main Characteristics
Brand
Dahua
Model
DH-PFM320S-150
Product Type
Switching power supply
Input Voltage
88-132 V AC / 176-264 V AC
Output Voltage
12 V DC (terminal output), ±5%
Adjustable Range
±10% (10.8-13.2 V DC)
Rated Current
12.5 A
Output Power
150 W
Efficiency
85% (@230 V AC)
Surge Protection
Line to ground ±2000 V, line to line ±1000 V
ESD
Contact ±6000 V, air ±8000 V
Operating Temperature
-20 °C to +50 °C (60% output at +70 °C)
Dimensions
159 x 97 x 30 mm
Weight
0.4 kg
Installation
Wall mount / ceiling mount
Color
Metallic silver
Certifications
CE, FCC
