Dahua PFM922I Cat6 U/UTP Network Cable, CCA 23AWG, CPR Eca
Dahua PFM922I Cat6 U/UTP cable with 0.57 mm CCA conductors, PVC sheath and CPR Eca flame rating, in 305 m and 100 m boxes for budget network and PoE runs.
Read MoreSpecs
Brand
Dahua
Model
PFM922I-6UN-C / PFM922I-6UN-C-100
Product Type
Cat6 U/UTP network cable
Conductor Material
CCA (copper content 22%-31%)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua PFM922I Cat6 U/UTP Network Cable, CCA 23AWG, CPR Eca
The Dahua PFM922I is a Cat6 U/UTP installation cable with copper-clad aluminum conductors for cost-sensitive network and CCTV projects. It combines 0.57 mm (23AWG) CCA conductors, a PE cross separator, a 6.5 mm PVC sheath with CPR Eca flame class and 250 MHz Cat6 transmission figures. It suits installers wiring IP cameras and small networks on a budget, over normal run lengths.
Main Specs
- Category: Cat6 U/UTP, 4 twisted pairs
- Conductor: CCA (copper content 22%-31%), 0.57 mm, 23AWG
- Insulation: HDPE; PE cross separator and rip cord
- Sheath: PVC, 6.5 mm, CPR Eca flame class (EN 50575)
- Impedance: 100 Ω ± 15 Ω; rated to 250 MHz
- Max DC resistance: 11.5 Ω/100 m
- Supports Power over Ethernet
- Operating temperature: -20 °C to +60 °C

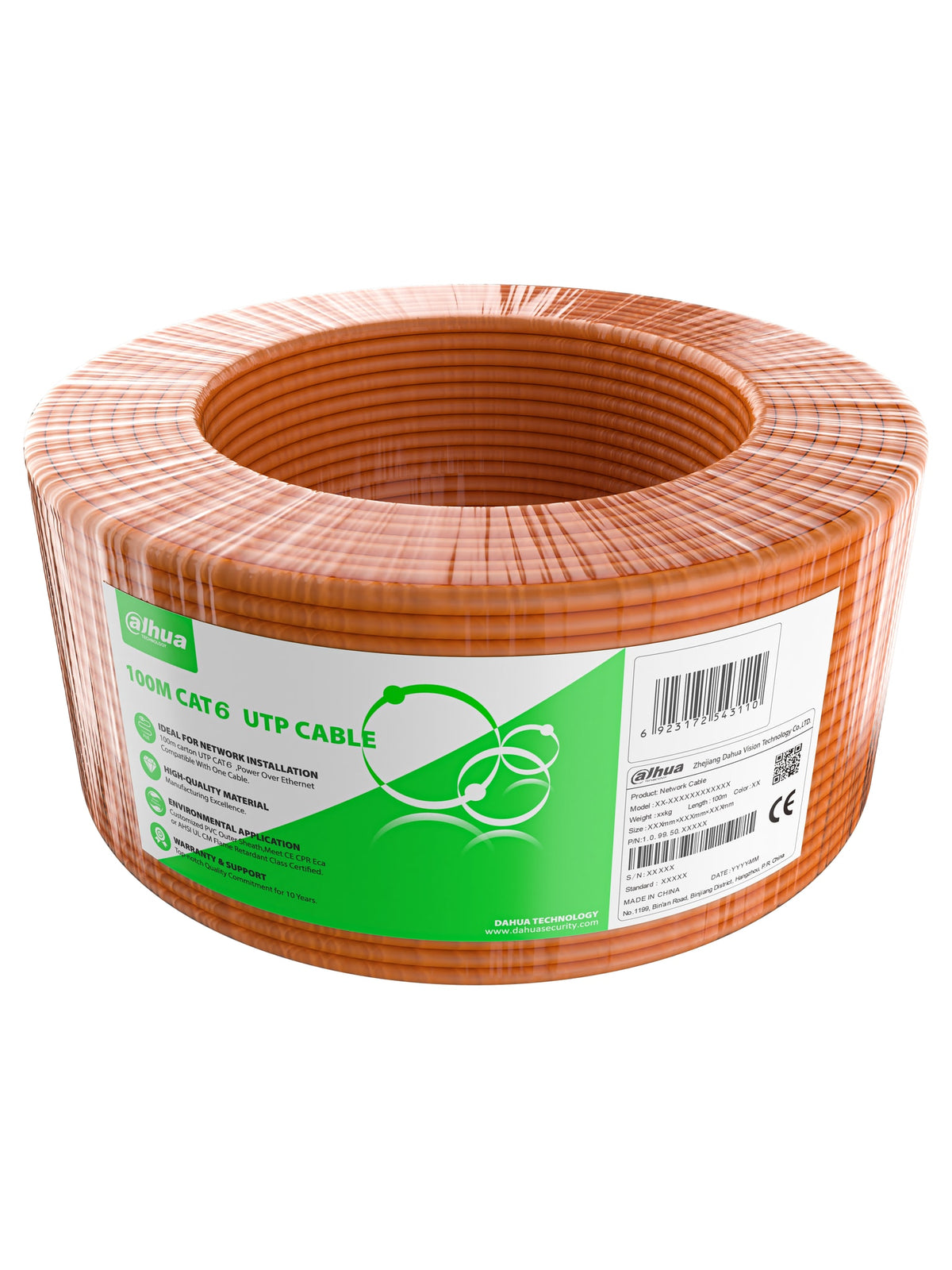

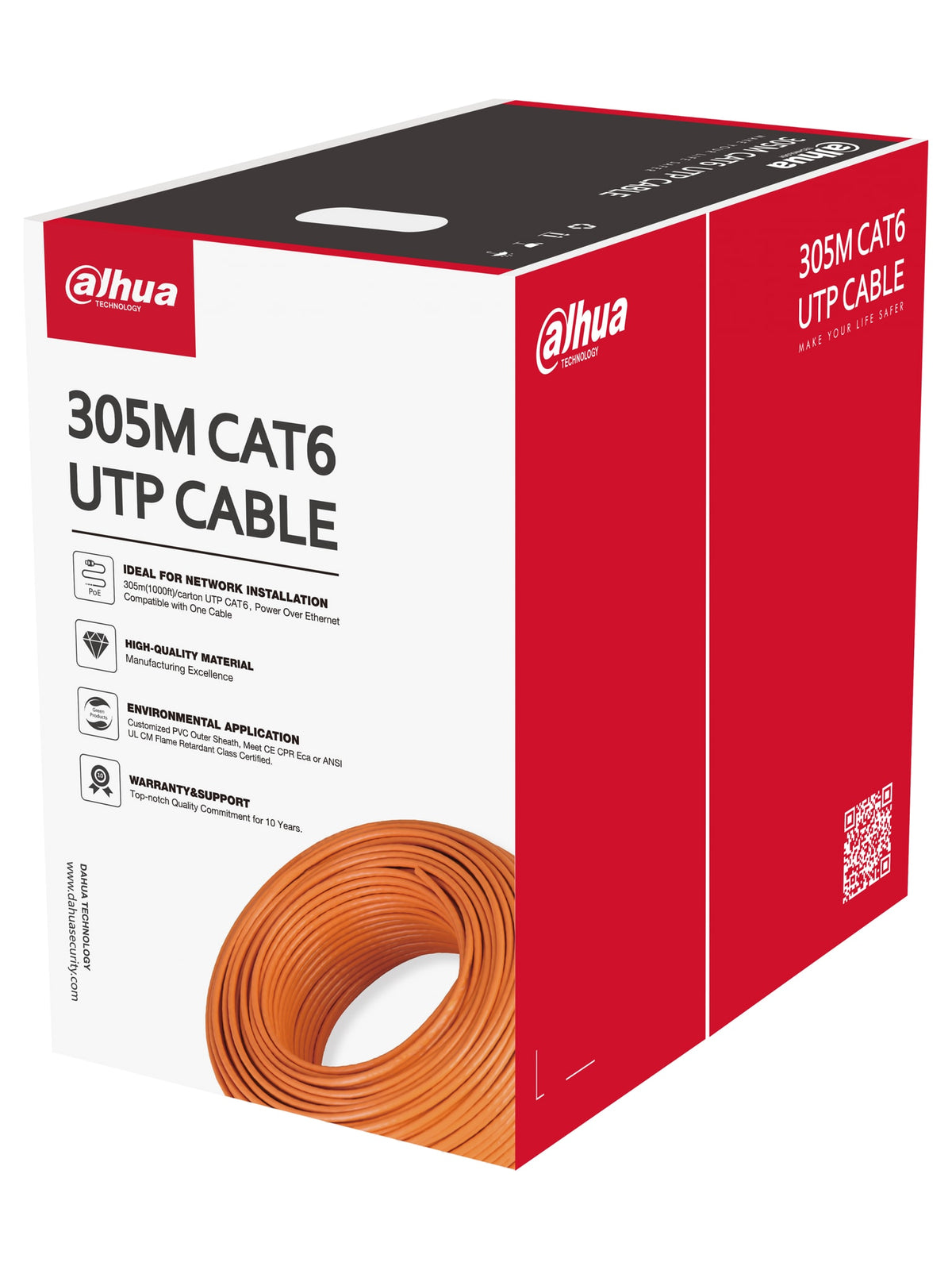

- Boxes: 305 m (blue, orange or gray) or 100 m (orange)
- Ideal for budget IP camera and network cabling projects
Available Options
- 305m / Blue
- 305m / Orange
- 305m / Gray
- 100m / Orange
Main Characteristics
Brand
Dahua
Model
PFM922I-6UN-C / PFM922I-6UN-C-100
Product Type
Cat6 U/UTP network cable
Conductor Material
CCA (copper content 22%-31%)
Conductor Diameter
0.57 mm (23AWG)
Insulation
HDPE, 1.02 mm diameter
Pairs
4 pairs (8 cores)
Separator
PE cross separator
Sheath Material
PVC
Sheath Diameter
6.5 mm
Characteristic Impedance
100 Ω ± 15 Ω
NEXT
≥ 39.3 dB/100 m @ 250 MHz
Return Loss
≥ 17.3 dB/100 m @ 250 MHz
Max DC Resistance
11.5 Ω/100 m
Bending Radius
> 8 x cable diameter
Operating Temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Fire Rating
CPR Eca (EN 50575)
Length
305 m ± 2 m or 100 m per box
Net Weight
9.5 kg (305 m) / 3.1 kg (100 m)
Color
Blue, Orange, Gray (305 m); Orange (100 m)
