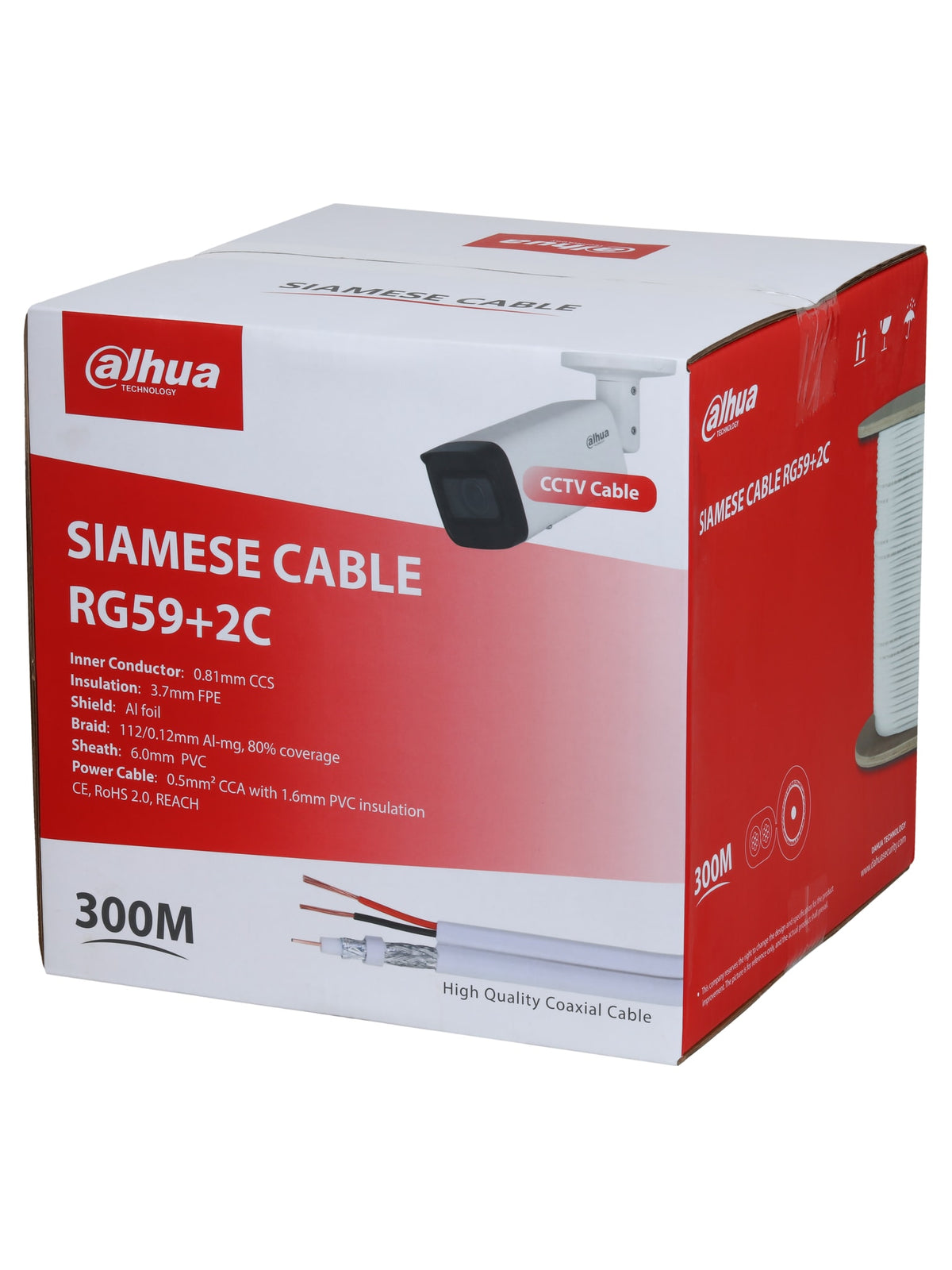

Dahua PFM941I-RG59N/20-300 Mini RG59 Coaxial Cable with 2x0.5mm² Power, 300m
Dahua PFM941I-RG59N/20-300 300 m siamese cable: mini RG59 75 Ω coax with 80% braid plus 2-core 0.5 mm² power cable, CPR Eca, for HDCVI and analog cameras.
Read MoreSpecs
Brand
Dahua
Model
DH-PFM941I-RG59N/20-300
Product Type
Coaxial cable with power cable (siamese)
Coax Type
Mini RG59
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua PFM941I-RG59N/20-300 Mini RG59 Coaxial Cable with 2x0.5mm² Power, 300m

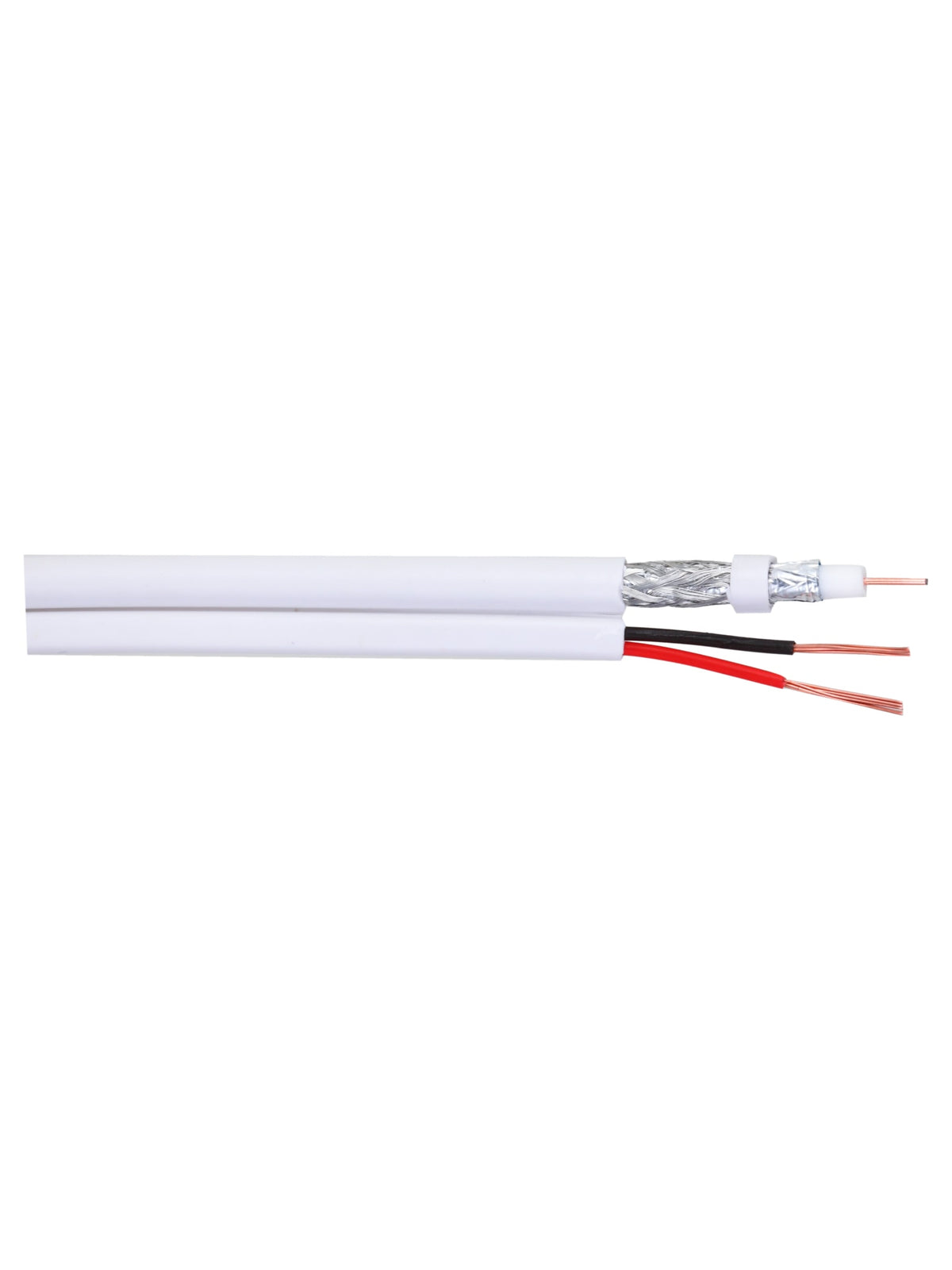

The Dahua PFM941I-RG59N/20-300 is a siamese cable that carries video and power to an HDCVI or analog camera in one run. It combines a mini RG59 75 Ω coax with a 0.81 mm CCS conductor, foil plus 80% aluminum-magnesium braid, and a 2-core 0.5 mm² CCA power pair, in a 300 m box with CPR Eca sheath. It suits installers wiring coax camera systems quickly and neatly.
Main Specs
- Length: 300 m per box
- Coax: mini RG59, 75 Ω ± 5 Ω
- Center conductor: CCS, 0.81 mm (20AWG), PE foam insulation
- Shield: aluminum foil plus aluminum-magnesium braid, ≥ 80% density
- Power: 2 cores (red / black), CCA 0.5 mm²
- Coax sheath: PVC, 6.0 mm
- CPR Eca flame retardant class (EN 50575)
- Operating temperature: -20 °C to +60 °C
- Net weight: 16.5 kg
- Ideal for HDCVI and analog camera installations
Main Characteristics
Brand
Dahua
Model
DH-PFM941I-RG59N/20-300
Product Type
Coaxial cable with power cable (siamese)
Coax Type
Mini RG59
Characteristic Impedance
75 Ω ± 5 Ω
Center Conductor
CCS, 0.81 mm (20AWG)
Coax Insulation
PE foam, 3.7 mm
Inner Shield
Aluminum foil composite, ≥ 25% overlap
Outer Shield
Aluminum-magnesium alloy braid 16 x 7/0.12 mm, ≥ 80%
Coax Sheath
PVC, 6.0 mm
Power Cable
2 cores (red, black), CCA 7/0.3 mm, 0.5 mm²
Power Sheath
PVC, 3.1 x 5.1 mm
Max DC Resistance
Coax ≤ 16.0 Ω/100 m; power ≤ 6.1 Ω/100 m
Length
300 m ± 1.5 m
Operating Temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Fire Rating
CPR Eca (EN 50575)
Net Weight
16.5 kg
