Dahua PFS4218-16ET-190-V3 18-Port Managed Switch with 16-Port PoE (190W)
18-port 10/100 Mbps managed switch with 16 PoE ports (190W budget), Gigabit uplinks, 250 m long-distance PoE, 90W 802.3bt port, ideal for IP cameras and access points.
Read MoreExpress Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.

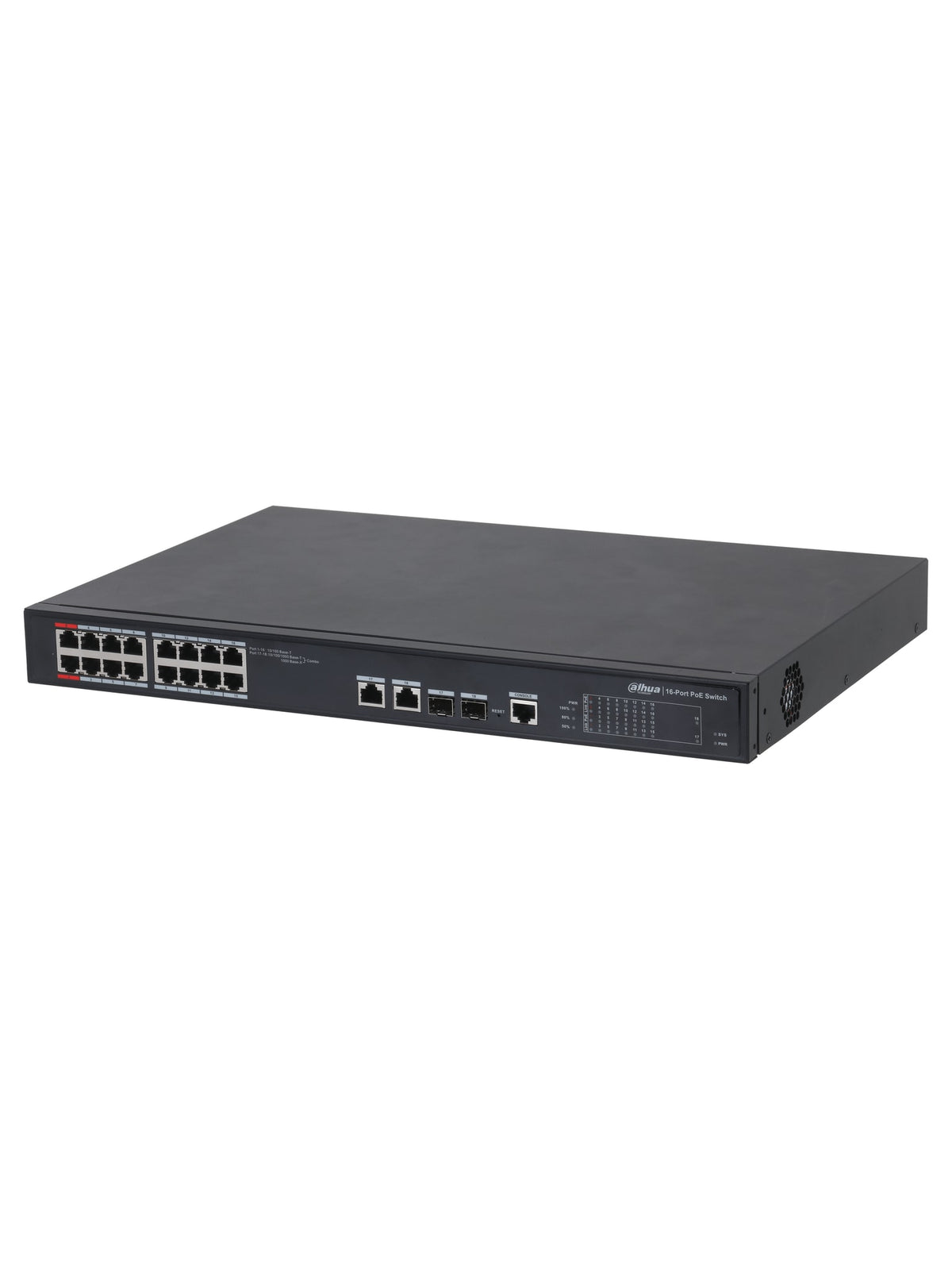

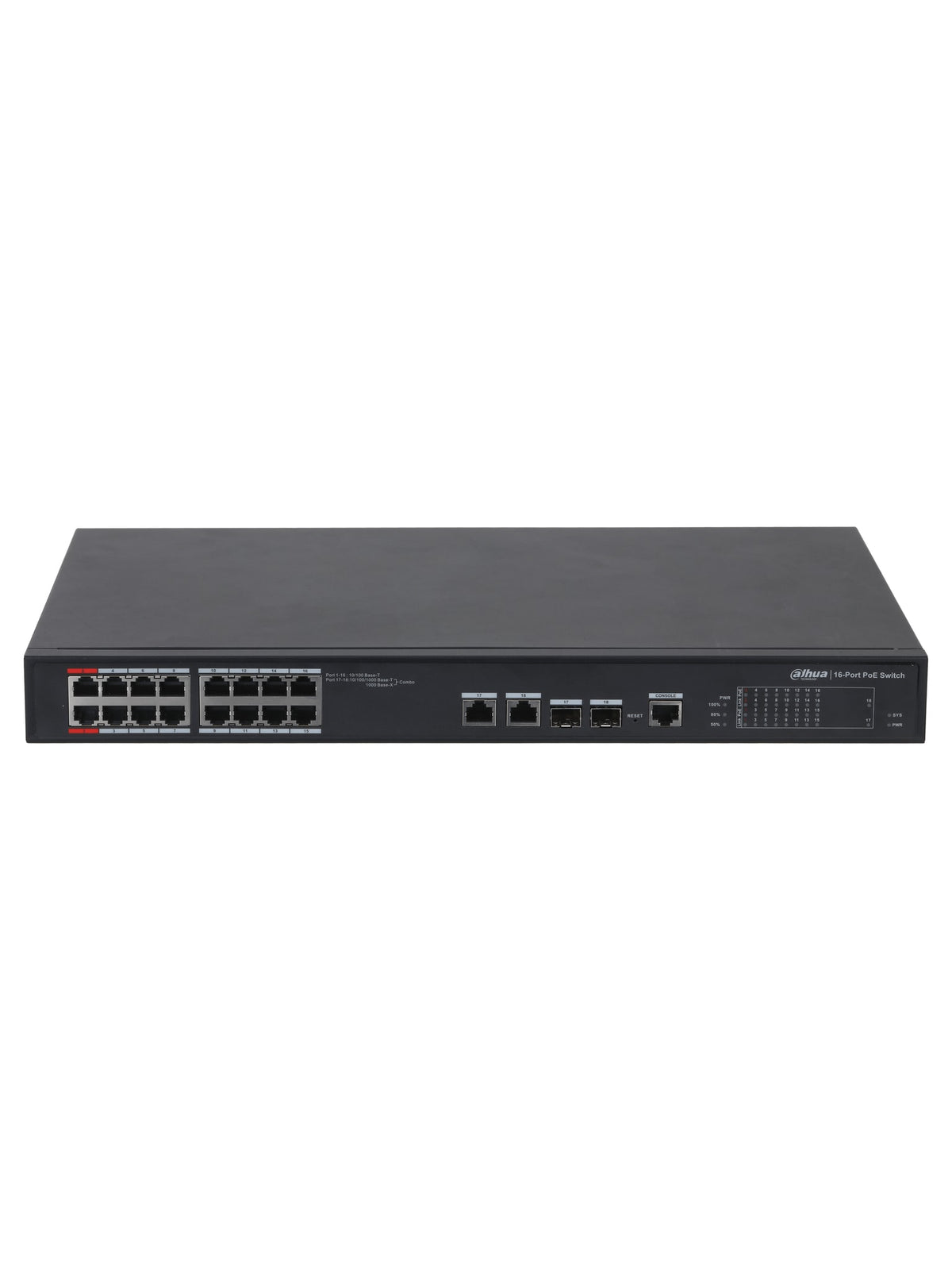

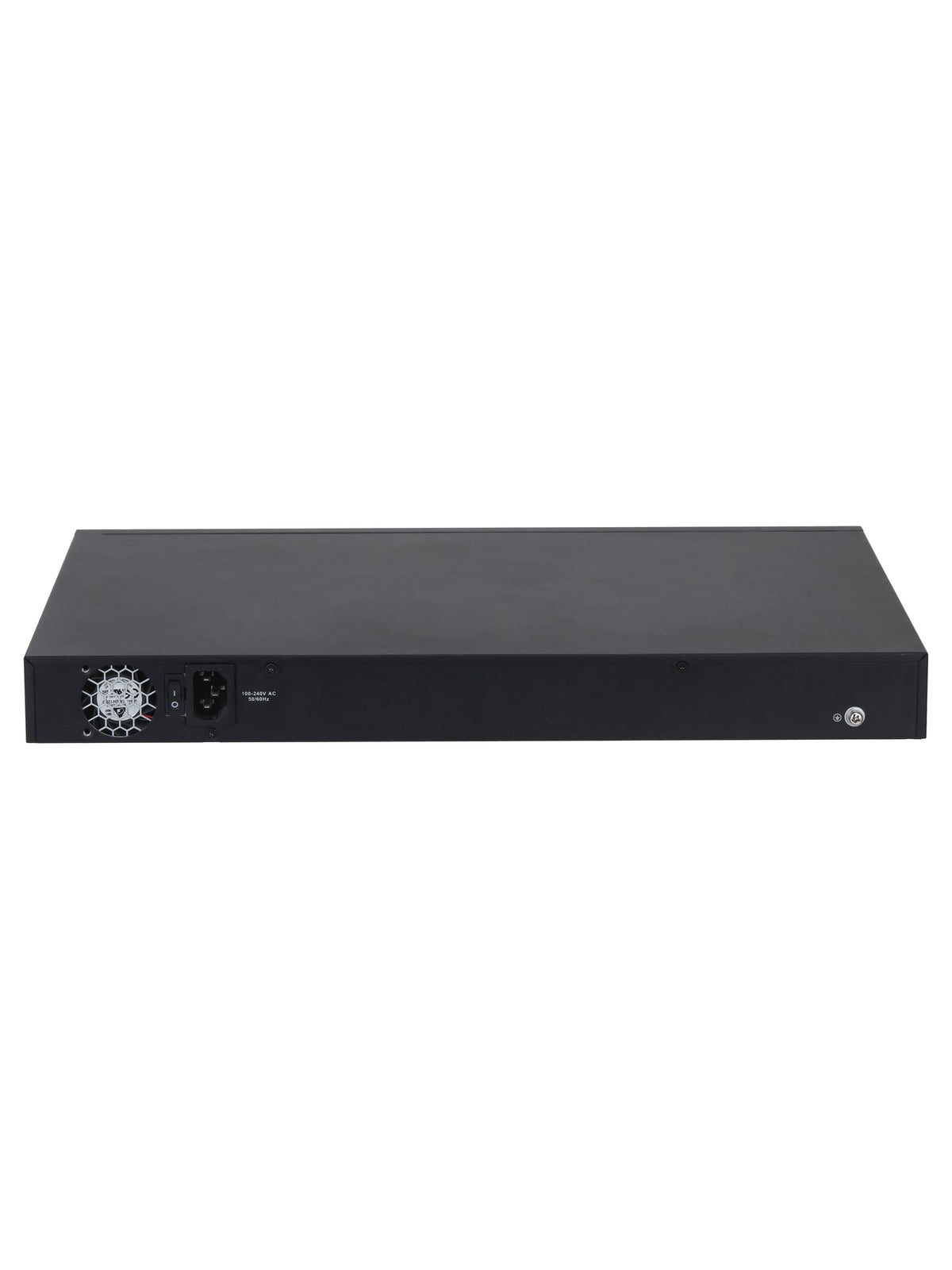

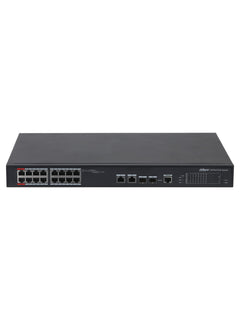

Dahua PFS4218-16ET-190-V3 18-Port Managed Switch with 16-Port PoE (190W)
The Dahua PFS4218-16ET-190-V3 is an 18-port managed switch with 16-port PoE built for surveillance and small business networks. It combines 16 x RJ-45 10 M/100 M (PoE), 2 x RJ-45 10 M/100 M/1000 M (uplink), 2 x SFP 1000 M (uplink) (combo) with a 190W PoE budget (IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt), 250 m long-distance PoE mode, web management. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 16 x RJ-45 10 M/100 M (PoE)
- 2 x RJ-45 10 M/100 M/1000 M (uplink)
- 2 x SFP 1000 M (uplink) (combo)
- PoE: ports 1-2 up to 90W, ports 3-16 up to 30W, total up to 190W
- PoE standards: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
- Switching capacity: 8.8 Gbps
- Management: web (Layer 2)
- Long-distance PoE up to 250 m
- Power: built-in power supply
- Ideal for larger camera systems that need 16 PoE ports and 190W of power
Main Characteristics
Brand
Dahua
Model
PFS4218-16ET-190-V3
Product Type
Managed PoE Switch
Layer
Layer 2
Ports
Port 1-16: 16 Γ RJ-45 10 M/100 M (PoE); Port 17-18: 2 Γ RJ-45 10 M/100 M/1000 M (uplink); Port 17-18: 2 Γ SFP 1000 M (uplink) (combo)
Switching Capacity
8.8 Gbps
Packet Forwarding Rate
5.36 Mpps
PoE Power
Port 1-2 β€ 90W, Port 3-16β€ 30W, total β€ 190W
PoE Standards
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Long Distance PoE
Yes, up to 250 m
Packet Buffer
2.75 Mbit
MAC Table
4K
Link Aggregation
Static; LACP
Standards
IEEE802.3; IEEE802.3u; IEEE802.3x; IEEE 802.3ab; IEEE 802.3z
Power Supply
100Vβ240V AC
Power Consumption
Idling: 10W; Full load: 190W
Surge Protection
Common mode: 4kV; Differential mode: 2kV
Dimensions
440 mm Γ 300 mm Γ 44 mm (L x W x H)
Operating Temperature
β10 Β°C to +55 Β°C
