Dahua PFS4218-16GT-230 18-Port Managed Gigabit Switch with 16-Port PoE (230W)
18-port Gigabit managed switch with 16 PoE ports (230W budget), 250 m long-distance PoE, 90W 802.3bt port, ideal for IP cameras and access points.
Read MoreExpress Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.

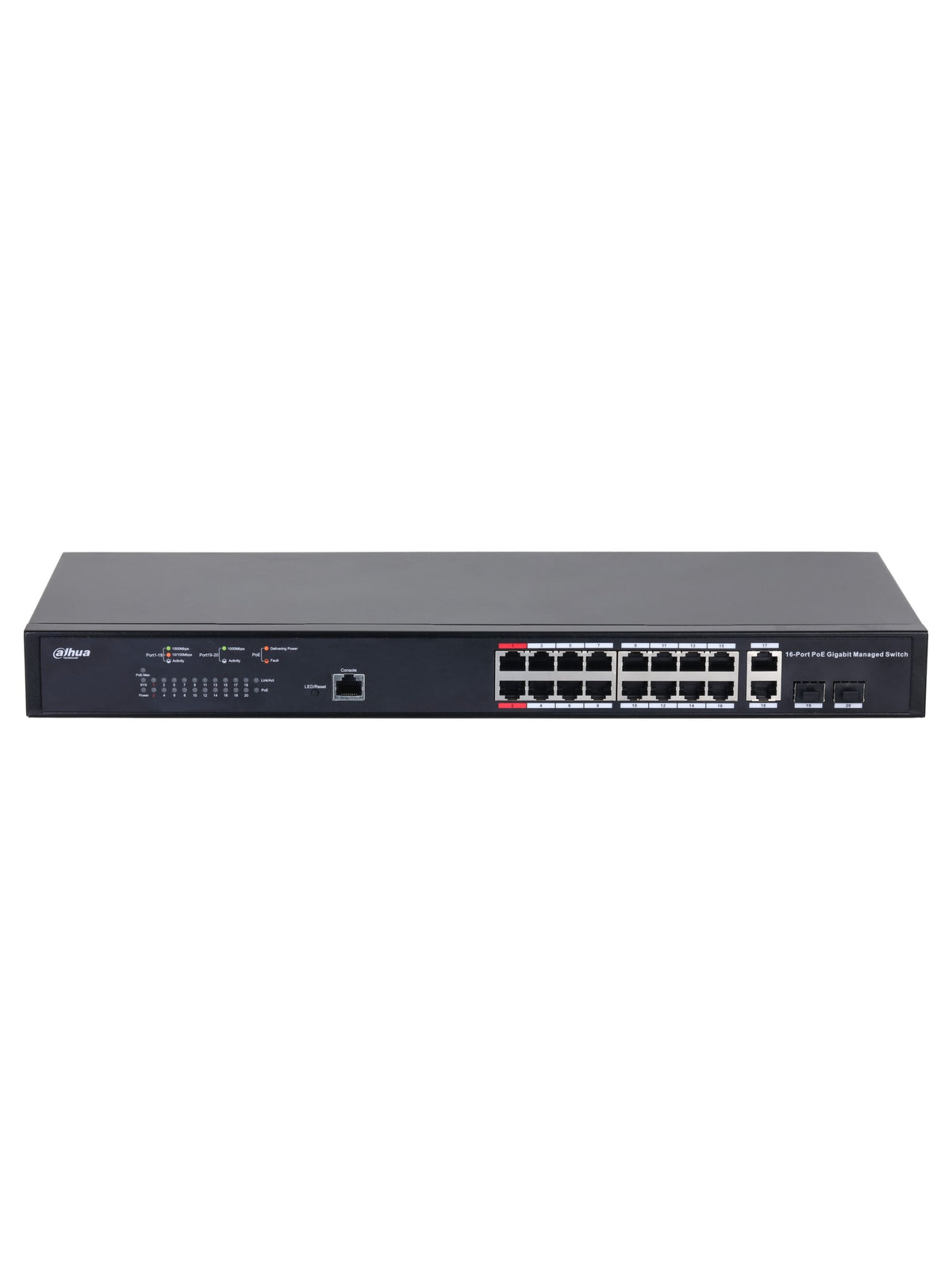

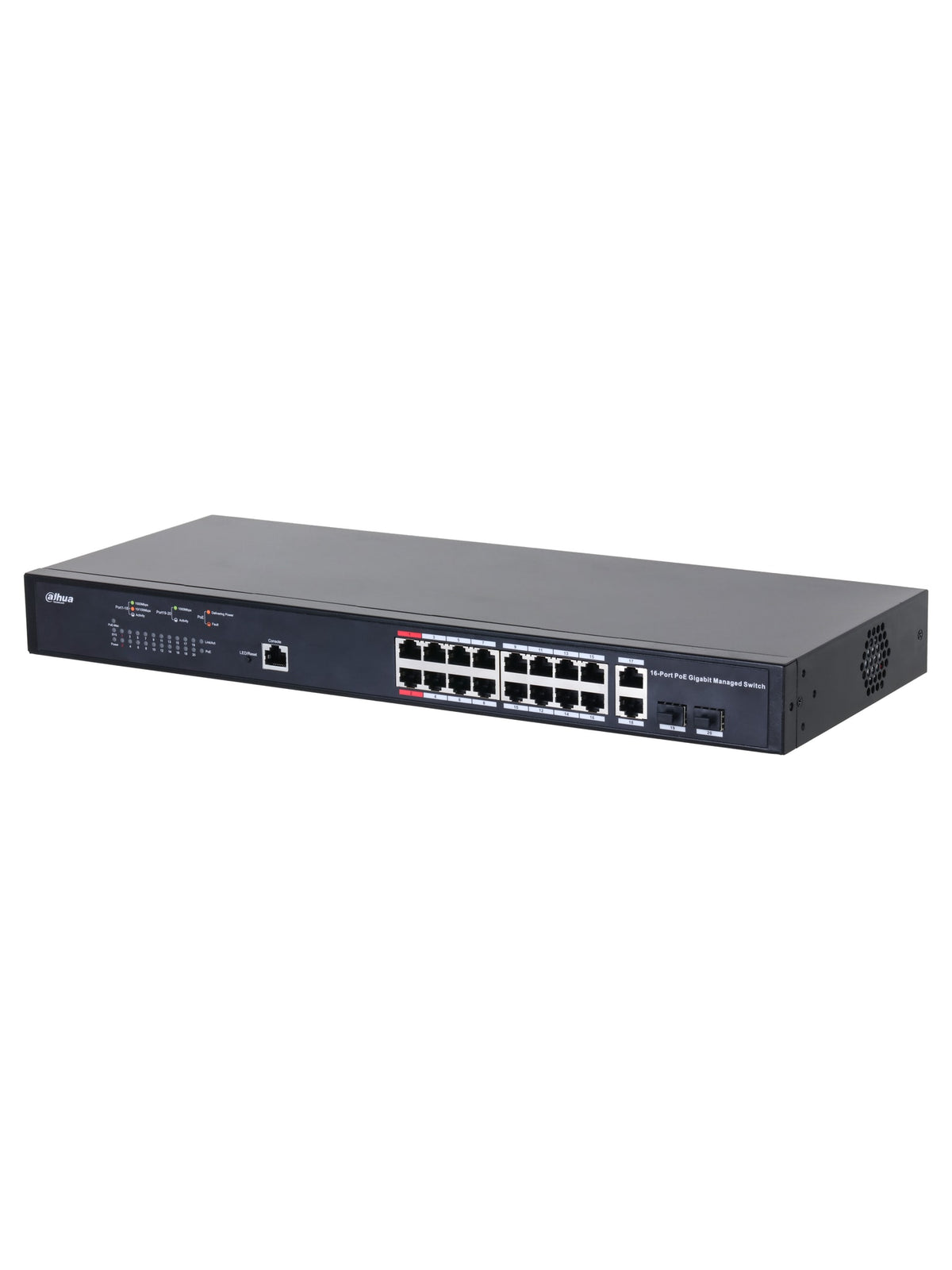

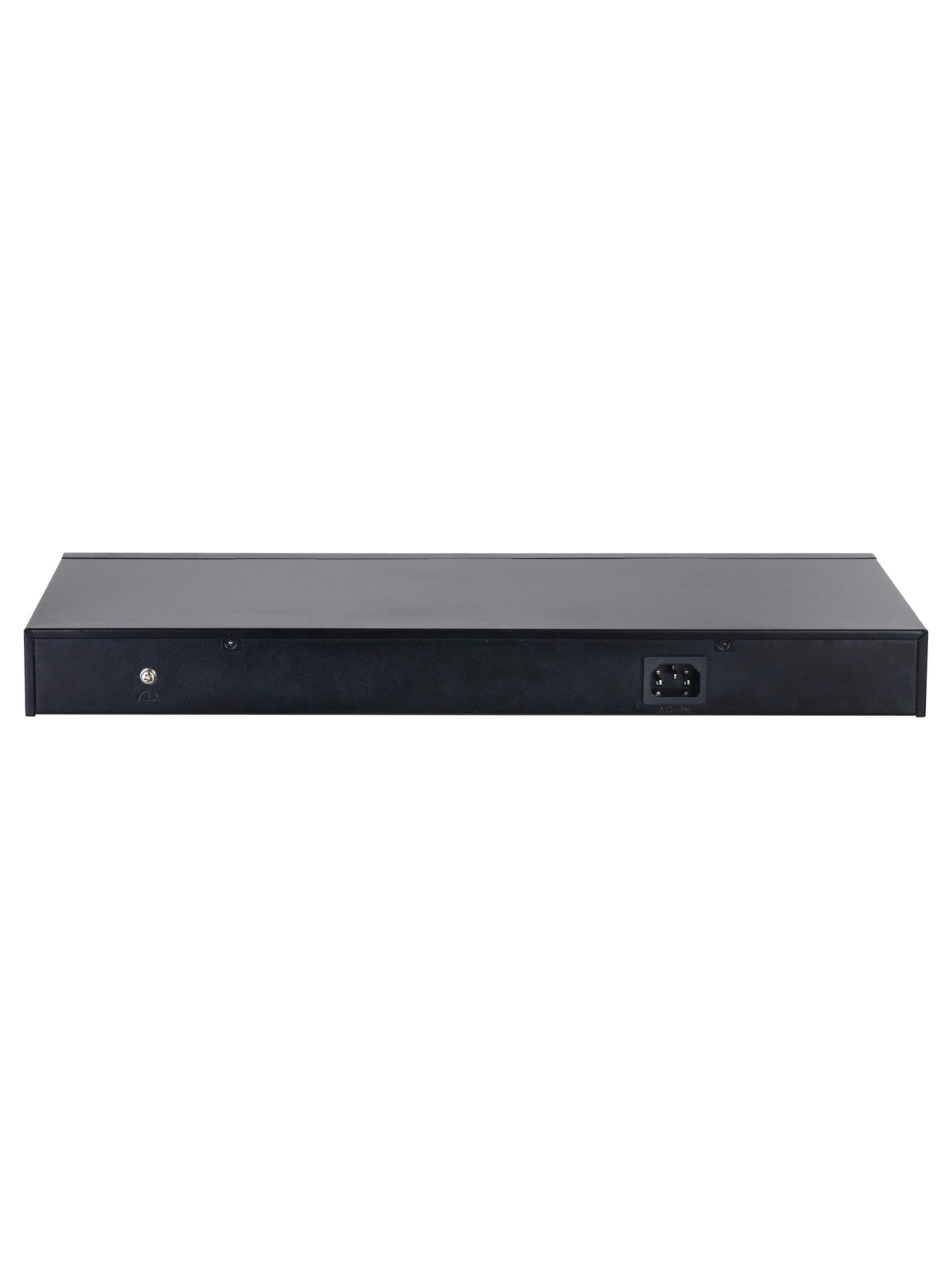

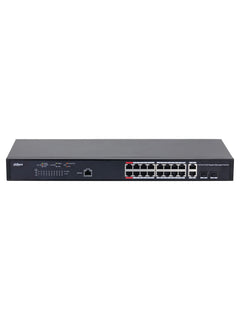

Dahua PFS4218-16GT-230 18-Port Managed Gigabit Switch with 16-Port PoE (230W)
The Dahua PFS4218-16GT-230 is an 18-port managed Gigabit switch with 16-port PoE built for surveillance and small business networks. It combines 16 x 10M/100M/1000MBase-T (PoE), 2 x 10M/100M/1000MBase-T (uplink)(combo), 2 x 1000M SFP (uplink)(combo) with a 230W PoE budget (IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt), 250 m long-distance PoE mode, web management. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 16 x 10M/100M/1000MBase-T (PoE)
- 2 x 10M/100M/1000MBase-T (uplink)(combo)
- 2 x 1000M SFP (uplink)(combo)
- PoE: ports 1-2 up to 90 W, ports 3-16 up to 30 W, total up to 230 W
- PoE standards: IEEE802.3af, IEEE802.3at, Hi-PoE, IEEE802.3bt
- Switching capacity: 56 Gbps
- Management: web (Layer 2+)
- Long-distance PoE up to 250 m
- Power: built-in power supply; desktop mount; rack mount
- Ideal for larger camera systems that need 16 PoE ports and 230W of power
Main Characteristics
Brand
Dahua
Model
PFS4218-16GT-230
Product Type
Managed PoE Switch
Layer
Layer 2+
Ports
Port 1-16: 16 Γ 10M/100M/1000MBase-T (PoE); Port 17-18: 2 Γ 10M/100M/1000MBase-T (uplink)(combo) Port 17-18: 2 Γ 1000M SFP (uplink)(combo)
Switching Capacity
56 Gbps
Packet Forwarding Rate
29.76 Mpps
PoE Power
Port 1-2 β€ 90 W,Port 3-16 β€ 30 W, Total β€ 230 W
PoE Standards
IEEE802.3af; IEEE802.3at; Hi-PoE; IEEE802.3bt
Long Distance PoE
Yes, up to 250 m
Packet Buffer
12 Mbit
MAC Table
16K
Jumbo Frame
10K
Management
Web (http and https protocol); CLI; SNMP V1/V2C/V3
Standards
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
Power Supply
Built-in power supply:; 100β240 VAC, 50/60 Hz, 4 A
Power Consumption
265W
Surge Protection
Common mode: 6 kV
Dimensions
440 mm Γ 185.8 mm Γ 44 mm
Weight
3.1 kg
Installation
Desktop mount; rack mount
Operating Temperature
0 Β°C to +45 Β°C
Casing
Electro Galvanized Steel Sheet
