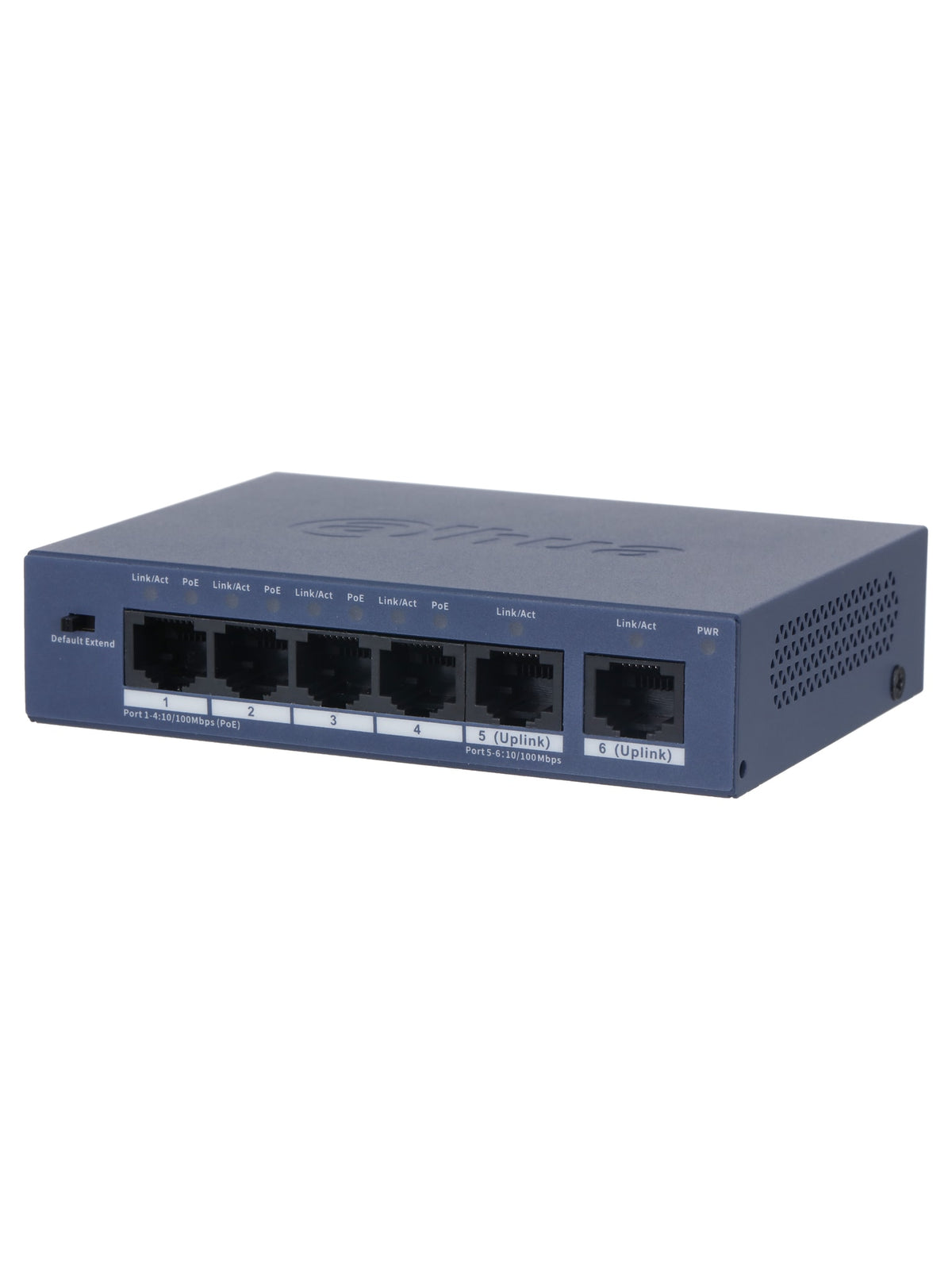

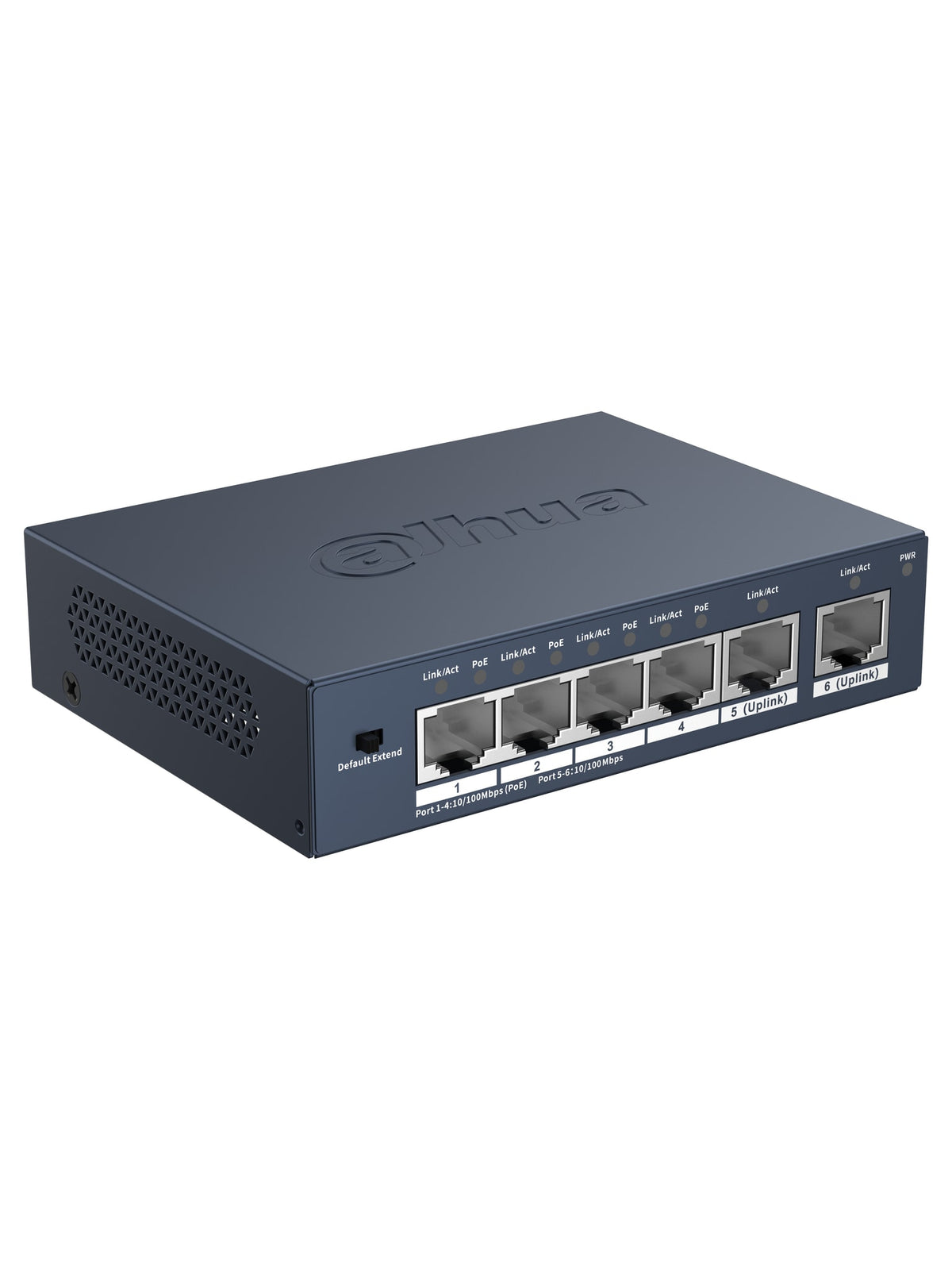

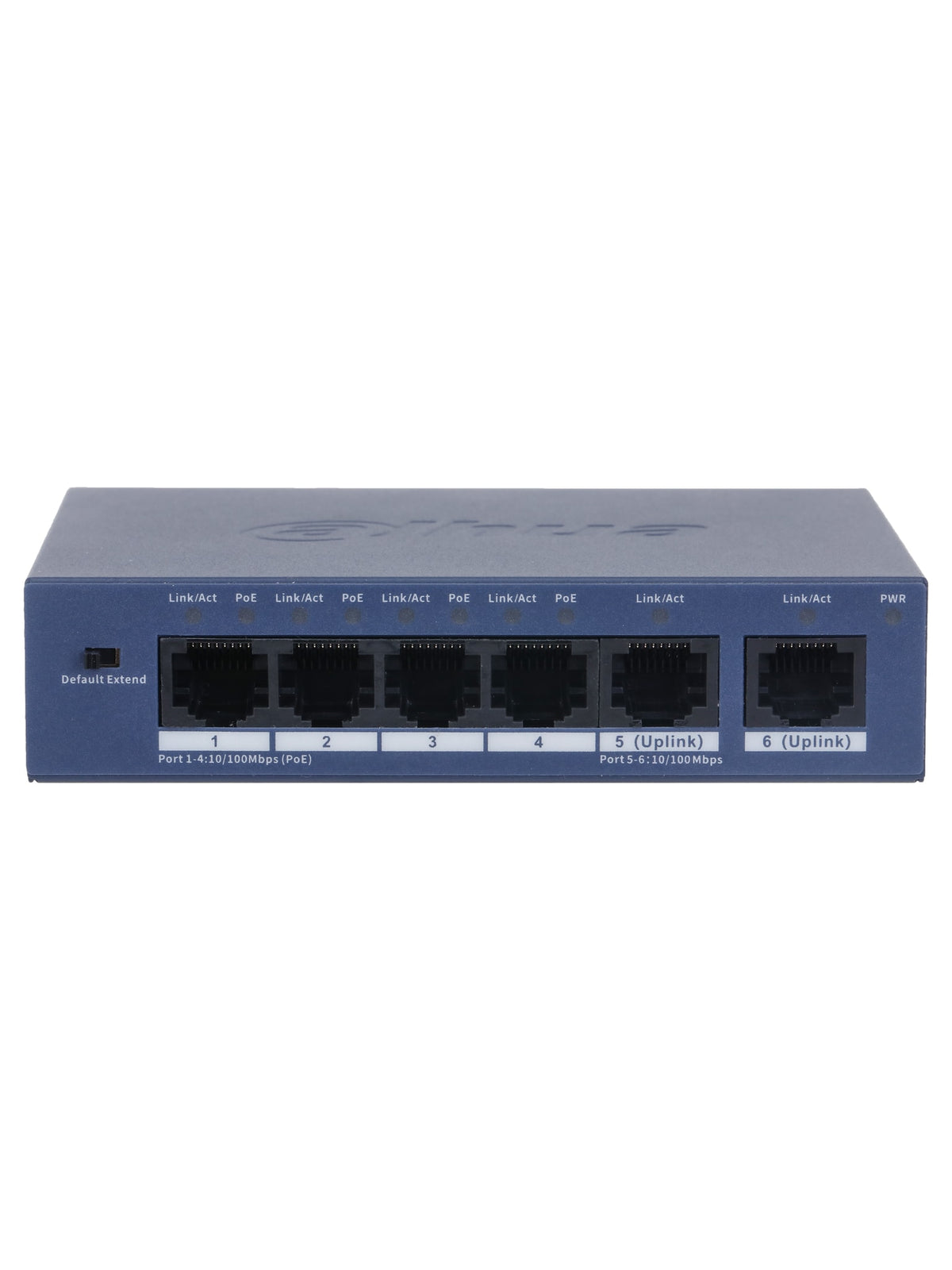

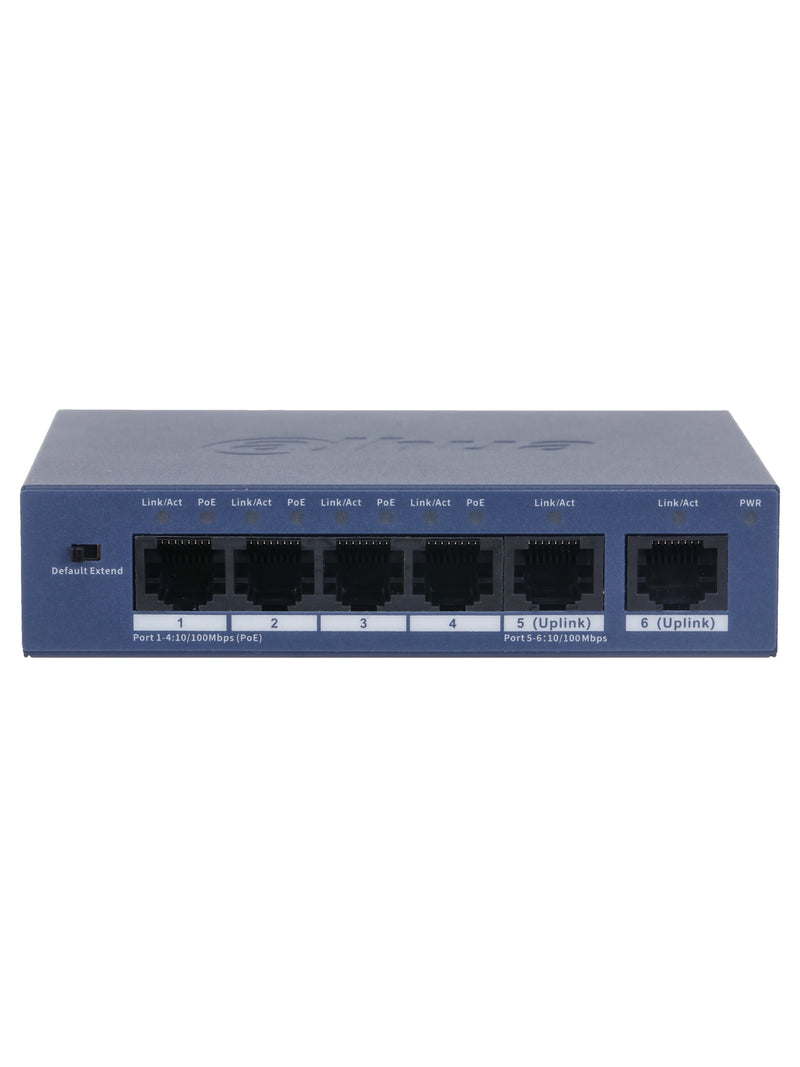

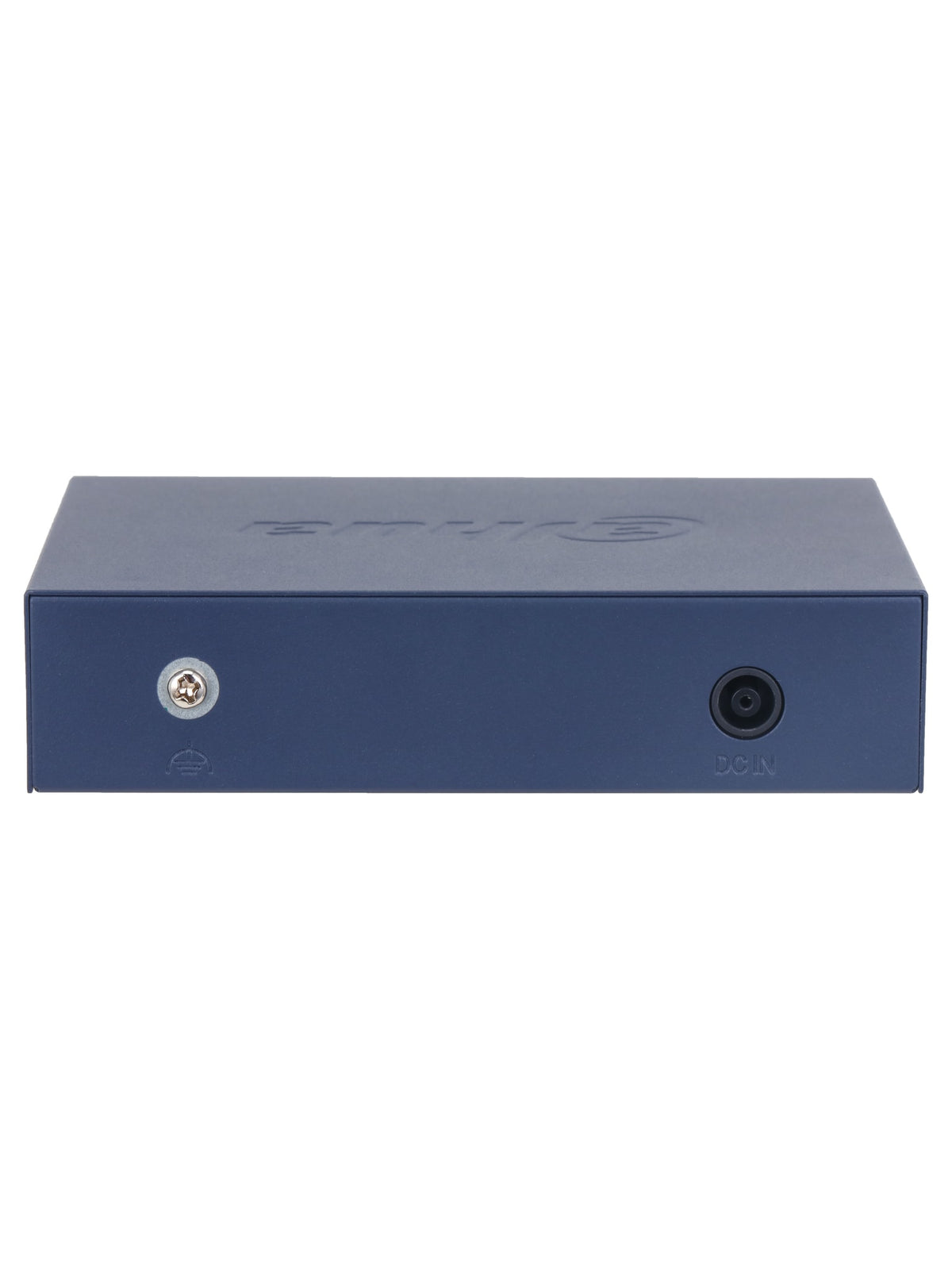

Dahua S3006-4ET-36 6-Port Unmanaged Desktop Switch with 4-Port PoE (36W)
The Dahua S3006-4ET-36 is a 6-port unmanaged desktop switch with 4-port PoE built for surveillance and small business networks. It combines 4 x RJ45 10/100 Mbps (PoE), 2 x RJ45 10/100 Mbps (Uplink) with a 36W PoE budget (IEEE 802.3af, IEEE 802.3at), 250 m long-distance PoE mode, plug-and-play operation. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 4 x RJ45 10/100 Mbps (PoE)
- 2 x RJ45 10/100 Mbps (Uplink)
- PoE: ports 1-4 up to 30 W, total up to 36 W
- PoE standards: IEEE 802.3af, IEEE 802.3at
- Switching capacity: 1.2 Gbps
- Management: unmanaged, plug and play
- Long-distance PoE up to 250 m (DIP switch)
- Power: external power adapter; desktop mount; wall mount
- Operating temperature: –10 °C to +55 °C
- Ideal for small camera kits that need 4 PoE ports and 36W of power
Main Characteristics
Brand
Dahua
Model
S3006-4ET-36
Product Type
Unmanaged PoE Switch
Layer
Unmanaged
Ports
Port 1-4: 4 × RJ45 10/100 Mbps (PoE); Port 5-6: 2 × RJ45 10/100 Mbps (Uplink)
Switching Capacity
1.2 Gbps
Packet Forwarding Rate
0.893 Mpps
PoE Power
Port 1-4≤30 W, total≤36 W
PoE Standards
IEEE 802.3af; IEEE 802.3at
Long Distance PoE
Yes, up to 250 m
Packet Buffer
768 Kbit
MAC Table
2K
Jumbo Frame
2048 Byte
Standards
IEEE 802.3; IEEE 802.3u; IEEE 802.3x
Power Supply
External power supply: 53 V, 50/60 Hz, max 0.8 A
Power Consumption
Idling: 1.3 W; Full load: 38.3 W
Surge Protection
Common mode: 6 kV; Differential mode: 1 kV
Dimensions
115.5 mm × 84.3 mm × 27 mm (L x W x H)
Weight
0.19 kg
Installation
Desktop mount; wall mount
Operating Temperature
–10 °C to +55 °C
Casing
Sheet Metal
