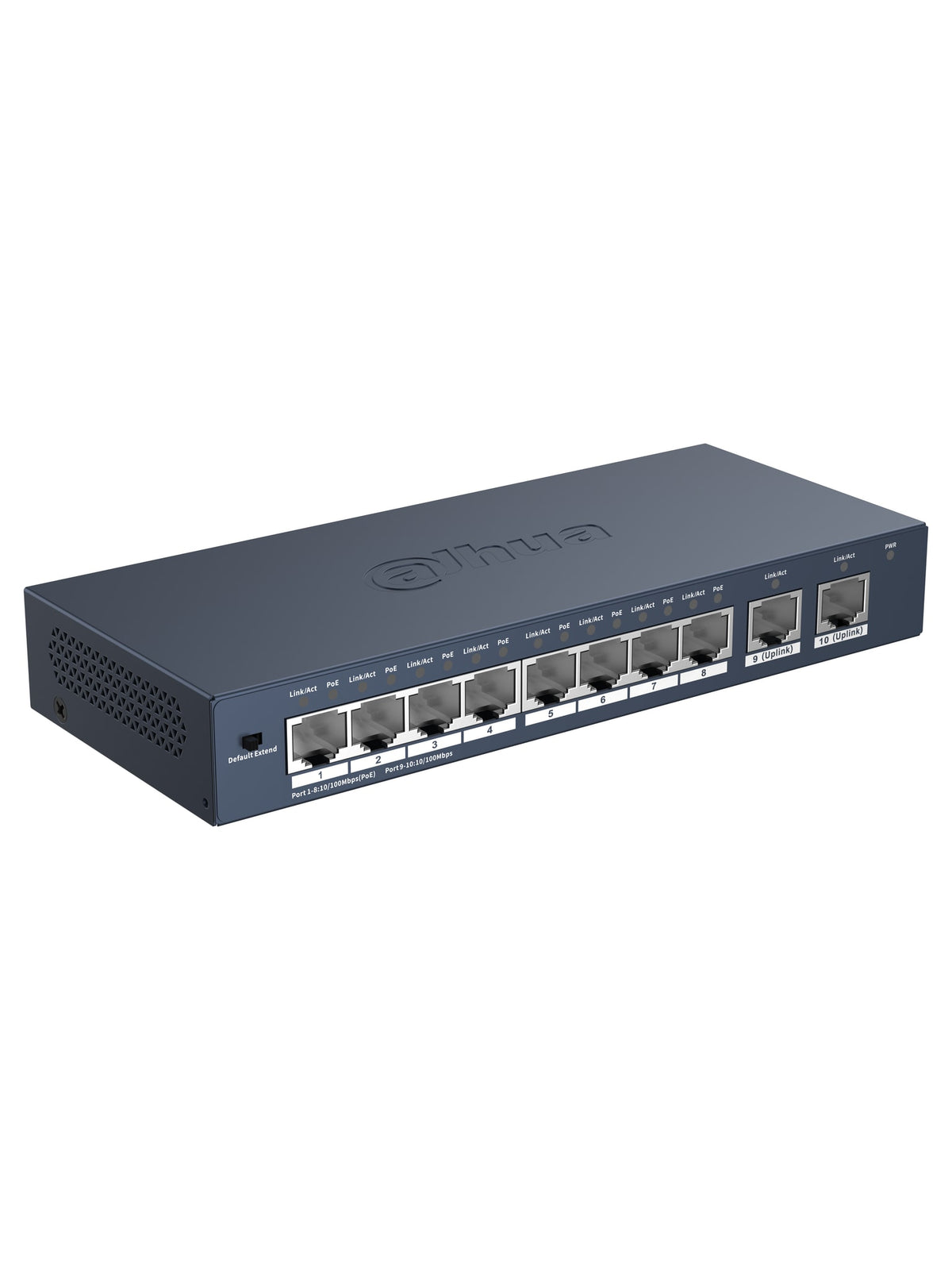

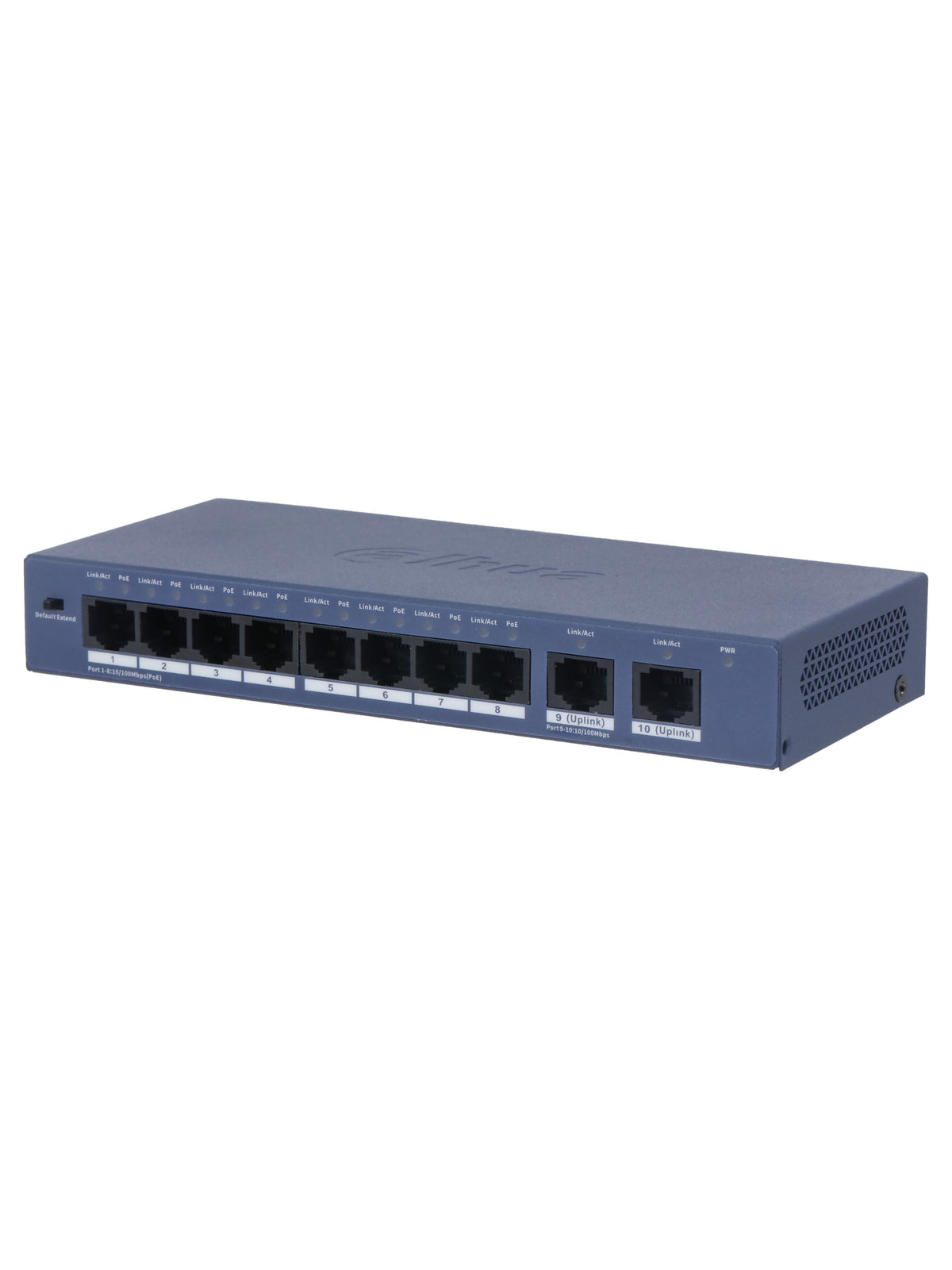

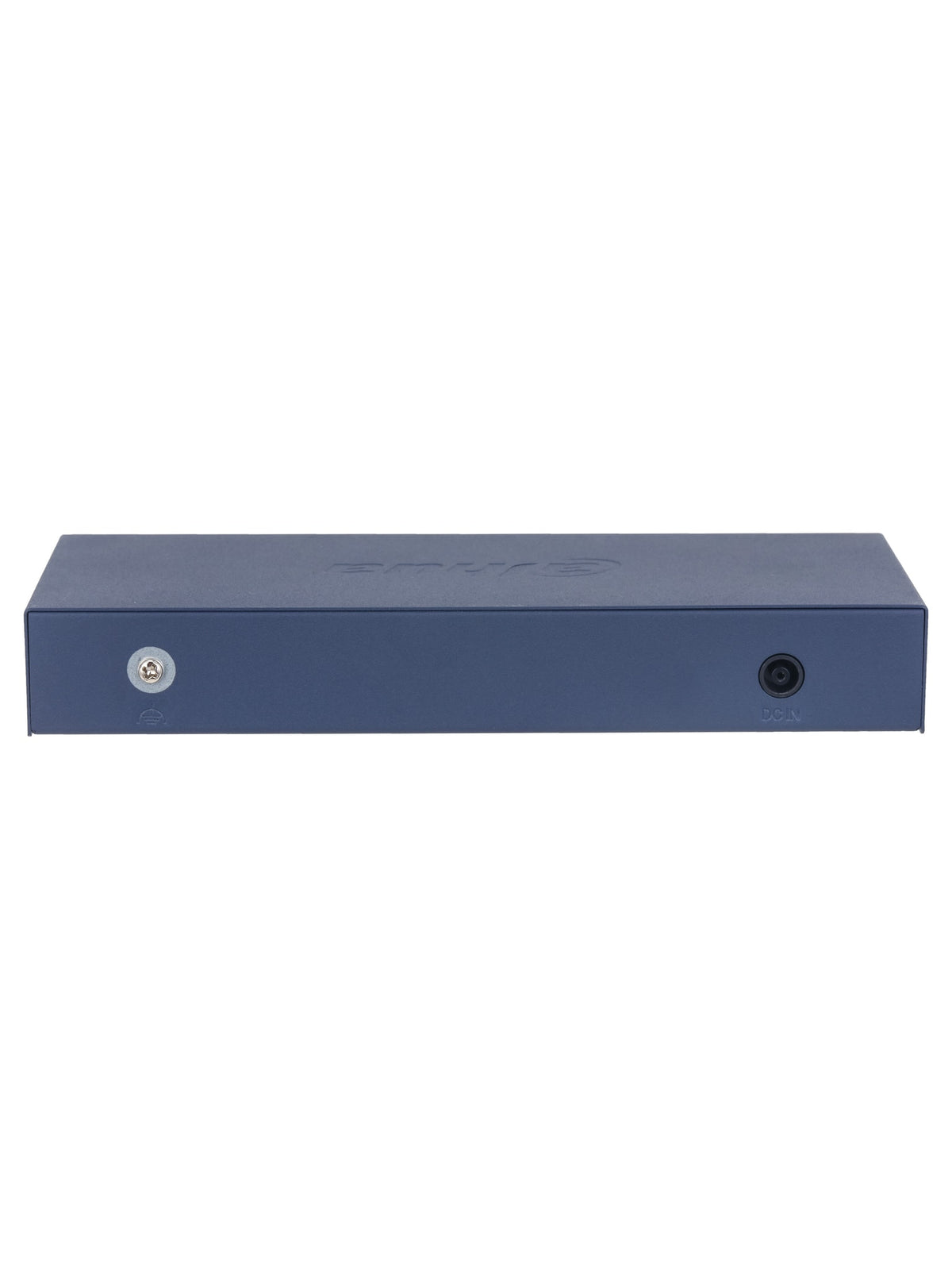

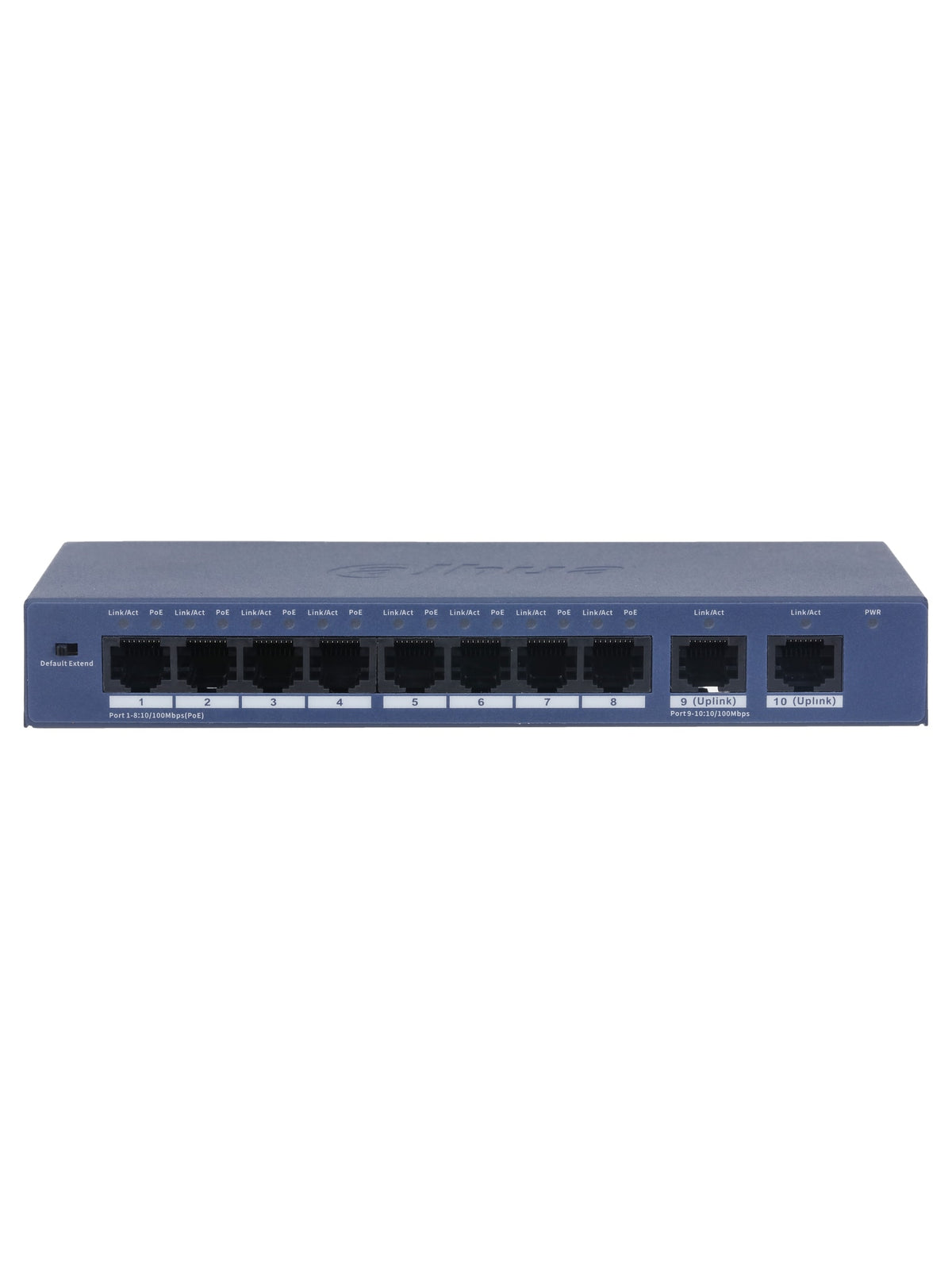

Dahua S3010-8ET2ET-60 10-Port Unmanaged Desktop Switch with 8-Port PoE (60W)
10-port 10/100 Mbps unmanaged switch with 8 PoE ports (60W budget), 250 m long-distance PoE, ideal for IP cameras and access points.
Read MoreExpress Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua S3010-8ET2ET-60 10-Port Unmanaged Desktop Switch with 8-Port PoE (60W)
The Dahua S3010-8ET2ET-60 is a 10-port unmanaged desktop switch with 8-port PoE built for surveillance and small business networks. It combines 8 x RJ45 10/100 Mbps (PoE), 2 x RJ45 10/100 Mbps (Uplink) with a 60W PoE budget (IEEE 802.3af, IEEE 802.3at), 250 m long-distance PoE mode, plug-and-play operation. It suits installers and offices that want to power IP cameras, access points or phones directly from the switch.
Main Specs
- 8 x RJ45 10/100 Mbps (PoE)
- 2 x RJ45 10/100 Mbps (Uplink)
- PoE: ports 1-8 up to 30 W, total up to 60 W
- PoE standards: IEEE 802.3af, IEEE 802.3at
- Switching capacity: 2 Gbps
- Management: unmanaged, plug and play
- Long-distance PoE up to 250 m (DIP switch)
- Power: external power adapter; desktop mount; wall mount
- Operating temperature: –10 °C to +55 °C
- Ideal for shops and small offices that need 8 PoE ports and 60W of power
Main Characteristics
Brand
Dahua
Model
S3010-8ET2ET-60
Product Type
Unmanaged PoE Switch
Layer
Unmanaged
Ports
Port 1-8: 8 × RJ45 10/100 Mbps (PoE); Port 9-10: 2 × RJ45 10/100 Mbps (Uplink)
Switching Capacity
2 Gbps
Packet Forwarding Rate
1.488 Mpps
PoE Power
Port 1-8≤30 W, total≤60 W
PoE Standards
IEEE 802.3af; IEEE 802.3at
Long Distance PoE
Yes, up to 250 m
Packet Buffer
768 Kbit
MAC Table
2K
Jumbo Frame
2048 Byte
Standards
IEEE802.3; IEEE802.3u; IEEE802.3x
Power Supply
External power supply: 53 V, 50/60 Hz, max 1.22 A
Power Consumption
Idling: 1.9 W; Full load: 63.6 W
Surge Protection
Common mode: 6 kV; Differential mode: 1 kV
Dimensions
184.6 mm × 77.4 mm × 27 mm (L x W x H)
Weight
0.28 kg
Installation
Desktop mount; wall mount
Operating Temperature
–10 °C to +55 °C
Casing
Sheet Metal
