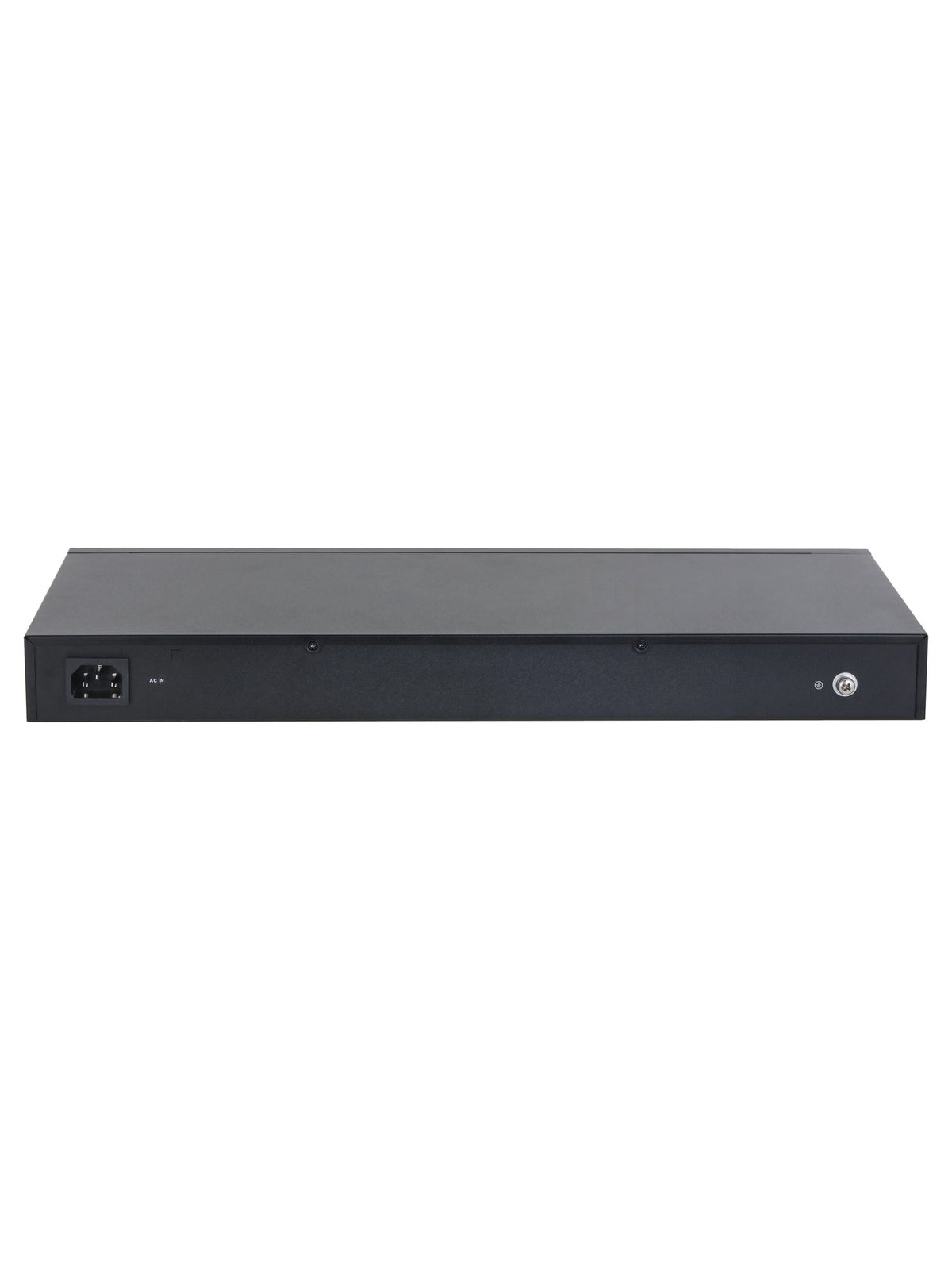

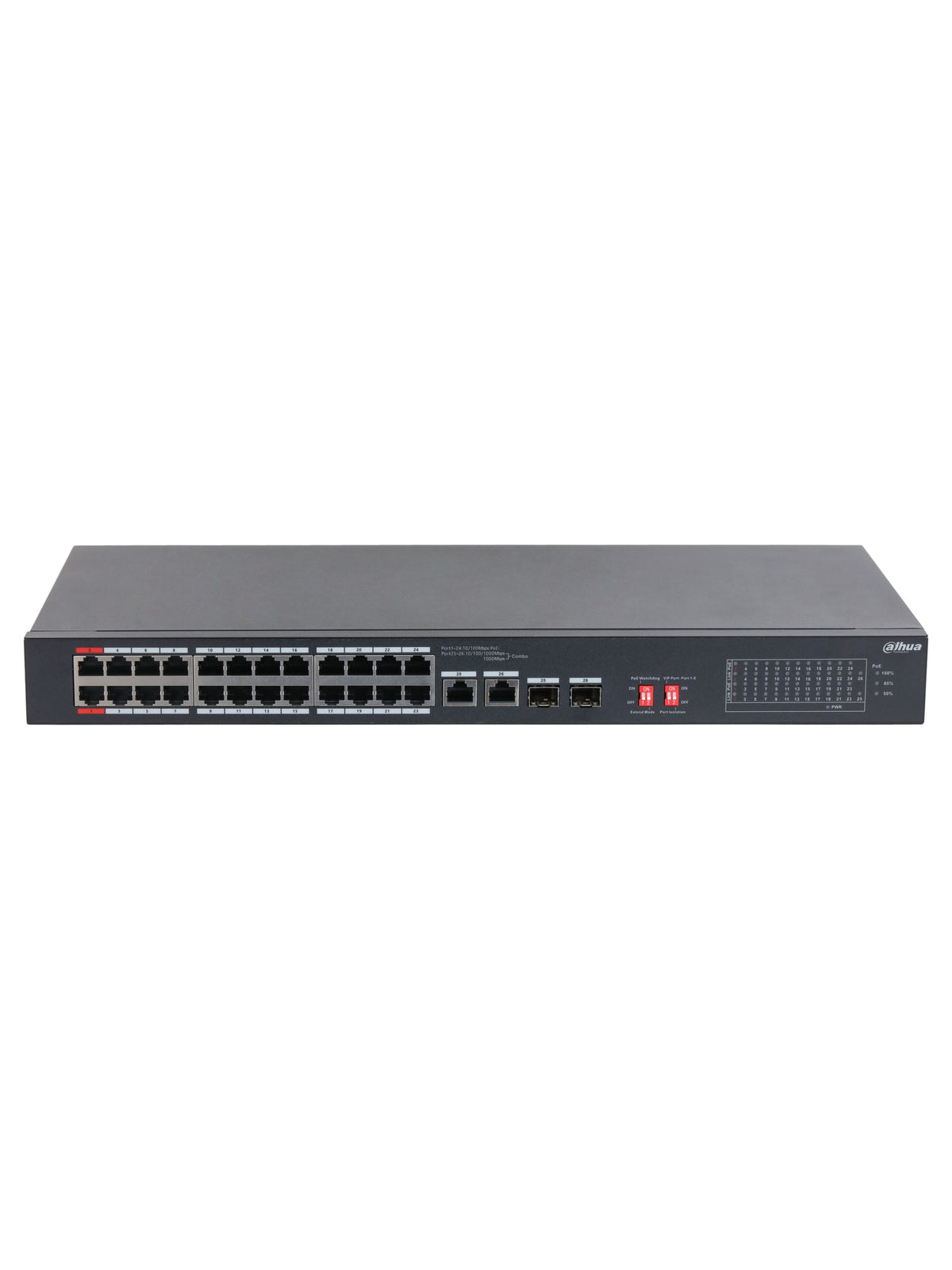

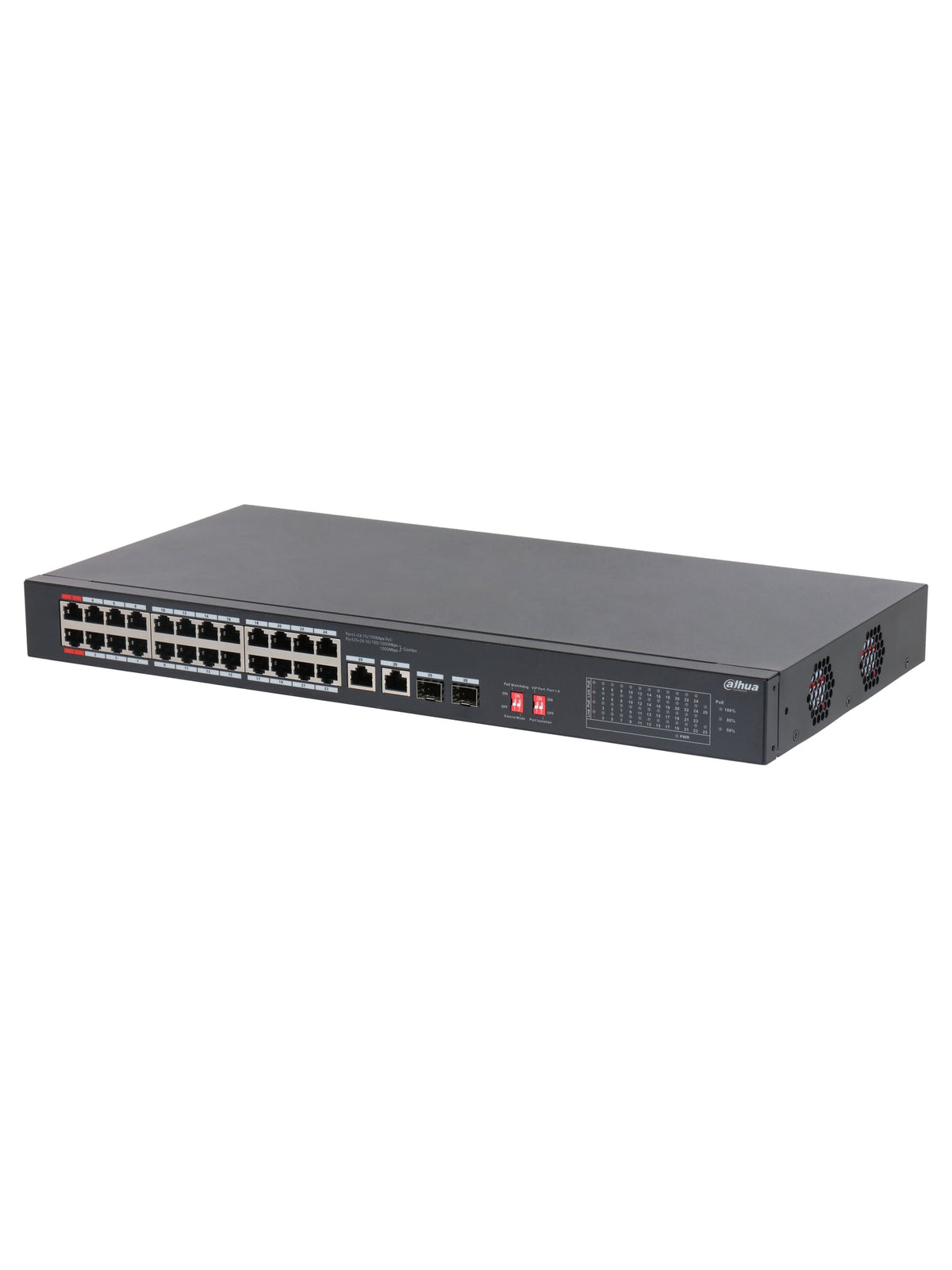

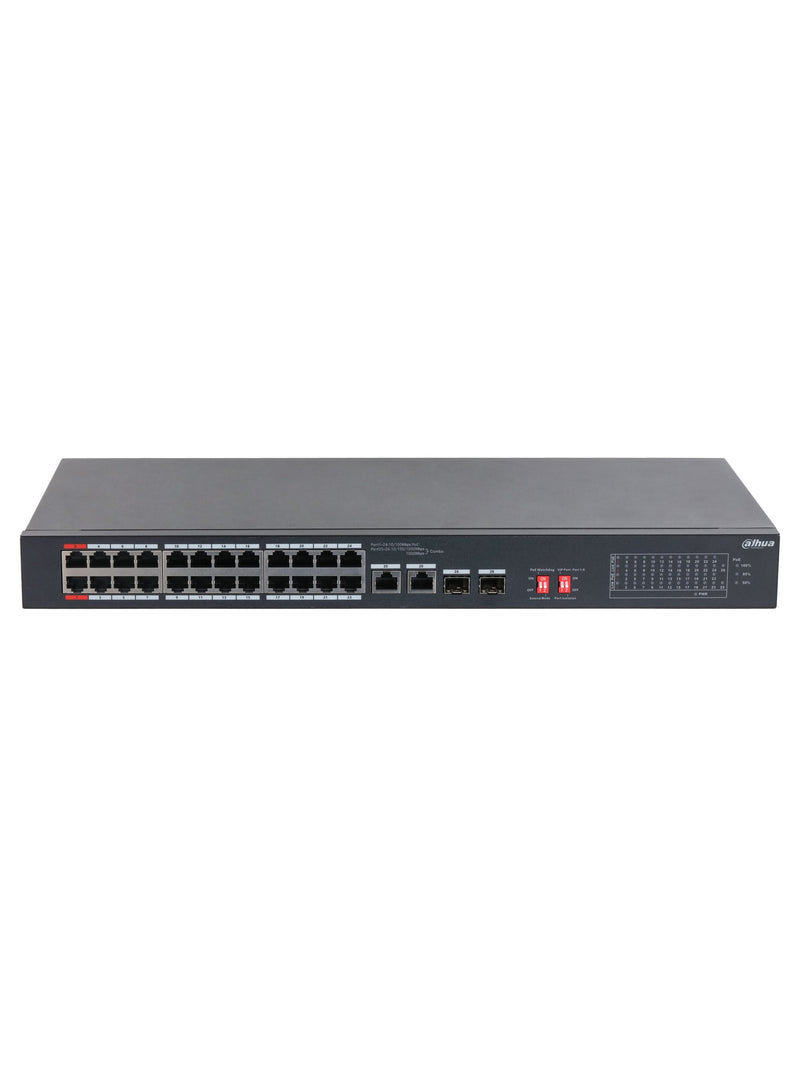

Dahua S3226-24ET-240 26-Port Unmanaged Switch with 24-Port PoE (240W)
Unmanaged 26-port switch with 24 x 10/100 PoE ports (240W budget), 2 Gigabit RJ-45/SFP combo uplinks, PoE watchdog, VIP ports and 250 m long-distance PoE.
Read MoreSpecs
Brand
Dahua
Model
S3226-24ET-240
Product Type
Unmanaged PoE Switch
Ports
24 x RJ-45 10/100 Mbps PoE; 2 x RJ-45 10/100/1000 Mbps (combo); 2 x SFP 1000 Mbps (combo)
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua S3226-24ET-240 26-Port Unmanaged Switch with 24-Port PoE (240W)
The Dahua S3226-24ET-240 is an unmanaged 26-port switch that powers and connects up to 24 network cameras or other PoE devices. It combines 24 x 10/100 Mbps PoE ports with a 240W budget, two Gigabit RJ-45/SFP combo uplinks, PoE watchdog and up to 250 m PoE transmission. It suits CCTV installers and small businesses building camera or access networks without any configuration.
Main Specs
- 24 x RJ-45 10/100 Mbps PoE ports
- 2 x Gigabit RJ-45 / 2 x 1G SFP combo uplink ports
- IEEE 802.3af/at/bt and Hi-PoE, total PoE budget 240W
- Ports 1-2 up to 90W, ports 3-24 up to 30W
- PoE watchdog restarts frozen cameras automatically
- VIP priority for ports 1-8, up to 250 m PoE distance
- 8.8 Gbps switching capacity, 8K MAC table
- Built-in 100-240 VAC power supply, desktop or DIN-rail mount
- Ideal for CCTV installers and small businesses powering many IP cameras
Main Characteristics
Brand
Dahua
Model
S3226-24ET-240
Product Type
Unmanaged PoE Switch
Ports
24 x RJ-45 10/100 Mbps PoE; 2 x RJ-45 10/100/1000 Mbps (combo); 2 x SFP 1000 Mbps (combo)
PoE Standards
IEEE 802.3af, IEEE 802.3at, Hi-PoE, IEEE 802.3bt
PoE Budget
240 W total (ports 1-2 β€ 90 W, ports 3-24 β€ 30 W)
Long Distance PoE
Up to 250 m
Management
Unmanaged
Switching Capacity
8.8 Gbps
Packet Forwarding Rate
6.55 Mpps
Packet Buffer
4 Mbit
MAC Table
8K
Jumbo Frame
15K Byte
Power Supply
Built-in, 100-240 VAC, 50/60 Hz
Power Consumption
Idle β€ 8.5 W; full load 265 W
Surge Protection
Common mode 4 kV, differential mode 2 kV
Installation
Desktop; DIN-rail
Casing
Sheet metal
Dimensions
440 x 220 x 44 mm
Weight
2.47 kg
Operating Temperature
-10Β°C to +55Β°C
