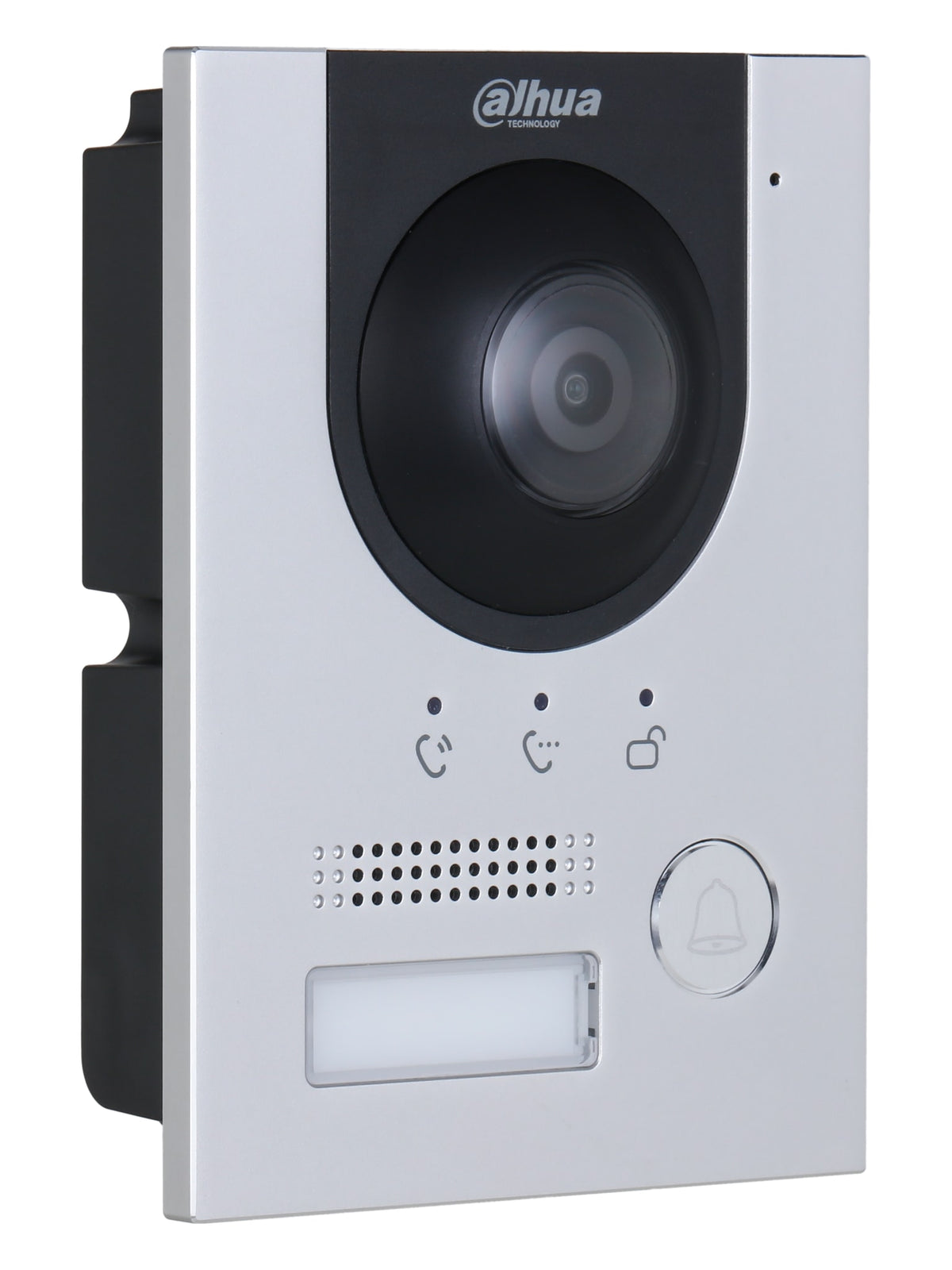

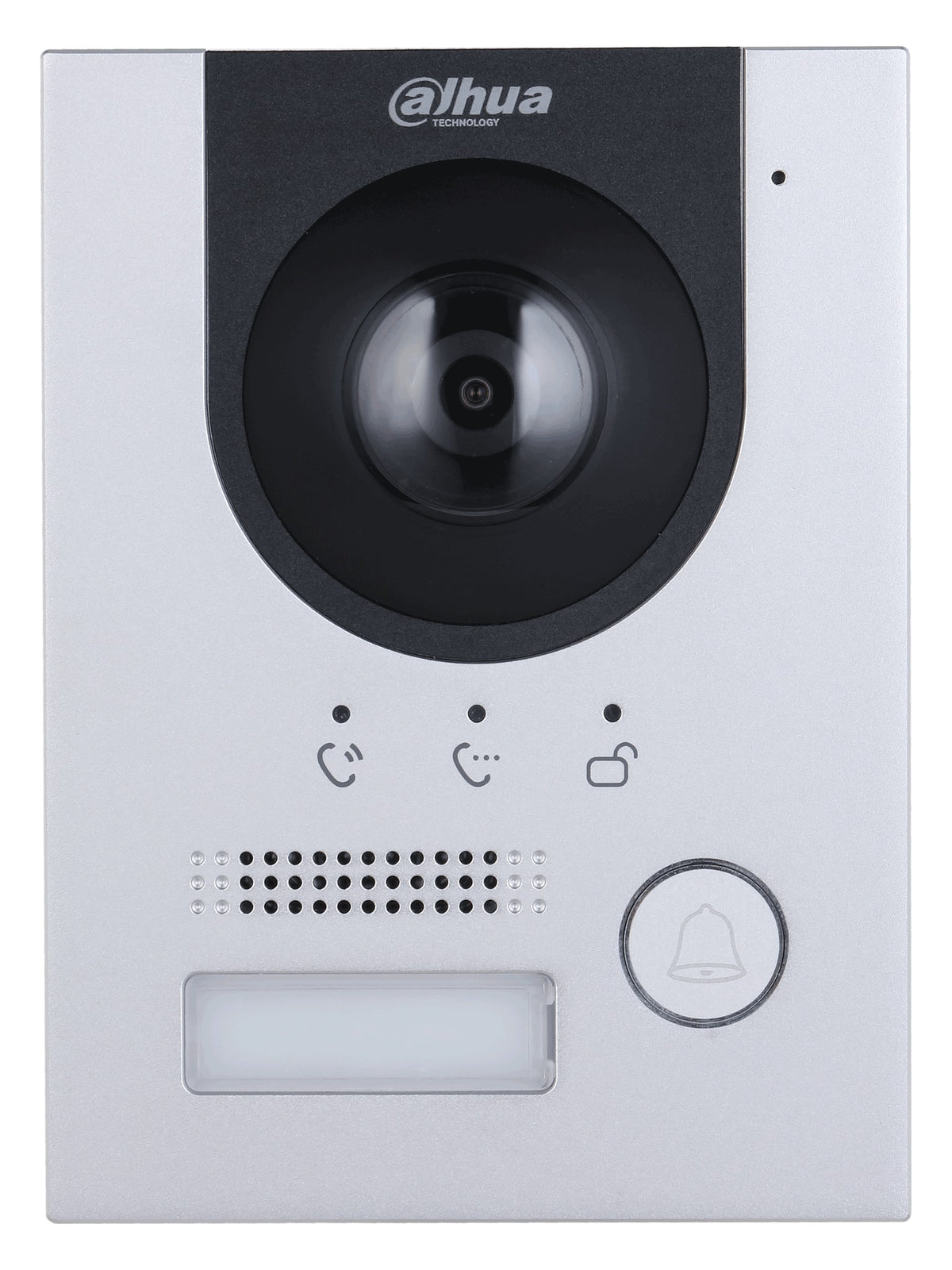

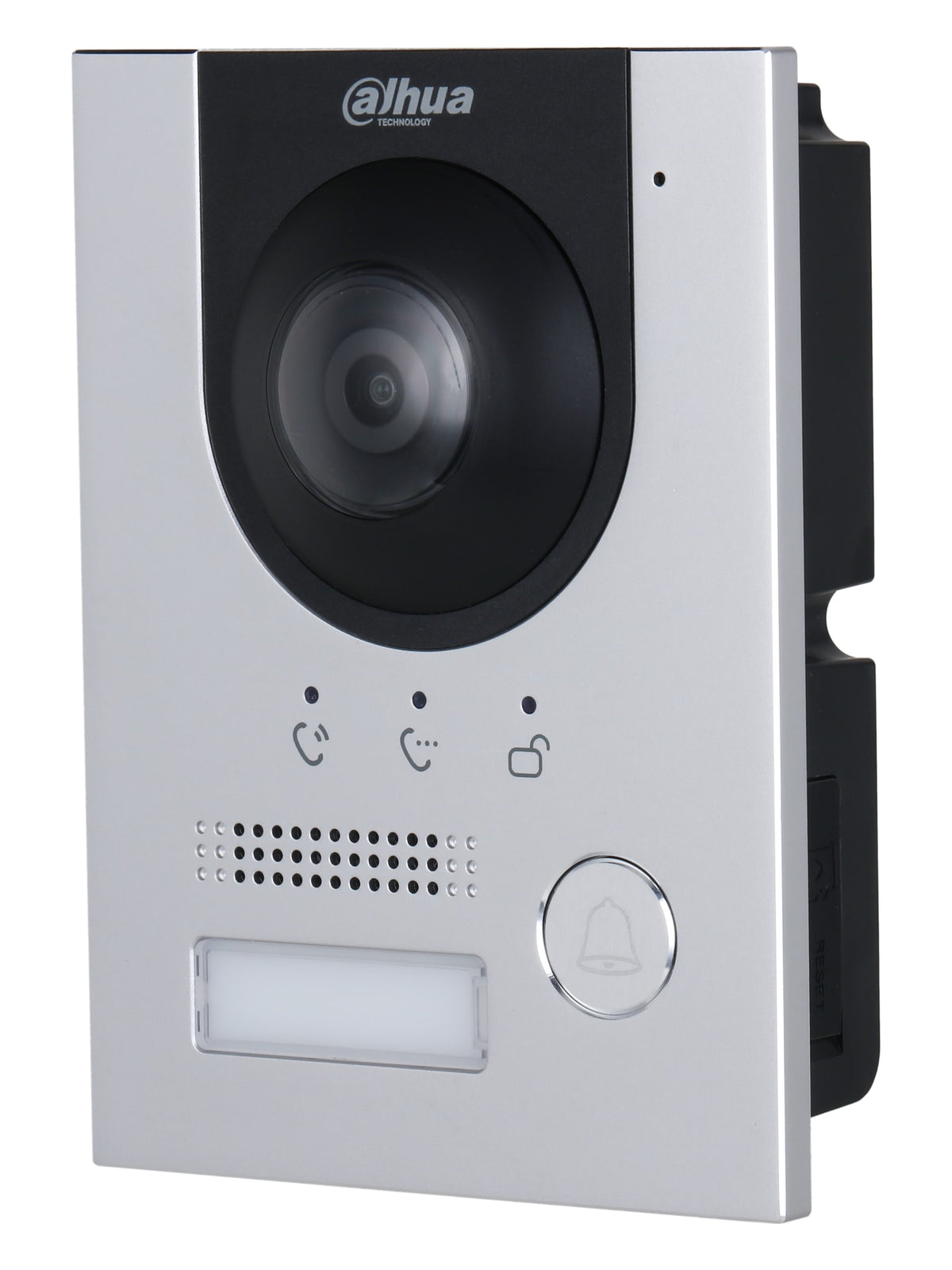

Dahua VTO2201F-P-S2 IP Villa Door Station, 2MP 168° Camera, PoE, IP65 / IK07
Dahua VTO2201F-P-S2 aluminum IP villa door station with 2 MP 168.6° fisheye camera, IR, 120 dB WDR, one call button, PoE, lock control, IP65 / IK07.
Read MoreSpecs
Brand
Dahua
Model
DHI-VTO2201F-P-S2
Product Type
IP villa door station
Camera
1/2.9" 2 MP CMOS
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3–5 Business Days)
15
Standard delivery with in-store pickup, 3–5 business days.
Express 1–2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1–2 business days.
Dahua VTO2201F-P-S2 IP Villa Door Station, 2MP 168° Camera, PoE, IP65 / IK07
The Dahua VTO2201F-P-S2 is a one-button IP villa door station with an ultra-wide camera. It combines a 2 MP 168.6° camera with auto IR and 120 dB WDR, two-way audio with echo suppression, lock, exit-button and door-sensor ports and standard PoE in an IP65 / IK07 aluminum case. It suits villas and houses that want to see the whole doorstep from Dahua indoor monitors and the app.
Main Specs
- 2 MP 1/2.9" CMOS, 168.6° horizontal field of view
- Auto IR, 120 dB WDR, 3D noise reduction
- H.265 / H.264 video, two-way audio
- 1 call button, remote unlock

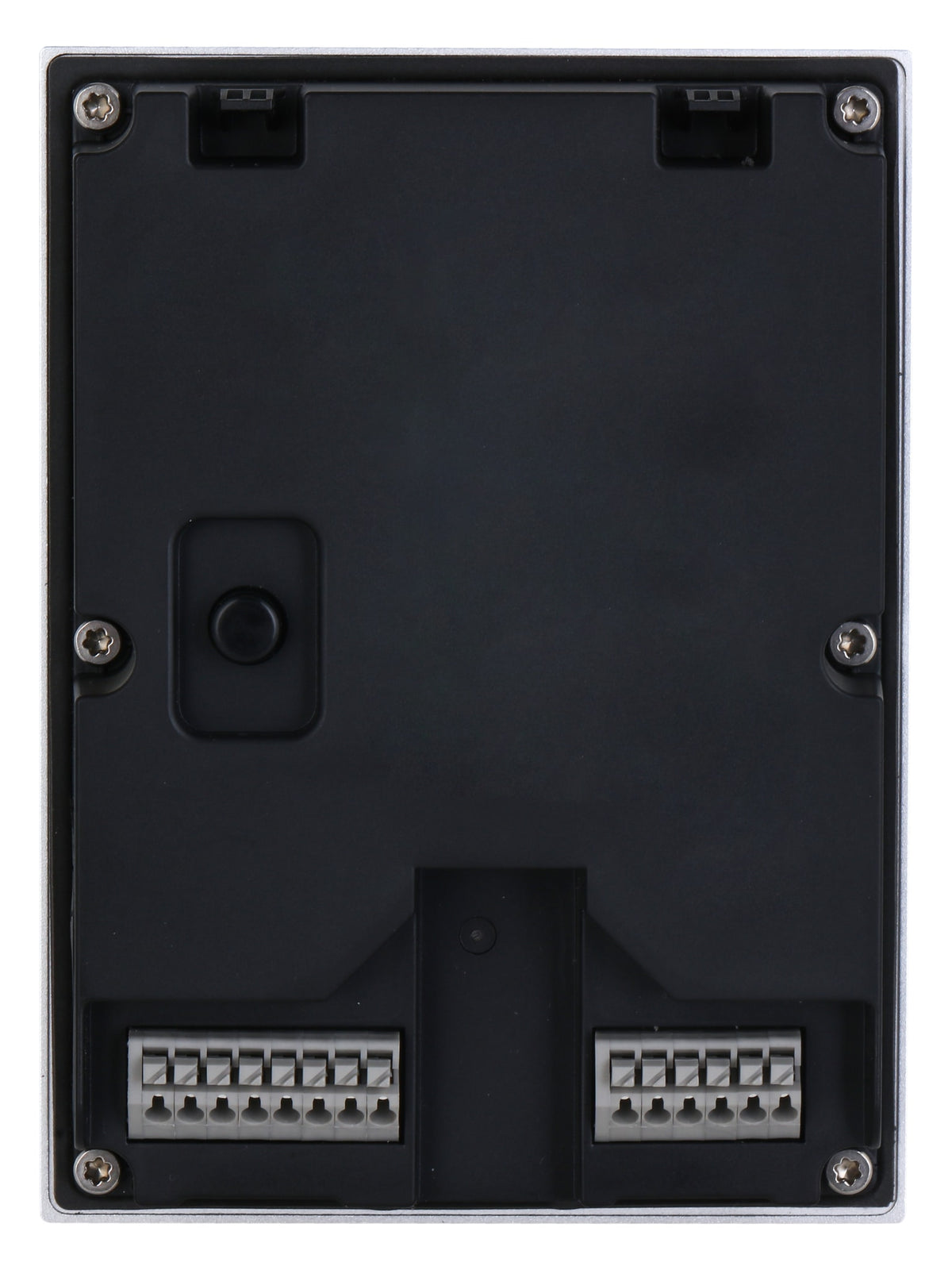

- Ports: lock, exit button, door sensor, alarm output, RS-485
- Power: standard PoE (802.3af/at) or 12 V DC 2 A
- microSD up to 256 GB
- IP65 and IK07, aluminum, -30 °C to +60 °C
- Surface or flush mount, 130 x 96 x 28.5 mm, silver
- Ideal for villas that want a wide view of the doorstep
Main Characteristics
Brand
Dahua
Model
DHI-VTO2201F-P-S2
Product Type
IP villa door station
Camera
1/2.9" 2 MP CMOS
Field of View
H 168.6°, V 87.1°, D 176.7°
WDR
120 dB
Night Vision
Auto IR
Video Compression
H.265, H.264
Audio
Built-in mic and speaker, two-way, echo suppression
Buttons
1 (mechanical)
Unlock Mode
Remote
Ports
RS-485, alarm output, 12 V 600 mA power output, exit button, door status, lock control, RJ-45 10/100
Storage
microSD up to 256 GB
Power Supply
12 V DC 2 A, PoE (802.3af/at)
Power Consumption
≤ 5 W working
Casing
Aluminum, silver
Protection
IP65, IK07
Dimensions
130 x 96 x 28.5 mm
Gross Weight
0.48 kg
Installation
Flush mount, surface mount (boxes optional)
Operating Temperature
-30 °C to +60 °C
Certifications
CE
