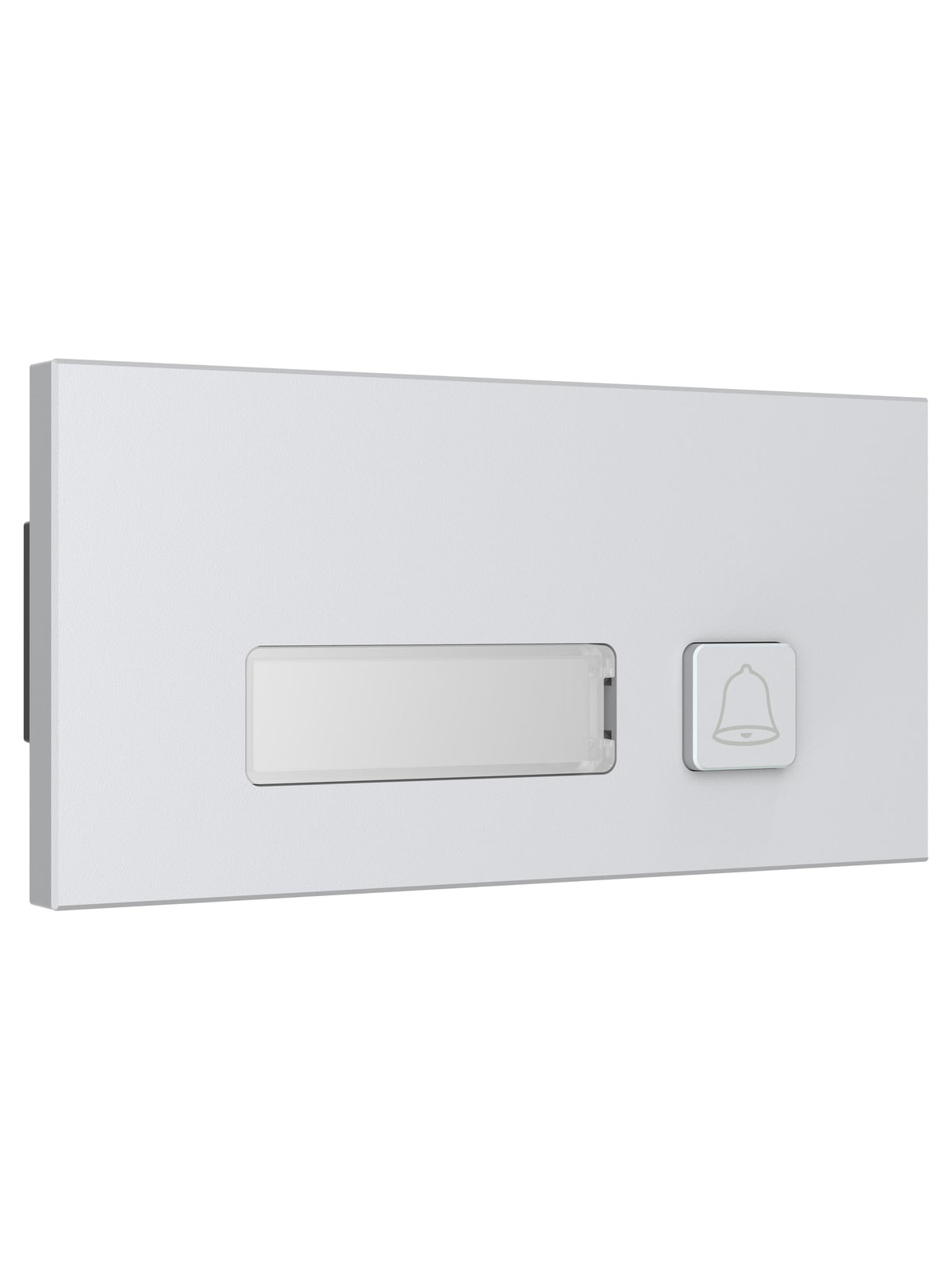

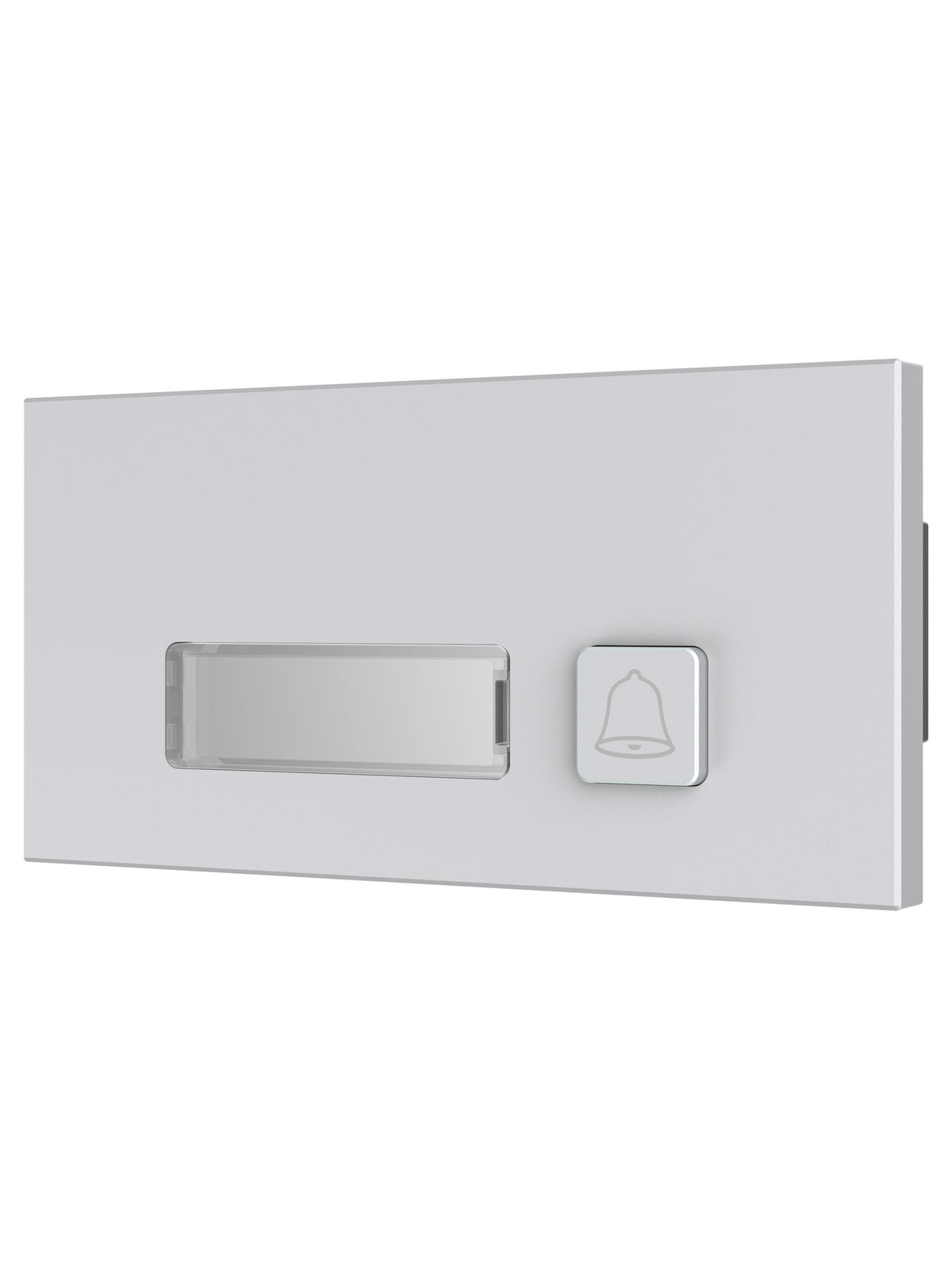

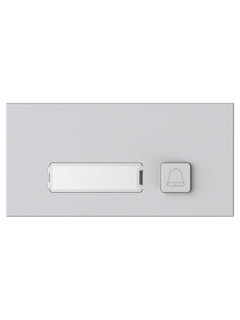

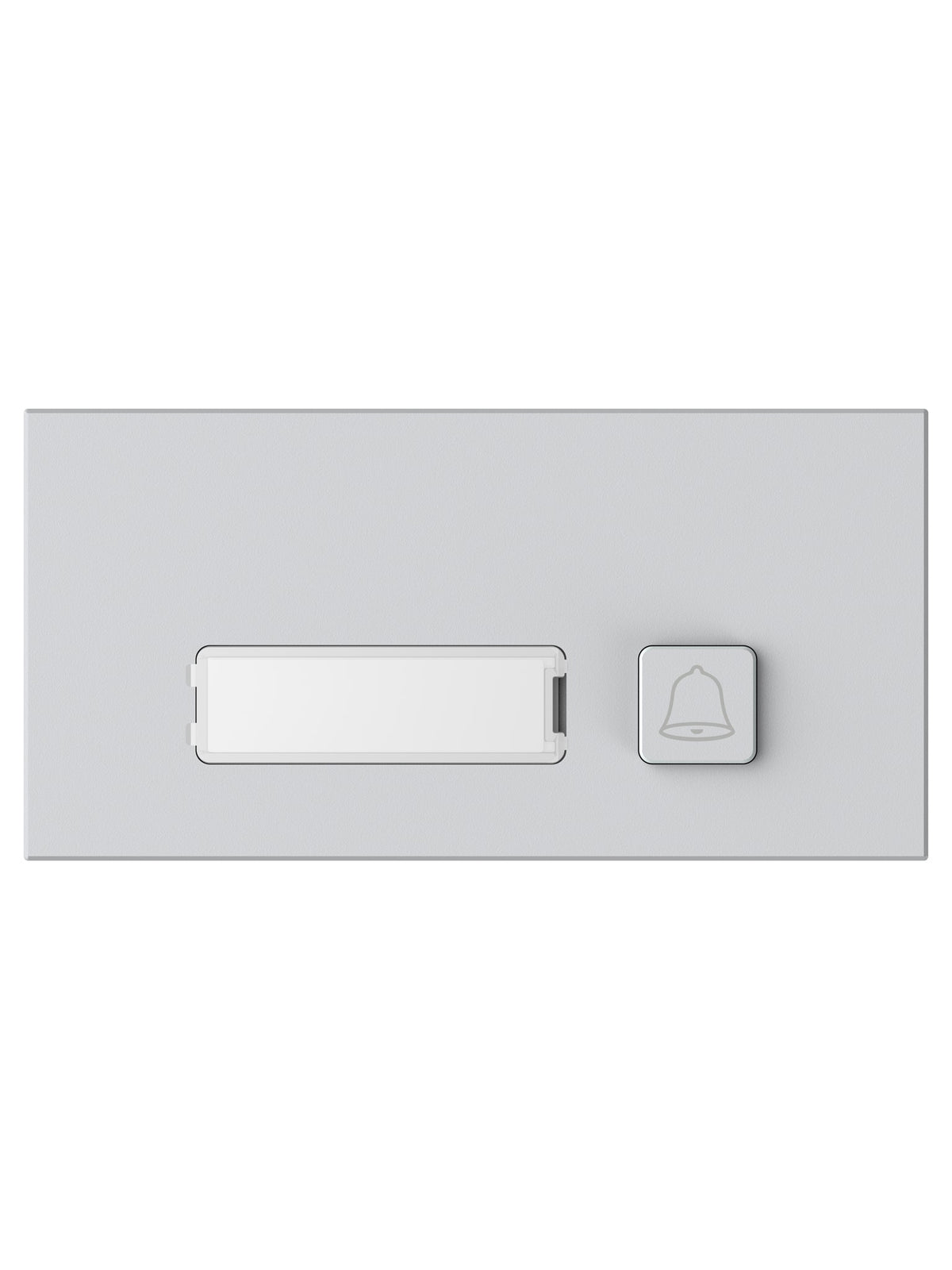

Dahua VTO4202F-MB1 1-Button Module for VTO4202F Modular Door Station
Dahua VTO4202F-MB1 aluminum 1-call-button module for the VTO4202F modular door station, powered by the other modules, IP65 / IK07, 100 x 50 mm.
Read MoreSpecs
Brand
Dahua
Model
DHI-VTO4202F-MB1
Product Type
Door station button module
Buttons
1, mechanical
Express Shipping
Shipping Info
Fast delivery options for your convenience
Pick-Up in Store
Free
Select this option to pick up your order directly from our store. Fast and convenient!
Standard (3β5 Business Days)
15
Standard delivery with in-store pickup, 3β5 business days.
Express 1β2 Business Days
from $25
For quick delivery, choose Express shipping, and get your order within 1β2 business days.
Dahua VTO4202F-MB1 1-Button Module for VTO4202F Modular Door Station
The Dahua VTO4202F-MB1 is a single call-button module for the Dahua VTO4202F modular door station. It combines a mechanical call button, an aluminum alloy body and 5 V power taken from the neighbouring modules, with IP65 / IK07 protection. It suits villas and small buildings adding one call button under the camera module.
Main Specs
- 1 mechanical call button
- For the VTO4202F modular door station series
- Aluminum alloy, silver
- Power: 5 V DC from the other modules
- Passes 5 V on to further modules
- IP65 (with silicone sealant) and IK07
- Flush or surface mount
- Size: 100 x 50 x 30.5 mm, 0.18 kg
- Power consumption: 0.5 W
- Ideal for adding one call button to a modular door station
Main Characteristics
Brand
Dahua
Model
DHI-VTO4202F-MB1
Product Type
Door station button module
Buttons
1, mechanical
Compatibility
VTO4202F-X modular series
Casing
Aluminum alloy, silver
Power Supply
5 V DC (provided by other modules)
Power Output
5 V DC (for other modules)
Power Consumption
0.5 W
Protection
IK07, IP65 (silicone sealant needed)
Dimensions
100 x 50 x 30.5 mm
Gross Weight
0.18 kg
Installation
Flush mount, surface mount
Operating Temperature
-30 Β°C to +60 Β°C
